boot Citroen C5 DAG 2007.5 (DC/DE) / 1.G User Guide
[x] Cancel search | Manufacturer: CITROEN, Model Year: 2007.5, Model line: C5 DAG, Model: Citroen C5 DAG 2007.5 (DC/DE) / 1.GPages: 231, PDF Size: 8.02 MB
Page 148 of 231
152
V
+ 1
- 4- 3
+ 2
A
B
C
1 2 V B A T T E R Y
V 6 H Di E N G I N E
Starting the engine with an assisting battery
If the battery is discharged, it is possible to use either a separate emergency battery or a battery on another vehicle.
If you use the battery on another vehicle, stop the engine on the latter. The two vehicles must not come into direct contact with each other.
Check that the assisting battery h a s s u f fi c i e n t v o l t a g e ( 1 2 V ) .
Connect the cables according to the order indicated in the dia-ordergram.
A Pole “+” of the broken down vehicle (Under the red cover).B Assisting battery.C Pole “–” of the broken down vehicle (Under the bonnet).
Check that the leads are well secured (risk of sparks).
Start the engine of the assist-ing vehicle. Let the engine run for around 1 minute at a slightly accel-erated idle.
Operate the starter on the vehicle being assisted.
It is essential to follow the indi-cated sequence correctly.
N e v e r a p p r o a c h w i t h a fl a m e o r c r e a t e s p a r k s i n t h e v i
c i n i t y o f t h e b a t t e r y ( e x p l o s i v e g a s ) .
The battery contains dilute sulphuric acid which is hig hly corrosive.
When handling batteries, always protect your face and es pecially your eyes.
In the event of any contact with the skin, rinse immediatel y with copious amounts of fresh water.
For any battery replacement, contact a CITROËN dealer.
Do not touch the leads during the operation.
Do not lean over the batteries.
Disconnect the cables in reverse order, making sure they do not touch together.
Advice
Battery location and access
The battery is located in the boot under the left hand wing trim. To a c c e s s t h e b a t t e r y , o p e n t h e fl a p .
IMPORTANT
In the event of a battery failure, and if the boot is closed, it is then necessary to feed an electrical supply to your vehicle.
Page 160 of 231
164
VIB
C
A
E
D
F
G
G
C H A N G I N G B U L B S
R E A R L A M P S
Rear lamp unit
Identify the failed bulb.
Bulbs:A Stop-lamps and sidelamps: P 21 W / 5 WB Sidelamp: R 5 WC Reversing lamp: H 21 WD Foglamp: H 21 WE Direction indicator: P 21 W
Rear lamp on boot1 Open the boot.2 U s i n g a fl a t s c r e w d r i v e r , r e m o v e t h e 3 c l i p s w h i c h fi x t h e t r i m i n t h e lamp area.3 Partially remove the trim F.4 Disconnect the connector.5 Detach the bulb holder G.6 Replace the bulb.7 Replace the bulb holder G.8 Connect the connector.9 R e p l a c e a n d fi x t h e t r i m F with its clips.
In some climatic conditions, mist may appear on the headlamp / indicator lenses. This is normal and will disappear (e.g. after the lamps have been on for a few minutes). If not, contact a CITROËN dealer. some climatic conditions, mist may appear on the h eadlamp / indicator lenses. This is normal and is no
Page 161 of 231
165
VI
A
B
CD
C H A N G I N G B U L B S
R E A R L A M P S

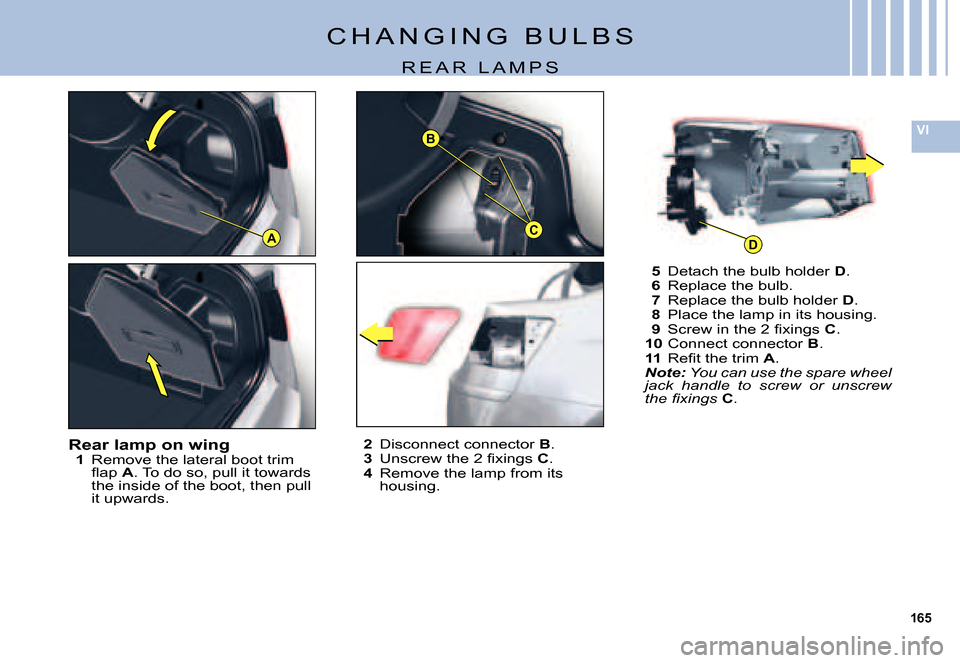

Rear lamp on wing1 Remove the lateral boot trim fl a p A. To do so, pull it towards the inside of the boot, then pull it upwards.
2 Disconnect connector B.3 U n s c r e w t h e 2 fi x i n g s C.4 Remove the lamp from its housing.
5 Detach the bulb holder D.6 Replace the bulb.7 Replace the bulb holder D.8 Place the lamp in its housing.9 S c r e w i n t h e 2 fi x i n g s C.10 Connect connector B.11 R e fi t t h e t r i m A.Note: You can use the spare wheel jack handle to screw or unscrew t h e fi x i n g s C.
Page 163 of 231
167
VI
C H A N G I N G B U L B S

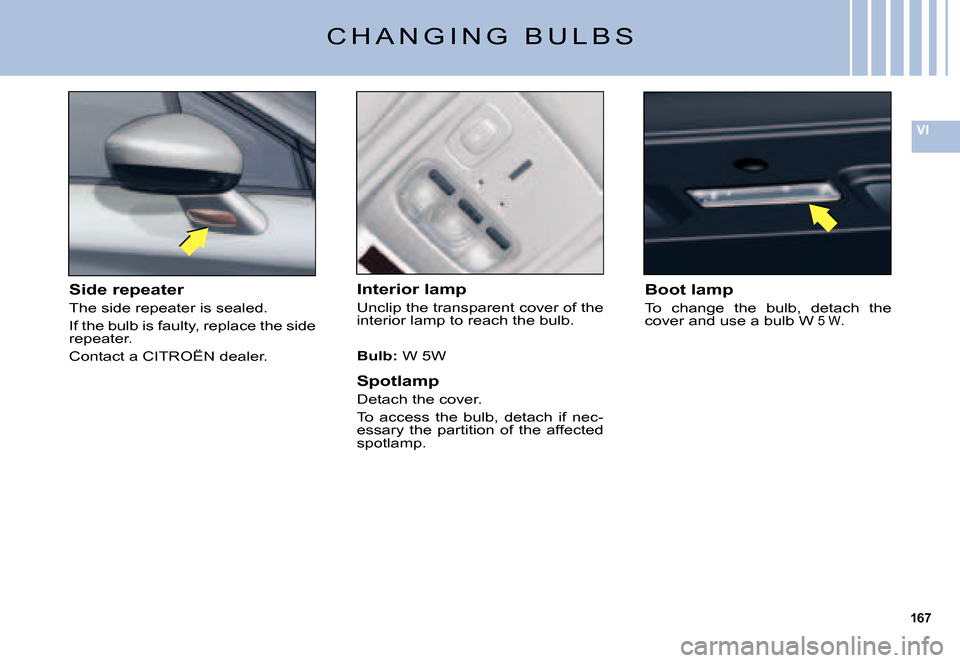

Interior lamp
Unclip the transparent cover of the interior lamp to reach the bulb.
Bulb: W 5W
Spotlamp
Detach the cover.
To access the bulb, detach if nec-essary the partition of the affected spotlamp.
Side repeater
The side repeater is sealed.
If the bulb is faulty, replace the side repeater.
Contact a CITROËN dealer.
Boot lamp
To change the bulb, detach the cover and use a bulb W 5 W.
Page 166 of 231
170
VI
A1
P U N C T U R E K I T
Puncture kit
The puncture repair kit is located in the boot.
The puncture repair kit is a com-plete system including a compres-sor and a setting product.
Using the puncture repair kit1. Remove the sticker found in the kit, then stick it on the steering wheel to remind you that you are driving with a w h e e l t h a t i s o n l y fi t f o r t e m p o -rary use and that your speed is therefore limited.2. C o n n e c t t h e fl a s k 1 to the valve of the tyre to be repaired.3. Connect the electric cable to one of the vehicle's 12V sock-ets.
4. With the engine running, start the compressor by pressing on button A until the tyre pressure reaches 2,0 bars. If you cannot reach a pressure of 2 bars, the tyre is not repairable.5. Remove and store the com-pressor.6. Drive off immediately, for a few miles at reduced speed, to allow the puncture repair to set.7. Adjust the tyre pressure using the compressor according to the recommendations for the vehicle, and check that there is no air escaping (no loss of pressure). If you cannot reach a pressure of 2 bars, the tyre is not repairable.8. Do not exceed 110 km/h (68 mph). The tyre must be exam-ined and repaired by a profes-sional as soon as possible.
W a r n i n g , t h e fl a s k o f p u n c t u r e r e p a i r g e l c o n t a i n s e t h y l e n e - g l y c o l , a p r o d u c t t h a t i s t o x i c i f i n g e s t e d and irritating for the eyes.
Keep out of the reach of children.
A f t e r u s e , d o n o t d i s p o s e o f t h e fl a s k i n t h e n a t u r a l e n v i r o n m e n t , b u t r e t u r n i t t o a C I T R O Ë N d e a l e r or to a recognised recovery facility.
This repair kit is available from a CITROËN dealer.
Page 167 of 231
171
VI
3
6
7
1
2
4
5
C H A N G I N G A W H E E L

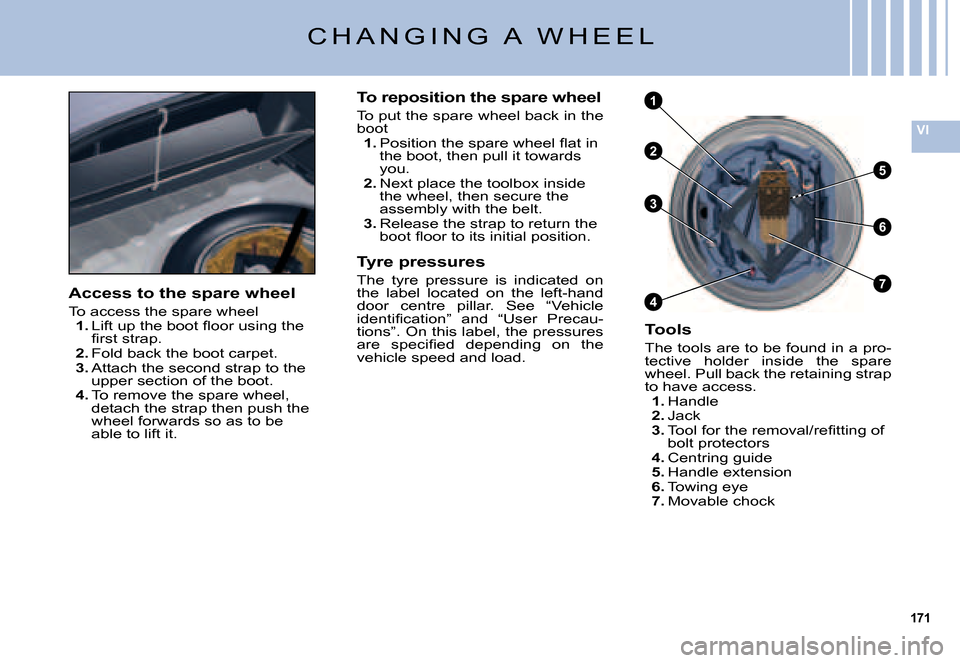

Access to the spare wheel
To access the spare wheel1. L i f t u p t h e b o o t fl o o r u s i n g t h e fi r s t s t r a p .2. Fold back the boot carpet.3. Attach the second strap to the upper section of the boot.4. To remove the spare wheel, detach the strap then push the wheel forwards so as to be able to lift it.
Tools
The tools are to be found in a pro-tective holder inside the spare wheel. Pull back the retaining strap to have access.1. Handle2. Jack3. T o o l f o r t h e r e m o v a l / r e fi t t i n g o f bolt protectors4. Centring guide5. Handle extension6. Towing eye7. Movable chock
To reposition the spare wheel
To put the spare wheel back in the boot1. P o s i t i o n t h e s p a r e w h e e l fl a t i n the boot, then pull it towards you.2. Next place the toolbox inside the wheel, then secure the assembly with the belt.3. Release the strap to return the b o o t fl o o r t o i t s i n i t i a l p o s i t i o n .
Tyre pressures
The tyre pressure is indicated on the label located on the left-hand door centre pillar. See “Vehicle i d e n t i fi c a t i o n ” a n d “ U s e r P r e c a u -tions”. On this label, the pressures a r e s p e c i fi e d d e p e n d i n g o n t h e vehicle speed and load.
