29
II

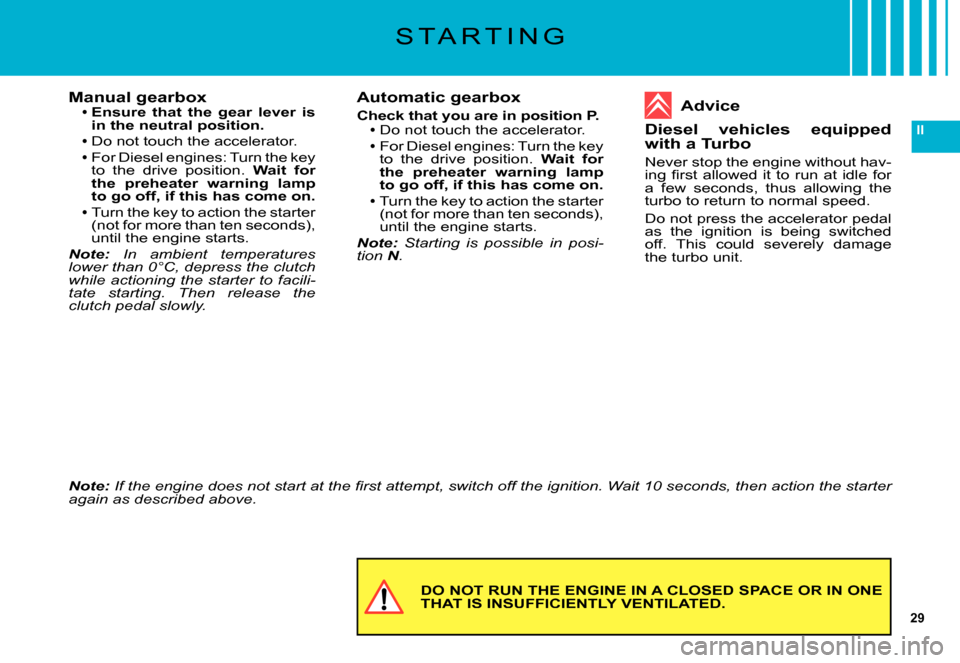

DO NOT RUN THE ENGINE IN A CLOSED SPACE OR IN ONE THAT IS INSUFFICIENTLY VENTILATED.
Manual gearboxEnsure that the gear lever is in the neutral position.
Do not touch the accelerator.For Diesel engines: Turn the key to the drive position. Wait for the preheater warning lamp to go off, if this has come on.
Turn the key to action the starter (not for more than ten seconds), until the engine starts.Note: In ambient temperatures lower than 0°C, depress the clutch while actioning the starter to facili-tate starting. Then release the clutch pedal slowly.

71
II
A

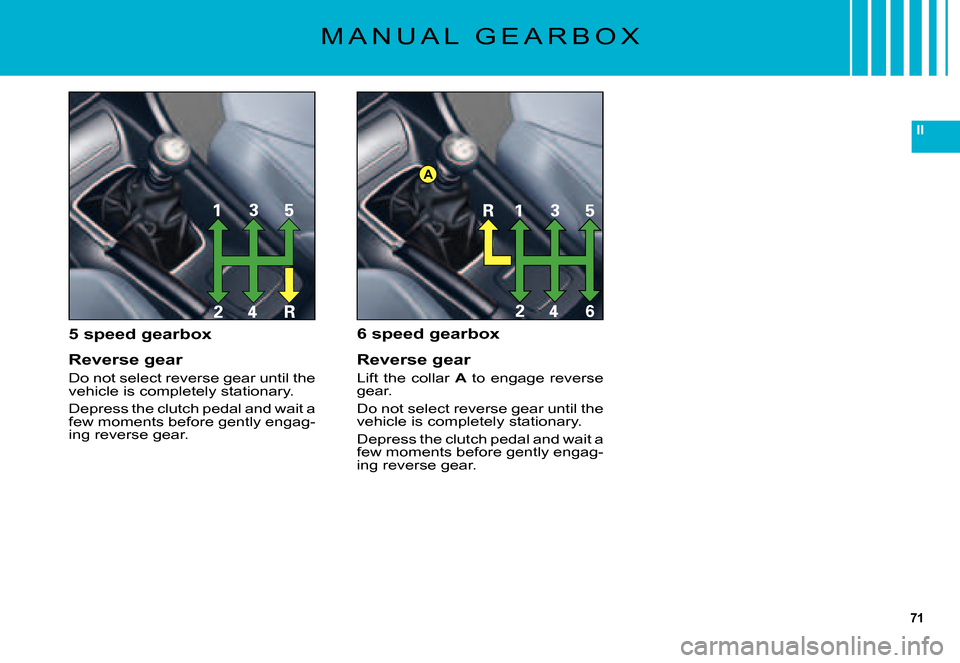

M A N U A L G E A R B O X
5 speed gearbox
Reverse gear
Do not select reverse gear until the vehicle is completely stationary.
Depress the clutch pedal and wait a few moments before gently engag-ing reverse gear.
6 speed gearbox
Reverse gear
Lift the collar A to engage reverse gear.
Do not select reverse gear until the vehicle is completely stationary.
Depress the clutch pedal and wait a few moments before gently engag-ing reverse gear.

157
V
T A B L E O F F U S E S
Fuses under the bonnet
Ref.RatingFunction
F120AEngine control unit
F215AHorn
F310AScreen wash pump
F410AHeadlamp wash pump
F515AStarter
F610AAir fl ow meter - Directional headlamps - Diagnostic socket
F710AAutomatic gearbox lever lock - Power steering
F825AStarter
F910AClutch switch - STOP switch
F1030AStarter
F1140AAir conditioning blower
F1230AWipers
F1340ABSI supply (ignition on)
F1430A-
F1510ARight-hand main beam
F1610ALeft-hand main beam
F1715ARight-hand dipped beam
F1815ALeft-hand dipped beam
F1915AStarter
F2010AStarter
F215AStarter
