39
II

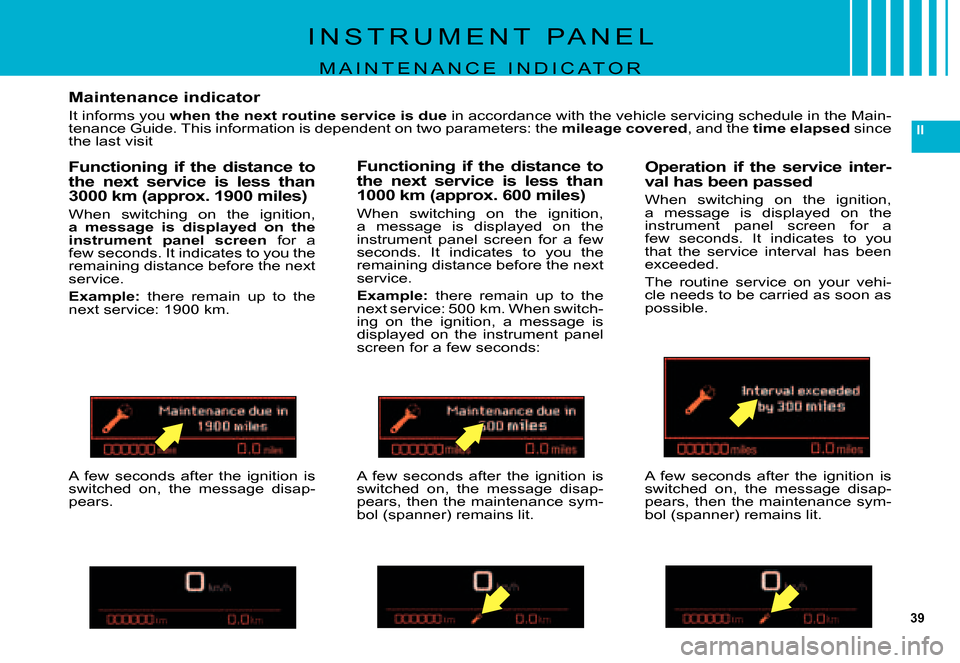

Maintenance indicator
It informs you when the next routine service is due in accordance with the vehicle servicing schedule in the Main-tenance Guide. This information is dependent on two parameters: the mileage covered, and the time elapsed since the last visit
Functioning if the distance to the next service is less than 3000 km (approx. 1900 miles)
When switching on the ignition, a message is displayed on the instrument panel screen for a few seconds. It indicates to you the remaining distance before the next service.
Example: there remain up to the next service: 1900 km.
A few seconds after the ignition is switched on, the message disap-pears.
Functioning if the distance to the next service is less than 1000 km (approx. 600 miles)
When switching on the ignition, a message is displayed on the instrument panel screen for a few seconds. It indicates to you the remaining distance before the next service.
Example: there remain up to the next service: 500 km. When switch-ing on the ignition, a message is displayed on the instrument panel screen for a few seconds:
A few seconds after the ignition is switched on, the message disap-pears, then the maintenance sym-bol (spanner) remains lit.
Operation if the service inter-val has been passed
When switching on the ignition, a message is displayed on the instrument panel screen for a few seconds. It indicates to you that the service interval has been exceeded.
The routine service on your vehi-cle needs to be carried as soon as possible.
A few seconds after the ignition is switched on, the message disap-pears, then the maintenance sym-bol (spanner) remains lit.
I N S T R U M E N T P A N E L
M A I N T E N A N C E I N D I C A T O R
40
II
A

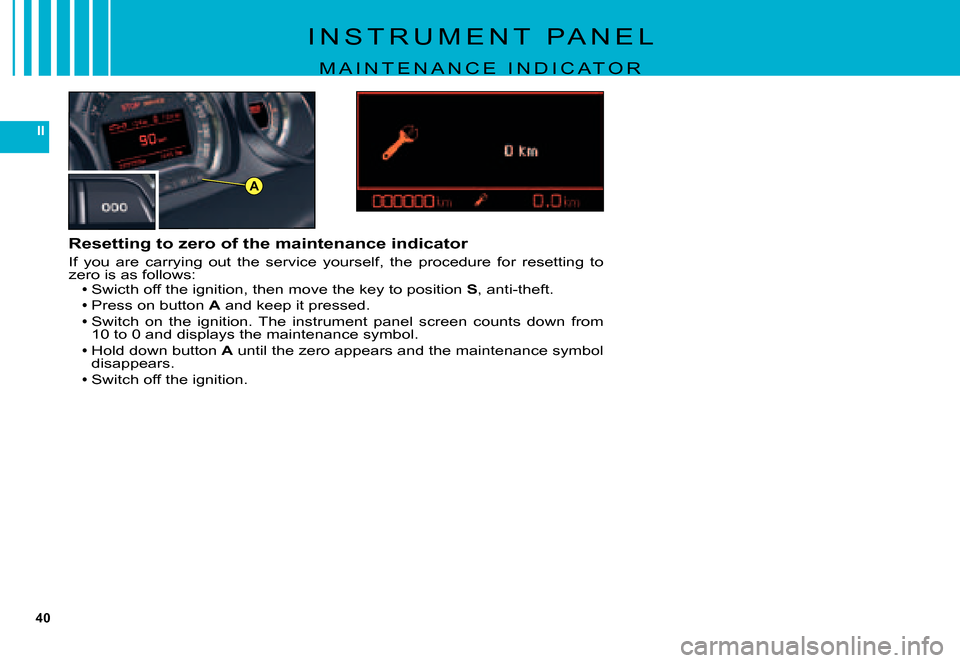

Resetting to zero of the maintenance indicator
If you are carrying out the service yourself, the procedure for resetting to zero is as follows:Swicth off the ignition, then move the key to position S, anti-theft.
Press on button A and keep it pressed.Switch on the ignition. The instrument panel screen counts down from 10 to 0 and displays the maintenance symbol.
Hold down button A until the zero appears and the maintenance symbol disappears.Switch off the ignition.
