To install :
Position the left-hand end of the luggage-cover blind in its housing A behind the rear benchseat.A
Squeeze the blind’s control 1 and position it in place in its housing Bto the right-hand side.
Release the control to secure the luggage-cover blind.
Unroll it until it locks into place on the boot pillar.

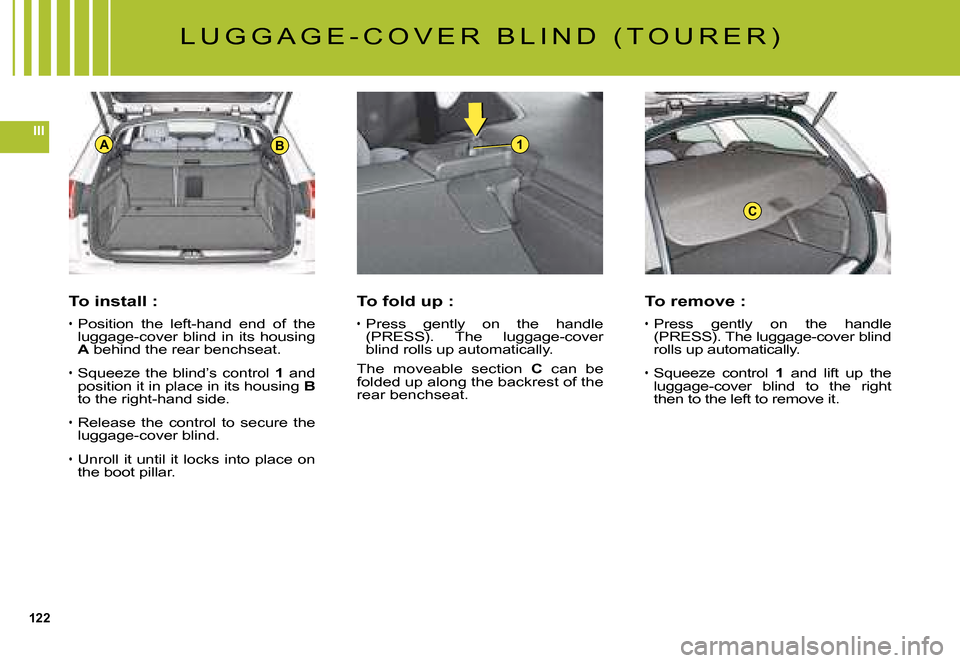

L U G G A G E - C O V E R B L I N D ( T O U R E R )
To remove :
Press gently on the handle (PRESS). The luggage-cover blind rolls up automatically.
Squeeze control 1 and lift up the luggage-cover blind to the right then to the left to remove it.


To fold up :
Press gently on the handle (PRESS). The luggage-cover blind rolls up automatically.
The moveable section C can be folded up along the backrest of the rear benchseat.


137
IV
CD Changer
This equipment S (if present) is located in the vehicle boot and comprises a magazine that holds up to 6 CDs.
To insert/remove a CD1. Remove the magazine from the CD changerOpen the fl ap located on the right-hand side of the boot to access the CD changer.
Press on the “EJECT” button to eject the magazine partially.
Remove the magazine carefully.Close the sliding door.
2. Removing a compartmentTake out just one drawer at a time.3. Inserting/removing a CDInsert a single CD, printed side upwards. Otherwise the CD changer will not operate.
Pull out the CD by pulling on the part that is showing.4. Repositioning the compartmentRefi t the drawer by pushing it into the magazine. Do not push directly on the CD.
5. Repositioning the magazineOpen the sliding door.
Hold the magazine, narrow side towards the opening of the CD changer.
Push the magazine gently into the aperture of the changer until there is a click.
Reclose the sliding door to prevent entry of dust or of foreign bodies.
Close the fl ap.

155
V
+ 1
- 4- 3
+ 2
A
B
C
1 2 V B A T T E R Y
V 6 H Di E N G I N E
Starting the engine with an assisting battery
If the battery is discharged, it is possible to use either a separate emergency battery or a battery on another vehicle.
If you use the battery on another vehicle, stop the engine on the latter. The two vehicles must not come into direct contact with each other.
Check that the assisting battery has suffi cient voltage (12 V).
Lift up the pegs to remove the front left-hand headlamp cover.
Connect the cables according to the order indicated in the dia-ordergram.
A Pole “+” of the broken down vehicle (Under the red cover).B Assisting battery.C Pole “–” of the broken down vehicle (Under the bonnet).
Check that the leads are well secured (risk of sparks).
Start the engine of the assist-ing vehicle. Let the engine run for around 1 minute at a slightly accel-erated idle.
Operate the starter on the vehicle being assisted.
It is essential to follow the indi-cated sequence correctly.
Never approach with a fl ame or create sparks in the vi
cinity of the battery (explosive gas).
The battery contains dilute sulphuric acid which is hig hly corrosive.
When handling batteries, always protect your face and es pecially your eyes.
In the event of any contact with the skin, rinse immediatel y with copious amounts of fresh water.
For any battery replacement, contact a CITROËN dealer.
Do not touch the leads during the operation.
Do not lean over the batteries.
Disconnect the cables in reverse order, making sure they do not touch together.
Advice
Battery location and access
The battery is located in the boot under the left hand wing trim. To access the battery, open the fl ap.
IMPORTANT
In the event of a battery failure, and if the boot is closed, it is then necessary to feed an electrical supply to your vehicle.

158
V
T A B L E O F F U S E S
Fusebox C
Ref.RatingFunction
F115ARear screen wipe (Tourer)
F230ALocking and deadlocking relay
F35AAirbags
F410AAutomatic gearbox - Additional heater unit (Diesel) - Electrochrome rear view mirrors
F530AFront window - Sun roof - Passenger door lighting - Passenger rear view mirror adjustment
F630ARear window
F75AVanity mirror lighting – Glove box lighting – Interior lamps - Torch (Tourer)
F820ARadio - CD changer - Controls at the steering wheel – Displa y – Tyre defl ation detection - Electric boot ECU
F930ACigar-lighter - Front 12V socket
F1015AAlarm - Controls on the steering wheel, signalling and screen w ipe controls
F1115ALow current anti-theft switch
F1215ADriver’s electric seat - Instrument panel - Seat belt not fastened warning lamps - Air conditioning controls
F135AEngine relay unit - Hydraulic suspension pump cut-off relay - Airbag ECU supply
F1415ARain and brightness sensor - Parking assistance - Passenger’s electric sea t - Trailer relay unit - HIFI amplifi er ECU - Hands-free kit - Lane Departure Warning System
F1530ALocking and deadlocking relay
F1740AHeated rear screen - Exterior heated rear view mirrors
FSHSHUNTCUSTOMER PARK SHUNT

166
VIB
C
A
E
D
F
H
G
C H A N G I N G B U L B S
R E A R L A M P S ( S A L O O N )
Rear lamp unit
Identify the failed bulb.
Bulbs:
A Stop-lamps and sidelamps: P 21 W / 5 W
B Sidelamp: R 5 W
C Reversing lamp: H 21 W
D Foglamp: H 21 W
E Direction indicator: P 21 W
Rear lamp on boot
1 Open the boot.
2 Using a fl at screwdriver, remove the 3 clips which fi x the trim in the lamp area.
3 Partially remove the trim F.
4 Disconnect the connector G.
5 Detach the bulb holder H.
6 Replace the bulb.
7 Replace the bulb holder H.
8 Connect the connector G.
9 Replace and fi x the trim F with its clips.
In some climatic conditions, mist may appear on the headlamp / indicator lenses. This is normal and will disappear (e.g. after the lamps have been on for a few minutes). If not, contact a CITROËN dealer.few minutes). If not, contact few minutes). If not, contact

168
VI
B
C
A
EDF
H
G
C H A N G I N G B U L B S
R E A R L A M P S ( T O U R E R )
Rear lamp unit
Identify the failed bulb.
Bulbs:
A Stop-lamp and sidelamp : P 21 W / 5 W
B Sidelamp : R 5 W
C Reversing lamp : H 21 W
D Foglamp : H 21 W
E Direction indicator: P 21 W
Rear lamp on boot
1 Open the boot.
2 Using a fl at screwdriver, remove the 3 clips which fi x the trim in the lamp area.
3 Partially remove the trim F.
4 Disconnect the connector G.
5 Detach the bulb holder H.
6 Replace the bulb.
7 Replace the bulb holder H.
8 Connect the connector G.
9 Replace and fi x the trim F with its clips.In some climatic conditions, mist may appear on the headlamp / indicator lenses. This is normal and will disappear (e.g. after the lamps have been on for a few minutes). If not, contact a CITROËN dealer.few minutes). If not, contact few minutes). If not, contact

171
VI

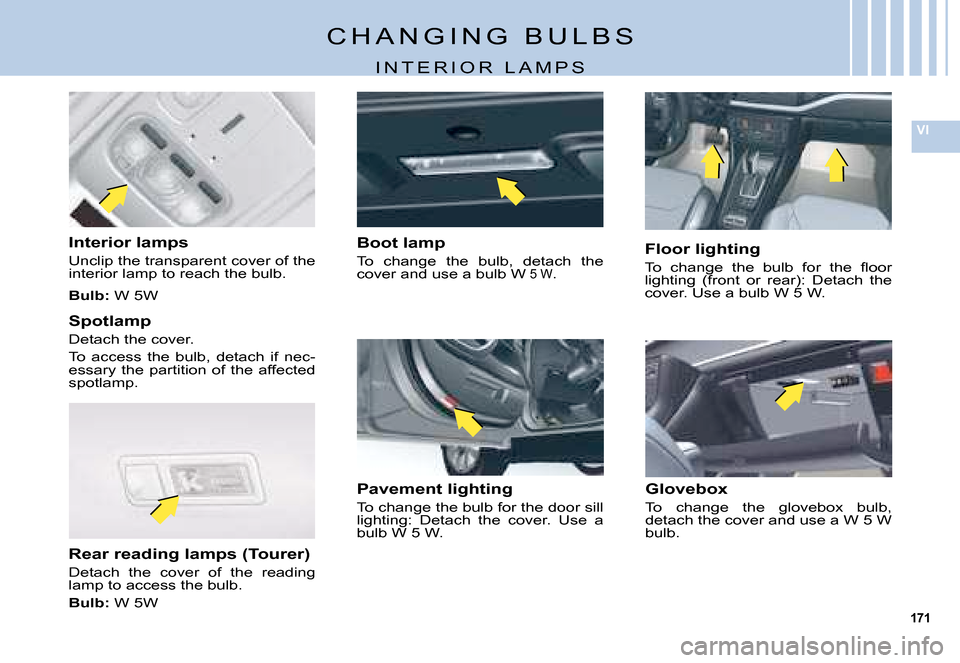

C H A N G I N G B U L B S
I N T E R I O R L A M P S
Interior lamps
Unclip the transparent cover of the interior lamp to reach the bulb.
Bulb: W 5W
Spotlamp
Detach the cover.
To access the bulb, detach if nec-essary the partition of the affected spotlamp.
Boot lamp
To change the bulb, detach the cover and use a bulb W 5 W.
Pavement lighting
To change the bulb for the door sill lighting: Detach the cover. Use a bulb W 5 W.
Rear reading lamps (Tourer)
Detach the cover of the reading lamp to access the bulb.
Bulb: W 5W
Floor lighting
To change the bulb for the fl oor lighting (front or rear): Detach the cover. Use a bulb W 5 W.
Glovebox
To change the glovebox bulb, detach the cover and use a W 5 W bulb.
