tow Citroen C5 DAG 2008 (RD/TD) / 2.G User Guide

131
IV
Notes on radio reception
Your radio will be subject to certain phenomena that are not encoun-tered by domestic systems.
The reception of AM and FM sig-nals may suffer from interference, which is caused by the nature and propagation of the signals and does not refl ect on the quality of your radio installation.
In AM mode, the reception may be affected when passing under power lines or bridges, or when travelling through tunnels.
In FM mode, the reception may be affected by the distance from the station transmitter, the refl ect-ing of signals off obstacles (moun-tains, hills, tower blocks) and radio blackspots (no coverage from the station transmitter).
Selection of radio source
Press button D to select the source.
R A D I O S O U R C E
Selection of frequencies and memory banks
Press button E successively to go through the memory banks FM1, FM2 and FM3, for the FM waveband, and the mem-ory banks MW/LW, for the AM waveband.
Manual search
Manual search is via buttons Jor M.
By keeping button J or M pressed, you will be able to scroll through the waveband. Scrolling will stop as soon as you release the button. The radio will remain tuned to the frequency that is displayed.
Tuning sensitivity
Automatic searches can be carried out according to two levels of sen-sitivity:To capture the most powerful transmitters, choose the local search mode “LO” (default option).To capture the weakest or most distant transmitters, choose the sensitive search mode “DX”.

137
IV

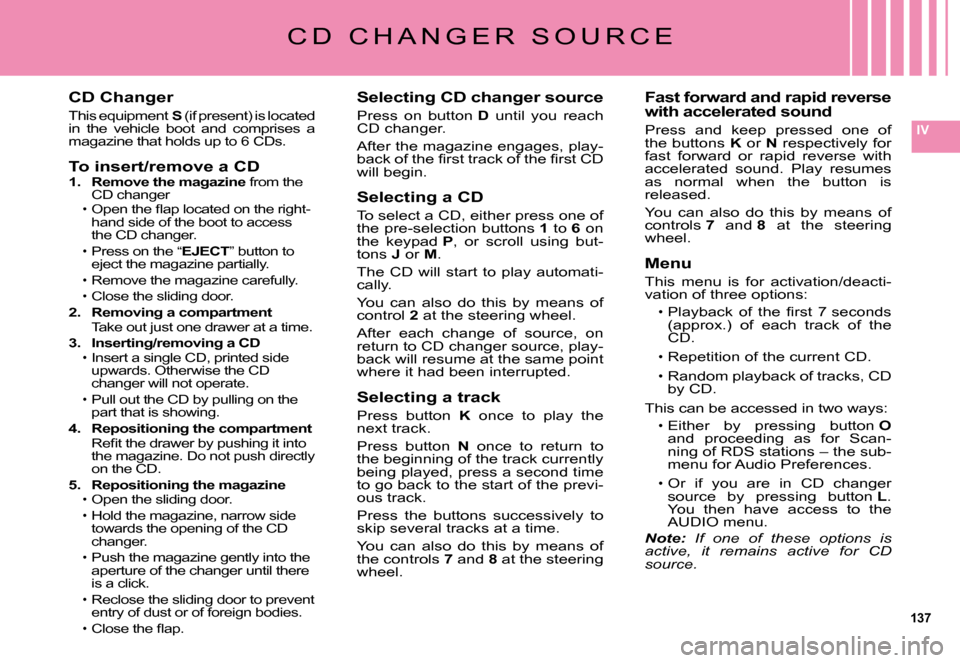

CD Changer
This equipment S (if present) is located in the vehicle boot and comprises a magazine that holds up to 6 CDs.
To insert/remove a CD1. Remove the magazine from the CD changerOpen the fl ap located on the right-hand side of the boot to access the CD changer.
Press on the “EJECT” button to eject the magazine partially.
Remove the magazine carefully.Close the sliding door.
2. Removing a compartmentTake out just one drawer at a time.3. Inserting/removing a CDInsert a single CD, printed side upwards. Otherwise the CD changer will not operate.
Pull out the CD by pulling on the part that is showing.4. Repositioning the compartmentRefi t the drawer by pushing it into the magazine. Do not push directly on the CD.
5. Repositioning the magazineOpen the sliding door.
Hold the magazine, narrow side towards the opening of the CD changer.
Push the magazine gently into the aperture of the changer until there is a click.
Reclose the sliding door to prevent entry of dust or of foreign bodies.
Close the fl ap.

151
V
1
2
4
3

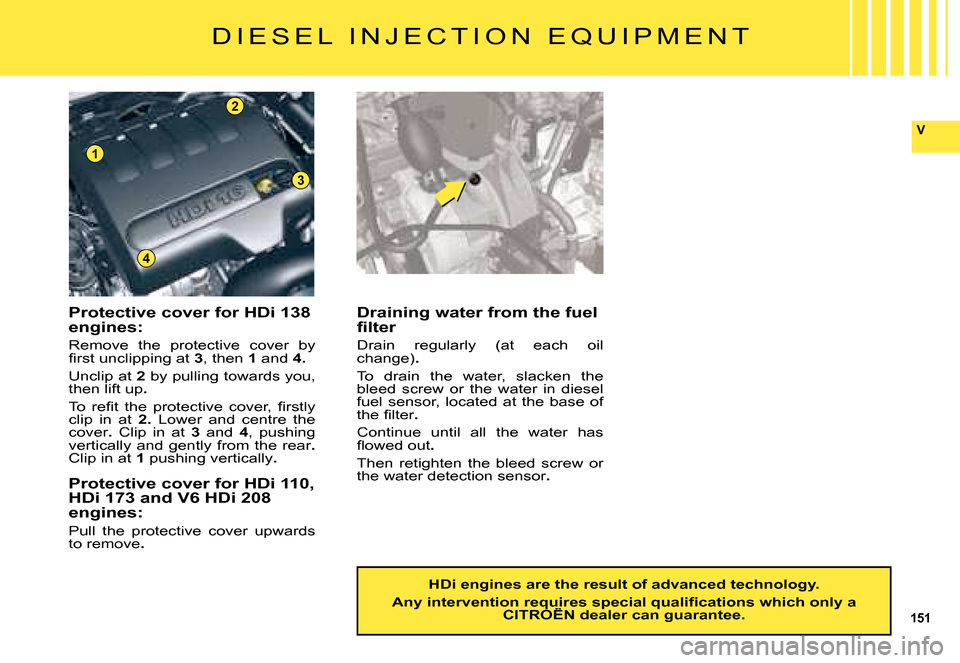

D I E S E L I N J E C T I O N E Q U I P M E N T
Protective cover for HDi 138 engines:
Remove the protective cover by fi rst unclipping at 3, then 1 and 4.
Unclip at 2 by pulling towards you, then lift up.
To refi t the protective cover, fi rstly clip in at 2. Lower and centre the cover. Clip in at 3 and 4, pushing vertically and gently from the rear.Clip in at 1 pushing vertically.
Protective cover for HDi 110, HDi 173 and V6 HDi 208 engines:
Pull the protective cover upwards to remove.
Draining water from the fuel fi lter
Drain regularly (at each oil change).
To drain the water, slacken the bleed screw or the water in diesel fuel sensor, located at the base of the fi lter.
Continue until all the water has fl owed out.
Then retighten the bleed screw or the water detection sensor.
HDi engines are the result of advanced technology.
Any intervention requires special qualifi cations which only a CITROËN dealer can guarantee.Any intervention requires special qualifi cations which only a Any intervention requires special qualifi cations which only a

172
VI
S A F E T Y R E C O M M E N D A T I O N S
It is essential to install a CITROËN approved electronic unit when having a towbar fi tted, in order to prevent any ris k of malfunction or damage (risk of fi re).
If you are towing another vehicle, the latter must be free-wheeling (gearbox in neutral).
Do not exceed the maximum permitted load.
For the maximum distributed load on the roof bars: see the chapter “General”.
Roof bars
For your safety and to avoid dam-age to the roof, you must use roof bars that are tested and approved by AUTOMOBILES CITROËN.bars that are tested and approved bars that are tested and approved
Recommendations:
Spread the load evenly, avoid-ing overloading on one side.
Position the heaviest weight as low down as possible.
Tie the load down securely and add warning signs if it is pro-truding.
Drive conservatively, as the vehicle will be more vulnerable to side winds.
The stability of your vehicle may be altered.
Remove the roof rack or roof bars when you are not using them.

177
VI
T O W I N G – L I F T I N G
TOWING WITH WHEELS ON THE GROUND
Towing eye fi xings are located at the front and at the rear of the vehi-cle.
Detach the cover:
For the front cover, lever with a screwdriver at the top of the cover.
For the rear cover, press:
On the right hand side (saloon),
On the bottom (Tourer).
The ignition key must be in posi-tion M to retain steering.
Use a bar with attachments to the towing eyes as above.
The towing eye is removable, to be stowed in the jack protection box inside the spare wheel.

179
VI

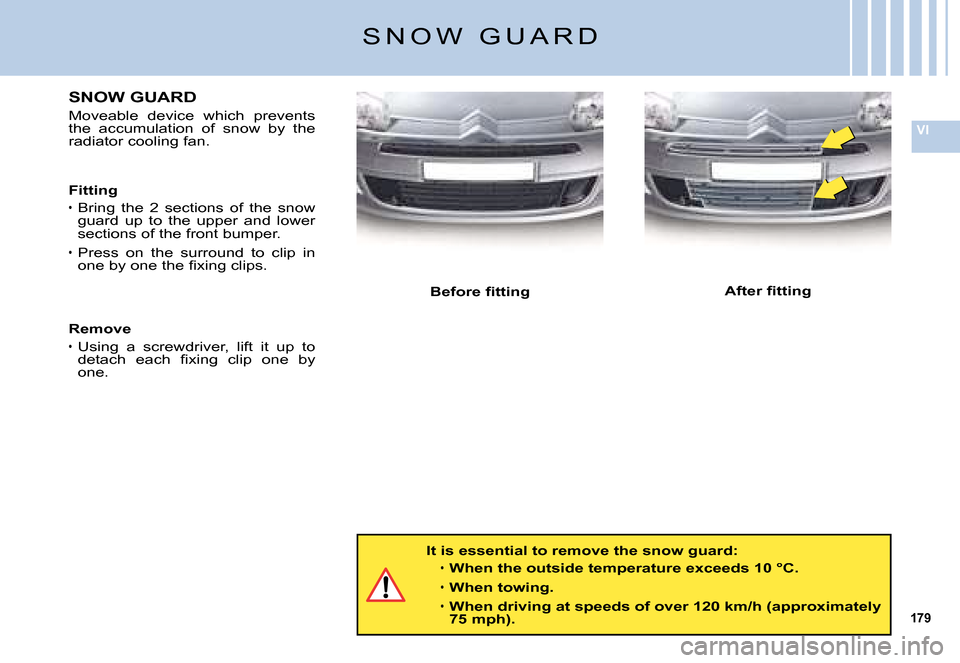

S N O W G U A R D
It is essential to remove the snow guard:
When the outside temperature exceeds 10 °C.
When towing.
When driving at speeds of over 120 km/h (approximately 75 mph).



After fi ttingBefore fi tting
SNOW GUARD
Moveable device which prevents the accumulation of snow by the radiator cooling fan.
Fitting
Bring the 2 sections of the snow guard up to the upper and lower sections of the front bumper.
Press on the surround to clip in one by one the fi xing clips.


Remove
Using a screwdriver, lift it up to detach each fixing clip one by one.


111111
I
e
abc
fgh
d
i
N A V I G A T I O N / G U I D A N C E
G E N E R A L
The Multifunction screenDuring a guidance, you have access to the following types of information:
a Manœuvre to be made, or direction to be taken.b Distance to the next manoeuvre.c Next manoeuvre to be made.d N ex t r o a d t o b e t a ke n a n d n a m e o f town.e Symbol concerning Traffi c information or the services that are in proximity.f Road you are currently on, name of the town.g Estimated time of arrival at destination (based on fl owing traffi c).h Distance to fi nal destination.i Altitude.
Apart from on the screen, the manœuvres t o b e m a d e a r e a n n o u n c e d by a vo i c e synthesiser.
Repeating the last piece of voice infor-mationA few seconds after enunciation of a guid-ance voice instruction, you have the pos-sibility of hearing it again.Keep the end of the lighting control stalk pressed.
How to adjust the volume for the voice instructions ?While a voice instruction is being spoken, press on the volume adjustment but ton c ontrols either on the system or on the steering wheel.Adjustment is also possible in the “Confi gu-ration” menu.
DESCRIPTION OF THE TYPES OF INFORMA -TION DISPLAYED DURING NAVIGATIONTHE VOICE SYNTHESIS
Rotating this control allows you to:M ove around the screen to choose a function, a parameter or a value.Reduce or increase a value when adjust-ing.Scroll through items to be selected in a list.It also allows you via a short press to:A c c e s s t h e c o n t ex t u a l m e n u (s h o r t -cuts).Validate the chosen function or the modi-fi ed value.Select a parameter of the type “adjust-ment” or “list” for modifi cation.Activate/Deactivate a function.

121212
I
B
C
D
E
F
A
CD
B
EF
HOW TO ACCESS THE NAVIGATION /GUIDANCE MENU ?
N A V I G A T I O N / G U I D A N C E
A C C E S S I N G T H E M E N U
HOW TO ACCESS THE NAVIGATION MENU SHORTCUTS ?
The shortcut options available allow you:
to resume or stop the guidance towards the last desti nation entered
to divert an itinerary according to the number of kilometres (or miles) that you will have indicated
to defi ne or modify the calculation criteria for the itinerary (shortest way, quickest way. etc.),
to access the list of Traffi c information messages,
to move the pointer on the Map.
Press button MENU.

252525
II
A
CONSULTING OF MESSAGES
The fi lters enable you to select the types of information which you wish to receive.This menu gives you access:To the geographical fi lter: information concerning incidents situated around your vehicle, around a given location and/or on an itinerary (radius of 3 to 200 km),To road information: information con-cerning road incidents such as traf fi c, road closures, height /width limitations, state of the roadway or weather condi-t i o n s (d e p e n d i n g o n t h e i n f o r m a t i o n available).To urban traffi c information: information concerning the town where you are, such as parking, public transport and demon-strations (depending on the information available).The fi lters can be cumulative.If no fi lter is selected, all the TMC information will be displayed.
