IV
68
O P E N I N G S
STOPPING
D o n o t fl i c k t h e a c c e l e r a t o r a t
the moment of switching off the
ignition. This could cause serious
damage to the turbocharger(s).
IGNITION SWITCH
1. "S": Steering lock
To unlock the steering, gently move
the steering wheel while turning the
key, without forcing it.
2. "M": Drive position
Depending on the version of your
vehicle, the orange and red warn-
ing lamps should also come on for
a short time.
3. "D": Starter
Release the key as soon the engine
has started.
I f t h e fi r s t a t t e m p t f a i l s , s w i t c h o f f t h e
ignition. Wait ten seconds then ope-
rate the starter again. Steering lock
1. "
S": After removing the key, turn
the steering wheel to lock the steer-
ing. The key can only be removed in
position S .
2. "M": Ignition switched on, the
steering is unlocked (by turning the
key to position M , move the steering wheel gently if necessary).
3. "D": Starter position.
Never turn the key to this position
when the engine is running.
Do not run the engine in an en-
closed space or where there is in-
s u f fi c i e n t v e n t i l a t i o n .
It is essential always to drive with
the engine running in order to re-
tain braking and steering assis-
tance.
Never remove the ignition key
before the vehicle has come to a
complete stop.
Avoid attaching a heavy object to
the key which would weigh down
on its shaft in the switch and could
cause a malfunction. Vehicles equipped with a
turbocharger
Never stop the engine without having
allowed it to run for a few seconds at
idle, this being the time required for
the turbocharger to return to a normal
speed.
Page 54 of 306
IV
70
O P E N I N G S
Lost keys
Visit a CITROËN dealer with the vehi-
cle's V5 registration document and your p e r s o n a l i d e n t i fi c a t i o n d o c u m e n t s .
The CITROËN dealer will be able to
retrieve the key code and the tran-
sponder code required to order a re-
placement key.
Remote control
The high frequency remote control is
a sensitive system; do not operate it
while it is in your pocket as there is a
possibility that it may unlock the ve-
hicle, without you being aware of it.
Do not repeatedly press the buttons
of your remote control out of range
and out of sight of your vehicle. You
run the risk of stopping it from work-
ing and the remote control would
have to be reinitialised.
The remote control does not operate
when the key is in the ignition, even
when the ignition is switched off, ex-
cept for reinitialisation.
Locking the vehicle
Driving with the doors locked may
make access to the passenger com-
partment by the emergency services
m o r e d i f fi c u l t i n a n e m e r g e n c y .
As a safety precaution (with children
on board), remove the key from the
ignition when you leave the vehicle,
even for a short time. Anti-theft protection
D o n o t m a k e a n y m o d i fi c a t i o n s t o
the electronic engine immobiliser
system; this could cause malfunc-
tions.
When purchasing a second-
hand vehicle
Have the key codes memorised by a
CITROËN dealer, to ensure that the
keys in your possession are the only
ones which can start the vehicle.
Do not throw the remote con-
trol batteries away, they con-
tain metals which are harmful
to the environment.
Take them to an approved collec-
tion point.
Page 55 of 306
IV
67
O P E N I N G S
First press button A to fold the
key.
Locating your vehicle
Press the closed padlock to locate
your locked vehicle in a car park.
This is indicated by switching on
o f t h e i n t e r i o r l i g h t i n g a n d fl a s h i n g
of the direction indicators for a few
seconds.
The vehicle remains locked. Guide-me-home lighting Anti-theft protecti
on
Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code
must be recognised in order for
starting to be possible.
This electronic engine immobiliser
locks the engine management sys-
tem a few minutes after the ignition
is switched off and prevents starting
of the engine by anyone who does
not have the key.
In the event of a mal-
function, you are in-
formed by lighting of
this warning lamp, an
audible signal and a message on
the multifunction screen.
In this case, your vehicle does not
start; contact a CITROËN dealer as
soon as possible.
Folding the key
A press on button B oper-
ates the guide-me-home
lighting (lighting of the
sidelamps, dipped beams
and number plate lamps).
A second press before the end of
the timing cancels the guide-me-
home lighting.
The timed duration can be set via the
"Lighting" menu on the "Main Menu"
of the instrument panel screen.
Page 56 of 306
IV
70
O P E N I N G S
Lost keys
Visit a CITROËN dealer with the vehi-
cle's V5 registration document and your p e r s o n a l i d e n t i fi c a t i o n d o c u m e n t s .
The CITROËN dealer will be able to
retrieve the key code and the tran-
sponder code required to order a re-
placement key.
Remote control
The high frequency remote control is
a sensitive system; do not operate it
while it is in your pocket as there is a
possibility that it may unlock the ve-
hicle, without you being aware of it.
Do not repeatedly press the buttons
of your remote control out of range
and out of sight of your vehicle. You
run the risk of stopping it from work-
ing and the remote control would
have to be reinitialised.
The remote control does not operate
when the key is in the ignition, even
when the ignition is switched off, ex-
cept for reinitialisation.
Locking the vehicle
Driving with the doors locked may
make access to the passenger com-
partment by the emergency services
m o r e d i f fi c u l t i n a n e m e r g e n c y .
As a safety precaution (with children
on board), remove the key from the
ignition when you leave the vehicle,
even for a short time. Anti-theft protection
D o n o t m a k e a n y m o d i fi c a t i o n s t o
the electronic engine immobiliser
system; this could cause malfunc-
tions.
When purchasing a second-
hand vehicle
Have the key codes memorised by a
CITROËN dealer, to ensure that the
keys in your possession are the only
ones which can start the vehicle.
Do not throw the remote con-
trol batteries away, they con-
tain metals which are harmful
to the environment.
Take them to an approved collec-
tion point.
Page 57 of 306
IV
68
O P E N I N G S
STOPPING
D o n o t fl i c k t h e a c c e l e r a t o r a t
the moment of switching off the
ignition. This could cause serious
damage to the turbocharger(s).
IGNITION SWITCH
1. "S": Steering lock
To unlock the steering, gently move
the steering wheel while turning the
key, without forcing it.
2. "M": Drive position
Depending on the version of your
vehicle, the orange and red warn-
ing lamps should also come on for
a short time.
3. "D": Starter
Release the key as soon the engine
has started.
I f t h e fi r s t a t t e m p t f a i l s , s w i t c h o f f t h e
ignition. Wait ten seconds then ope-
rate the starter again. Steering lock
1. "
S": After removing the key, turn
the steering wheel to lock the steer-
ing. The key can only be removed in
position S .
2. "M": Ignition switched on, the
steering is unlocked (by turning the
key to position M , move the steering wheel gently if necessary).
3. "D": Starter position.
Never turn the key to this position
when the engine is running.
Do not run the engine in an en-
closed space or where there is in-
s u f fi c i e n t v e n t i l a t i o n .
It is essential always to drive with
the engine running in order to re-
tain braking and steering assis-
tance.
Never remove the ignition key
before the vehicle has come to a
complete stop.
Avoid attaching a heavy object to
the key which would weigh down
on its shaft in the switch and could
cause a malfunction. Vehicles equipped with a
turbocharger
Never stop the engine without having
allowed it to run for a few seconds at
idle, this being the time required for
the turbocharger to return to a normal
speed.
Page 62 of 306
IV
75
O P E N I N G S
DOORS
Opening
From outside When the selective unlocking is acti-
v a t e d , t h e fi r s t p r e s s o f t h e r e m o t e
control unlocking button permits
unlocking of the driver's door only.
Pull on the front door control to
open the door; this unlocks the
vehicle completely.
Pull on the rear door control to
open the door; this unlocks the
door concerned only.
With the selective unlocking acti-
vated:
- the driver's door control unlocks the driver's door only.
- the other door controls unlock the other doors and the boot.
The interior door controls do not
operate when the vehicle is dead-
locked. Manual centralised control
System which provides full manual
locking or unlocking of the doors
and boot from the inside.
Locking
Press button A to lock the vehicle.
The red indicator lamp on the button
c o m e s o n . I t fl a s h e s w h e n t h e d o o r s
are locked while stationary with the
engine off.
If one of the doors is open, the cen-
tral locking from the inside does not
take place.
After unlocking the vehicle com-
pletely using the remote control
or the key, pull the door handle. From inside
Page 69 of 306
IV
82
O P E N I N G S

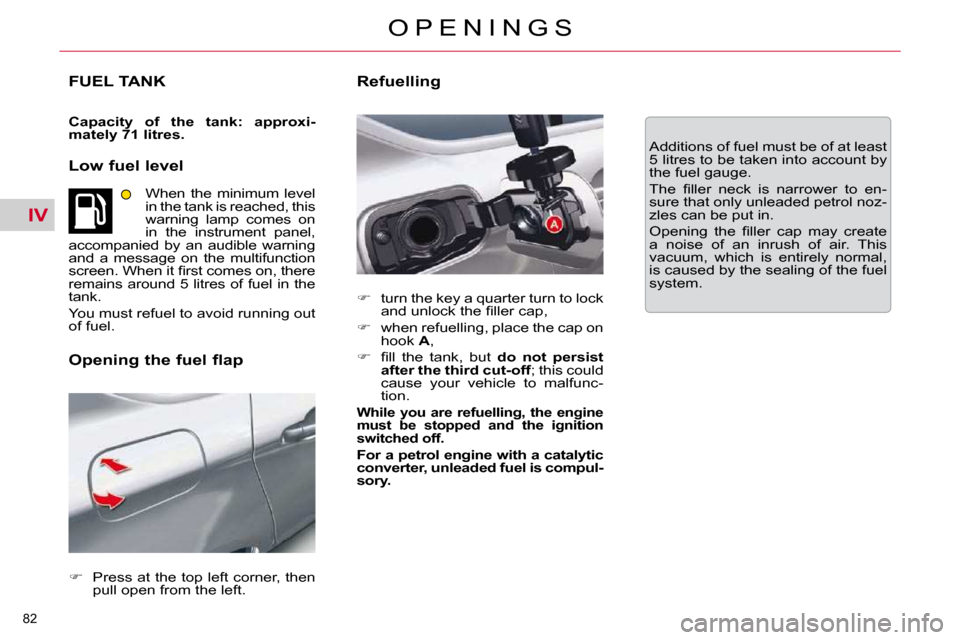

FUEL TANK
Capacity of the tank: approxi-
mately 71 litres.
Low fuel level When the minimum level
in the tank is reached, this
warning lamp comes on
in the instrument panel,
accompanied by an audible warning
and a message on the multifunction
s c r e e n . W h e n i t fi r s t c o m e s o n , t h e r e
remains around 5 litres of fuel in the
tank.
You must refuel to avoid running out
of fuel.
Press at the top left corner, then
pull open from the left.
turn the key a quarter turn to lock
a n d u n l o c k t h e fi l l e r c a p ,
when refuelling, place the cap on
hook A ,
fi l l t h e t a n k , b u t do not persist
after the third cut-off ; this could
cause your vehicle to malfunc-
tion.
While you are refuelling, the engine
must be stopped and the ignition
switched off.
For a petrol engine with a catalytic
converter, unleaded fuel is compul-
sory.
Opening the fuel flap Additions of fuel must be of at least
5 litres to be taken into account by
the fuel gauge.
T h e fi l l e r n e c k i s n a r r o w e r t o e n -
sure that only unleaded petrol noz-
zles can be put in.
O p e n i n g t h e fi l l e r c a p m a y c r e a t e
a noise of an inrush of air. This
vacuum, which is entirely normal,
is caused by the sealing of the fuel
system.
Refuelling
Page 70 of 306
IV
83
O P E N I N G S
Quality of the fuel used for
petrol engines
The petrol engines are perfectly
compatible with E10 type petrol
biofuels (containing 10 % ethanol),
conforming to European standards
EN 228 and EN 15376.
E85 type fuels (containing up to 85 % ethanol) are reserved exclusively for
vehicles marketed for the use of this
type of fuel (BioFlex vehicles). The
quality of the ethanol must comply
with European standard EN 15293.
For Brazil only, special vehicles are
marketed to run on fuels containing
up to 100 % ethanol (E100 type). Quality of the fuel used for
Diesel engines
The Diesel engines are perfectly
compatible with biofuels which con-
form to current and future European
standards (Diesel fuel which com-
plies with standard EN 590 mixed
with a biofuel which complies with
standard EN 14214) available at the
pumps (containing up to 7 % Fatty
Acid Methyl Ester).
The B30 biofuel can be used in cer-
tain Diesel engines; however, this
use is subject to strict application
of the special servicing conditions.
Consult a CITROËN dealer.
The use of any other type of (bio)fuel
(vegetable or animal oils, pure or di-
luted, domestic fuel...) is strictly pro-
hibited (risk of damage to the engine
and fuel system).
Page 73 of 306
V
86
V I S I B I L I T Y
* According to country.
Daytime-running lamps
System which switches on special
lamps at the front, to make the ve-
hicle more visible by day.
They light up automatically and perma-
nently, when the engine is running, if:
- The function is activated * in the
"Main Menu" of the instrument
panel screen.
- The lighting control is at position 0
or AUTO .
- All the headlamps are off.
You can deactivate * this function
using the "Main Menu" of the instru-
ment panel screen. Manual guide-me-home
lighting
Temporarily keeping the dipped
beam headlamps on after the vehi-
cle's ignition has been switched off
makes the driver's exit easier when
the light is poor.
Switching on
W i t h t h e i g n i t i o n o f f , " fl a s h " t h e
headlamps using the lighting
stalk.
A f u r t h e r " h e a d l a m p fl a s h " s w i t c h e s
the function off.
Switching off
The manual guide-me-home lighting
switches off automatically after a set
time. Automatic illumination of
headlamps
The sidelamps and dipped beam
headlamps are switched on automati-
cally, without any action on the part of
the driver, when a low level of external
light is detected or in certain cases of
activation of the windscreen wipers.
As soon as the brightness returns to a
s u f fi c i e n t l e v e l o r a f t e r t h e w i n d s c r e e n
wipers are switched off, the lamps are
switched off automatically.
Activation
Turn ring A to the "AUTO" position.
The automatic illumination of head-
lamps is accompanied by a message
on the instrument panel screen.
Deactivation
Turn ring A to a position other
than "AUTO" . Deactivation is
accompanied by a message on
the instrument panel screen.
Page 75 of 306
V
86
V I S I B I L I T Y
* According to country.
Daytime-running lamps
System which switches on special
lamps at the front, to make the ve-
hicle more visible by day.
They light up automatically and perma-
nently, when the engine is running, if:
- The function is activated * in the
"Main Menu" of the instrument
panel screen.
- The lighting control is at position 0
or AUTO .
- All the headlamps are off.
You can deactivate * this function
using the "Main Menu" of the instru-
ment panel screen. Manual guide-me-home
lighting
Temporarily keeping the dipped
beam headlamps on after the vehi-
cle's ignition has been switched off
makes the driver's exit easier when
the light is poor.
Switching on
W i t h t h e i g n i t i o n o f f , " fl a s h " t h e
headlamps using the lighting
stalk.
A f u r t h e r " h e a d l a m p fl a s h " s w i t c h e s
the function off.
Switching off
The manual guide-me-home lighting
switches off automatically after a set
time. Automatic illumination of
headlamps
The sidelamps and dipped beam
headlamps are switched on automati-
cally, without any action on the part of
the driver, when a low level of external
light is detected or in certain cases of
activation of the windscreen wipers.
As soon as the brightness returns to a
s u f fi c i e n t l e v e l o r a f t e r t h e w i n d s c r e e n
wipers are switched off, the lamps are
switched off automatically.
Activation
Turn ring A to the "AUTO" position.
The automatic illumination of head-
lamps is accompanied by a message
on the instrument panel screen.
Deactivation
Turn ring A to a position other
than "AUTO" . Deactivation is
accompanied by a message on
the instrument panel screen.
