Page 97 of 336
V
89
V I S I B I L I T Y
Linked with the automatic
"Guide-me-home" lighting
Link with the automatic illumination
of headlamps provides the "guide-
me-home" lighting with the following
additional options:
- selection of the duration of light- ing for 15, 30 or 60 seconds in
the vehicle parameters on the
i n s t r u m e n t p a n e l s c r e e n c o n fi g u -
ration menu,
- automatic activation of "guide- me-home" lighting when auto-
matic illumination of headlamps
is in operation.
Operating fault
In the event of a malfunction of the
brightness sensor, the lamps come
on and a message appears on the
instrument panel screen, accompa-
nied by an audible signal.
Consult a CITROËN dealer.
In fog or snow, the brightness
s e n s o r m a y d e t e c t s u f fi c i e n t l i g h t .
Therefore, the lamps will not come
on automatically.
Do not cover the brightness sen-
sor, linked with the rain sensor and
located in the centre of the wind-
screen behind the rear view mirror;
the associated functions would no
longer operate.
MANUAL HEADLAMP ADJUSTMENT
To avoid dazzling other road users,
the height of the halogen bulb head-
lamps must be adjusted according
to the load in the vehicle.
0. 1 or 2 people in the front seats.
-. 3 people.
1. 5 people.
-. Intermediate setting.
2. 5 people + maximum authorised
loads.
-. Intermediate setting.
3. Driver + maximum authorised
loads.
Initial setting is position "0".
AUTOMATIC ADJUSTMENT OF DIRECTIONAL HEADLAMPS
Do not touch the xenon bulbs.
Consult a CITROËN dealer.
If a malfunction occurs,
this warning lamp is dis-
played on the instrument
panel, accompanied by
an audible signal and a
message on the instru-
ment panel screen.
The system then places your headlamps
in the lowest position.
To avoid causing a nuisance to other
road users, this system corrects the
height of the xenon headlamp beams
automatically and when stationary,
depending on the load in the vehicle.
Page 98 of 336
V
89
V I S I B I L I T Y
Linked with the automatic
"Guide-me-home" lighting
Link with the automatic illumination
of headlamps provides the "guide-
me-home" lighting with the following
additional options:
- selection of the duration of light- ing for 15, 30 or 60 seconds in
the vehicle parameters on the
i n s t r u m e n t p a n e l s c r e e n c o n fi g u -
ration menu,
- automatic activation of "guide- me-home" lighting when auto-
matic illumination of headlamps
is in operation.
Operating fault
In the event of a malfunction of the
brightness sensor, the lamps come
on and a message appears on the
instrument panel screen, accompa-
nied by an audible signal.
Consult a CITROËN dealer.
In fog or snow, the brightness
s e n s o r m a y d e t e c t s u f fi c i e n t l i g h t .
Therefore, the lamps will not come
on automatically.
Do not cover the brightness sen-
sor, linked with the rain sensor and
located in the centre of the wind-
screen behind the rear view mirror;
the associated functions would no
longer operate.
MANUAL HEADLAMP ADJUSTMENT
To avoid dazzling other road users,
the height of the halogen bulb head-
lamps must be adjusted according
to the load in the vehicle.
0. 1 or 2 people in the front seats.
-. 3 people.
1. 5 people.
-. Intermediate setting.
2. 5 people + maximum authorised
loads.
-. Intermediate setting.
3. Driver + maximum authorised
loads.
Initial setting is position "0".
AUTOMATIC ADJUSTMENT OF DIRECTIONAL HEADLAMPS
Do not touch the xenon bulbs.
Consult a CITROËN dealer.
If a malfunction occurs,
this warning lamp is dis-
played on the instrument
panel, accompanied by
an audible signal and a
message on the instru-
ment panel screen.
The system then places your headlamps
in the lowest position.
To avoid causing a nuisance to other
road users, this system corrects the
height of the xenon headlamp beams
automatically and when stationary,
depending on the load in the vehicle.
Page 102 of 336
V
93
V I S I B I L I T Y
Reverse gear
When reverse gear is engaged, the
rear wiper operates if the windscreen
wipers are operating.
Programming
The function is activated or deac-
tivated via the instrument panel
s c r e e n c o n fi g u r a t i o n m e n u .
This function is activated by default.

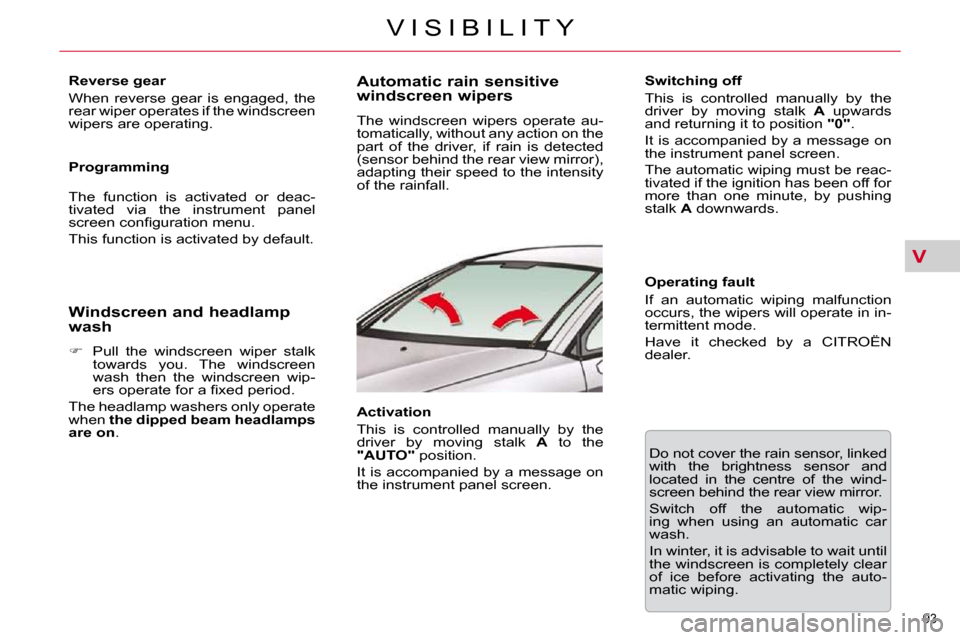

Windscreen and headlamp
wash
Pull the windscreen wiper stalk
towards you. The windscreen
wash then the windscreen wip-
e r s o p e r a t e f o r a fi x e d p e r i o d .
The headlamp washers only operate
when the dipped beam headlamps
are on . Automatic rain sensitive
windscreen wipers
The windscreen wipers operate au-
tomatically, without any action on the
part of the driver, if rain is detected
( s e n s o r b e h i n d t h e r e a r v i e w m i r r o r ) ,
adapting their speed to the intensity
of the rainfall.
Activation
This is controlled manually by the
driver by moving stalk
A to the
"AUTO" position.
It is accompanied by a message on
the instrument panel screen. Switching off
This is controlled manually by the
driver by moving stalk
A upwards
and returning it to position "0" .
It is accompanied by a message on
the instrument panel screen.
The automatic wiping must be reac-
tivated if the ignition has been off for
more than one minute, by pushing
stalk A downwards.
Operating fault
If an automatic wiping malfunction
occurs, the wipers will operate in in-
termittent mode.
Have it checked by a CITROËN
dealer.
Do not cover the rain sensor, linked
with the brightness sensor and
located in the centre of the wind-
screen behind the rear view mirror.
Switch off the automatic wip-
ing when using an automatic car
wash.
In winter, it is advisable to wait until
the windscreen is completely clear
of ice before activating the auto-
matic wiping.
Page 104 of 336
V
93
V I S I B I L I T Y
Reverse gear
When reverse gear is engaged, the
rear wiper operates if the windscreen
wipers are operating.
Programming
The function is activated or deac-
tivated via the instrument panel
s c r e e n c o n fi g u r a t i o n m e n u .
This function is activated by default.
Windscreen and headlamp
wash
Pull the windscreen wiper stalk
towards you. The windscreen
wash then the windscreen wip-
e r s o p e r a t e f o r a fi x e d p e r i o d .
The headlamp washers only operate
when the dipped beam headlamps
are on . Automatic rain sensitive
windscreen wipers
The windscreen wipers operate au-
tomatically, without any action on the
part of the driver, if rain is detected
( s e n s o r b e h i n d t h e r e a r v i e w m i r r o r ) ,
adapting their speed to the intensity
of the rainfall.
Activation
This is controlled manually by the
driver by moving stalk
A to the
"AUTO" position.
It is accompanied by a message on
the instrument panel screen. Switching off
This is controlled manually by the
driver by moving stalk
A upwards
and returning it to position "0" .
It is accompanied by a message on
the instrument panel screen.
The automatic wiping must be reac-
tivated if the ignition has been off for
more than one minute, by pushing
stalk A downwards.
Operating fault
If an automatic wiping malfunction
occurs, the wipers will operate in in-
termittent mode.
Have it checked by a CITROËN
dealer.
Do not cover the rain sensor, linked
with the brightness sensor and
located in the centre of the wind-
screen behind the rear view mirror.
Switch off the automatic wip-
ing when using an automatic car
wash.
In winter, it is advisable to wait until
the windscreen is completely clear
of ice before activating the auto-
matic wiping.
Page 174 of 336
IX
153
D R I V I N G
LANE DEPARTURE WARNING SYSTEM
S y s t e m w h i c h d e t e c t s t h e i n v o l u n -
t a r y c r o s s i n g o f l o n g i t u d i n a l t r a f fi c
lane markings on the ground (solid
or broken line).
S e n s o r s , fi t t e d b e l o w t h e f r o n t b u m -
per, trigger a warning if the vehicle
drifts over a lane marking (speed
higher than 50 mph (80 km/h)).
This system is particularly useful on
motorways and main roads.
Activation
Press button A , the indicator
lamp comes on.
Deactivation
Press button A again, the indica-
tor lamp switches off.
The status of the system remains
in the memory when the ignition is
switched off. Detection
You are warned by the vibration of
the driver's seat cushion:
- on the right-hand side, if the
marking on the ground has been
crossed on the right,
- on the left-hand side, if the mark- ing on the ground has been
crossed on the left.
No warning is transmitted while the
direction indicator is active and for
a p p r o x i m a t e l y 2 0 s e c o n d s a f t e r t h e
direction indicator is switched off.
A warning may be transmitted if a direc-
tion marking (e.g. arrow) or non-stan-
d a r d m a r k i n g ( e . g . g r a f fi t i ) i s c r o s s e d . Operating fault
In the event of a malfunction, the
service warning lamp comes on,
accompanied by an audible signal
and a message on the multifunction
screen.
Consult a CITROËN dealer.
The lane departure warning sys-
tem cannot, in any circumstances,
replace the need for vigilance and
responsibility on the part of the
driver.
The detection may be impeded:
- if the sensors are dirty (mud, snow...),
- if the markings on the ground are worn,
- if there is little contrast between the markings on the ground and
the road surface.
Page 175 of 336
IX
154
D R I V I N G
PARKING SPACE SENSOR
S y s t e m w h i c h m e a s u r e s t h e p a r k -
ing space available between two
vehicles or obstacles. It measures
the size of the space and gives you
information on:
- t h e p o s s i b i l i t y o f fi t t i n g i n t o a f r e e space, depending on the dimen-
sions of your vehicle and the
distances necessary for your
manoeuvring,
- t h e l e v e l o f d i f fi c u l t y o f t h e m a - noeuvre to be performed.
The system does not measure spac-
es which are clearly much smaller or
larger than the size of the vehicle. Displays on the instrument
panel
The parking space sensor function
warning lamp can have three differ-
ent states:
-
off: the function is not selected,
- o n fi x e d : the function is selected
but the conditions for measuring
are not yet met (direction indi-
cator not operating, speed too
high) or the measurement is ter-
minated,
- fl a s h i n g : measurement is in
progress or the message is be-
ing displayed. You can select the "parking space
sensor" function by pressing button
A.
T h e fi x e d l i g h t i n g o f t h e w a r n i n g l a m p
indicates that the function is selected.
During the measurement, the mes-
sage "Measurement in progress -
V m a x 2 0 k m / h ( 1 2 m p h ) " i s d i s p l a y e d
on the instrument panel screen.
Page 176 of 336
IX
155
D R I V I N G
Operation
Y o u h a v e i d e n t i fi e d a p a r k i n g s p a c e :
Press button A to select the function.
Activate the direction indicator
on the side where the space is to
be measured.
During measurement, go for-
ward the length of the space, at
a speed less than 12 mph (ap-
p r o x . 2 0 k m / h ) , t o p r e p a r e f o r
your manoeuvre.
The system then measures the size
of the space.
The system informs you of the
l e v e l o f d i f fi c u l t y o f t h e m a n o e u -
vre via a message on the instru-
ment panel screen accompanied
by a gong.
Depending on the message is-
sued by the system, you may or
may not be able to perform the
manoeuvre. The function displays the following
types of message:
Parking YES
P a r k i n g d i f fi c u l t
Parking NO The function deselects itself auto-
matically:
- when you engage reverse gear,
- when you switch off the ignition,
- if measurement is not requested,
- w i t h i n fi v e m i n u t e s o f s e l e c t i o n o f
the function,
- i f t h e v e h i c l e s p e e d e x c e e d s t h e t h r e s h o l d o f 4 5 m p h ( a p p r o x .
70 km/h) for one minute.
If the lateral distance between your
vehicle and the parking space is too
large, the system may not be able to
measure the space.
The function remains available after
each measurement and thus can
measure more than one space dur-
ing your search.
In bad weather conditions or in
winter, make sure that the sensors
are not covered by dirt, or by ice or
snow.
The parking space sensor function
deactivates the front parking ses-
nors during space measurement
when you are in forward gear.
If there is a malfunction, have the
system checked by a CITROËN
dealer.
Page 177 of 336
IX
156
D R I V I N G The parking sensors system cannot,
in any circumstances, replace the
need for vigilance and responsibility
on the part of the driver.
VISUAL AND AUDIBLE FRONT AND/OR REAR PARKING SENSORS
S y s t e m c o n s i s t i n g o f p r o x i m i t y s e n -
sors, installed in the front and/or rear
bumper.
It detects any obstacle (person, vehi-
cle, tree, barrier...) located in front of
or behind the vehicle, however, it will
not be able to detect obstacles locat-
ed immediately below the bumper.
An object, such as a stake, a road-
works cone or any other similar ob-
ject may be detected at the start of
the manoeuvre but may no longer
be detected when the vehicle moves
nearer to it. The parking sensors are
switched
on :
- by engaging reverse gear,
- at a speed below 6 mph (10 km/h) in forward gear.
This is accompanied by an audible
signal and/or displaying of the vehi-
cle on the multifunction screen.
T h e p r o x i m i t y i n f o r m a t i o n i s i n d i c a t -
ed by:
- an audible signal which be- comes more rapid as the vehicle
approaches the obstacle,
- a diagram on the multifunction display, with blocks which move
closer to the vehicle.
The obstacle is located in relation to
the emission of the audible signal by
the speakers; front or rear and right
or left.
When the distance between the ve-
hicle and the obstacle is less than
a p p r o x i m a t e l y t h i r t y c e n t i m e t r e s ,
the audible signal becomes con-
tinuous and/or the "Danger" symbol
appears, depending on the multi-
function screen version.
The parking sensors are switched
off :
- w h e n y o u e x i t r e v e r s e g e a r ,
- when the speed is higher than 6 mph (10 km/h) in forward gear,
- when the vehicle has been station- ary for more than three seconds in
forward gear. Deactivation
Press button A , the warning lamp
comes on, the system is fully de-
activated.
The system will be deactivated au-
tomatically when a trailer is being
towed or when a bicycle carrier is
fi t t e d ( v e h i c l e fi t t e d w i t h a t o w b a r
or bicycle carrier recommended by
CITROËN).
Page 178 of 336
IX
157
D R I V I N G
Reactivation
In bad weather or in winter, ensure
that the sensors are not covered
with mud, ice or snow. When re-
verse gear is engaged, an audible
signal (long beep) indicates that the
sensors may be dirty.
When the speed of the vehicle is
below about 6 mph (10 km/h), some
sources of noise (motorcycle, lorry,
pneumatic drill, ...) may trigger the
audible parking sensor signals.
Press button A again, the warn-
ing lamp switches off, the system
is reactivated.
"HYDRACTIVE III +" ELECTRONIC SUSPENSION
The suspension automatically and
instantly adjusts to different driving
s t y l e s a n d t o t h e p r o fi l e o f t h e r o a d ,
providing the best compromise be-
tween occupant comfort and vehicle
road holding.
The system alternates between soft
a n d fi r m s u s p e n s i o n s e t t i n g s , m a x i -
mising comfort at the same time as
constantly ensuring the highest level
of safety. It also automatically cor-
rects ride height, according to the
vehicle load and driving conditions.
In addition, the "Hydractive III +" sys-
tem allows you to choose between
two modes of suspension.
A change of suspension mode can
be made either when the vehicle is
moving or when stationary, by press-
ing button A . Display on the instrument
panel
The suspension mode selected is
displayed on the instrument panel
screen.
Normal mode
This mode favours soft
d a m p i n g f o r m a x i m u m c o m -
fort.
If the speed authorised for a
p a r t i c u l a r p o s i t i o n i s e x c e e d -
ed, the vehicle reverts automatically
to the normal road position.
SPORT mode
This mode favours dynamic
driving.
The warning lamp on but-
ton A comes on in addition
to the message on the in-
strument panel screen.
SPORT mode is retained when you
switch off the engine.
Page 179 of 336
IX
157
D R I V I N G
Reactivation
In bad weather or in winter, ensure
that the sensors are not covered
with mud, ice or snow. When re-
verse gear is engaged, an audible
signal (long beep) indicates that the
sensors may be dirty.
When the speed of the vehicle is
below about 6 mph (10 km/h), some
sources of noise (motorcycle, lorry,
pneumatic drill, ...) may trigger the
audible parking sensor signals.
Press button A again, the warn-
ing lamp switches off, the system
is reactivated.
"HYDRACTIVE III +" ELECTRONIC SUSPENSION
The suspension automatically and
instantly adjusts to different driving
s t y l e s a n d t o t h e p r o fi l e o f t h e r o a d ,
providing the best compromise be-
tween occupant comfort and vehicle
road holding.
The system alternates between soft
a n d fi r m s u s p e n s i o n s e t t i n g s , m a x i -
mising comfort at the same time as
constantly ensuring the highest level
of safety. It also automatically cor-
rects ride height, according to the
vehicle load and driving conditions.
In addition, the "Hydractive III +" sys-
tem allows you to choose between
two modes of suspension.
A change of suspension mode can
be made either when the vehicle is
moving or when stationary, by press-
ing button A . Display on the instrument
panel
The suspension mode selected is
displayed on the instrument panel
screen.
Normal mode
This mode favours soft
d a m p i n g f o r m a x i m u m c o m -
fort.
If the speed authorised for a
p a r t i c u l a r p o s i t i o n i s e x c e e d -
ed, the vehicle reverts automatically
to the normal road position.
SPORT mode
This mode favours dynamic
driving.
The warning lamp on but-
ton A comes on in addition
to the message on the in-
strument panel screen.
SPORT mode is retained when you
switch off the engine.
