Page 2 of 336
5
F A M I L I A R I S A T I O N
A. K e y r e l e a s e / s t o r a g e .
B. N o r m a l l o c k i n g o f t h e v e h i c l e
( a s i n g l e p r e s s ) o r d e a d l o c k i n g t h e
v e h i c l e ( t w o p r e s s e s i n s u c c e s s i o n ) .
C. G u i d e - m e - h o m e l i g h t i n g .
D. U n l o c k i n g t h e v e h i c l e . T o o p e n t h e f u e l fi l l e r fl a p , p r e s s o n i t a t
t o p l e f t , t h e n p u l l f r o m t h e r e a r e d g e .
Press upwards on the lever E .
Opening the boot
79-80
84
O P E N I N G
R e m o t e c o n t r o l k e y Fuel tank
67 L o c k i n g f i l l e r c a p
T u r n t h e k e y a q u a r t e r t u r n t o l o c k
a n d u n l o c k t h e fi l l e r c a p .
W h e n r e f u e l l i n g , p l a c e t h e c a p o n
hook F .
T a n k c a p a c i t y : a p p r o x i m a t e l y 7 1 l i t r e s .
T h e b o o t a u t o m a t i c a l l y l o c k s w h e n t h e
v e h i c l e i s m o v i n g a t a s p e e d o f o v e r
6 m p h ( 1 0 k m / h ) , e v e n i f a u t o m a t i c
c e n t r a l l o c k i n g i s d e a c t i v a t e d . I t i s u n -
l o c k e d w h e n a d o o r i s o p e n e d o r w h e n
t h e c e n t r a l l o c k i n g b u t t o n i s p r e s s e d
( s p e e d l o w e r t h a n 6 m p h ( 1 0 k m / h ) ) .
Page 66 of 336
III
64
C O M F O R T
REAR SEATS
Bench seat, the left-hand (2/3) or
right-hand (1/3) section of which
can be folded to adapt the boot load
space.
Removing the seat cushion
Move the corresponding front
seat forwards if necessary.
Raise the front of the seat cushion 1 .
Tilt the seat cushion 1 fully
against the front seat.
Remove the seat cushion 1 from
i t s fi x i n g s b y p u l l i n g u p w a r d s . Refitting the seat cushion
Position the seat cushion 1 verti-
c a l l y i n i t s fi x i n g s .
Fold down the seat cushion 1 .
Press on the seat cushion to se-
cure it.
Folding the seat
In order to fold a rear seat without
any risk of damage, always start
with the seat cushion, never with
the seat back:
move the corresponding front
seat forwards if necessary,
raise the front of the seat cushion 1 ,
tilt the seat cushion 1 fully against
the front seat,
check that the seat belt is posi-
tioned correctly on the side of
the seat back,
lower or remove the head re-
straints if necessary,
pull the control 3 forwards to re-
lease the seat back 2 ,
tilt the seat back 2 .
The seat cushion 1 can be removed
to increase the loading volume. Returning the seat back to its
original position
When returning the rear seat to its
original position:
put the seat back 2 in the upright
position and secure it,
fold the seat cushion 1 ,
r e fi t t h e h e a d r e s t r a i n t s o r p u t
them back in place.
When returning the rear seat to its
original position, take care not to trap
the seat belts and ensure that their
buckles are positioned correctly.
The red indicator on the control 3
should no longer be visible; if it is,
push the seat fully back.
Page 71 of 336
IV
67
A C C E S S
REMOTE CONTROL KEY
System which permits central unlock-
ing or locking of the vehicle using the
lock or from a distance. It is also used
to locate and start the vehicle and
provide guide-me-home lighting, as
well as providing protection against
theft.
Unlocking the vehicle Complete unlocking using the
remote control
Unfolding the key
First press button A to unfold the
key.
Press the open padlock
to unlock the vehicle.
Complete unlocking using the key
Turn the key to the left in the
driver's door lock to unlock the
vehicle.
U n l o c k i n g i s c o n fi r m e d b y r a p i d
fl a s h i n g o f t h e d i r e c t i o n i n d i c a t o r s
for approximately two seconds and
lighting of the courtesy lamp (if the
function is activated).
According to version, the door mir-
rors unfold at the same time.
Selective unlocking using the
remote control
Press the open pad-
lock once to unlock the
driver's door only.
Press the open padlock again to
unlock the other doors and the
boot. According to version, the exterior
mirrors unfold at the same time as
t h e fi r s t u n l o c k i n g a c t i o n .
The complete or selective unlocking
parameter is set via the instrument
p a n e l s c r e e n c o n fi g u r a t i o n m e n u ( s e e
"Instruments and controls" section).
Complete unlocking is activated by
default.
Selective unlocking is not possible
using the key.
E a c h u n l o c k i n g i s c o n fi r m e d b y
r a p i d fl a s h i n g o f t h e d i r e c t i o n i n d i c a -
tors for approximately two seconds
and by switching on of the courtesy
lamp.
Electric boot opening
Press button B to open
the boot.
Page 72 of 336
IV
68
A C C E S S
Normal locking using the key
Turn the key to the right in the
driver's door lock to lock the ve-
hicle completely.
L o c k i n g i s c o n fi r m e d b y fi x e d l i g h t -
ing of the direction indicators for
approximately two seconds and by
switching off of the courtesy lamp.
According to version, the exterior
mirrors fold at the same time. If one of the doors, the rear screen
or the boot is still open, the central
locking does not take place.
When the vehicle is locked, if it is
unlocked inadvertently, it will relock
automatically after thirty seconds
unless a door is opened.
When stationary with the engine
o f f , l o c k i n g i s c o n fi r m e d b y fl a s h i n g
of the interior locking control indi-
cator lamp.
The folding and unfolding of the
exterior mirrors using the remote
control can be deactivated by a
CITROËN dealer.
Deadlocking using the
remote control
Press the closed pad-
lock to lock the vehicle
completely or press the
closed padlock for more
than two seconds to
close the windows and
sunroof automatically in
addition to locking.
Press the closed padlock again
w i t h i n fi v e s e c o n d s t o d e a d l o c k
the vehicle.
Locking the vehicle
Normal locking using the remote
control
Press the closed pad-
lock to lock the vehicle
completely.
Press the closed padlock for
more than two seconds to close
the windows and sunroof auto-
matically in addition to locking. Deadlocking using the key
Turn the key to the right in the
driver's door lock to lock the
vehicle completely and hold it
in this position for more than
two seconds to close the win-
dows automatically in addition
to locking.
Turn the key to the right again
w i t h i n fi v e s e c o n d s t o d e a d l o c k
the vehicle.
D e a d l o c k i n g i s c o n fi r m e d b y fi x e d
lighting of the direction indicators for
approximately two seconds.
According to version, the exterior
mirrors fold at the same time.
Deadlocking renders the exterior
and interior door controls inoperative.
It also deactivates the manual cen-
tral control button.
When stationary with the engine
o f f , l o c k i n g i s c o n fi r m e d b y fl a s h i n g
of the indicator lamp on the interior
locking control.
If one of the doors or the boot is open
or has not been closed correctly, the
central locking will not work.
Therefore, never leave anyone inside
the vehicle when it is deadlocked.
Page 79 of 336
IV
!
73
A C C E S S
ALARM *
System which protects and provides
a deterrent against theft and break-
ins. It provides the following types of
monitoring.
- Exterior perimeter
The system checks for opening of
the vehicle.
The alarm is triggered if anyone tries
to open a door, the boot, the bonnet...
- Interior volumetric
The system checks for any variation in
the volume in the passenger compart-
ment.
The alarm is triggered if anyone breaks
a window, enters the passenger com-
partment or moves inside the vehicle.
- Tilt
The system checks for any change
in the attitude of the vehicle.
The alarm is triggered if the vehicle
is lifted, moved or knocked. Locking the vehicle with full
alarm system
Activation
Switch off the ignition and get out
of the vehicle.
Press the locking button on the
remote control.
The monitoring system is active: the
i n d i c a t o r l a m p o n t h e b u t t o n fl a s h e s
once per second.
After the locking button on the re-
mote control is pressed, the exterior
perimeter monitoring is activated
after a delay of 5 seconds and the
interior volumetric and anti-tilt moni-
toring after a delay of 45 seconds.
If an opening (door, boot...) is not
closed fully, the vehicle is not locked
but the exterior perimeter monitor-
ing will be activated after a delay of
45 seconds at the same time as the
interior volumetric and anti-tilt moni-
toring. Deactivation
Press the unlocking button on
the remote control.
The alarm system is deactivated: the in-
dicator lamp on the button switches off.
Locking the vehicle with
exterior perimeter monitoring
only
Deactivate the interior volumetric
and anti-tilt monitoring to avoid un-
wanted triggering of the alarm in
certain cases such as:
- leaving a pet in the vehicle,
- leaving a window partially open,
- washing your vehicle,
- changing a wheel,
- having your vehicle towed,
- transport by sea.
Self-protection function
The system checks for the
putting out of service of its
components.
The alarm is triggered if the battery,
the central control or the siren wiring
are put out of service or damaged.
For all work on the alarm system,
contact a CITROËN dealer. Deactivation of the interior
volumetric and anti-tilt
monitoring
Switch off the ignition.
Within ten seconds, press the
button until the indicator lamp is
lit continuously.
Get out of the vehicle.
Press the locking button on the
remote control immediately.
The exterior perimeter monitoring alone
is activated: the indicator lamp on the
b u t t o n fl a s h e s o n c e p e r s e c o n d .
To be effective, this deactivation
must be carried out each time the
ignition is switched off.
Page 80 of 336
IV
74
A C C E S S
Reactivation of the interior
volumetric and anti-tilt
monitoring
Press the unlocking button on the
remote control to deactivate the
exterior perimeter monitoring.
Press the locking button on the
remote control to activate all the
monitoring functions.
The indicator lamp on the button
a g a i n fl a s h e s o n c e p e r s e c o n d . Triggering of the alarm
This is indicated by sounding of the
s i r e n a n d fl a s h i n g o f t h e d i r e c t i o n i n -
dicators for thirty seconds.
The monitoring functions remain
active until the alarm has been trig-
gered eleven times in succession.
When the vehicle is unlocked using
t h e r e m o t e c o n t r o l , r a p i d fl a s h i n g
of the indicator lamp on the button
informs you that the alarm was trig-
gered during your absence. When
t h e i g n i t i o n i s s w i t c h e d o n , t h i s fl a s h -
ing stops immediately.
Failure of the remote control
To deactivate the monitoring func-
tions:
Unlock the vehicle using the key
in the driver's door lock.
Open the door; the alarm is trig-
gered.
Switch on the ignition; the alarm
stops. The indicator lamp on the
button switches off. Locking the vehicle without
activating the alarm
Lock or deadlock the vehicle using
the key in the driver's door lock.
Malfunction
When the ignition is switched on,
fi x e d l i g h t i n g o f t h e i n d i c a t o r l a m p o n
the button indicates a malfunction of
the system.
Have it checked by a CITROËN
dealer.
* According to country.
Automatic activation *
2 minutes after the last door or the
boot is closed, the system is activat-
ed automatically.
To avoid triggering the alarm on
e n t e r i n g t h e v e h i c l e , fi r s t p r e s s
the unlocking button on the re-
mote control.
Page 83 of 336
IV
77
A C C E S S

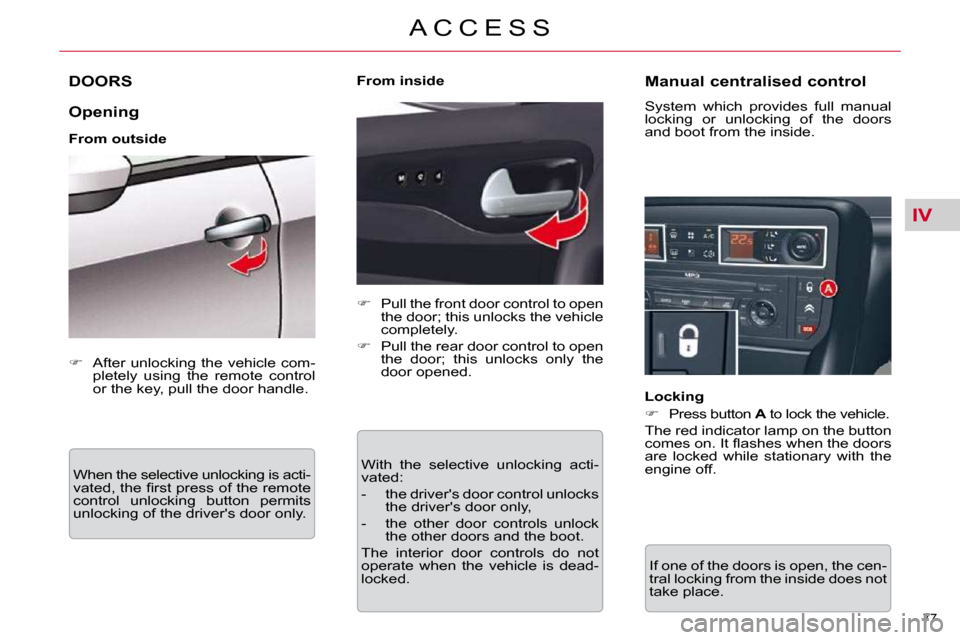

DOORS
Opening
From outside When the selective unlocking is acti-
v a t e d , t h e fi r s t p r e s s o f t h e r e m o t e
control unlocking button permits
unlocking of the driver's door only.
Pull the front door control to open
the door; this unlocks the vehicle
completely.
Pull the rear door control to open
the door; this unlocks only the
door opened.
With the selective unlocking acti-
vated:
- the driver's door control unlocks the driver's door only,
- the other door controls unlock the other doors and the boot.
The interior door controls do not
operate when the vehicle is dead-
locked. Manual centralised control
System which provides full manual
locking or unlocking of the doors
and boot from the inside.
Locking
Press button A to lock the vehicle.
The red indicator lamp on the button
c o m e s o n . I t fl a s h e s w h e n t h e d o o r s
are locked while stationary with the
engine off.
If one of the doors is open, the cen-
tral locking from the inside does not
take place.
After unlocking the vehicle com-
pletely using the remote control
or the key, pull the door handle. From inside
Page 84 of 336
IV
78
A C C E S S
Unlocking
Press button A again to unlock
the vehicle.
The red indicator lamp on the button
switches off.
If the vehicle is locked or dead-
locked from the outside, the red in-
d i c a t o r l a m p fl a s h e s a n d b u t t o n A
is inactive.
In this case, use the remote
control or the key to unlock the
vehicle.
Automatic central locking
System which provides full automatic locking or unlocking of the doors and
the boot while driving.
You can activate or deactivate this
function. Locking
When the speed exceeds 6 mph
(10 km/h), the doors and the boot
lock automatically.
If one of the doors is open, the auto-
matic central locking does not take
place.
If the boot is open, the automatic
central locking of the doors is active.
Unlocking
Above 6 mph (10 km/h), press
button A to unlock the doors and
the boot temporarily.
Activation
Press button A for more than
two seconds.
A c o n fi r m a t i o n m e s s a g e a p p e a r s o n
the instrument panel screen, accom-
panied by an audible signal.
Deactivation
Press button A again for more
than two seconds.
A c o n fi r m a t i o n m e s s a g e a p p e a r s o n
the instrument panel screen, accom-
panied by an audible signal.
Emergency control
To lock or unlock the doors manu-
ally in the event of a malfunction of
the central locking system or battery
failure. Locking the driver's door
Insert the key in the lock, then
turn it to the rear.
Unlocking the driver's door
Insert the key in the lock, then
turn it to the front.
Locking the front and rear
passenger doors
On the rear doors, check that the
child lock is not activated.
Remove the black cap, located
on the edge of the door, using
the key.
Insert the key in the socket with-
out forcing it, then without turn-
ing it, move the latch sideways
towards the inside of the door
R e m o v e t h e k e y a n d r e fi t t h e
cap.
Unlocking the front and rear
passenger doors
Pull the interior door opening
control.
Page 85 of 336
IV
79
A C C E S S
BOOT (SALOON)
Press upwards on lever 1 and lift
up the boot lid. With the vehicle stationary, this is
carried out using:
- The remote control.
- The key in a door lock.
- The interior central locking/un-
locking control.
The boot automatically locks when
the vehicle is moving at a speed of
over 6 mph (10 km/h), even if auto-
matic central locking is deactivated.
It is unlocked when a door is opened
or when the central locking button is
pressed (speed lower than 6 mph
(10 km/h)).
Opening
Locking/unlocking Emergency boot release
System for mechanical unlocking of
the boot in the event of a battery or
central locking malfunction.
Unlocking
Fold back the rear seats to gain
access to the lock from inside
the boot.
Insert a small screwdriver into
hole A of the lock to unlock the
tailgate.
Push the white part, located in-
side the lock, to the left to unlock
the boot.
Page 86 of 336
IV
80
A C C E S S
Electric opening
BOOT (TOURER)
Manual opening
Press upwards on lever A and lift
up the tailgate.
Press upwards on lever A , or
press button B of the remote
control. Do not attempt to help the opening
of the tailgate manually after press-
ing the control
A .
Manual closing
Lower the tailgate using the inte-
rior handle C .
Electric closing
Press the push-button D to close
the tailgate.
Do not interrupt the closing of the
tailgate; if any obstacle prevents it
closing, the operation will stop and
the tailgate will automatically rise
by a few centimetres.
Locking/unlocking
With the vehicle stationary, this is
carried out using:
- The remote control.
- The key in a door lock.
- The interior central locking/un- locking control. Interrupting the opening/
closing of the tailgate
When the tailgate is being opened or
closed electrically, you can interrupt
its movement at any point by press-
ing push-button
D , the control A or
button B .
You can then open or close the tail-
gate electrically or manually, if nec-
essary moving it in the opposite
direction to release it.
The boot automatically locks when
the vehicle is moving at a speed of
over 6 mph (10 km/h), even if auto-
matic central locking is deactivated.
It is unlocked when a door is opened
or when the central locking button
is pressed (at a speed of less than
6 mph (10 km/h)).
Memorisation of an
intermediate position
You can store an opening angle for
the tailgate:
Manually or automatically move
the tailgate to the required posi-
tion.
Make a long press on push-but-
ton D . The system emits a short
audible beep.
Release the push-button D .
