F A M I L I A R I S A T I O N
S I T T I N G C O M F O R T A B L Y
1. S e a t c u s h i o n h e i g h t , a n g l e a n d s l i d e
a d j u s t m e n t s .
2. A d j u s t m e n t o f t h e b a c k r e s t a n g l e .
3. A d j u s t m e n t o f t o p o f b a c k r e s t .
4. A d j u s t m e n t o f l u m b a r s u p p o r t , h e i g h t
a n d l e v e l .
5. M a s s a g e f u n c t i o n .
6. H e a t e d s e a t c o n t r o l .
A. A d j u s t m e n t o f t h e b a c k r e s t a n g l e .
B. A d j u s t m e n t o f t h e s e a t h e i g h t .
C. H e a t e d s e a t c o n t r o l .
D. L o n g i t u d i n a l a d j u s t m e n t o f s e a t .
E. A d j u s t m e n t o f t h e b a c k r e s t l u m b a r
s u p p o r t . Memorising
T h i s f u n c t i o n a l l o w s y o u t o p r o g r a m m e
and store the driver’s seat and air
c o n d i t i o n i n g s e t t i n g s .
The
c o r r e c t p o s i t i o n of the upper seat
b e l t a n c h o r a g e p l a c e s t h e b e l t a c r o s s
t h e m i d d l e o f t h e s h o u l d e r .

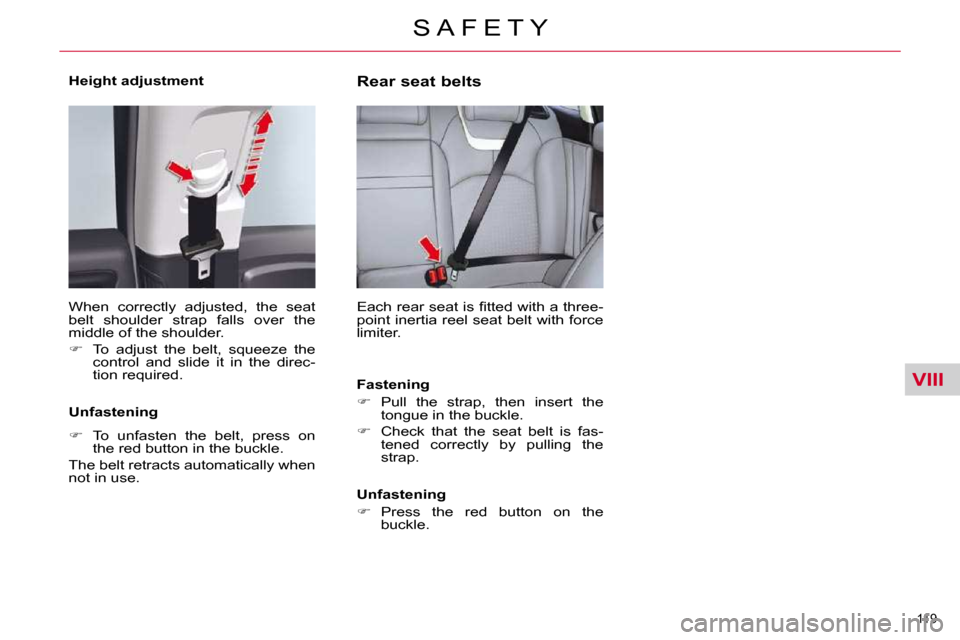

T o a d j u s t t h e s e a t b e l t f o r h e i g h t ,
c o m p r e s s t h e c o n t r o l a n d slide it in
t h e d e s i r e d d i r e c t i o n .
Seat belt height adjustment
Front seats
E l e c t r i c a d j u s t m e n t s
Manual adjustments
60
61
119
63
Page 61 of 336
III
60
C O M F O R T
FRONT SEATS MANUAL ADJUSTMENTS
1. Adjustments to the height and
angle of the head restraint
To raise it, pull upwards.
To lower it, press on the control A
to unlock it, and simultaneously
on the head restraint itself. The
adjustment is correct when the
top edge of the head restraint is
at the same height as the top of
the head. It is also tilt adjustable.
To raise it, press control A to
unlock it, then pull it upwards. It
may be necessary to adjust the
backrest angle.
2.
Adjustment of the backrest angle
Operate the control and adjust
the position of the backrest to
the front or to the rear.
3. Adjustment of the seat height
Raise or lower the control the number of times required to ob-
tain the desired position.
4. Longitudinal adjustment of seat
Lift the control bar and adjust to the desired position.
5. Adjustment of lumbar support
Turn the control and adjust to the desired position.
6. Heated seat controls
The heated seats only operate when the engine is running.
Seat consisting of a seat cushion, seat back and head restraint
which can all be
adjusted for optimum driving comfort.
For your safety, do not drive with
the head restraints removed; they
must be in place and correctly ad-
justed.
Page 62 of 336
III
61
C O M F O R T
FRONT SEATS
ELECTRIC ADJUSTMENTS
To adjust the electric seats, switch on the ignition or start the engine if the ve-
hicle has gone into economy mode.
Seat adjustments are also possible for a short period after ope ning one of the
front doors or switching off the ignition.
2. Adjustment of the backrest
angle
Move the control forwards or backwards to adjust the backrest
angle.
3. Adjustment of the angle of the
top of the backrest
Move the control forwards or backwards to adjust the angle of
the top of the backrest.
1. Adjustment of the seat height
and angle, and longitudinal
adjustment
Raise or lower the front of the
control to adjust the seat cushion
angle.
Raise or lower the rear of the
control to raise or lower the seat.
Simultaneously raise or lower
the front and rear of the control
in order to raise or lower the
entire seat.
4. Adjustment of lumbar support
This function allows you to inde- pendently adjust the height and
level of lumbar support.
Move the control:
Forwards or backwards to in-
crease or reduce the lumbar
support.
Upwards or downwards to raise or
lower the lumbar support zone.
Head restraint height and
angle adjustments on electric
seats
To adjust the angle of the head
restraint, push back or pull for-
ward section C of the head re-
straint until you reach the desired
position.
To raise it, pull upwards.
To lower it, press on the control D
to unlock it, and simultaneously on
the head restraint itself.
To remove it, press on the control D
to unlock it, then pull it upwards.
Page 69 of 336
III
66
C O M F O R T As a safety precaution, these op-
erations must only be carried out
while the vehicle is stationary.
STEERING WHEEL ADJUSTMENT
The steering wheel can be adjusted
for height and reach to adapt the
driving position to the size of the
driver.
Adjustment
First, adjust the driver's seat to
the most suitable position.
When stationary , pull the lever A
to unlock the steering wheel ad-
justment.
Adjust for height and reach.
Push the lever to lock the steer-
ing wheel adjustment.
A f t e r l o c k i n g , i f y o u p r e s s fi r m l y o n
the steering wheel, a slight click may
be heard.
Automatic day/night model
In order to guarantee optimum vis-
ibility during your manoeuvres, the
mirror lightens automatically when
reverse gear is engaged.
By means of a sensor, which mea-
sures the light from the rear of the
vehicle, this system automatically
and progressively changes between
the day and night uses.
It has an anti-dazzle system which
darkens the mirror glass: this reduc-
es any driver discomfort caused by
the light beam of following vehicles,
the sun...
I n v e h i c l e s fi t t e d w i t h e l e c t r o c h r o m e
exterior rear view mirrors, the system
has an on/off button and an associ-
ated warning lamp.
On
With the ignition on, press on
button 1 .
The warning lamp 2 comes on and
the mirror is in automatic mode.
Off
Press on button 1 .
The warning lamp 2 goes out and
t h e m i r r o r r e m a i n s i n i t s l i g h t e s t d e fi -
nition.
Page 70 of 336
III
66
C O M F O R T As a safety precaution, these op-
erations must only be carried out
while the vehicle is stationary.
STEERING WHEEL ADJUSTMENT
The steering wheel can be adjusted
for height and reach to adapt the
driving position to the size of the
driver.
Adjustment
First, adjust the driver's seat to
the most suitable position.
When stationary , pull the lever A
to unlock the steering wheel ad-
justment.
Adjust for height and reach.
Push the lever to lock the steer-
ing wheel adjustment.
A f t e r l o c k i n g , i f y o u p r e s s fi r m l y o n
the steering wheel, a slight click may
be heard.
Automatic day/night model
In order to guarantee optimum vis-
ibility during your manoeuvres, the
mirror lightens automatically when
reverse gear is engaged.
By means of a sensor, which mea-
sures the light from the rear of the
vehicle, this system automatically
and progressively changes between
the day and night uses.
It has an anti-dazzle system which
darkens the mirror glass: this reduc-
es any driver discomfort caused by
the light beam of following vehicles,
the sun...
I n v e h i c l e s fi t t e d w i t h e l e c t r o c h r o m e
exterior rear view mirrors, the system
has an on/off button and an associ-
ated warning lamp.
On
With the ignition on, press on
button 1 .
The warning lamp 2 comes on and
the mirror is in automatic mode.
Off
Press on button 1 .
The warning lamp 2 goes out and
t h e m i r r o r r e m a i n s i n i t s l i g h t e s t d e fi -
nition.
Page 95 of 336
V
89
V I S I B I L I T Y
Linked with the automatic
"Guide-me-home" lighting
Link with the automatic illumination
of headlamps provides the "guide-
me-home" lighting with the following
additional options:
- selection of the duration of light- ing for 15, 30 or 60 seconds in
the vehicle parameters on the
i n s t r u m e n t p a n e l s c r e e n c o n fi g u -
ration menu,
- automatic activation of "guide- me-home" lighting when auto-
matic illumination of headlamps
is in operation.
Operating fault
In the event of a malfunction of the
brightness sensor, the lamps come
on and a message appears on the
instrument panel screen, accompa-
nied by an audible signal.
Consult a CITROËN dealer.
In fog or snow, the brightness
s e n s o r m a y d e t e c t s u f fi c i e n t l i g h t .
Therefore, the lamps will not come
on automatically.
Do not cover the brightness sen-
sor, linked with the rain sensor and
located in the centre of the wind-
screen behind the rear view mirror;
the associated functions would no
longer operate.
MANUAL HEADLAMP ADJUSTMENT
To avoid dazzling other road users,
the height of the halogen bulb head-
lamps must be adjusted according
to the load in the vehicle.
0. 1 or 2 people in the front seats.
-. 3 people.
1. 5 people.
-. Intermediate setting.
2. 5 people + maximum authorised
loads.
-. Intermediate setting.
3. Driver + maximum authorised
loads.
Initial setting is position "0".
AUTOMATIC ADJUSTMENT OF DIRECTIONAL HEADLAMPS
Do not touch the xenon bulbs.
Consult a CITROËN dealer.
If a malfunction occurs,
this warning lamp is dis-
played on the instrument
panel, accompanied by
an audible signal and a
message on the instru-
ment panel screen.
The system then places your headlamps
in the lowest position.
To avoid causing a nuisance to other
road users, this system corrects the
height of the xenon headlamp beams
automatically and when stationary,
depending on the load in the vehicle.
Page 97 of 336
V
89
V I S I B I L I T Y
Linked with the automatic
"Guide-me-home" lighting
Link with the automatic illumination
of headlamps provides the "guide-
me-home" lighting with the following
additional options:
- selection of the duration of light- ing for 15, 30 or 60 seconds in
the vehicle parameters on the
i n s t r u m e n t p a n e l s c r e e n c o n fi g u -
ration menu,
- automatic activation of "guide- me-home" lighting when auto-
matic illumination of headlamps
is in operation.
Operating fault
In the event of a malfunction of the
brightness sensor, the lamps come
on and a message appears on the
instrument panel screen, accompa-
nied by an audible signal.
Consult a CITROËN dealer.
In fog or snow, the brightness
s e n s o r m a y d e t e c t s u f fi c i e n t l i g h t .
Therefore, the lamps will not come
on automatically.
Do not cover the brightness sen-
sor, linked with the rain sensor and
located in the centre of the wind-
screen behind the rear view mirror;
the associated functions would no
longer operate.
MANUAL HEADLAMP ADJUSTMENT
To avoid dazzling other road users,
the height of the halogen bulb head-
lamps must be adjusted according
to the load in the vehicle.
0. 1 or 2 people in the front seats.
-. 3 people.
1. 5 people.
-. Intermediate setting.
2. 5 people + maximum authorised
loads.
-. Intermediate setting.
3. Driver + maximum authorised
loads.
Initial setting is position "0".
AUTOMATIC ADJUSTMENT OF DIRECTIONAL HEADLAMPS
Do not touch the xenon bulbs.
Consult a CITROËN dealer.
If a malfunction occurs,
this warning lamp is dis-
played on the instrument
panel, accompanied by
an audible signal and a
message on the instru-
ment panel screen.
The system then places your headlamps
in the lowest position.
To avoid causing a nuisance to other
road users, this system corrects the
height of the xenon headlamp beams
automatically and when stationary,
depending on the load in the vehicle.
Page 98 of 336
V
89
V I S I B I L I T Y
Linked with the automatic
"Guide-me-home" lighting
Link with the automatic illumination
of headlamps provides the "guide-
me-home" lighting with the following
additional options:
- selection of the duration of light- ing for 15, 30 or 60 seconds in
the vehicle parameters on the
i n s t r u m e n t p a n e l s c r e e n c o n fi g u -
ration menu,
- automatic activation of "guide- me-home" lighting when auto-
matic illumination of headlamps
is in operation.
Operating fault
In the event of a malfunction of the
brightness sensor, the lamps come
on and a message appears on the
instrument panel screen, accompa-
nied by an audible signal.
Consult a CITROËN dealer.
In fog or snow, the brightness
s e n s o r m a y d e t e c t s u f fi c i e n t l i g h t .
Therefore, the lamps will not come
on automatically.
Do not cover the brightness sen-
sor, linked with the rain sensor and
located in the centre of the wind-
screen behind the rear view mirror;
the associated functions would no
longer operate.
MANUAL HEADLAMP ADJUSTMENT
To avoid dazzling other road users,
the height of the halogen bulb head-
lamps must be adjusted according
to the load in the vehicle.
0. 1 or 2 people in the front seats.
-. 3 people.
1. 5 people.
-. Intermediate setting.
2. 5 people + maximum authorised
loads.
-. Intermediate setting.
3. Driver + maximum authorised
loads.
Initial setting is position "0".
AUTOMATIC ADJUSTMENT OF DIRECTIONAL HEADLAMPS
Do not touch the xenon bulbs.
Consult a CITROËN dealer.
If a malfunction occurs,
this warning lamp is dis-
played on the instrument
panel, accompanied by
an audible signal and a
message on the instru-
ment panel screen.
The system then places your headlamps
in the lowest position.
To avoid causing a nuisance to other
road users, this system corrects the
height of the xenon headlamp beams
automatically and when stationary,
depending on the load in the vehicle.
Page 139 of 336
VIII
119
S A F E T Y
Height adjustment
W h e n c o r r e c t l y a d j u s t e d , t h e s e a t
b e l t s h o u l d e r s t r a p f a l l s o v e r t h e
m i d d l e o f t h e s h o u l d e r .
T o a d j u s t t h e b e l t , s q u e e z e t h e
control and slide it in the direc-
t i o n r e q u i r e d .
Unfastening
T o u n f a s t e n t h e b e l t , p r e s s o n
t h e r e d b u t t o n i n t h e b u c k l e .
T h e b e l t r e t r a c t s a u t o m a t i c a l l y w h e n
n o t i n u s e . Rear seat belts
Fastening
P u l l t h e s t r a p , t h e n i n s e r t t h e
t o n g u e i n t h e b u c k l e .
Check that the seat belt is fas-
t e n e d c o r r e c t l y b y p u l l i n g t h e
strap.
Unfastening
P r e s s t h e r e d b u t t o n o n t h e
b u c k l e .
E a c h r e a r s e a t i s fi t t e d w i t h a t h r e e -
point inertia reel seat belt with force
l i m i t e r .
