bulb Citroen C5 RHD 2011.5 (RD/TD) / 2.G User Guide

XI
191
PRACTICAL INFORMATION

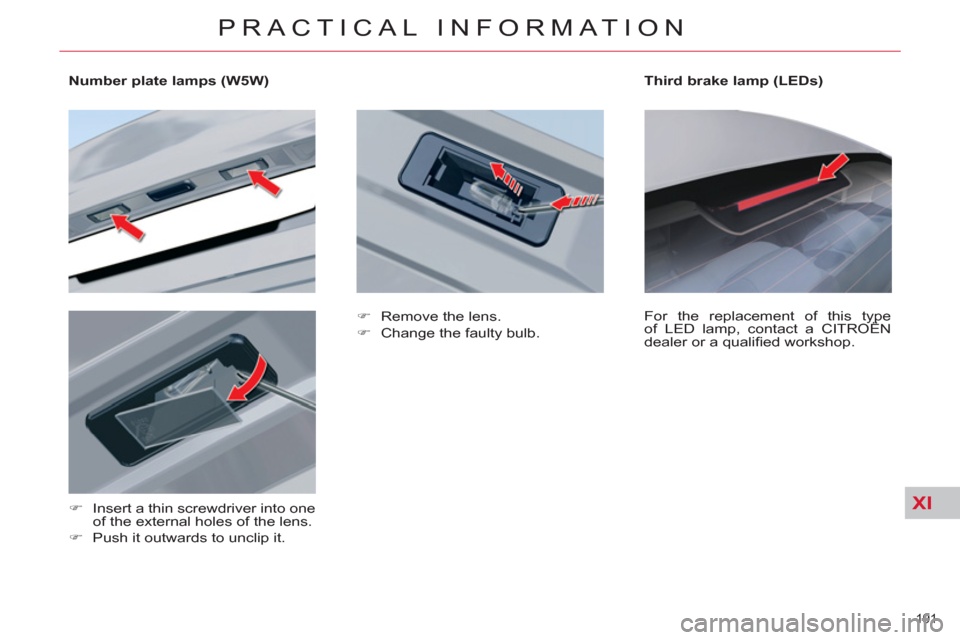

Number plate lamps (W5W)


)
Insert a thin screwdriver into one
of the external holes of the lens.

)
Push it outwards to unclip it.

Third brake lamp (LEDs)
For the replacement of this type
of LED lamp, contact a CITROËN
dealer or a qualifi ed workshop.

)
Remove the lens.

)
Change the faulty bulb.

XI
192
PRACTICAL INFORMATION












Interior lamps


Roof lamps


)
Unclip the transparent cover of
the roof lamp to reach the bulb.

Bulb:
W 5W

Rear reading lamps (Tourer)


)
Detach the cover of the reading
lamp to access the bulb.

Bulb:
W 5W
Map reading lamp


)
Detach the cover.

)
If necessary, detach the partition
of the affected map reading lamp.

Boot lamp


)
Detach the cover and use a W 5W
bulb.


Pavement lighting


)
Detach the cover and use a W 5W
bulb.

Floor lighting


)
Detach the cover and use a W 5W
bulb.


Glovebox


)
Detach the cover and use a W 5W
bulb.

XI
!
208
PRACTICAL INFORMATION
The fi tting of electrical equip-
ment or accessories which
are not recommended by
CITROËN may result in a failure of
your vehicle's electronic system and
excessive electrical consumption.
Please note this precaution. You
are advised to contact a CITROËN
representative to be shown the
range of recommended equipment
and accessories.

Depending on the legislation in
force in the country, it may be com-
pulsory to have a high visibility
safety vest, warning triangle and
spare bulbs and fuses available in
the vehicle.
Installation of radio
communication transmitters
Before installing any after-market
radio communication transmitter, you
can contact a CITROËN dealer for
the specifi cation of transmitters which
can be fi tted (frequency, maximum
power, aerial position, specifi c instal-
lation requirements), in line with the
Vehicle Electromagnetic Compatibility
Directive (2004/104/EC).



"Multimedia":
WIFI on board, 230 V socket, audio
systems, speakers, portable naviga-
tion systems, hands-free kit, DVD
player, USB Box, mapping update
CD, speed camera detectors, Hi-Fi
module…

325
VISUAL SEARCH

EXTERIOR (SALOON)

Accessories ..................................... 207
Panoramic sunroof ............................ 84
Roof bars ......................................... 203
Changing bulbs......................... 187-191


- rear lamps

- 3rd brake lamp

- number plate lamps
Tailgate .............................................. 81
Temporary puncture repair kit ... 176-178
Changing a wheel ..................... 179-182


- tools

- removing
Tyre under-infl ation detection ....117-118
Braking assistance ...........................119
Trajectory control ............................. 120
Tyre pressures ................................. 223 Fuel tank ............................................ 86 Remote control key....................... 69-74


- opening/closing

- anti-theft protection

- starting

- battery
Door mirrors ....................................... 67 Very cold climate screen.................. 205
Exterior lighting controls ............... 88-91
Headlamp adjustment........................ 91
Changing bulbs......................... 183-187


- front lamps

- foglamps

- direction indicator repeaters
Lane departure warning system ...... 156

Doors ............................................ 79-80


- opening/closing

- central locking

- emergency control
Child lock ..........................................115
Electric windows ........................... 77-78 Front and/or rear visual and
audible parking sensors................... 159
Towbar ............................................. 202

Towing ...................................... 200-201

326
VISUAL SEARCH

EXTERIOR (TOURER)

Accessories ..................................... 207
Panoramic sunroof ............................ 85
Roof bars ......................................... 203
Changing bulbs......................... 189-191


- rear lamps

- 3rd brake lamp

- number plate lamps
Tailgate .............................................. 82
Temporary puncture repair kit ... 176-178
Changing a wheel ..................... 179-182


- tools

- removing
Tyre under-infl ation detection ....117-118
Braking assistance ...........................119
Trajectory control ............................. 120
Tyre pressures ................................. 223 Fuel tank ............................................ 86 Remote control key....................... 69-74


- opening/closing

- anti-theft protection

- starting

- battery
Door mirrors ....................................... 67 Very cold climate screen.................. 205
Exterior lighting controls ............... 88-91
Headlamp adjustment........................ 91
Changing bulbs......................... 183-187


- front lamps

- foglamps

- direction indicator repeaters
Lane departure warning system ...... 156
Doors ............................................ 79-80


- opening/closing

- central locking

- emergency control
Child lock ..........................................115
Electric windows ........................... 77-78 Front and/or rear visual and
audible parking sensors................... 159
Towbar ............................................. 202

Towing ...................................... 200-201

330
VISUAL SEARCH

TECHNICAL DATA - MAINTENANCE

Very cold climate protection............. 204

Checking the levels .................. 172-173


- oil

- brake fl uid

- power steering fl uid

- coolant

- screenwash/headlamp wash fl uid
Changing bulbs......................... 183-192


- front

- rear Petrol engines.................................. 209
Petrol weights ........................... 210-211
Diesel engines .......................... 212-213
Diesel weights .......................... 214-217

Commercial versions (Tourer) weights ... 218
Dimensions (Saloon) ................ 219-220
Dimensions (Tourer) ................. 221-222
Identifi cation markings ..................... 223 Checking components .............. 174-175


- battery

- air/passenger compartment fi lter

- oil fi lter

- particle emission fi lter (Diesel)

- brake pads/discs
Engine compartment
fuses ................................. 193, 196-197
Battery ...................................... 198-199
Energy economy mode.................... 200
Opening the bonnet ......................... 164
Petrol under-bonnet layout ....... 167-168
Diesel under-bonnet layout....... 169-171 Running out of fuel - Diesel ............. 166

331
ALPHABETICAL INDEX
A ABS and EBFD systems ....... 119
Accessories ........................... 207
Accessory socket, 12 volt ...... 102
Adjusting headlamps ............... 91
Adjusting head restraints .... 62, 65
Adjusting seat belt height ...... 122
Adjusting the steering wheel ..... 68
Airbags, curtain ............. 126, 127
Airbags, front ......................... 127
Airbags, lateral .............. 126, 127
Air conditioning ...... 24, 50, 51, 54
Air conditioning, digital ............ 54
Air conditioning, mono-zone .... 51
Air diffuser ............................... 49

Air distribution adjustment ..... 52, 55
Air fi lter .................................. 174
Air fl ow ................................ 2, 24
Air fl ow adjustment ............ 52, 56
Air intake ................................. 51
Air recirculation ................. 51, 54
Air vents ............................ 49, 50
Alarm ....................................... 75
Alert/warning log ..................... 31
Alloy wheels .......................... 206
Anti-lock braking system
(ABS) ................................... 119
Anti-pinch .................... 77, 84, 85
Anti-theft .................................. 71
Armrest, front ........................ 101
Armrest, rear ......................... 102
Assistance call ...... 116, 226, 227
Audible warning ..................... 116
Audio/video sockets .............. 256
Audio streaming (Bluetooth) ..... 316
Audio system .................. 305-324
Automatic illumination of
headlamps ....................... 88, 90
Automatic operation of hazard
warning lamps ..................... 116A Automatic rain sensitive
windscreen wipers ........... 94, 95
Auxiliary sockets ... 256, 292, 314
B Battery ........................... 174, 198
Battery, charging ................... 199
Battery, remote control ...... 73, 74
Battery compartment
fuse box ............................... 193
Blind for panoramic sunroof .... 85
Blinds .................................... 102
Bluetooth
(hands-free) ......... 257, 293, 315
Bluetooth
(telephone) .......... 257, 293, 315
Bonnet ................................... 164
Bonnet stay ........................... 164
Boot ................................... 81, 82
Boot (fi ttings) ................. 103, 104
Brake discs ............................ 175
Brake lamps .................. 187, 189
Brake pads ............................ 175
Brakes ................................... 175
Braking assistance system .... 119
C Capacity, fuel tank ................... 86
CD MP3 ......... 253, 290, 291, 311
Central locking .................. 70, 79
Changing
a bulb ........................... 183-192
Changing a fuse ............. 193-197
Changing a wheel .......... 179-182
Changing a wiper blade .......... 96

Changing the date ........ 261, 295, 317
Changing the remote control
battery ................................... 73
Changing
the time ............... 261, 295, 317
CHECK .................................... 31
Checking levels ............. 172, 173C Checking the engine oil level ...... 40
Checks ........................... 164-175
Children .... 78, 108-115, 123, 125
Child seats ........................... 107

Child seats, conventional .....109, 110 CITROËN call button ............. 227
CITROËN services ...... 116, 126, 227
Closing the boot ...................... 70
Closing the doors .............. 70, 79
Cold climate screen ............... 205
Connectors,
audio ........... 259, 292, 312, 314
Control for panoramic sunroof
blind ....................................... 85
Coolant level ................... 41, 172
Coolant
temperature indicator ............ 41
Courtesy lamps ....................... 96
Cruise control ........................ 154
Cup holder ..................... 101, 102
D Date (display) ........ 261, 295, 317
Daytime running lamps ..... 90, 183
Deactivating the passenger
airbag .................................. 125
Defrosting .......................... 52, 57
Demisting .......................... 52, 57
Demisting the rear screen .... 53, 57
Diesel additive level .............. 173
Dimensions ........................... 219
Dipped beam ................... 88, 183
Dipstick ............................ 40, 172
Directional lighting ............. 92, 93
Direction
indicators ............. 116, 183, 189
Doors ....................................... 79
Doors emergency control ........ 80
Driving economically ........... 2, 24
Driving positions
(storing) ................................. 65

332
ALPHABETICAL INDEX
E EBA (Emergency braking
assistance) .......................... 119
Eco-driving ......................... 2, 24
Economy mode ..................... 200
Electric window controls .......... 77
Electronic brake force
distribution (EBFD) .............. 119
Electronic
engine immobiliser .......... 71, 74
Emergency boot release ......... 81
Emergency braking system ..... 119
Emergency call ...... 116, 226, 227
Emergency warning lamps .... 116
Energy economy mode ......... 200
Engine, Diesel ................. 87, 169
Engine, petrol .................. 87, 167
Engine compartment ..... 167, 169
Engine
compartment fusebox .......... 196
Engine
oil level indicator ............ 40, 172
Engines ................................. 212
Environment ..... 24, 74 , 173, 199
ESP/ASR ............................... 120
F Filling with fuel ................... 86, 87
Fitting a wheel ....................... 181
Fitting roof bars ..................... 203
Fittings, boot .................. 103, 104
Flashing indicators ................ 116
Foglamps, front ............... 89, 186
Foglamps, rear ........ 89, 187, 189
Folding the rear seats ............. 66
Front seats ......................... 62-65
Fuel ............................. 24, 86, 87
Fuel consumption .................... 24
Fuel fi ller cap ........................... 86
Fuel fi ller fl ap ..................... 86, 87
Fuel gauge ........................ 41, 86F Fuel tank ........................... 86, 87
Fusebox, dashboard ............. 193
Fuses .................................... 193
G G.P.S. ............................ 240, 279
Gearbox, automatic ....... 146, 175
Gearbox, electronic ....... 139, 143
Gearbox,
manual ........ 137, 138, 143, 175
Gear effi ciency indicator ........ 138
Gear lever ........................... 2, 24
Gear lever,
automatic gearbox ............... 146
Gear lever, electronic gearbox
system ................................. 139
Gear lever, manual gearbox ..... 137
Glove box .............................. 100
Guidance ....................... 240, 279
Guide-me-home .......... 71, 90, 91
H Hands-free kit ................ 293, 315
Hazard warning lamps .......... 116
Headlamp adjustment ............. 91
Headlamps, directional ....... 91-93
Headlamp wash ...................... 95
Headlamp wash reservoir ..... 172
Head restraints, front ......... 62, 63
Head restraints, rear ......... 65, 66
Heated seats ..................... 62, 64
Heating .................. 24, 50, 51, 55
Height and reach adjustment,
steering wheel ....................... 68
High load retaining net .......... 105
Hill start assist ....................... 136
Horn ...................................... 116
Hydractive III+ suspension .... 160
I Identifi cation plates ............... 223
Indicator lamps, status ....... 32-38
Indicators, direction ............... 116I Infl ating tyres ................... 24, 223
Inputs for audio
system ......... 256, 292, 312, 314
Instrument panel lighting ......... 42
Instrument panels .................... 26
Instrument panel screen .... 26, 138
Interior mood lighting ............... 98
ISOFIX
child seats ............ 111, 113, 114
ISOFIX mountings ................. 111
J Jack ....................................... 179
Jukebox (copy) ...................... 254
Jukebox (playing) .................. 255
K Keeping children
safe .............. 108-115, 123, 125
Key with
remote control ............ 69-71, 74
L Labels, identifi cation .............. 223
Lamps, warning
and indicator ..................... 32-38
Lane Departure Warning System
(LDWS) ............................... 156
Level, brake fl uid ................... 172
Level, headlamp wash .......... 172
Levels and checks .......... 167-175
Lighting .................................... 98
Lighting,
guide-me home ........... 71, 90, 91
Lighting, interior ....................... 96

Lighting bulbs
(replacement) ................. 183-192
Lighting control stalk ............... 88
Lighting dimmer ....................... 42
Lighting on reminder ............... 89
Loading ................................... 24
Load space cover .................. 105

333
ALPHABETICAL INDEX
L Locating your vehicle .............. 71
Locking from the inside ........... 79
M Main beam ...................... 88, 183
Maintenance ............................ 24
Map reading lamps .................. 96
Markings, identifi cation .......... 223
Massage function ................... 64
Mat ........................................ 101
Menu, main ..................... 27, 308
Mirror, rear view ................ 67, 68
Mirrors, door ............................ 67
Misfuel prevention ................... 87
Motorway function (direction
indicators) ............................ 116
Mountings for ISOFIX seats ..... 111
MP3 CD ......... 253, 290, 291, 311
Multifunction screen ................ 43
Music media
players ................. 252, 290, 311
MyWay .....................45, 273-304
N NaviDrive 3D ............47, 229-271
Navigation ..................... 240, 279
Number plate lamps .............. 191
O Oil fi lter .................................. 174
Oil level ........................... 40, 172
Oil temperature indicator ......... 41
Opening the bonnet ............... 164
Opening the boot ..................... 69
Opening the doors ............. 69, 79
Opening the fuel fi ller fl ap ....... 86
Opening the panoramic sunroof
blind ....................................... 85
Opening the sunroof ................ 84
Operation
indicator lamps ................. 32-38P Paint colour code .................. 223
Paintwork, matt ..................... 206
Panoramic glass sunroof ......... 85
Parking brake ........ 128, 129, 175
Parking brake, electric ........... 129
Parking sensors, rear ............ 159
Parking space sensor ........... 157
Particle emission fi lter ..... 173, 174
Passenger
compartment fi lter ............... 174
PIN code ............................... 259
Player,
CD MP3 ....... 253, 290, 291, 311
Port, USB ...... 101, 253, 290, 312
Priming the fuel system ......... 165

Protecting children ..... 78, 108-115,
123, 125
Puncture ................................ 176
R Radio ..................... 251, 289, 309
Reading lamps, rear ................ 96
Rear demisting .................. 52, 57
Recharging the battery .......... 199
Reinitialising the electric
windows ................................ 77
Reinitialising
the remote control ................. 73
Reinitialising the sunroof ......... 84
Remote control ................... 69-74
Removable screen
(snow shield) ....................... 205
Removing a wheel ................. 181
Removing the mat ................. 101
Repair kit, puncture ............... 176
Replacing
bulbs ............................. 183-192
Replacing fuses .............. 193-197
Replacing the air fi lter ........... 174
Replacing the oil fi lter ............ 174R Replacing the passenger
compartment fi lter ............... 174
Replacing wiper blades ........... 96

Resetting the service indicator ..... 40
Resetting the trip recorder ....... 42
Rev counter ............................. 26
Reversing lamp ............. 187, 189
Roof bars ............................... 203
Routine checks .............. 174, 175
Running out of fuel (Diesel) ..... 165
S
Safety for children .... 78, 108-115,
123, 125
Screen, colour 16/9 ...... 235, 262,
276, 297
Screen,
monochrome ....... 308, 319, 320
Screen, monochrome C .......... 43
Screen, multifunction ............... 43
Screen, multifunction (with audio
equipment) ...................... 45, 47
Screen-wash reservoir .......... 172
Screen menu map ........ 262, 297,
319, 320
Screenwash, front ................... 95
Screenwash fl uid level .......... 172
Seat adjustment ................ 62, 63
Seat belts ....................... 121-123
Seats, rear ............................... 66
Security bolts ......................... 182
Serial number, vehicle ........... 223
Service indicator ................ 39, 40
Servicing ........................... 24, 40
Setting the clock .... 261, 295, 317
Short-cut menus .... 236, 277, 278
Sidelamps ....... 88, 183, 187, 189
Side repeater ......................... 187
SIM card ................................ 259
Ski fl ap .................................. 100
SNOW MOTION .................... 120
