III
55
COMFORT

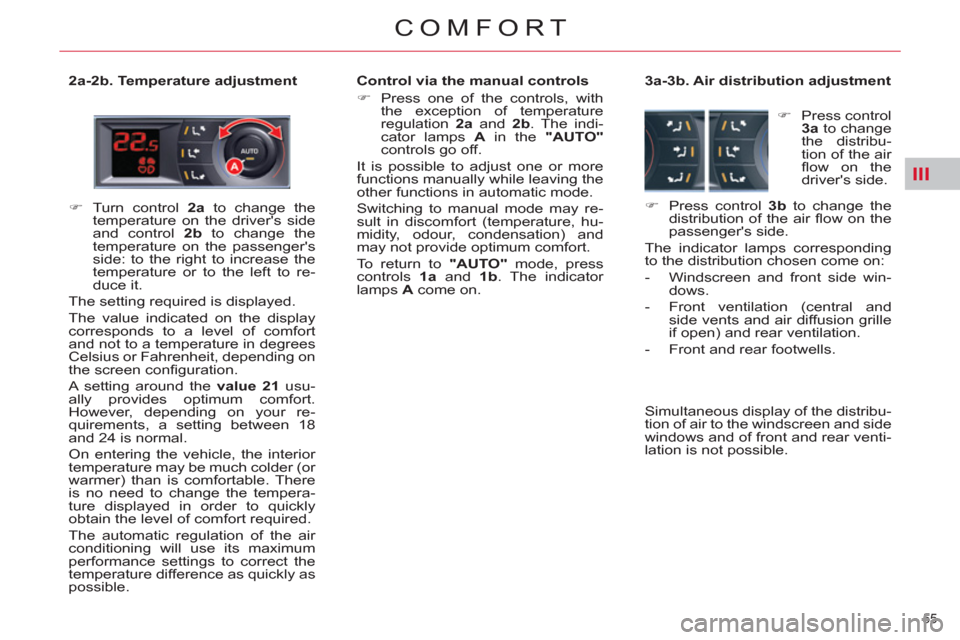

2a-2b. Temperature adjustment
Control via the manual controls
)
Press one of the controls, with
the exception of temperature
regulation 2a
and 2b
. The indi-
cator lamps A
in the "AUTO"
controls go off.
It is possible to adjust one or more
functions manually while leaving the
other functions in automatic mode.
Switching to manual mode may re-
sult in discomfort (temperature, hu-
midity, odour, condensation) and
may not provide optimum comfort.
To return to "AUTO"
mode, press
controls 1a
and 1b
. The indicator
lamps A
come on.
3a-3b. Air distribution adjustment
)
Press control
3a
to change
the distribu-
tion of the air
fl ow on the
driver's side.
)
Press control 3b
to change the
distribution of the air fl ow on the
passenger's side.
The indicator lamps corresponding
to the distribution chosen come on:
- Windscreen and front side win-
dows.
- Front ventilation (central and
side vents and air diffusion grille
if open) and rear ventilation.
- Front and rear footwells.
Simultaneous display of the distribu-
tion of air to the windscreen and side
windows and of front and rear venti-
lation is not possible.
)
Turn control 2a
to change the
temperature on the driver's side
and control 2b
to change the
temperature on the passenger's
side: to the right to increase the
temperature or to the left to re-
duce it.
The setting required is displayed.
The value indicated on the display
corresponds to a level of comfort
and not to a temperature in degrees
Celsius or Fahrenheit, depending on
the screen confi guration.
A setting around the value 21
usu-
ally provides optimum comfort.
However, depending on your re-
quirements, a setting between 18
and 24 is normal.
On entering the vehicle, the interior
temperature may be much colder (or
warmer) than is comfortable. There
is no need to change the tempera-
ture displayed in order to quickly
obtain the level of comfort required.
The automatic regulation of the air
conditioning will use its maximum
performance settings to correct the
temperature difference as quickly as
possible.
Page 58 of 340
III
56
COMFORT
5. Air fl ow adjustment
)
Press the control:
-
to increase the air fl ow,
- to reduce the air fl ow.
The air fl ow level is indicated by the
progressive lighting of the fan blade
indicator lamps.
Reducing the fl ow to minimum
switches the air conditioning OFF.
To prevent condensation and dete-
rioration of the quality of the air in
the passenger compartment, ensure
that an adequate fl ow of air is main-
tained.
6. Air conditioning
The air conditioning will
only operate when the
engine is running. The air
blower control (air fl ow ad-
justment) must be active in
order to obtain air conditioning.
)
Press control 6
. The indicator
lamp comes on.
In order to be effective, the air condi-
tioning must be used with the windows
closed.
7. Air recirculation -
intake of exterior air
Automatic air intake
mode
It is activated by default
in automatic comfort reg-
ulation.
Automatic mode is acti-
vated with reverse gear or
operation of the screen-
wash.
This function permits re-
circulation of the air and isolation
the passenger compartment from
exterior fumes and odours. It is inac-
tive when the ambient temperature
is below +5 °C to avoid the risk of
misting inside the vehicle.
Closing the air intake
)
Press control 7
to
close the exterior air
intake.
It must be cancelled as soon as pos-
sible to permit renewal of the air in
the passenger compartment and
demisting.
Intake of exterior air
)
Press control 7
once
to open the exterior air
intake.
While retaining the other settings,
this position allows the driver to iso-
late the passenger compartment at
any time from unpleasant exterior
odours and fumes.
Page 59 of 340
III
57
COMFORT
When starting with the engine
cold, air fl ow will reach its opti-
mum level gradually to prevent an
excessive distribution of cold air.
When entering the vehicle after it
has been parked for a fairly long
period, if the interior temperature
is very different from your comfort
setting there is no need to change
the temperature displayed in or-
der to quickly reach the level of
comfort required. The system
automatically uses its maximum
performance to correct the differ-
ence in temperature as quickly as
possible.
The water resulting from the air
conditioning condensation is dis-
charged via an opening provided
for this purpose; therefore, a pud-
dle of water may form underneath
the vehicle when stationary.
In all seasons, if the weather is
cool, the air conditioning is use-
ful as it removes the humidity
from the air and the condensa-
tion. Avoid driving for prolonged
periods with the air conditioning
switched off.
9. Front demisting - defrosting
In certain cases, the
"AUTO"
mode may not
be suffi cient to demist
or defrost the windows
(humidity, several pas-
sengers, ice).
)
Press control 9
to clear the win-
dows quickly. The indicator lamp
comes on.
This system controls the temperature,
air fl ow and intake and distributes
the ventilation to the windscreen
and front side windows.
Resuming manual control exits from
the "Demisting" mode. It must be
cancelled as soon as possible to
permit renewal of the air in the pas-
senger compartment and demisting.
Pressing one of the controls 1a
and
1b
returns the system to the "AUTO"
mode.
8. Rear demisting - defrosting
Switch off the rear screen and exterior
mirrors demisting when you consider
this necessary as low current con-
sumption reduces fuel consumption. The heated rear screen
operates independently
of the air conditioning
system.
)
Press control 8
, with the en-
gine running, to demist the rear
screen and the mirrors. The indi-
cator lamp comes on.
Demisting is switched off automati-
cally to avoid excessive consump-
tion of current and depending on the
exterior temperature.
It may be stopped by pressing con-
trol 8
again or when the engine is
switched off.
In this latter case, the demisting re-
sumes if the engine is switched on
again within one minute.
With Stop & Start, when demisting
has been activated, the STOP mode
is not available.
Page 72 of 340
IV
70
ACCESS
Normal locking using the key
)
Turn the key to the right in the
driver's door lock to lock the ve-
hicle completely.
Locking is confi rmed by fi xed lighting of
the direction indicators for approximate-
ly two seconds and by the courtesy
lamp going off.
According to version, the door mirrors
fold at the same time. If one of the doors, the rear screen
or the boot is still open, the central
locking does not take place.
When the vehicle is locked, if it is
unlocked inadvertently, it will lock
again automatically after thirty sec-
onds unless a door is opened.
When stationary with the engine
off, locking is confi rmed by fl ashing
of the interior locking control indi-
cator lamp.
The folding and unfolding of the
door mirrors using the remote
control can be deactivated by a
CITROËN dealer or a qualifi ed
workshop.
Deadlocking using the
remote control
)
Press the closed pad-
lock to lock the vehicle
completely or press the
closed padlock for more
than two seconds to
close the windows and
sunroof automatically in
addition to locking.
)
Press the closed padlock again
within fi ve seconds to deadlock
the vehicle.
Locking the vehicle
Normal locking using the remote
control
)
Press the closed pad-
lock to lock the vehicle
completely.
)
Press the closed padlock for
more than two seconds to close
the windows and sunroof auto-
matically in addition to locking.
Deadlocking using the key
)
Turn the key to the right in the
driver's door lock to lock the
vehicle completely and hold it
in this position for more than
two seconds to close the win-
dows automatically in addition
to locking.
)
Turn the key to the right again
within fi ve seconds to deadlock
the vehicle.
Deadlocking is confi rmed by fi xed
lighting of the direction indicators for
approximately two seconds.
According to version, the exterior
mirrors fold at the same time.
Deadlocking renders the exterior
and interior door controls inoperative.
It also deactivates the manual cen-
tral control button.
When stationary with the engine
off, locking is confi rmed by fl ashing
of the indicator lamp on the interior
locking control.
If one of the doors or the boot is open
or has not been closed correctly, the
central locking will not work.
Therefore, never leave anyone inside
the vehicle when it is deadlocked.
Page 77 of 340
IV
!
75
ACCESS
ALARM *
System which protects and provides
a deterrent against theft and break-
ins. It provides the following types of
monitoring:
- Exterior perimeter
The system checks for opening of
the vehicle.
The alarm is triggered if anyone tries
to open a door, the boot, the bonnet...
- Interior volumetric
The system checks for any variation
in the volume in the passenger com-
partment.
The alarm is triggered if anyone breaks a window, enters the passenger com-
partment or moves inside the vehicle.
- Tilt
The system checks for any change
in the attitude of the vehicle.
The alarm is triggered if the vehicle
is lifted, moved or knocked.
Self-protection function
The system checks for the
putting out of service of its
components.
The alarm is triggered if the bat-
tery, the central control or the si-
ren wiring are put out of service or
damaged.
For all work on the alarm system,
contact a CITROËN dealer or a
qualifi ed workshop.
Locking the vehicle with full
alarm system
Activation
)
Switch off the ignition and get out
of the vehicle.
)
Press the locking button on the
remote control.
The monitoring system is active: the
indicator lamp in the button fl ashes
once per second.
After the locking button on the re-
mote control is pressed, the exterior
perimeter monitoring is activated
after a delay of 5 seconds and the
interior volumetric and anti-tilt moni-
toring after a delay of 45 seconds.
If an opening (door, boot...) is not
closed fully, the vehicle is not locked
but the exterior perimeter monitor-
ing will be activated after a delay of
45 seconds at the same time as the
interior volumetric and anti-tilt moni-
toring.
Deactivation
)
Press the unlocking button on
the remote control.
The alarm system is deactivated: the
indicator lamp in the button goes off.
Locking the vehicle with
exterior perimeter monitoring
only
Deactivate the interior volumetric
and anti-tilt monitoring to avoid un-
wanted triggering of the alarm in
certain cases such as:
- leaving a pet in the vehicle,
- leaving a window partially open,
- washing your vehicle,
- changing a wheel,
- having your vehicle towed,
- transport by sea.
Deactivation of the interior
volumetric and anti-tilt
monitoring
)
Switch off the ignition.
)
Within ten seconds, press the
button until the indicator lamp is
on continuously.
)
Get out of the vehicle.
)
Press the locking button on the
remote control immediately.
The exterior perimeter monitoring
alone is activated: the indicator lamp in
the button fl ashes once per second.
To be effective, this deactivation
must be carried out each time the
ignition is switched off.
*
According to country.
Page 79 of 340
IV
77
ACCESS
ELECTRIC WINDOWS
1.
Driver's electric window control.
2.
Passenger's electric window
control.
3.
Rear right electric window
control.
4.
Rear left electric window control.
5.
Deactivation of the rear electric
window and door controls.
One-touch electric windows
There are two options:
- manual mode
)
Press or pull the control gently.
The window stops when the
control is released.
- automatic mode
)
Press or pull the control fi rmly.
The window opens or closes fully
when the control is released.
)
Pressing the control again stops
the movement of the window.
The electric window controls re-
main operational for approximately
45 seconds after the ignition is
switched off or until the vehicle is
locked after a door is opened.
If one of the passenger windows
cannot be operated from the driver's
door control panel, carry out the op-
eration from the control panel of the
passenger door concerned, and vice
versa.
Safety anti-pinch
When the window rises and meets
an obstacle, it stops and partially
lowers again.
If the window cannot be closed (for
example, in the presence of ice),
immediately after the movement is
reversed:
)
press and hold the control until
the window opens fully,
)
then pull the control immediately
and hold it until the window
closes,
)
continue to hold the control for
approximately one second after
the window has closed.
The safety anti-pinch function
is not operational during these
operations.
Page 80 of 340
IV
78
ACCESS
Reinitialisation
If a window does not rise automati-
cally, its operation must be reini-
tialised:
)
pull the control until the window
stops,
)
release the control and pull it
again until the window closes
fully,
)
continue to hold the control for
approximately one second after
the window has closed,
)
press the control to lower the
window automatically to the low
position,
)
when the window has reached
the low position, press the con-
trol again for approximately one
second.
The safety anti-pinch function
is not operational during these
operations.
Deactivation of the rear
electric window and door
controls
)
For the safety of your children,
press control 5
to deactivate the
rear electric window controls re-
gardless of their position.
Indicator lamp on, the rear controls
are deactivated.
Indicator lamp off, the rear controls
are activated. Always remove the key from the
ignition when leaving the vehicle,
even for a short time.
If an obstacle is encountered during operation of the electric windows,
you must reverse the movement of
the window. To do this, press the
control concerned.
When the driver operates the con-
trols for the passengers' electric
windows, they must ensure that no
one is preventing correct closing of
the windows.
The driver must ensure that the
passengers use the electric win-
dows correctly.
Be aware of children when operating
the windows. A message in the instrument panel
screen informs you of the activation/
deactivation of the control. This control also deactivates the
interior controls for the rear doors
(refer to the section "Child safety - §
Electric child lock").
Any other status of the indicator
lamp indicates a fault with the elec-
tric child lock.
Have it checked by a CITROËN
dealer or a qualifi ed workshop.
Page 102 of 340
VI
!
100
FITTINGS
SUN VISOR
SKI FLAP
A fl ap in the backrest, located to the
rear of the armrest, facilitates the
carrying of long objects.
)
With the ignition on, lift the fl ap; the
mirror is illuminated automatically.
To prevent dazzle from ahead, fold
the visor downwards.
It can be disengaged from its central
fi xing and pivoted over to the side
windows if required.
Cooled glove box
)
To open the glove box, pull on
the handle and lower the lid.
The glove box has a manually clos-
able air vent B
.
It has 2 or 3 sockets C
to connect
audio/video equipment and a hold-
er for a SIM card (see "Audio and
Telematics").
It has automatic illumination.
It provides access to the dashboard
fusebox.
To open
)
Lower the rear armrest.
)
Pull the fl ap handle down.
)
Lower the fl ap.
)
Load the objects from inside the
boot.
Ensure that the objects are well se-
cured and that they do not impede
the operation of the gear lever.
The glove box should be
kept closed while driving.
Page 114 of 340
VII
112
CHILD SAFETY
*
According to country and current
local legislation.
ADVICE ON CHILD SEATS
Installing a booster seat
The chest part of the seat belt must
be positioned on the child's shoulder
without touching the neck.
Ensure that the lap part of the seat
belt passes correctly over the child's
thighs.
CITROËN recommends the use of a
booster seat which has a back, fi t-
ted with a seat belt guide at shoulder
level.
As a safety precaution, do not leave:
- one or more children alone and
unsupervised in a vehicle,
- a child or an animal in a vehicle
which is exposed to the sun, with
the windows closed,
- the keys within reach of children
inside the vehicle.
To prevent accidental opening of the doors, use the "Child lock".
Take care not to open the rear win-
dows by more than one third.
To protect young children from the
rays of the sun, fi t side blinds on the
rear windows.
The incorrect installation of a child seat
in a vehicle compromises the child's
protection in the event of an accident.
When installing a child seat using the
seat belt, check that the seat belt is
tightened correctly on the child seat
and that it secures the child seat fi rmly
on the seat of your vehicle.
Remember to fasten the seat belts or
the child seat harnesses keeping the
slack
in relation to the child's body to a
minimum, even for short journeys.
For optimum installation of the "for-
wards-facing" child seat, ensure that
the back of the child seat is in contact
with the back of the vehicle's seat and
that the head restraint does not cause
any discomfort.
If the head restraint has to be removed, ensure that it is stored or attached se-
curely to prevent it from being thrown
around the vehicle in the event of sharp
braking.
Children under the age of 10 must not
travel in the "forwards-facing" position
on the front passenger seat, unless
the rear seats are already occupied by
other children, cannot be used or are
absent.
Deactivate the passenger airbag * when a "rearwards-facing" child seat is in-
stalled on the front seat. Otherwise, the
child would risk being seriously injured
or killed if the airbag were to infl ate.
Page 117 of 340
VII
11 5
CHILD SAFETY
ELECTRIC CHILD LOCK
Activation
)
Press button A
.
The indicator lamp in button A
comes
on, accompanied by a message in
the instrument panel screen. Remote control system to prevent
opening of the rear doors using their
interior controls and use of the rear
electric windows.
Deactivation
)
Press button A
again.
The indicator lamp in button A
goes
off, accompanied by a message in
the instrument panel screen.
This indicator lamp remains off until
the child lock is activated.
This system is independent and in
no circumstances does it take the
place of the central locking control.
Check the status of the child lock
each time you switch on the ignition.
Always remove the key from the
ignition when leaving the vehicle,
even for a short time.
In the event of a serious impact, the
electric child lock is deactivated au-
tomatically to permit the exit of the
rear passengers.
Any other status of the indicator
lamp indicates a fault with the elec-
tric child lock. Have it checked by a
CITROËN or a qualifi ed workshop.
The control is located on the driver's
door, with the electric window controls.
