LUGGAGE COVER (TOURER)
To roll up
)
Press the handle (PRESS) gently.
The luggage cover rolls up auto-
matically.
The moving part A
can be folded
along the rear bench seat backrest.
To remove
)
Compress the control 1
and lift
the luggage cover on the right
then on the left to remove it.
To install
)
Position the left-hand end of the
luggage cover roller in its loca-
tion B
behind the rear bench
seat.
)
Compress the roller control 1
and put the roller in place in its
location C
on the right.
)
Release the control to secure
the luggage cover.
)
Unroll it to its fastening on the
rear pillar.
High load retaining net
(Tourer)
Hooked onto the special upper and
lower fi xings, this permits use of the
entire loading volume up to the roof:
- behind the rear seats (row 2),
- behind the front seats (row 1)
when the rear seats are folded.
When positioning the net, check that
the strap loops are visible from the
boot; this will make slackening or
tightening easier.
Page 113 of 340
VII
111
CHILD SAFETY
"ISOFIX" MOUNTINGS
Your vehicle has been approved in
accordance with the new ISOFIX
regulation
s
.
The outer rear seats are fi tted with
regulation ISOFIX mountings.
In the rear
This ISOFIX mounting system pro-
vides fast, reliable and safe fi tting
of the child seat in your vehicle.
The ISOFIX child seats
are fi tted
with two locks which are secured
easily on the two rings A
, following
installation of the guides (supplied
with the seat).
Some also have an upper strap
which is attached to the ring B
or C
.
To attach this strap in the rear, remove
the vehicle seat's head restraint and
stow it. Lift the cover on the rear shelf
(Saloon) or the roof (Tourer). Then
fi x the hook on the ring B
or C
and
tighten the upper strap.
The incorrect installation of a child
seat in a vehicle compromises the
child's protection in the event of an
accident.
For information regarding the
ISOFIX child seats which can be
installed in your vehicle, consult
the table of positions for fi tting
ISOFIX child seats.
Saloon
These are three rings for each outer
rear seat:
- two lower rings A
, located be-
tween the vehicle seat back and
cushion, indicated by a label,
- an upper ring B
, fi xed to the rear
shelf, concealed under a fl ap
with the logo TOP TETHER be-
hind the head restraint.
Tourer
- two lower rings A
, located be-
tween the vehicle seat back and
cushion, indicated by a label,
- an upper ring C
, fi xed to the
roof on the boot side, concealed
under a fl ap with the logo TOP
TETHER.
Page 178 of 340
XI
176
PRACTICAL INFORMATION
TEMPORARY PUNCTURE
REPAIR KIT
Using the kit
The kit is located in the boot under
the fl oor.
)
Switch off the ignition.
)
Affi x the speed limitation sticker
to the vehicle's steering wheel
to remind you that a wheel is in
temporary use.
)
Check that the switch A
is in
position "0"
.
)
Connect the pipe of the car-
tridge 1
to the valve of the tyre to
be repaired.
)
Connect the compressor's elec-
tric plug to the vehicle's 12 V
socket.
)
Start the vehicle and leave the
engine running. Complete system consisting of a
compressor and a sealant cartridge
which permits the temporary repair
of the tyre so that you can drive to
the nearest garage.
This repair kit is available from
CITROËN dealers or a qualifi ed
workshop.
It is designed to repair holes of a
maximum diameter of 6 mm, locat-
ed exclusively on the tyre tread or
shoulder. Avoid removing any for-
eign bodies which have penetrated
the tyre.
Page 182 of 340
XI
!
180
PRACTICAL INFORMATION
Access to the spare wheel
To remove the spare wheel
)
Lift up the boot fl oor and fold in
two (Saloon) or hook it using the
retractable handle (Tourer).
)
Detach the strap then push the
wheel forwards so as to be able
to lift it.
To reposition the spare wheel
)
Position the spare wheel fl at in
the boot, then pull it towards
you.
)
Next place the toolbox inside the
wheel, then secure the assembly
with the strap.
)
Release the boot fl oor to return it
to its initial position.
The tyre pressures are indi-
cated on the label located on
the driver's side centre door
pillar. Tyre pressures are given for
different vehicle loading conditions.
Page 189 of 340
XI
187
PRACTICAL INFORMATION
The side repeater is sealed.
If the bulb is faulty, replace the side
repeater.
Contact a CITROËN dealer or a
qualifi ed workshop.
Side repeaters
Rear lamps (Saloon)
Identify the failed bulb.
1.
Brake lamps and sidelamps:
P 21 W/5 W
2.
Sidelamps:
R 5 W
3.
Reversing lamp:
H 21 W
4.
Foglamps:
H 21 W
5.
Direction indicators:
PY 21 W
)
Open the boot.
)
Using a fl at screwdriver, remove
the 3 clips which fi x the trim in
the lamp area.
)
Partially remove the trim F
.
)
Disconnect the connector G
.
Boot-mounted lamps
)
Unclip the bulb holder H
.
)
Replace the bulb.
)
Refi t the bulb holder H
.
)
Check that the bulb holder H
is se-
cured correctly by the two clips 6
.
)
Refi t the connector G
.
)
Replace and fi x the trim F
with its
clips.
When refi tting, take care not to
trap the electrical cables.
Page 190 of 340
XI
188
PRACTICAL INFORMATION
Wing-mounted lamps
)
Remove the lateral boot trim
fl ap A
. To do so, pull it towards
the inside of the boot, then pull it
upwards.
)
Disconnect connector B
.
)
Unscrew the 2 fi xings C
.
)
Remove the lamp from its housing.
)
Detach the bulb holder D
.
)
Replace the bulb.
)
Refi t the bulb holder D
.
)
Place the lamp in its housing.
)
Screw in the 2 fi xings C
.
)
Refi t connector B
.
)
Refi t the trim A
.
You can use the wheelbrace to screw
or unscrew the fi xings C
.
Page 191 of 340
XI
189
PRACTICAL INFORMATION
Boot-mounted lamps
)
Open the boot.
)
Using a fl at screwdriver, remove
the plastic cover F
.
)
Disconnect the connector G
.
)
Unscrew the fi xing nut H
.
)
Disengage the lamp from its
housing.

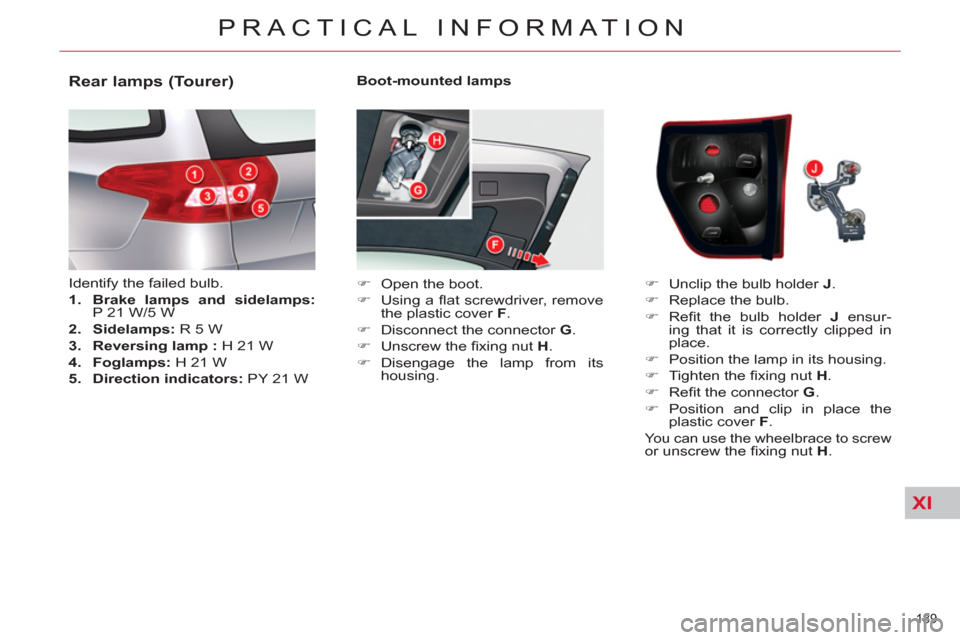

Rear lamps (Tourer)
Identify the failed bulb.
1.
Brake lamps and sidelamps:
P 21 W/5 W
2.
Sidelamps:
R 5 W
3.
Reversing lamp :
H 21 W
4.
Foglamps:
H 21 W
5.
Direction indicators:
PY 21 W
)
Unclip the bulb holder J
.
)
Replace the bulb.
)
Refi t the bulb holder J
ensur-
ing that it is correctly clipped in
place.
)
Position the lamp in its housing.
)
Tighten the fi xing nut H
.
)
Refi t the connector G
.
)
Position and clip in place the
plastic cover F
.
You can use the wheelbrace to screw or unscrew the fi xing nut H
.
Page 192 of 340
XI
190
PRACTICAL INFORMATION
Wing-mounted lamps
Remove the lateral boot trim A
.
To do so:
)
Pull it towards towards the inside
of the boot.
)
Pull it upwards.
)
Disconnect the connector B
.
)
Unscrew the fi xing nut C
.
)
Remove the lamp from its housing.
)
Detach the bulb holder D
.
)
Replace the faulty bulb.
)
Refi t the bulb holder D
.
)
Place the lamp in its housing.
)
Screw in the fi xing nut C
.
)
Refi t the connector B
.
)
Refi t the trim A
.
You can use the wheelbrace to screw or unscrew the fi xing nut C
.
Page 194 of 340
XI
192
PRACTICAL INFORMATION

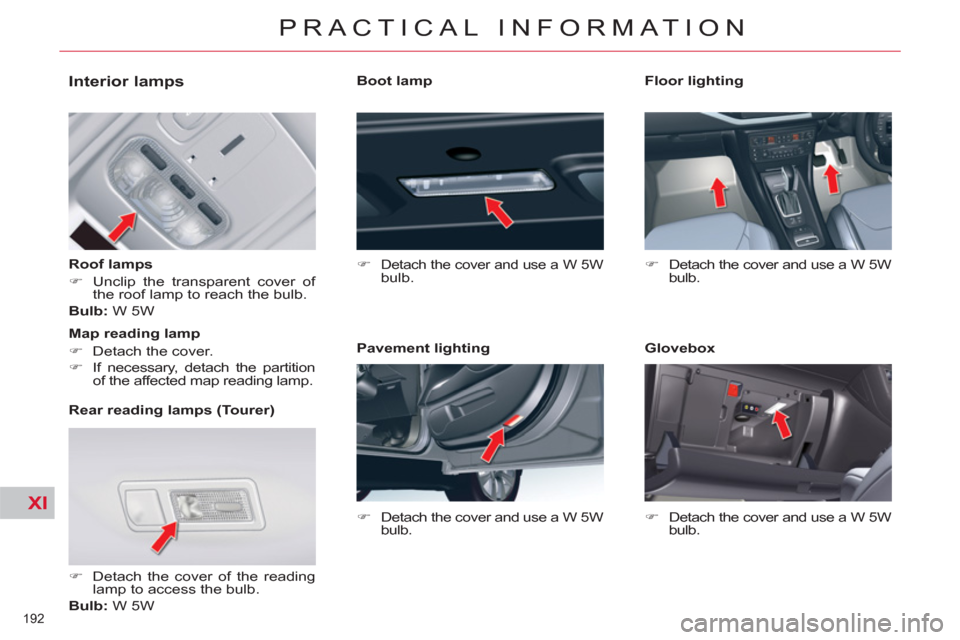

Interior lamps
Roof lamps
)
Unclip the transparent cover of
the roof lamp to reach the bulb.
Bulb:
W 5W
Rear reading lamps (Tourer)
)
Detach the cover of the reading
lamp to access the bulb.
Bulb:
W 5W
Map reading lamp
)
Detach the cover.
)
If necessary, detach the partition
of the affected map reading lamp.
Boot lamp
)
Detach the cover and use a W 5W
bulb.
Pavement lighting
)
Detach the cover and use a W 5W
bulb.
Floor lighting
)
Detach the cover and use a W 5W
bulb.
Glovebox
)
Detach the cover and use a W 5W
bulb.
Page 197 of 340
XI
195
PRACTICAL INFORMATION
FUSEBOX C
Fuse N°
Rating
Function
F1
15 A
Rear screen wipe (Tourer)
F2
30 A
Locking and deadlocking relay
F3
5 A
Airbags
F4
10 A
Automatic gearbox - additional heater unit (Diesel) -
electrochrome rear view mirror
F5
30 A
Front window - sunroof - passenger door lighting -
passenger door mirror adjustment
F6
30 A
Rear window
F7
5 A
Vanity mirror lighting - Glove box lighting - interior lamps -
torch (tourer)
F8
20 A
Radio - CD changer - Steering mounted controls - Screen - Under-infl ation detection -
Electric boot ECU
F9
30 A
Cigar lighter - front 12 V socket
F10
15 A
Alarm - Steering mounted controls, signalling and wiper controls
F11
15 A
Low current ignition switch
F12
15 A
Driver’s electric seat - instrument panel - seat belt not fastened warning lamps -
air conditioning controls
F13
5 A
Engine relay unit - Hydraulic suspension pump cut-off relay -
airbag ECU supply
F14
15 A
Rain and sunshine sensor - parking sensors - passenger’s electric seat -
trailer relay unit - HIFI amplifi er ECU - Bluetooth system -
Lane Departure Warning System
F15
30 A
Locking and deadlocking relay
F17
40 A
Heated rear screen - heated door mirrors
FSH
SHUNT
PARK SHUNT
