RUNNING OUT OF FUEL
(DIESEL)


HDi 110 engine



)
Unclip the protective cover to gain
access to the priming pump.




HDi 140 and HDi 160 engines



)
Unclip the protective cover to gain
access to the priming pump.



Priming the fuel system

In the event of running out of fuel:


)
after fi lling (minimum 5 litres) and
removing the protective cover,
operate the manual priming pump,
until some resistance is felt,

)
operate the starter motor while
depressing the accelerator pedal
slightly until the engine starts. HDi engines make use of
advanced technology.
For any work on your vehicle, con-
tact a qualifi ed workshop that has
the skills and equipment required,
which a CITROËN dealer is able to
provide.
V6 HDi 240 engine with electric
pump
In the event of running out of fuel:


)
after adding fuel, turn the ignition
key to position M
, wait for a few
seconds,

)
operate the starter motor until
the engine starts.
If the engine fails to start after se-
veral attempts, contact a CITROËN
dealer or a qualifi ed workshop. If the engine fails to start at the fi rst
attempt, wait fi fteen seconds before
trying again.
If the engine fails to start after a
few attempts, operate the priming
pump again and then try to start the
engine.
When the engine is idling, acceler-
ate slightly to complete the bleeding
of the circuit.
166

XX














PETROL ENGINES

The various caps and covers allow
access for checking fl uid levels and
for replacing certain components.


1.
Screenwash and headlamp wash
reservoir.

2.
Power steering fl uid reservoir or
power steering and suspension
fl uid reservoir.

3.
Engine coolant header tank.

4.
Engine oil dipstick.

5.
Engine oil fi ller cap.

6.
Brake fl uid reservoir.

7.
Battery.

8.
Air fi lter.
1.6i THP


1.6i VTi

167
CHECKS

X
!
168
CHECKS
Vehicles fi tted with the 2.0i 16v

engine may be fi tted with metal
spring suspension. In this case,
a different power steering fl uid reser-
voir is fi tted.
2.0i 16V


1.
Screenwash and headlamp wash
reservoir.

2.
Power steering fl uid reservoir or
power steering and suspension
fl uid reservoir.

3.
Engine coolant header tank.

4.
Engine oil dipstick.

5.
Engine oil fi ller cap.

6.
Brake fl uid reservoir.

7.
Battery.

8.
Air fi lter.

X
!
169
CHECKS














DIESEL ENGINES

The various caps and covers allow
access for checking fl uid levels, for
replacing certain components and
for priming the fuel system.


1.
Screenwash and headlamp wash
reservoir.

2.
Power steering fl uid reservoir or
power steering and suspension
fl uid reservoir, depending on
equipment.

3.
Engine coolant header tank.

4.
Engine oil dipstick.

5.
Engine oil fi ller cap.

6.
Air fi lter.

7.
Brake fl uid reservoir.

8.
Battery.
As the Diesel fuel system
operates under high pressure,
any work on the fuel system is
prohibited.
Vehicles fi tted with the HDi 140

engine may be fi tted with metal
spring suspension. In this case, a
different power steering fl uid reser-
voir is fi tted.
HDi 110
/ e-HDi 110


HDi 140

X!
170
CHECKS

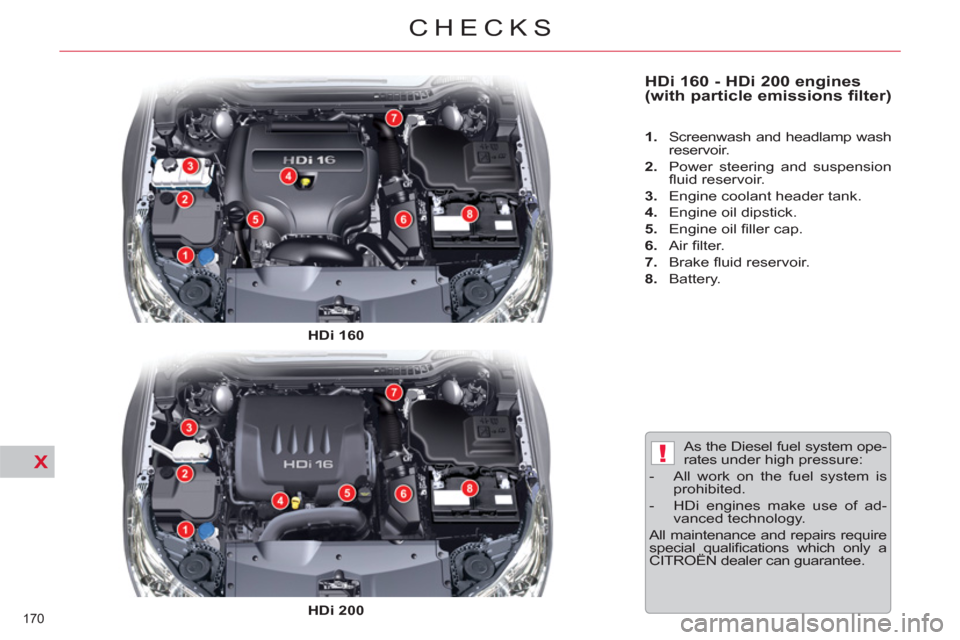

HDi 160 - HDi 200 engines
(with particle emissions filter)



1.
Screenwash and headlamp wash
reservoir.

2.
Power steering and suspension
fl uid reservoir.

3.
Engine coolant header tank.

4.
Engine oil dipstick.

5.
Engine oil fi ller cap.

6.
Air fi lter.

7.
Brake fl uid reservoir.

8.
Battery.

As the Diesel fuel system ope-
rates under high pressure:


- All work on the fuel system is
prohibited.

- HDi engines make use of ad-
vanced technology.
All maintenance and repairs require
special qualifi cations which only a
CITROËN dealer can guarantee.
HDi 160


HDi 200

X!
171
CHECKS

V6 HDi 240 engine (with
particle emissions filter)


V6 HDi 240


1.
Screenwash and headlamp wash
reservoir.

2.
Power steering and suspension
fl uid reservoir.

3.
Engine coolant header tank.

4.
Engine oil dipstick.

5.
Engine oil fi ller cap.

6.
Air fi lter.

7.
Brake fl uid reservoir.

8.
"+" and "-" terminals for emergency
starting with a slave battery.

As the Diesel fuel system ope-
rates under high pressure:


- All work on the fuel system is
prohibited.

- HDi engines make use of ad-
vanced technology.
All maintenance and repairs require
special qualifi cations which only a
CITROËN dealer can guarantee.

X!
172
CHECKS



































CHECKING LEVELS

Check all of these levels regularly
and top them up if necessary, unless
otherwise indicated.
If a level drops signifi cantly, have
the corresponding system checked
by a CITROËN dealer or a qualifi ed
workshop.

Oil level


Oil change
Refer to the servicing booklet for de-
tails of the interval for this operation.

Oil specifi cation
The oil must correspond to your
engine and conform to the manufac-
turer's recommendations.



Brake fluid level


Fluid change
Refer to the servicing booklet for de-
tails of the interval for this operation.
This fl uid must be changed regu-
larly. Fluid which has been used for
too long may cause a loss of braking
effi ciency.

Fluid specifi cation
The brake fl uid must conform to the
manufacturer's recommendations
and meet the DOT4 standard.
The reading will only be
correct if the vehicle is on
level ground and the engine
has been off for more than
30 minutes.
The check is carried out either when
the ignition is switched on using the
oil level indicator in the instrument
panel, or using the dipstick.
Check this level also between each
scheduled service and before long
journeys.
Take care when doing anything
under the bonnet, as some parts
of the engine can be extremely hot
(risk of burns). The brake fl uid level should
be close to the "MAX" mark.
If it is not, check the brake
pad wear.
In order to maintain the reliability
of the engine and emission con-
trol system, the use of additives
in the engine oil is prohibited.


Power steering fluid or power
steering and suspension
fluid level
This fl uid must be topped up
by a CITROËN dealer or a
qualifi ed workshop.
Dipstick
There are 2 marks on the
dipstick:


- A
= max; never exceed
this level,

- B
= min; top up the level
via the oil fi ller cap, us-
ing the type of oil suited
to your engine.

X
!
173
CHECKS

Screenwash and headlamp
wash fluid

Fluid specifi cation
For optimum cleaning and to avoid
freezing, this fl uid must not be topped
up or replaced with plain water.
Reservoir capacities:


-
screenwash: approximately 3.5 litres,


- screenwash and headlamp wash:
approximately 6.15 litres.












Diesel additive level
(Diesel engine with particle
emission filter)

Topping up
This additive must be topped up by
a CITROËN dealer or a qualifi ed
workshop without delay.











Used products

Avoid prolonged contact of
used oil or fl uids with the
skin.
Most of these fl uids are harmful to
health or indeed very corrosive.
Do not discard used oil or
fl uids into sewers or onto the
ground.
Take used oil to a CITROËN dealer
or a qualifi ed workshop (France) or
to an authorised waste disposal
site. In the case of vehicles fi tted
with headlamp washers, the
minimum level of this fl uid
is indicated by an audible
signal and a message in the multi-
function screen.
Top up the level when you stop the
vehicle.

Coolant level


Coolant change
The coolant does not have to be
changed.

Fluid specifi cation
The coolant must conform to the
manufacturer's recommendations.
The coolant level should be
close to the "MAX" mark but
should never exceed it.
When the engine is warm,
the temperature of the coolant is
regulated by the fan. This can oper-
ate with the ignition off.

On vehicles which are fi tted with
a particle emission fi lter, the fan
may operate after the vehicle has
been switched off, even if the en-
gine is cold.

In addition, as the cooling system is
pressurised, wait at least one hour
after switching off the engine before
carrying out any work.
To avoid any risk of scalding, un-
screw the cap by two turns to
allow the pressure to drop. When
the pressure has dropped, remove
the cap and top up the level. The additive reservoir
low level is indicated
by fi xed illumination
of this warning lamp,
accompanied by an audible warning
and a message in the multifunction
screen.

X
174
CHECKS





























CHECKS

Unless otherwise indicated, check
these components in accordance with
the servicing booklet and according to
your engine.
Otherwise, have them checked by a CITROËN dealer or a qualifi ed workshop.


Battery

The battery does not re-
quire any maintenance.
However, check that the
terminals are clean and
correctly tightened, particu-
larly in summer and winter.
When carrying out work on the battery,
refer to the "Practical information" sec-
tion for details of the precautions to be
taken before disconnecting the battery
and following its reconnection.


Air filter and passenger compartment filter

Refer to the servicing
booklet for details of the
replacement intervals for
these components.
Depending on the environ-
ment (e.g. dusty atmosphere) and
the use of the vehicle (e.g. city driv-
ing), replace them twice as often
if necessary
(refer to the "Engines"
section).
A clogged passenger compartment
fi lter may have an adverse effect on
the performance of the air condition-
ing system and generate undesirable
odours.


Oil filter

Replace the oil fi lter each
time the engine oil is
changed.






Particle filter system (Diesel)

Complementary to the catalytic con-
verter, this fi lter makes an active
contribution to the preservation of air
quality by the retaining of the unburnt
pollutant particles. Black exhaust
fumes are thus no longer emitted.

After prolonged idling or driving at very
low speeds, you may occasionally no-
tice water vapour being emitted from
the exhaust when accelerating. This is
of no consequence to the running of
the vehicle or to the environment.
If there is risk of blockage, a mes-
sage appears in the instrument
panel screen, accompanied by an
audible signal and illumination of
the service warning lamp.
This alert tells you that the particle
fi lter is starting to fi ll up (in condi-
tions of urban driving of exception-
ally long duration: low speeds, traffi c
jams etc.)
To regenerate the fi lter, it is advised
to drive as soon as possible, when
traffi c conditions permit, at a speed
of 40 mph (around 60 km/h) or
more for at least fi ve minutes (until
the alert message disappears).
If this alert persists, consult a
CITROËN dealer or a qualifi ed
workshop. Refer to the servicing booklet for de-
tails of the replacement interval for
this component.






The presence of this label, in par-
ticular with the Stop & Start system,
indicates the use of a specifi c 12 V
lead-acid battery with special tech-
nology and specifi cation, for which
the involvement of a CITROËN
dealer or a qualifi ed workshop is
required when replacing or discon-
necting the battery.
Failure to observe this recommenda-
tion may shorten the life of the battery.

X
!
175
CHECKS





















Brake pads

Brake wear depends on the
style of driving, particularly in
the case of vehicles used in
town, over short distances.
It may be necessary to have
the condition of the brakes checked,
even between vehicle services.
Unless there is a leak in the circuit, a
drop in the brake fl uid level indicates
that the brake pads are worn.







Manual gearbox

The gearbox does not re-
quire any maintenance (no
oil change).






Automatic gearbox

The gearbox does not re-
quire any maintenance (no
oil change).

Brake disc wear

For information on check-
ing brake disc wear, con-
tact a CITROËN dealer or
a qualifi ed workshop.


Parking brake

If a loss of effectiveness
of this system is noticed,
the parking brake must be
checked, even between
two services.
This system must be checked by a
CITROËN dealer.
Only use products recom-
mended by CITROËN or
products of equivalent quality
and specifi cations.
Do not use a dry cloth with an abra-
sive product for the maintenance of
aluminium parts; use a sponge and
soapy water.
In order to optimise the operation
of units as important as the braking
system, CITROËN selects and of-
fers very specifi c products.
To avoid damaging the electrical
units, the use of a high pressure
washer in the engine compartment
is strictly prohibited
. Refer to the servicing booklet for the
details of the level checking interval
for this component.
Refer to the servicing booklet for de-
tails of the level checking interval for
this component.
