VIII
124
SAFETY
AIRBAGS
System designed to maximise the
safety of the occupants (with the
exception of the rear centre pas-
senger) in the event of violent col-
lisions. It supplements the action of
the force-limiting seat belts.
If a collision occurs, the electronic
detectors record and analyse the
front and side impacts sustained in
the impact detection zones:
- in the case of a serious impact,
the airbags are deployed instant-
ly and protect the occupants of
the vehicle (with the exception of
the rear centre passenger); im-
mediately after the impact, the
airbags defl ate rapidly so that
they do not hinder visibility or the
exit of the occupants,
- in the case of a minor or rear im-
pact or in certain roll-over con-
ditions, the airbags will not be
deployed; the seat belt alone
is suffi cient to provide optimum
protection in these situations.
The airbags do not operate when
the ignition is switched off.
This equipment will only operate
once. If a second impact occurs
(during the same or a subsequent
accident), the airbag will not operate.

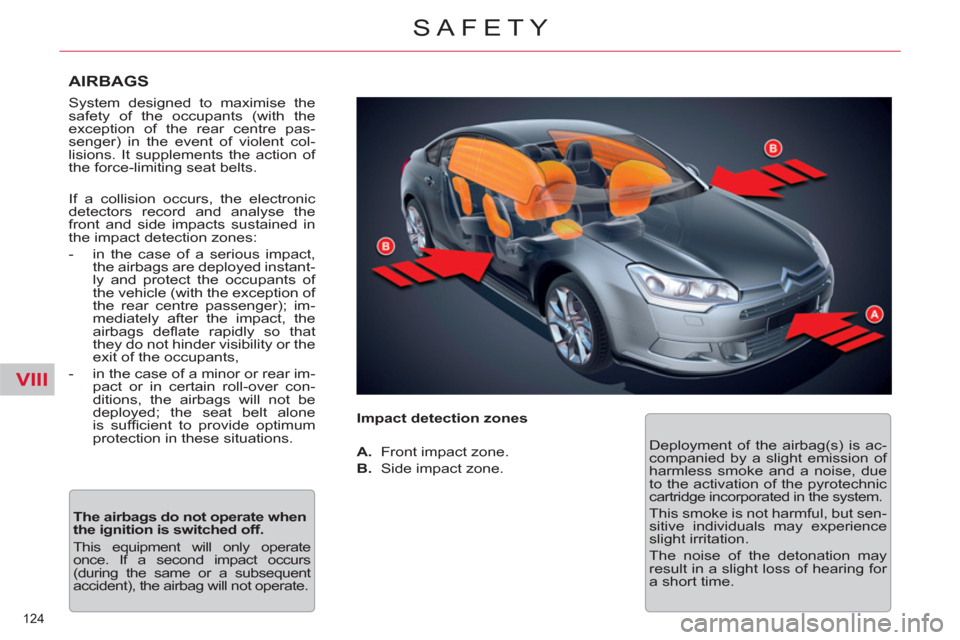

Impact detection zones
A.
Front impact zone.
B.
Side impact zone. Deployment of the airbag(s) is ac-
companied by a slight emission of
harmless smoke and a noise, due
to the activation of the pyrotechnic
cartridge incorporated in the system.
This smoke is not harmful, but sen-
sitive individuals may experience
slight irritation.
The noise of the detonation may
result in a slight loss of hearing for
a short time.
Page 127 of 340
VIII
125
SAFETY
Front airbags
System which protects the head and chest of the driver and front passen-
ger in the event of a front impact.
The driver's airbag is fi tted in the
centre of the steering wheel; the
front passenger's airbag is fi tted in
the dashboard above the glove box.
Deployment
The airbags are deployed simultane-ously, unless the passenger's front
airbag is deactivated, in the event of
a serious front impact to all or part of
the front impact zone A
, in the lon-
gitudinal centreline of the vehicle on
a horizontal plane and directed from
the front to the rear of the vehicle.
The front airbag infl ates between the
front occupant of the vehicle and the
dashboard to cushion their forward
movement.
Deactivation
This warning lamp comes on
in the roof console screen
when the ignition is on and
until the airbag is reactivated.
To assure the safety of your child,
the passenger's airbag must be
deactivated when you install a
"rearwards-facing" child seat on
the front passenger seat.
Otherwise, the child would risk be-
ing seriously injured or killed if the
airbag were deployed.
Activation
When you remove the child seat,
turn switch 1
to the "ON"
position to
reactivate the airbag and so assure
the safety of your front passenger in
the event of an impact.
Operating fault
If this symbol appears in the
instrument panel screen,
accompanied by an audible
warning and a message,
contact a CITROËN dealer or a
qualifi ed workshop to have the sys-
tem checked. The airbags may no
longer be deployed in the event of a
serious impact. Only the front passenger's airbag
can be deactivated:
)
with the ignition off
, insert the
key in the passenger airbag de-
activation switch 1
,
)
turn it to the "OFF"
position,
)
then, remove the key keeping
the switch in this position. If this warning lamp fl ashes,
contact a CITROËN dealer
or a qualifi ed workshop.
If both airbag warning lamps come
on continuously, do not install a
"rearwards-facing" child seat on
the front passenger seat.
Have it checked by a CITROËN
dealer or a qualifi ed workshop.
Page 131 of 340
IX
!!
129
DRIVING
ELECTRIC PARKING BRAKE
The electric parking brake combines
2 operating modes:
- AUTOMATIC
Automatic application when the
engine stops and automatic re-
lease on use of the accelerator
(automatic operation by default),
- MANUAL
Manual application/release of the
parking brake is always possible
by pulling control lever A
while
pressing the brake pedal.
Automatic operation
Application with the engine off
With the vehicle stationary, the park-
ing brake is automatically applied
when the engine is switched off.
The application of the parking brake
is confi rmed by:
Application with the engine running
With the engine running and the ve-
hicle stationary, in order to immobi-
lise the vehicle you need to manually
apply the parking brake by pulling
on control lever A
.
The application of the parking brake
is confi rmed by:
- warning lamp P
in the
control lever A
coming on,
Before leaving the vehicle,
check that warning lamp P
and the warning lamp in the
instrument panel are on fi xed (not
fl ashing).
Never leave a child alone inside the
vehicle with the ignition on, as they
could release the parking brake.
- display of a message "hand-
brake on" in the instrument panel
screen.
The noise of operation will confi rm
to you the application/release of
your electric parking brake.
- warning lamp P
in the
control lever A
coming on,
- display of a message "hand-
brake on" in the instrument panel
screen.
When the driver’s door is opened, a
beep is heard and a message dis-
played if the parking brake has not
been applied.
Before leaving the vehicle,
check that warning lamp P
and the warning lamp in the
instrument panel are on fi xed (not
fl ashing).
-
this warning lamp in the in-
strument panel coming on,
- this warning lamp in the in-
strument panel coming on,
Page 132 of 340
IX!
!
130
DRIVING
Release
The electric parking brake releases
automatically and progressively
when you press the accelerator:
)
with a manual gearbox
(fi rst
gear or reverse gear engaged),
press down fully on the clutch
pedal then press on the accel-
erator pedal and move off.
)
with an automatic gearbox
, ac-
celerate with the selector in posi-
tion D
, M
or R
.
Full release of the parking brake is
confi rmed by:
- warning lamp P
in the
control lever A
going off,
- display of a message "hand-
brake off" in the instrument panel
screen.
When stationary, with the engine
running, do not press the accelera-
tor pedal unnecessarily (particularly
when starting the engine, including
in neutral), as you may release the
parking brake.
Do nat place any object (packet of
cigarettes, telephone...) between the
gear lever and the electric parking
brake control.
Activation/Deactivation of the
automatic functions
Depending on the country of sale,
automatic application when switch-
ing off the engine and automatic
release when moving off can be de-
activated. The activation/deactiva-
tion is done in the instrument panel
screen confi guration menu. Select
"Vehicle parameters/Comfort/Auto
handbrake".
Deactivation of these func-
tions is signalled by this
warning lamp in the instru-
ment panel.
With the automatic functions deac-
tivated, the parking brake must be
applied and released manually.
In some special circumstances,
with the engine not running,
(towing, icy conditions...) the au-
tomatic parking brake can be re-
leased manually, with the key in
the running position.
Manual operation
Manual application/release of the
parking brake is always possible.
Application
With the vehicle stationary, to apply the
parking brake whether the engine is
running or off, pull
on control lever A
.
The application of the parking brake
is confi rmed by:
- warning lamp P
in the
control lever A
coming on,
- display of a message "hand-
brake on" in the instrument panel
screen.
When the driver’s door is opened
with the engine running, a mes-
sage is displayed accompanied
by an audible signal if the parking
brake has not been applied.
-
this warning lamp in the in-
strument panel coming on,
- this warning lamp in the
instrument panel going off,
If the confi guration menu does not
have the option to activate/deacti-
vate the automatic functions, this
can be done by a CITROËN dealer
or a qualifi ed workshop.
Page 135 of 340
IX
!
133
DRIVING
)
On sloping ground: immobilise
the vehicle by placing the chocks
(if your vehicle has them) in front
or behind the two front wheels,
against the slope
On level ground: immobilise the
vehicle by placing the chocks
(if your vehicle has them) in
front and behind one of the front
wheels.
)
Open the lower compartment of
the centre armrest by pulling it.
)
Ensure that the cup holder B
is
folded away.
)
Remove the rubber mat covering
the base of the armrest.
This strap does not permit
application of the parking
brake.
To re-engage the electric parking
brake (after rectifying the malfunc-
tion or battery failure), give a long
pull on the control A
until the park-
ing brake warning lamp (!) fl ashes
in the instrument panel then give a
second long pull until this warning
lamp is on fi xed.
The time required for the subse-
quent application may be longer
than during normal operation.
It is essential that the ignition is
not switched on until the parking
brake has re-engaged (fl ashing of
the warning lamp (!) in the instru-
ment panel then the warning lamp
on fi xed) to avoid damage to the
parking brake.
Take care not to allow moisture or
dust in the proximity of the diagnos-
tic socket D
which is essential for
the maintenance of your vehicle.
)
Release the strap from its loca-
tion C
.
)
Pull the strap to release the
brake. A loud knock confi rms the
release of the brake.
)
Take care to put the strap back in
its location C
correctly. Otherwise,
it will no longer be possible to ap-
ply the brake. Contact a CITROËN
dealer or a qualifi ed workshop.
)
Put the rubber mat back in place
on the base of the armrest.
Page 137 of 340
IX
135
DRIVING
SITUATION
CONSEQUENCES
4
Display of messages " Parking brake faulty
"
and " Anti roll-back
fault
" and of the following
warning lamps:
and/or
fl ashing
- The automatic functions are deactivated.
- The hill start assist is not available.
To apply the electric parking brake:
)
Immobilise the vehicle and switch off the ignition
)
Pull the control lever for at least 5 seconds or until maximum
application.
)
Switch on the ignition and check that the electric parking brake
warning lamps are on.
- Application may take longer than in normal operation.
- If warning lamp (!) fl ashes or if the warning lamps do not come
on when the ignition is switched on, this method does not work.
Have it checked by a CITROËN dealer or a qualifi ed workshop.
To release the electric parking brake:
)
Switch on the ignition.
)
Push the control lever and hold it for approximately 3 seconds.
5
Display of message " Parking brake control
faulty – automatic mode activated
" and the
following warning lamps:
and/or fl ashing
- Only the functions for automatic application on switching off the
engine and automatic release on acceleration are available.
- Manual application/release of the electric parking brake and dynamic
emergency braking are unavailable.
6
Display of message " Parking brake faulty
"
and of the following warning lamp:
fl ashing
- Application of the parking brake is not guaranteed.
- The parking brake is temporarily unavailable.
It this situation arises:
)
Wait approximately 3 minutes.
)
After 3 minutes, if the warning lamp is still fl ashing, try to
reinitialise the parking brake, either by pushing and releasing
the control A
while pressing the brake pedal or by means of a
long pull on control lever A
.
7
Battery fault
- Illumination of the battery warning lamp makes it essential to stop the
vehicle as soon as traffi c allows. Stop and immobilise your vehicle.
- Apply the electric parking brake before switching off the engine.
Page 139 of 340
IX
137
DRIVING
5-SPEED MANUAL GEARBOX
Starting the vehicle
)
Check that the gear lever is in
neutral.
)
Do not touch the accelerator.
)
For Diesel engines: turn the
key to position M
and wait until
the pre-heating warning lamp
switches off if it has come on.
)
Operate the starter, turning the
key until the engine starts (no
more than ten seconds).
)
In temperatures lower than 0°C,
declutch while operating the
starter to facilitate starting.
Engaging reverse gear
)
Push the gear lever to the right
then rearwards.
Only engage reverse gear when the
vehicle is stationary with the engine
at idle.
6-SPEED MANUAL
GEARBOX
Engaging reverse gear
)
Raise the ring under the knob
(indicated by the arrow) and
push the gear lever to the left
then forwards.
Only engage reverse gear when the
vehicle is stationary with the engine
at idle.
As a safety precaution and to facili-
tate starting of the engine:
- always select neutral,
- press the clutch pedal.
Page 144 of 340
IX
!
142
DRIVING
When immobilising the ve-
hicle, with the engine running,
you must place the gear lever
in neutral N
.
Before carrying out any work in the
engine compartment, check that
the gear lever is in neutral N
and
that the parking brake is applied.
SPORT programme
Stopping the vehicle
Before switching off the engine, you
can choose to:
- move to position N
to engage
neutral,
- leave the gear engaged; in this
case, it will not be possible to
move the vehicle.
In both cases, you must apply the
parking brake to immobilise the
vehicle.
Operating fault
With the ignition on, the fl ashing of
AUTO
, accompanied by an audible
signal and a message in the mul-
tifunction screen, indicates a fault
with the gearbox.
Have it checked by a CITROËN
dealer or a qualifi ed workshop.
)
Wit the gear lever at A
and the
engine running, press button S
to
activate the SPORT
programme,
which provides a more dynamic
driving style.
S
appears in the instrument panel.
)
Press the S
button again to switch
it off.
S
then disappears from the instru-
ment panel screen.
You must press the brake pedal
when starting the engine.
Whatever the circumstances, you
must manually apply the parking
brake when parking, unless the park-
ing brake is programmed in auto-
matic mode.
Page 145 of 340
IX!
143
DRIVING
STOP & START
The Stop & Start system puts the en-
gine temporarily into standby - STOP
mode - during stops in the traffi c
(red lights, traffi c jams, or other...).
The engine restarts automatically -
START mode - as soon as you want
to move off. The restart takes place
instantly, quickly and silently.
Perfect for urban use, the Stop &
Start system reduces fuel consump-
tion and exhaust emissions as well
as the noise level when stationary.
Operation
- with the electronic
gearbox
system
, at speeds below 4 mph
(6 km/h), press the brake pedal or
put the gear lever in position N
.
Going into engine STOP mode
The "ECO"
warning lamp comes
on in the instrument panel and
the engine goes into standby:
If your vehicle is fi tted
with the system, a time
counter calculates the
sum of the periods in
STOP mode during a journey. It rests
itself to zero every time the ignition
is switched on with the key.
For your comfort, during parking
maoeuvres, STOP mode is not
available for a few seconds after
coming out of reverse gear.
STOP mode does not affect the func-
tionality of the vehicle, such as for ex-
ample, braking, power steering...
Never refuel with the engine in
STOP mode; you must switch
off the ignition with the key.
Special cases: STOP mode not
available
In this case, the "ECO"
warning lamp fl ashes for a
few seconds then goes off.
This operation is perfectly normal.
STOP mode is not invoked when:
- the driver's door is open,
- the driver's seat belt is not fas-
tened,
- the vehicle has not exceeded
6 mph (10 km/h) since the last
engine start using the key,
- the electric parking brake is ap-
plied or being applied,
- the engine is needed to maintain
a comfortable temperature in the
passenger compartment,
- demisting is active,
- some special conditions (battery
charge, engine temperature,
braking assistance, ambient
temperature...) where the engine
is needed to assure control of a
system.
Page 146 of 340
IX
144
DRIVING
●
gear lever in position A
or M
, re-
lease the brake pedal,
●
or gear lever in position N
and the
brake pedal released, move the
gear lever to position A
or M
,
●
or engage reverse gear.
Going into engine START mode
The "ECO"
warning lamp goes
off and the engine starts with the
electronic
gearbox
system
:
Special cases: START invoked
automatically
In this case the "ECO"
warning lamp fl ashes for a
few seconds, then goes off.
This operation is perfectly normal.
START mode is invoked automati-
cally when:
- the driver's door is open,
- the driver's seat belt is not fas-
tened,
- the speed of the vehicle exceeds
7 mph (11 km/h) with the elec-
tronic gearbox system,
- the electric parking brake is being
applied,
- some special conditions (battery
charge, engine temperature,
braking assistance, ambient tem-
perature...) where the engine is
needed for control of a system. At any time, press the "ECO OFF"
switch to deactivate the system.
This is confi rmed by the switch warn-
ing lamp coming on accompanied by
a message in the screen.
Deactivation
If the system has been deactivated
in STOP mode, the engine restarts
immediately.
The system is reactivated auto-
matically at every new start using
the key.
Reactivation
Press the "ECO OFF"
switch again.
The system is active again; this is
confi rmed by the switch warning
lamp going off and a message in the
screen.
