CONTENTS
Direction indicators 116
Hazard warning lamps 116
Horn 116
Emergency or assistance call 116
Tyre under-infl ation detection 117
Braking assistance systems 119
Trajectory control systems 120
Seat belts 121
Airbags 124„
„
„
„
„
„
„
„
„
VIII - SAFETY 116 Î 127
Parking brake 128
Electric parking brake 129
Hill start assist 136
Manual gearbox 137
Gear shift indicator 138
6-speed electronic
gearbox system 139
Stop & Start 143
Automatic gearbox 146
Fixed centred controls steering
wheel 150
Speed limiter 152
Cruise control 154
Lane departure warning system 156
Parking space sensor 157
Parking sensors 159
"Hydractive III +" electronic
suspension 160
„
„
„
„
„
„
„
„
„
„
„
„
„
„
„
IX - DRIVING 128 Î 162
Bonnet 164
Running out of fuel (Diesel) 166
Petrol engines 167
Diesel engines 169
Checking levels 172
Checks 174„
„
„
„
„
„
X - CHECKS 163 Î 175
Temporary puncture repair kit 176
Changing a wheel 179
Changing a bulb 183
Changing a fuse 193
Battery 198
Energy economy mode 200
Towing the vehicle 201
Towing a trailer 202
Roof bars 203
Very cold protection 204
Cold climate screen 205
Matt paint 206
Accessories 207„
„
„
„
„
„
„
„
„
„
„
„
„
XI - PRACTICAL
INFORMATION 176 Î 208
Petrol engines 209
Petrol weights 210
Diesel engines 212
Diesel weights 214
Diesel weights - commercial
versions (Tourer) 218
Dimensions 219
Identifi cation markings 223„
„
„
„
„
„
„
XII - TECHNICAL
DATA 209 Î 224
Emergency or assistance 225
NaviDrive 3D 229
MyWay 273
Audio system 305„
„
„
„
XIII - AUDIO and
TELEMATICS 225 Î 324
VISUAL
SEARCH 325 Î 330
ALPHABETICAL
INDEX 331 Î 336

4
FAMILIARISATION
EXTERIOR


Stop & Start

This system puts the engine tempo-
rarily into standby during stops in the
traffi c (red lights, traffi c jams, etc...).
The engine restarts automatically as
soon as you want to move off.
Stop & Start reduces fuel consump-
tion, exhaust emissions and noise
when stationary.

Lane departure warning system


This driving aid warns you when you
unwittingly cross a lane marking.

Parking sensors (visual and
audible)

This system warns you if an obstacle
is detected in front of or behind the
vehicle.
Tyre under-infl ation detection

This system checks the pressure
of the tyres automatically while
driving.
Xenon dual-function directional
headlamps

This system automatically provides
you with extra visibility on bends.
This lighting is linked with the cor-
nering lighting which maximises the
illuminated area at intersections and
when parking.



143


91



156


159


117
Panoramic sunroof (Tourer)

This roof provides you with perfect
brightness in the passenger com-
partment.

Sunroof (Saloon)

This also provides you with im-
proved ventilation in the passenger
compartment.



84-85

8
FAMILIARISATION
INSTRUMENTS AND CONTROLS



1.
Electric windows/door mirrors/child safety controls.

2.
Storing driver’s seat and door mirror settings.

3.
Audio/telematic steering mounted controls.

4.
Horn.

5.
Steering mounted controls:


- Speed limiter

- Cruise control

6.
Driver’s airbag.

7.
Navigation controls for the audio/telematic and trip
computer systems.

8.
Driver’s air vent.

9.
Instrument panel.

10.
Driver’s air vent.

11 .
Stop & Start switch.

12.
Lighting/Direction indicators/Foglamp/Voice
recognition control stalk.

13.
Manual headlamp height adjustment.

14.
Steering wheel adjustment.

15.
Knee airbag.

16.
Locking/unlocking of doors and boot.

17.
Checks/Anti-intrusion alarm/Parking space sensor
controls.

18.
Ignition switch.

19.
Windscreen wiper/screenwash control stalk.

20.
Oddments tray or programmable heater controls.

21.
USB port.

!!!
18
FAMILIARISATION

Electric parking brake

Never leave a child alone inside
the vehicle with the ignition
on, as they could release the
parking brake.

Hill start assist


Manual operation
The MANUAL application/release of
the parking brake is always possible
by pulling/pushing the control lever B
,
keeping your foot on the brake pedal.
Before leaving the ve-
hicle, check that warn-
ing lamp A (!)
(red) in
the instrument panel is
on fi xed (not fl ashing) and that warn-
ing lamp P
(red) in the control lever B

is on.
If you leave the vehicle with the
engine still running, apply the
parking brake manually. Do not leave the vehicle while
it is being held in the temporary
immobilisation hill start assist
phase.
To aid starting on a gradient, your vehicle is equipped with a system which keeps
it immobilised for a short time (about
2 seconds), the approximate time it
takes to move your foot from the brake
pedal to the accelerator pedal.
This system is only active when:


-
The vehicle is completely stationary,
with your foot on the brake pedal.

- In certain conditions on a gradient.

- With the driver’s door closed. Before leaving the ve-
hicle, check that warn-
ing lamp A (!)
(red) in
the instrument panel is
on fi xed (not fl ashing) and that warn-
ing lamp P
(red) in the control lever B

is on.
Automatic operation
The electric parking brake releases
automatically and progressively when
you press the accelerator. With the
vehicle stationary, the parking brake
is automatically applied when the
engine is switched off.

DRIVING




130



136



129

25

Limit the causes of excess
consumption

Spread loads throughout the vehicle;
place the heaviest items in the bottom
of the boot, as close as possible to the
rear seats.
Limit the loads carried in the vehicle
and reduce wind resistance (roof bars,
roof rack, bicycle carrier, trailer...). Use
a roof box in preference.
Remove roof bars and roof racks after
use.

At the end of winter, remove snow
tyres and refi t your summer tyres.



Observe the recommendations
on maintenance

Check the tyre pressures regularly,
when cold, referring to the label in the
door aperture, driver's side.
Carry out this check in particular:


- before a long journey,

- at each change of season,

- after a long period out of use.
Don't forget the spare wheel and the
tyres on any trailer or caravan.

Have your vehicle serviced regularly
(engine oil, oil fi lter, air fi lter...) and
observe the schedule of operations
recommended by the manufacturer.


When refuelling, do not continue after
the 3 rd cut-off of the nozzle to avoid
any overfl ow.

At the wheel of your new vehicle,
it is only after the fi rst 1 800 miles
(3 000 kilometres) that you will see
the fuel consumption settle down to a
consistent average.

I
26
MONITORING














INSTRUMENT PANELS - PETROL AND DIESEL - MANUAL AND AUTOMATIC GEARBOX

Panel grouping together the dials and vehicle operation indicator and warning lamps.


A.
Fuel gauge

B.
Indicator:


●
Coolant temperature

●
Cruise control/Speed limiter
information

C.
Speedometer

D.
Rev counter
E.
Indicator:


●
Engine oil temperature

●
Gear lever position and gear
engaged (Automatic gearbox)

F.
Controls:


●
Lighting dimmer

●
Resetting to zero of trip mile-
age computer and mainte-
nance indicator
G.
Instrument panel screen indicating:


●
Depending on the page
selected with the left-hand
thumb wheel on the steering
wheel:


- Digital speed repeater

- Trip computer

- Navigation (guidance) infor-
mation

- Display of message alerts

- Engine oil level check

- Service indicator

●
Permanently:


- Trip mileage recorder

- Total mileage recorder

I
31
MONITORING

Return to the main instrument
panel screen display
Successive rotations of the left-hand
thumb wheel on the steering wheel
allow you to return to the main instrument
panel screen display (vehicle speed),
via the navigation information screen,
then the screen displaying only the total
mileage and the trip mileage (bottom of
screen).


Display of navigation
information on instrument
panel screen
You can display navigation informa-
tion on the instrument panel screen
by rotating the left-hand thumb
wheel on the steering wheel.










Log of alerts

This function allows you to display
the log of alerts.


)
Press on button A
.
The following messages appear
consecutively on the instrument
panel screen:


- Tyre pressure check.

- Service indicator reminder.

- Display of message alerts.

- Oil level check.

I
33
MONITORING

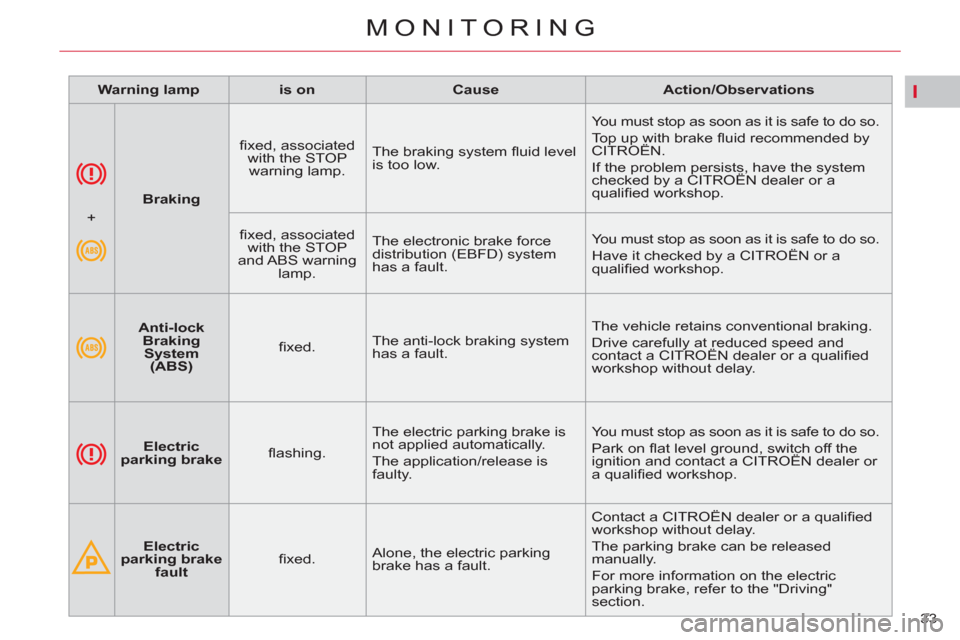

Braking


fi xed, associated
with the STOP
warning lamp. The braking system fl uid level
is too low. You must stop as soon as it is safe to do so.
Top up with brake fl uid recommended by
CITROËN.
If the problem persists, have the system
checked by a CITROËN dealer or a
qualifi ed workshop.

+

fi xed, associated
with the STOP
and ABS warning
lamp. The electronic brake force
distribution (EBFD) system
has a fault. You must stop as soon as it is safe to do so.
Have it checked by a CITROËN or a
qualifi ed workshop.

Warning lamp



is on



Cause



Action/Observations






Anti-lock
Braking
System
(ABS)


fi xed. The anti-lock braking system
has a fault. The vehicle retains conventional braking.
Drive carefully at reduced speed and
contact a CITROËN dealer or a qualifi ed
workshop without delay.




Electric
parking brake


fl ashing. The electric parking brake is
not applied automatically.
The application/release is
faulty. You must stop as soon as it is safe to do so.
Park on fl
at level ground, switch off the
ignition and contact a CITROËN dealer or
a qualifi ed workshop.




Electric
parking brake
fault


fi xed. Alone, the electric parking
brake has a fault. Contact a CITROËN dealer or a qualifi ed
workshop without delay.
The parking brake can be released
manually.
For more information on the electric
parking brake, refer to the "Driving"
section.

I
34
MONITORING




Dynamic
stability
control
(ESP/ASR)


fl ashing. The ESP/ASR regulation is
active. The system optimises traction and
improves the directional stability of
the vehicle.
fi xed, accompanied
by an audible signal
and a message in
the instrument panel
screen.
Unless it has been deactivated
with the indicator lamp in
the button on, the ESP/ASR
system has a fault. Have it checked by a CITROËN dealer or a
qualifi ed workshop.




Engine
autodiagnosis
system


fi xed. The emission control system
has a fault. The warning lamp should go off when
the engine is started.
If it does not go off, contact a CITROËN
dealer or qualifi ed workshop without delay.

fl ashing. The engine management
system has a fault. Risk of destruction of the catalytic converter.
Have it checked by a CITROËN dealer or
a qualifi ed workshop.

Warning lamp



is on



Cause



Action/Observations



Brake pad
wear


fi xed, accompanied
by an audible signal
and a message in
the multifunction
screen.
The brake pads are at an
advanced state of wear. Have the brake pads replaced by a
CITROËN dealer or a qualifi ed workshop.

Deactivation of
the automatic
functions of
the electric
parking brake


fi xed. The "automatic application"
(on switching off the engine)
and "automatic release"
functions are deactivated or
faulty. Activate the function (according to country)
via the vehicle confi guration menu or
contact a CITROËN dealer or a qualifi ed
workshop if automatic application/release is
not possible.
The parking brake can be released
manually using the emergency release
procedure.
For more information on the electric parking
brake, refer to the "Driving" section.

I
40
MONITORING













Service indicator zero reset
After each service, the service indi-
cator must be reset to zero.
The procedure for resetting to zero
is as follows:


)
switch off the ignition,

)
press and hold the trip distance
recorder zero reset button,

)
switch on the ignition; the dis-
tance recorder display begins a
countdown,

)
when the display indicates "=0"
,
release the button; the spanner
disappears.
Following this operation, if you wish
to disconnect the battery, lock the
vehicle and wait at least fi ve minutes
for the zero reset to be taken into
account.
















Engine oil level indicator

System which informs the driver
whether the engine oil level is correct
or not.
This information is indicated for a
few seconds when the ignition is
switched on, after the service infor-
mation.
The level read will only be correct if
the vehicle is on level ground and
the engine has been off for more
than 15 minutes.

Oil level correct

Oil level incorrect
This is indicated by displaying of the
message "Oil level incorrect".
If the low oil level is confi rmed by a
check using the dipstick, it is essen-
tial that the level is topped up to pre-
vent damage to the engine.
Oil level gauge fault
This is indicated by displaying of the
message "Oil level measurement in-
valid". Contact a CITROËN dealer
or a qualifi ed workshop.
