FAMILIARISATION

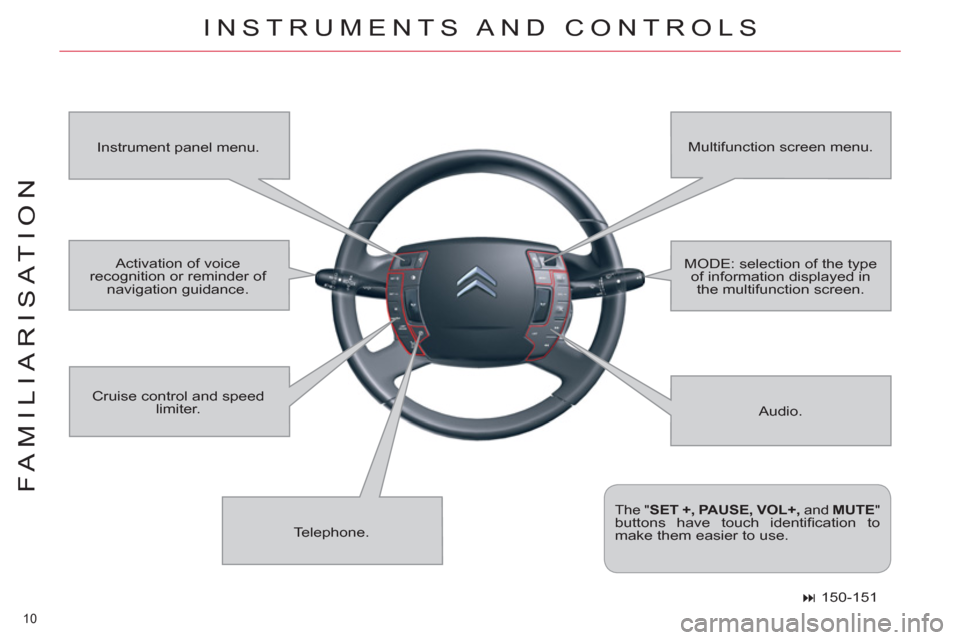

INSTRUMENTS AND CONTROLS

Audio. Instrument panel menu. Multifunction screen menu.
Telephone. Cruise control and speed
limiter.

The " SET +, PAUSE, VOL+,
and MUTE
" buttons have touch identifi cation to
make them easier to use. Activation of voice
recognition or reminder of
navigation guidance. MODE: selection of the type
of information displayed in
the multifunction screen.



150-151

16
FAMILIARISATION
MONITORING


Tyre under-inflation detection

The tyre under-infl ation detection sys-
tem is a driving aid which informs you
of the state of your tyres.
It does not replace either vigilance or
responsibility on the part of the driver.

Economy mode

After switching off the engine, some sys-tems (radio, wipers, electric windows,
opening roof, electric seats, telephone,
video, interior lighting, motorised tail-
gate, etc.) are supplied electrically for a
maximum of no more than around one
hour, so as to avoid discharging the
battery.
This period may be reduced considerably
if the battery’s state of charge is low.
Once this period is over, a message is
displayed in the instrument panel screen
and the active functions are placed on
standby.
These functions will be automatically
reactivated when the vehicle is restarted.


117




200

19
FAMILIARISATION
This system allows you to maintain a
constant vehicle speed programmed by
the driver.

Cruise control
Speed limiter

This system allows you to choose a maximum
speed that you do not wish to exceed.
The chosen speed must be higher
than 20 mph (30 km/h)
. Cruise control is active on the higher
gears
of the gearbox. The chosen
speed must be higher than 25 mph
(40 km/h).



Instrument panel screen

The speed limiter or cruise control
mode is displayed in the instrument
panel screen when selected.
Cruise control Speed limiter Selection of "LIMIT"
: Activation
of speed limiter mode.

"SET +"
: Increase the maximum
speed.

"SET -"
: Reduce the maximum
speed.
Suspension or resumption of
mode.
Deactivation.

The chosen speed is memorised.


"SET"
: Memorisation
of the speed (system
paused).
Selection of " CRUISE ": Activation
of cruise control mode.

"SET +"
: Increase the memo-
rised speed (system ON).

"SET -"
: Reduce the memorised
speed (system ON).
Suspension or resumption of
mode.
Deactivation.

DRIVING




152



154

24












































ECO-DRIVING

Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO2 emissions.


Optimise the use of your
gearbox

With a manual gearbox, move off gently,
change up without waiting and drive by
changing up quite soon. If your vehicle
has the system, the gear effi ciency
indicator invites you to change up; it is
displayed in the instrument panel, follow
its instructions.


With an automatic or electronic gearbox,
stay in Drive "D"
or Auto "A"
, according
to the type of gearbox, without pressing
the accelerator pedal heavily or suddenly.



Drive smoothly


Maintain a safe distance between
vehicles, use engine braking rather than
the brake pedal, and press the acce-
lerator progressively. These practices
contribute towards a reduction in fuel
consumption and CO
2 emissions and also helps reduce the background traffi c noise.


If your vehicle has cruise control, make use of the system at speeds above
25 mph (40 km/h) when the traffi c is
fl owing well.



Control the use of your
electrical equipment

Before moving off, if the passenger
compartment is too warm, ventilate it
by opening the windows and air vents
before using the air conditioning.
Above 30 mph (50 km/h), close the
windows and leave the air vents open.
Remember to make use of equipment
that can help keep the temperature in
the passenger compartment down (sun
roof and window blinds...).
Switch off the air conditioning, unless
it has automatic digital regulation, as
soon as the desired temperature is
attained.
Switch off the demisting and defrosting
controls, if not automatic.
Switch off the heated seat as soon as
possible.

Switch off the headlamps and front
foglamps when the level of light does
not require their use.
Avoid running the engine before mo-
ving off, particularly in winter; your
vehicle will warm up much faster while
driving.

As a passenger, if you avoid connecting
your multimedia devices (fi lm, music,
video game...), you will contribute
towards limiting the consumption of
electrical energy, and so of fuel.
Disconnect your portable devices
before leaving the vehicle.

I
26
MONITORING














INSTRUMENT PANELS - PETROL AND DIESEL - MANUAL AND AUTOMATIC GEARBOX

Panel grouping together the dials and vehicle operation indicator and warning lamps.


A.
Fuel gauge

B.
Indicator:


●
Coolant temperature

●
Cruise control/Speed limiter
information

C.
Speedometer

D.
Rev counter
E.
Indicator:


●
Engine oil temperature

●
Gear lever position and gear
engaged (Automatic gearbox)

F.
Controls:


●
Lighting dimmer

●
Resetting to zero of trip mile-
age computer and mainte-
nance indicator
G.
Instrument panel screen indicating:


●
Depending on the page
selected with the left-hand
thumb wheel on the steering
wheel:


- Digital speed repeater

- Trip computer

- Navigation (guidance) infor-
mation

- Display of message alerts

- Engine oil level check

- Service indicator

●
Permanently:


- Trip mileage recorder

- Total mileage recorder

I
27
MONITORING

"Choice of language" menu

This allows you to choose the display
and voice recognition language.


"Choice of units" menu

This allows you to choose metric or
imperial units. The main menu allows you to pro-
gramme certain vehicle and instru-
ment panel screen functions:







Main menu

The instrument screen A
is located in
the centre of the instrument panel.


- With the vehicle stationary, you
can access the main menu of
the screen by quickly pressing
on the left-hand thumb wheel B

on the steering wheel.

- Whilst driving, the message
"Action impossible whilst
driving"
is displayed on the in-
strument panel if you try to open
the main menu.


"Vehicle parameters" menu

This allows you to access the pa-
rameters relating to:


- The vehicle lighting.

- The comfort levels in the vehicle.

I
29
MONITORING





TRIP COMPUTER

System which provides current in-
formation concerning your journey
(range, consumption, etc.)

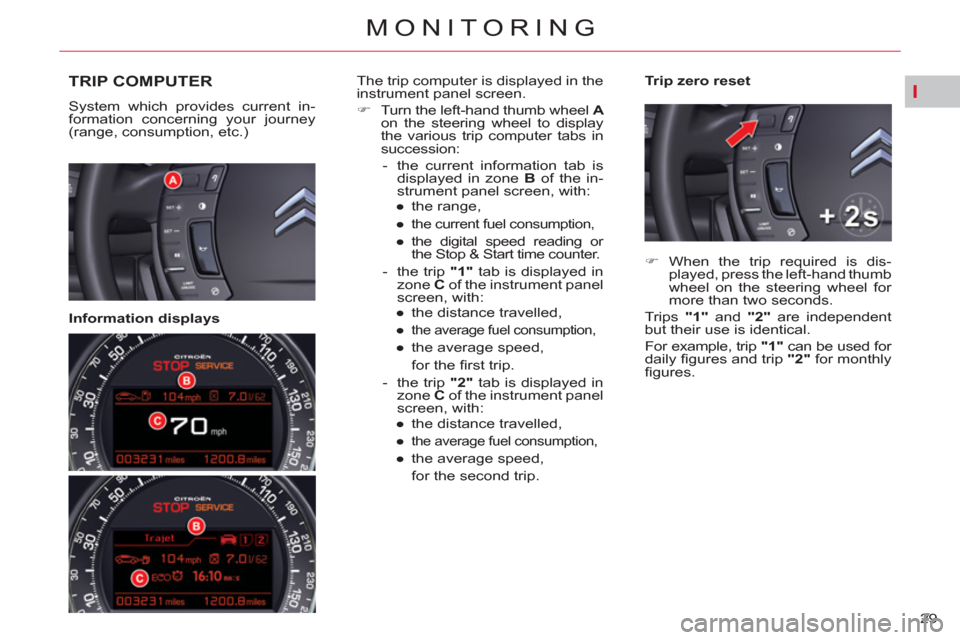

Information displays
Trip zero reset
The trip computer is displayed in the
instrument panel screen.


)
Turn the left-hand thumb wheel A
on the steering wheel to display
the various trip computer tabs in
succession:


- the current information tab is
displayed in zone B
of the in-
strument panel screen, with:


●
the range,

●

the current fuel consumption,


●
the digital speed reading or
the Stop & Start time counter.

- the trip "1"
tab is displayed in
zone C
of the instrument panel
screen, with:


●
the distance travelled,

●

the average fuel consumption,

●
the average speed,
for the fi rst trip.

- the trip "2"
tab is displayed in
zone C
of the instrument panel
screen, with:


●
the distance travelled,

●

the average fuel consumption,


●
the average speed,
for the second trip.




)
When the trip required is dis-
played, press the left-hand thumb
wheel on the steering wheel for
more than two seconds.
Trips "1"
and "2"
are independent
but their use is identical.
For example, trip "1"
can be used for
daily fi gures and trip "2"
for monthly
fi gures.

I
30
MONITORING






A few definitions…


Range
(miles or km)
Current fuel consumption
(mpg or l/100 km or km/l)

Average fuel
consumption
(mpg or l/100 km or km/l)

Average speed
(mph or km/h)
Distance travelled
(miles or km)
This indicates the distance which
can still be travelled with the fuel re-
maining in the tank in relation to the
average fuel consumption over the
last few miles (kilometres) travelled.
This value may vary following a
change in the style of driving or
the relief, resulting in a signifi cant
change in the current fuel con-
sumption.
When the range falls below 20 miles
(30 km), dashes are displayed. After
fi lling with at least 5 litres of fuel,
the range is recalculated and is dis-
played when it exceeds 60 miles
(100 km).
If dashes are displayed continu-
ously while driving in place of the
digits, contact a CITROËN dealer
or a qualifi ed workshop. This function is only displayed from
20 mph (30 km/h). This is the average fuel consump-
tion during the last few seconds.
This is the average fuel consump-
tion since the last trip computer zero
reset.
This is the average speed calculat-
ed since the last trip computer zero
reset (ignition on). This indicates the distance travelled
since the last trip computer zero reset.








Stop & Start time
counter
(minutes/seconds or hours/minutes)
If your vehicle is fi tted with Stop &
Start, a time counter calculates the
time spent in STOP mode during a
journey.
It resets to zero every time the igni-
tion is switched on with the key.

I
31
MONITORING

Return to the main instrument
panel screen display
Successive rotations of the left-hand
thumb wheel on the steering wheel
allow you to return to the main instrument
panel screen display (vehicle speed),
via the navigation information screen,
then the screen displaying only the total
mileage and the trip mileage (bottom of
screen).


Display of navigation
information on instrument
panel screen
You can display navigation informa-
tion on the instrument panel screen
by rotating the left-hand thumb
wheel on the steering wheel.










Log of alerts

This function allows you to display
the log of alerts.


)
Press on button A
.
The following messages appear
consecutively on the instrument
panel screen:


- Tyre pressure check.

- Service indicator reminder.

- Display of message alerts.

- Oil level check.

I
32
MONITORING









Warning and indicator lamps

Visual indicators which inform the driver of the occurrence of a malfunction or
fault (warning lamp) or of the operation of a system (operation or deactivation
indicator lamp).


Warning lamp



is on



Cause



Action/Observations







STOP


fi xed, associated
with another
warning lamp. It is associated with a
punctured tyre or the engine
coolant temperature. Stop as soon as it is safe to do so.
Park, switch off the ignition and call a
CITROËN dealer or a qualifi ed workshop.





Service


temporarily. A minor fault has occurred
for which there is no specifi c
warning lamp. Identify the fault by reading the message
shown in the screen, such as, for example:


- the closing of the doors, boot, rear
screen or bonnet,

- the remote control battery,

- the tyre pressures,

- saturation of the particle emission fi lter
(Diesel).
For any other faults, contact a CITROËN
dealer or a qualifi ed workshop.

fi xed. A major fault has occurred
for which there is no specifi c
warning lamp. Identify the fault by reading the message
shown in the screen and contact a
CITROËN dealer or a qualifi ed workshop.
When the ignition is switched on
Certain warning lamps come on for a few seconds when the ignition is switched on.
When the engine is started, these warning lamps should go off.
If they remain on, before moving off, refer to the information for the warning
lamp concerned.

Associated warnings
The illumination, fi xed or fl
ashing, of certain warning lamps may be accompa-
nied by an audible signal and a message in the screen.
Warning lamps
When the engine is running or the
vehicle is being driven, the illumina-
tion of one of the following warning
lamps indicates a malfunction or
fault which requires action on the
part of the driver.
The illumination of a warning lamp is
always accompanied by the display
of an additional message, to assist
you in identifying the fault.
If you encounter any problems, con-
tact a CITROËN dealer or a qualifi ed
workshop.
