fuse box Citroen C5 RHD 2011.5 (RD/TD) / 2.G Owner's Manual

CONTENTS
Direction indicators 116
Hazard warning lamps 116
Horn 116
Emergency or assistance call 116
Tyre under-infl ation detection 117
Braking assistance systems 119
Trajectory control systems 120
Seat belts 121
Airbags 124„
„
„
„
„
„
„
„
„
VIII - SAFETY 116 Î 127
Parking brake 128
Electric parking brake 129
Hill start assist 136
Manual gearbox 137
Gear shift indicator 138
6-speed electronic
gearbox system 139
Stop & Start 143
Automatic gearbox 146
Fixed centred controls steering
wheel 150
Speed limiter 152
Cruise control 154
Lane departure warning system 156
Parking space sensor 157
Parking sensors 159
"Hydractive III +" electronic
suspension 160
„
„
„
„
„
„
„
„
„
„
„
„
„
„
„
IX - DRIVING 128 Î 162
Bonnet 164
Running out of fuel (Diesel) 166
Petrol engines 167
Diesel engines 169
Checking levels 172
Checks 174„
„
„
„
„
„
X - CHECKS 163 Î 175
Temporary puncture repair kit 176
Changing a wheel 179
Changing a bulb 183
Changing a fuse 193
Battery 198
Energy economy mode 200
Towing the vehicle 201
Towing a trailer 202
Roof bars 203
Very cold protection 204
Cold climate screen 205
Matt paint 206
Accessories 207„
„
„
„
„
„
„
„
„
„
„
„
„
XI - PRACTICAL
INFORMATION 176 Î 208
Petrol engines 209
Petrol weights 210
Diesel engines 212
Diesel weights 214
Diesel weights - commercial
versions (Tourer) 218
Dimensions 219
Identifi cation markings 223„
„
„
„
„
„
„
XII - TECHNICAL
DATA 209 Î 224
Emergency or assistance 225
NaviDrive 3D 229
MyWay 273
Audio system 305„
„
„
„
XIII - AUDIO and
TELEMATICS 225 Î 324
VISUAL
SEARCH 325 Î 330
ALPHABETICAL
INDEX 331 Î 336

9
FAMILIARISATION
INSTRUMENTS AND CONTROLS



1.
Sunshine sensor.

2.
Soft diffusion air conditioning adjustment wheel.

3.
Passenger’s airbag.

4.
Side window demist vent.

5.
Passenger’s air vents.

6.
Bonnet release.

7.
Hazard warning lamps switch.

8.
Switch in the glove box:


- Passenger’s airbag activation/deactivation

9.
Glove box:


- Vehicle document storage

- Audio-video sockets

- Fusebox access fl ap

10.
ESP/Parking Sensors/Lane Departure Warning
System controls.

11 .
Suspension controls:


- Ground clearance adjustment

- Sport mode

12.
Armrest with cup-holder.

13.
Electric parking brake.

14.
Automatic gearbox SPORT/SNOW mode controls.

15.
Ashtray with cigar lighter.

16.
Gear lever.

17.
Storage.

18.
Audio and telematics system.

19.
Air conditioning controls.

20.
Storage.

21.
Multifunction screen.

22.
Emergency or assistance call controls.

III
49
COMFORT











VENTILATION



A.
Sunshine sensor.

B.
Soft air diffusion grille.
The soft air diffusion grille located
in the centre of the dashboard
provides optimum distribution of
the air for the front seats.
This system eliminates unpleas-
ant air currents while maintaining
an optimum temperature in the
passenger compartment.
To open the soft air diffusion
grille, turn the wheel upwards.
To close the soft air diffusion grille,
turn the wheel fully downwards.
In very hot weather, to obtain
more satisfactory central and
side ventilation, it is advisable to
close the diffused air grille.

C.
Cooled glove box.

D.
Rear passenger vents.

VI
!
100
FITTINGS

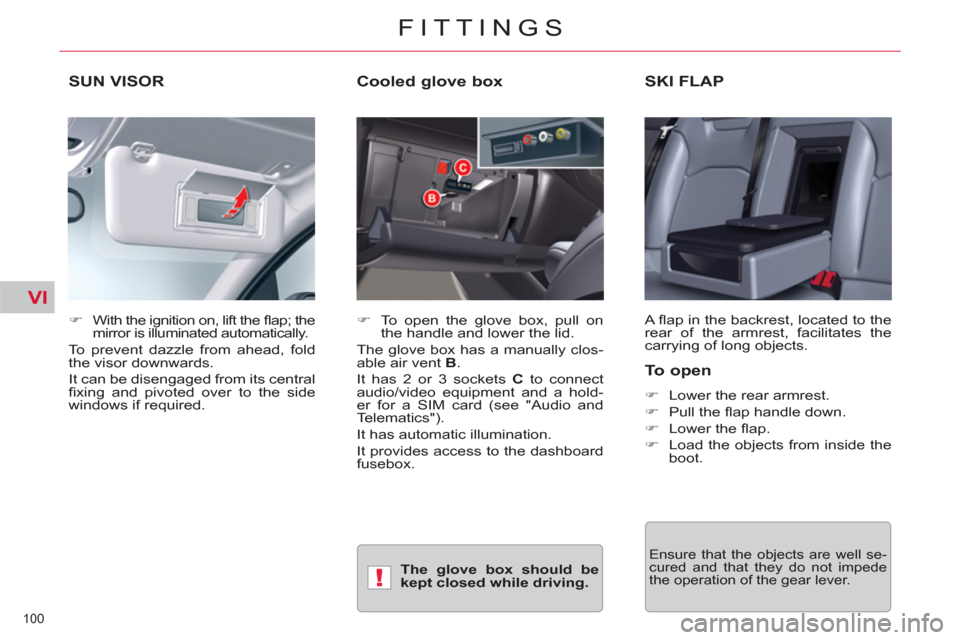

SUN VISOR




SKI FLAP

A fl ap in the backrest, located to the
rear of the armrest, facilitates the
carrying of long objects.

)
With the ignition on, lift the fl ap; the
mirror is illuminated automatically.
To prevent dazzle from ahead, fold
the visor downwards.
It can be disengaged from its central
fi xing and pivoted over to the side
windows if required.






Cooled glove box



)
To open the glove box, pull on
the handle and lower the lid.
The glove box has a manually clos-
able air vent B
.
It has 2 or 3 sockets C
to connect
audio/video equipment and a hold-
er for a SIM card (see "Audio and
Telematics").
It has automatic illumination.
It provides access to the dashboard
fusebox.


To open



)
Lower the rear armrest.

)
Pull the fl ap handle down.

)
Lower the fl ap.

)
Load the objects from inside the
boot.


Ensure that the objects are well se-
cured and that they do not impede
the operation of the gear lever.

The glove box should be
kept closed while driving.

IX
151
DRIVING


12


Rotation

- Radio source: Scroll the pre-set stations.

- CD/MP3 CD/CD changer/jukebox source: Scroll the
CDs or directories.

- On the multifunction screen menus: Movement and
increase/decrease.

Short press

- On the multifunction screen menus: confi rm.

- Open the short-cut menus (depending on the multifunction
screen page).

Long press Open the multifunction screen main menu.


13


Short press Cancel the current operation and return to the previous page on
the multifunction screen.
When an incoming telephone call is received: Refuse the call.

Long press Return to the initial page on the multifunction screen.


14


Short press Access to the multifunction screen general menu.


15




Short press/Maintained press
Volume increase.


16




Short press/Maintained press
Volume decrease.


17


Short press

- First press: mute.

- Second press: restore sound.


18


Short press

- Radio source: Automatic search of higher frequencies.

-
CD/MP3 CD/CD changer/jukebox source: Search for the next track.


Maintained press

- CD/MP3 CD/CD changer/jukebox source: Fast forward play.


19


Short press

- Radio source: Automatic search of lower frequencies.

- CD/MP3 CD/CD changer/jukebox source: Search for
the previous track.

Maintained press CD/MP3 CD/CD changer/jukebox source: Fast backwards.


20


Short press

- Radio source: display the list of radio stations available.

- CD/MP3 CD and CD changer source: display the list of
CD tracks and directories.

- Jukebox source: display the list of albums.

Long press Update the list of radio stations.


21


Short press/Long press Horn.


22


Short press

MODE: selection of the type of information presented on the multifunction screen.

XI
193
PRACTICAL INFORMATION























CHANGING A FUSE

Procedure for replacing a faulty fuse
with a new fuse to rectify a failure of
the corresponding function.
The 2 fuseboxes are located below
the dashboard and under the bonnet.

Replacing a fuse

Before replacing a fuse, you should
ascertain the cause of the fault and
have it remedied. the numbers of the
fuses are indicated on the fusebox.
Replace the fuse that has blown
with one of the same rating (same
colour).
Use the special tweezer 1
placed on
the fl ap close to the fuseboxes.

Good

Failed


Tweezer 1




Fuses under the dashboard


Access to the fuses


)
open the glove box then unclip
the access cover.
Fusebox A

Fusebox B

Fusebox C


Tweezer 1

XI
194
PRACTICAL INFORMATION
FUSEBOX A

Table of fuses



Fuse N°



Rating



Function




G29



-

Not used


G30



5 A

Heated door mirrors


G31



5 A

Rain and sunshine sensor


G32



5 A

Seat belt not fastened warning lamps


G33



5 A

Electrochromatic rear view mirror


G34



20 A

Sunroof (saloon)


G35



5 A

Passenger door lighting - passenger door mirror adjustment


G36



30 A

Electric tailgate (tourer)


G37



20 A

Heated front seats


G38



30 A

Driver’s electric seat


G39



30 A

Passenger’s electric seat - HIFI amplifi er


G40



3 A

Trailer relay unit supply

FUSEBOX B



Fuse N°



Rating



Function




G36



15 A

6 speed automatic gearbox


5 A

4 speed automatic gearbox


G37



10 A

Daytime running lamps - Diagnostic socket


G38



3 A

ESP


G39



10 A

Hydraulic suspension


G40



3 A

STOP switch

XI
195
PRACTICAL INFORMATION
FUSEBOX C



Fuse N°



Rating



Function




F1



15 A

Rear screen wipe (Tourer)


F2



30 A

Locking and deadlocking relay


F3



5 A

Airbags


F4



10 A

Automatic gearbox - additional heater unit (Diesel) -
electrochrome rear view mirror


F5



30 A

Front window - sunroof - passenger door lighting -
passenger door mirror adjustment


F6



30 A

Rear window


F7



5 A

Vanity mirror lighting - Glove box lighting - interior lamps -
torch (tourer)


F8



20 A

Radio - CD changer - Steering mounted controls - Screen - Under-infl ation detection -
Electric boot ECU


F9



30 A

Cigar lighter - front 12 V socket


F10



15 A

Alarm - Steering mounted controls, signalling and wiper controls


F11



15 A

Low current ignition switch


F12



15 A

Driver’s electric seat - instrument panel - seat belt not fastened warning lamps -
air conditioning controls


F13



5 A

Engine relay unit - Hydraulic suspension pump cut-off relay -
airbag ECU supply


F14



15 A

Rain and sunshine sensor - parking sensors - passenger’s electric seat -
trailer relay unit - HIFI amplifi er ECU - Bluetooth system -
Lane Departure Warning System


F15



30 A

Locking and deadlocking relay


F17



40 A

Heated rear screen - heated door mirrors


FSH



SHUNT

PARK SHUNT

XI
196
PRACTICAL INFORMATION

Fuses under the bonnet


After a repair, carefully refi t the
cover.


Any repairs on the MAXI fuses
(that give additional protection),
located in the fuseboxes, must
be left to a CITROËN dealer or a
qualifi ed workshop.

Access to the fuses


)
Undo each screw by a 1/4 turn.

)
Replace the fuse.

Table of fuses



Fuse N°



Rating



Function




F1



20 A

Engine control unit


F2



15 A

Horn


F3



10 A

Screen wash pump


F4



10 A

Headlamp wash pump


F5



15 A

Starter


F6



10 A

Airfl ow sensor - Directional headlamps -
Diagnostic socket


F7



10 A

Automatic gear lever lock -
Power steering


F8



25 A

Starter motor


F9



10 A

Clutch switch - Stop switch


F10



30 A

Actuator motors


F11



40 A

Air conditioning blower


F12



30 A

Wipers


F13



40 A

BSI supply (ignition on)


F14



30 A

-


F15



10 A

Right-hand main beam


F16



10 A

Left-hand main beam


F17



15 A

Right-hand dipped beam


F18



15 A

Left-hand dipped beam


F19



15 A

Actuator motors


F20



10 A

Actuator motors


F21



5 A

Actuator motors

XI
!
197
PRACTICAL INFORMATION

Table of fuses



Fuse N°



Rating



Function




F6



25 A

Rear 12 V socket (max power: 100 W)


F7



15 A

Foglamps


F8



20 A

Additional burner (Diesel)


F9



30 A

Electric parking brake


Your vehicle’s electrical sys-
tem is designed to operate
with either standard or op-
tional equipment.
Before installing electrical equip-
ment or accessories on your vehi-
cle, consult a CITROËN dealer or a
qualifi ed workshop.
CITROËN declines all responsibil-
ity for the consequences and costs
that are caused by faults or repairs
on your vehicle resulting from the
installation of accessories that
are not supplied and/or not rec-
ommended by CITROËN and not
installed in conformity with its re-
quirements, particularly when the
total consumption of additional de-
vices exceeds 10 milliamperes.
The Maxi fuses give additional pro-
tection to electrical systems. any
work on them must be carried out
by a CITROËN dealer or a quali-
fi ed workshop.
After a repair, carefully refi t the
cover.


If the cover is not correctly po-
sitioned or not properly closed,
this could cause serious prob-
lems on your vehicle. For the
same reason, take care not to
spill any liquid in the fusebox.
