CONTENTS
Direction indicators 116
Hazard warning lamps 116
Horn 116
Emergency or assistance call 116
Tyre under-infl ation detection 117
Braking assistance systems 119
Trajectory control systems 120
Seat belts 121
Airbags 124 „
„
„
„
„
„
„
„
„
VIII - SAFETY 116 Î 127
Parking brake 128
Electric parking brake 129
Hill start assist 136
Manual gearbox 137
Gear shift indicator 138
6-speed electronic
gearbox system 139
Stop & Start 143
Automatic gearbox 146
Fixed centred controls steering
wheel 150
Speed limiter 152
Cruise control 154
Lane departure warning system 156
Parking space sensor 157
Parking sensors 159
"Hydractive III +" electronic
suspension 160
„
„
„
„
„
„
„
„
„
„
„
„
„
„
„
IX - DRIVING 128 Î 162
Bonnet 164
Running out of fuel (Diesel) 166
Petrol engines 167
Diesel engines 169
Checking levels 172
Checks 174 „
„
„
„
„
„
X - CHECKS 163 Î 175
Temporary puncture repair kit 176
Changing a wheel 179
Changing a bulb 183
Changing a fuse 193
Battery 198
Energy economy mode 200
Towing the vehicle 201
Towing a trailer 202
Roof bars 203
Very cold protection 204
Cold climate screen 205
Matt paint 206
Accessories 207 „
„
„
„
„
„
„
„
„
„
„
„
„
XI - PRACTICAL
INFORMATION 176 Î 208
Petrol engines 209
Petrol weights 210
Diesel engines 212
Diesel weights 214
Diesel weights - commercial
versions (Tourer) 218
Dimensions 219
Identifi cation markings 223 „
„
„
„
„
„
„
XII - TECHNICAL
DATA 209 Î 224
Emergency or assistance 225
NaviDrive 3D 229
MyWay 273
Audio system 305 „
„
„
„
XIII - AUDIO and
TELEMATICS 225 Î 324
VISUAL
SEARCH 325 Î 330
ALPHABETICAL
INDEX 331 Î 336
Page 204 of 340
XI!
202
PRACTICAL INFORMATION
TOWING A TRAILER,
A CARAVAN, ETC.
Towbar suitable for the attachment
of a trailer or caravan with additional
lighting and signalling.
Your vehicle is primarily designed
for transporting people and luggage,
but it may also be used for towing a
trailer.
We recommend the use of genuine
CITROËN towbars and their har-
nesses that have been tested and
approved from the design stage of
your vehicle, and that the fi tting of the
towbar is entrusted to a CITROËN
dealer or a qualifi ed workshop.
If the towbar is not fi tted by a
CITROËN dealer, it is impera-
tive that it is fi tted in accordance
with the vehicle manufacturer's in-
structions.
Driving with a trailer places greater
demands on the towing vehicle and
the driver must take particular care.
Driving advice
Distribution of loads
)
Distribute the load in the trailer
so that the heaviest items are as
close as possible to the axle and
the nose weight approaches the
maximum permitted without ex-
ceeding it.
Air density decreases with altitude,
thus reducing engine performance.
Above 1 000 metres, the maximum
towed load must be reduced by 10 %
for every 1 000 metres of altitude.
Refer to the "Technical Data" section
for details of the weights and towed
loads which apply to your vehicle.
Side wind
)
Take into account the increased
sensitivity to side wind.
Cooling
Towing a trailer on a slope increases
the temperature of the coolant.
As the fan is electrically controlled,
its cooling capacity is not dependent
on the engine speed.
)
To lower the engine speed, re-
duce your speed. The maximum towed load on a long
incline depends on the gradient and
the ambient temperature.
In all cases, keep a check on the
coolant temperature.
Braking
Towing a trailer increases the braking
distance.
To avoid overheating of the brakes
on a long mountain type of descent,
the use of engine braking is recom-
mended.
Tyres
)
Check the tyre pressures of the
towing vehicle and of the trailer,
observing the recommended
pressures.
Lighting
)
Check the electrical lighting and
signalling on the trailer.
The rear parking sensors will be
deactivated automatically if a gen-
uine CITROËN towbar is used.
)
If the warning lamp and
the STOP
warning lamp
come on, stop the vehicle
and switch off the engine
as soon as possible.
Page 211 of 340
XII
MODELS:
ENGINES AND GEARBOXES
Model codes:
RD... RW...
5FS-8/P
5FV-5FN/A
5FV-5FN/8
RFJF

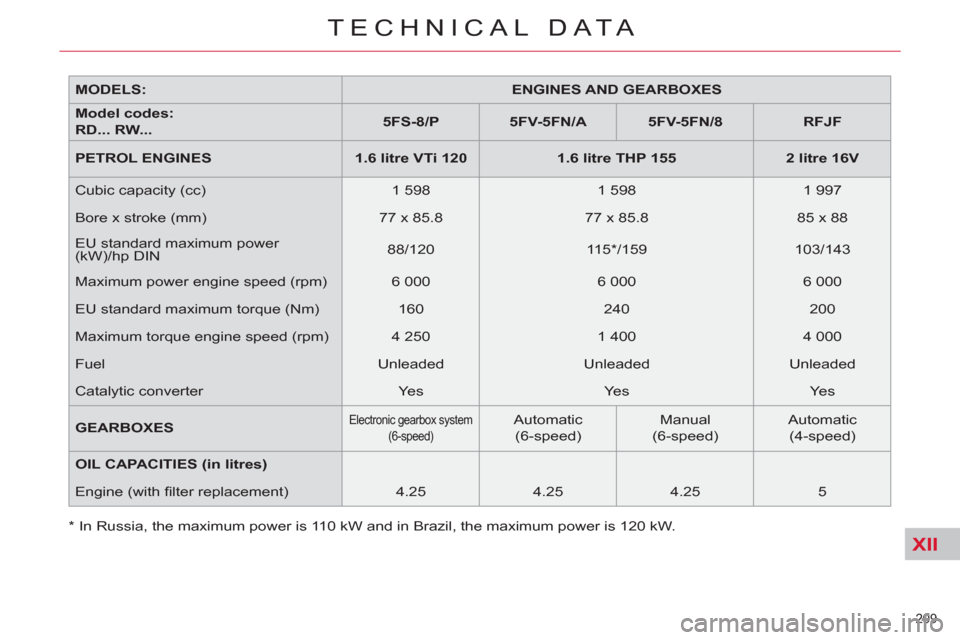

PETROL ENGINES
1.6 litre VTi 120
1.6 litre THP 155
2 litre 16V
Cubic capacity (cc)
1 598
1 598
1 997
Bore x stroke (mm)
77 x 85.8
77 x 85.8
85 x 88
EU standard maximum power
(kW)/hp DIN
88/120
11 5 * /159
103/143
Maximum power engine speed (rpm)
6 000
6 000
6 000
EU standard maximum torque (Nm)
160
240
200
Maximum torque engine speed (rpm)
4 250
1 400
4 000
Fuel
Unleaded
Unleaded
Unleaded
Catalytic converter
Yes
Yes
Yes
GEARBOXES
Electronic gearbox system
(6-speed)
Automatic
(6-speed)
Manual
(6-speed)
Automatic
(4-speed)
OIL CAPACITIES (in litres)
Engine (with fi lter replacement)
4.25
4.25
4.25
5
* In Russia, the maximum power is 110 kW and in Brazil, the maximum power is 120 kW.
209
TECHNICAL DATA
Page 212 of 340
XII
210
TECHNICAL DATA
WEIGHTS AND TOWED LOADS (SALOON) in kg
Petrol engines
1.6 litre VTi 120
1.6 litre THP 155
2 litre 16V
Gearboxes
Electronic gearbox system
Automatic
Manual
Automatic
Model codes:
RD...
5FS-8/P
5FV-5FN
/ A
5FV-5FN/8
RFJF
- Unladen weight
1 425
1 515
1 471
1 583
- Kerb weight
1 500
1 590
1 546
1 658
- Gross vehicle weight (GVW)
2 018
2 026
2 065
2 090
- Gross train weight (GTW)
3 318
3 526
3 565
3 590
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient
1 300
1 500
1 500
1 500
- Braked trailer * (with load transfer
within GTW limit)
1 570
1 710
1 730
1 720
- Unbraked trailer
750
750
750
750
- Recommended nose weight
64
69
70
69
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 100 km/h (approx. 60 mph) (comply with the legislation in force in your
country).
High ambient temperatures may result in a reduction in the performance of the vehicle in order to protect the engine; when
the ambient temperature is higher than 37 °C, limit the weight towed. *
The weight of the braked trailer can be increased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced
by the same amount; warning, towing with a lightly loaded towing vehicle may have an adverse effect on its road holding.
Page 213 of 340

XII
211
TECHNICAL DATA
WEIGHTS AND TOWED LOADS (TOURER) in kg
Petrol engines
1.6 litre VTi 120
1.6 litre THP 155
2 litre 16V
Gearboxes
Electronic gearbox system
Automatic
Manual
Automatic
Model codes:
RW...
5FS-8/P
5FV-5FN
/ A
5FV-5FN/8
RFJF
- Unladen weight
1 498
1 534
1 503
1 619
- Kerb weight
1 573
1 609
1 578
1 694
- Gross vehicle weight (GVW)
2 133
2 200
2 167
2 224
- Gross train weight (GTW)
3 433
3 700
3 667
3 724
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient
1 300
1 500
1 500
1 500
- Braked trailer * (with load transfer
within GTW limit)
1 600
1 790
1 790
1 800
- Unbraked trailer
750
750
750
750
- Recommended nose weight
65
74
73
72
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 100 km/h (approx. 60 mph) (comply with the legislation in force in your
country).
High ambient temperatures may result in a reduction in the performance of the vehicle in order to protect the engine; when
the ambient temperature is higher than 37 °C, limit the weight towed. *
The weight of the braked trailer can be increased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced
by the same amount; warning, towing with a lightly loaded towing vehicle may have an adverse effect on its road holding.
Page 214 of 340
XII
212
TECHNICAL DATA
*
In Belgium, the maximum power is 100 kW.
MODELS:
ENGINES AND GEARBOXES
Model codes:
RD... RW...
9HL/8
9HR
/ 8
RHR-RHF/H-8
DIESEL ENGINES
HDi 110
e-HDi 110
HDi 140
Cubic capacity (cc)
1 560
1 997
Bore x stroke (mm)
75 x 88.3
85 x 88
EU standard maximum power (kW)/hp DIN
82/112
103 * /140
Maximum power engine speed (rpm)
3 500
4 000
EU standard maximum torque (Nm)
280
320
Maximum torque engine speed (rpm)
1 750
2 000
Fuel
Diesel
Diesel
Catalytic converter
Yes
Yes
Particle emission fi lter (PEF)
Yes
Yes
GEARBOXES
Manual
(5-speed)
Electronic gearbox system
(6-speed)
Manual
(6-speed)
OIL CAPACITIES (in litres)
Engine (with fi lter replacement)
3.75
5.25
Page 215 of 340
XII
213
TECHNICAL DATA
MODELS:
ENGINES AND GEARBOXES
Model
codes
:
RD... RW...
RHH-RHE
-RHD/8
RHH-RHE-RHD/A
4HL/A
X8Z/A
DIESEL
ENGINES
HDi 160
HDI 200
V6
HDi 240
Cubic capacity (cc)
1 997
2 179
2 993
Bore x stroke (mm)
85 x 88
85 x 96
84 x 90
EU standard maximum power
(kW)/hp DIN
120 * /163
147/206
177/240
Maximum power engine speed (rpm)
3 750
3 500
3 800
EU standard maximum torque (Nm)
340
420
450
Maximum torque engine speed (rpm)
2 000
2 000
1 600
Fuel
Diesel
Diesel
Diesel
Catalytic converter
Yes
Yes
Yes
Particle emissions fi lter (PEF)
Yes
Yes
Yes
GEARBOXES
Manual
(6-speed)
Automatic
(6-speed)
Automatic
(6-speed)
Automatic
(6-speed)
OIL CAPACITIES (in litres)
Engine (with fl ter replacement)
5.5
5.25
6.25
*
In Russia, the maximum power is 100 kW.
Page 216 of 340
XII
214
TECHNICAL DATA
WEIGHTS AND TOWED LOADS (SALOON) in kg
Diesel engines
HDi 110
e-HDi 110
HDi 140
Gearboxes
Manual
Electronic gearbox system
Manual
Model codes:
RD...
9HL/8
9HR/8
RHR-RHF/H-8
- Unladen weight
1 506
1 525
1 608
- Kerb weight
1 581
1 600
1 683
- Gross vehicle weight (GVW)
2 041
2 062
2 155
- Gross train weight (GTW)
3 141
3 162
3 755
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient
1 100
1 100
1 600
- Braked trailer * (with load transfer within
GTW limit)
1 340
1 340
1 820
- Unbraked trailer
750
750
750
- Recommended nose weight
55
55
73
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 100 km/h (approx.) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle in order to protect the engine; when
the ambient temperature is higher than 37 °C, limit the weight towed. *
The weight of the braked trailer can be increased within the GTW limit, on condition that the GVW of the towing vehicle is reduced
by the same amount; warning, towing with a lightly loaded towing vehicle may have an adverse effect on its road holding.
Page 217 of 340
XII
215
TECHNICAL DATA
WEIGHTS AND TOWED LOADS (SALOON) in kg
Diesel engines
HDi 160
HDi 200
V6 HDi 240
Gearboxes
Manual
Automatic
Automatic
Automatic
Model codes
:
RD...
RHH-RHE
-
RHD/8
RHH-RHE-
RHD/A
4HL/A
X8Z/A
- Unladen weight
1 563
1 609
1 731
1 766
- Kerb weight
1 638
1 684
1 806
1 841
- Gross vehicle weight (GVW)
2 156
2 190
2 231
2 276
- Gross train weight (GTW)
3 656
3 290
3 831
3 676
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient
1 500
1 100
1 600
1 400
- Braked trailer * (with load transfer within
GTW limit)
1 740
1 390
1 820
1 650
- Unbraked trailer
750
750
750
- Recommended nose weight
70
57
73
67
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 100 km/h (approx.) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle in order to protect the engine; when
the ambient temperature is higher than 37 °C, limit the weight towed. *
The weight of the braked trailer can be increased within the GTW limit, on condition that the GVW of the towing vehicle is reduced
by the same amount; warning, towing with a lightly loaded towing vehicle may have an adverse effect on its road holding.
Page 218 of 340
XII
216
TECHNICAL DATA
WEIGHTS AND TOWED LOADS (TOURER) in kg
Diesel engines
HDi 110
e-HDi 110
HDi 140
Gearboxes
Manual
Electronic gearbox system
Manual
Model codes:
RW...
9HL
/ 8
9HR
/ 8
RHR-RHF/H-8
- Unladen weight
1 538
1 540
1 655
- Kerb weight
1 613
1 615
1 730
- Gross vehicle weight (GVW)
2 153
2 174
2 276
- Gross train weight (GTW)
3 153
3 174
3 776
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient
1 000
1 000
1 500
- Braked trailer * (with load transfer within GTW
limit)
1 300
1 300
1 800
- Unbraked trailer
750
750
750
- Recommended nose weight
53
54
72
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 100 km/h (approx. 60 mph) (comply with the legislation in force in your
country).
High ambient temperatures may result in a reduction in the performance of the vehicle in order to protect the engine; when
the ambient temperature is higher than 37 °C, limit the weight towed. *
The weight of the braked trailer can be increased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced
by the same amount; warning, towing with a lightly loaded towing vehicle may have an adverse effect on its road holding.
