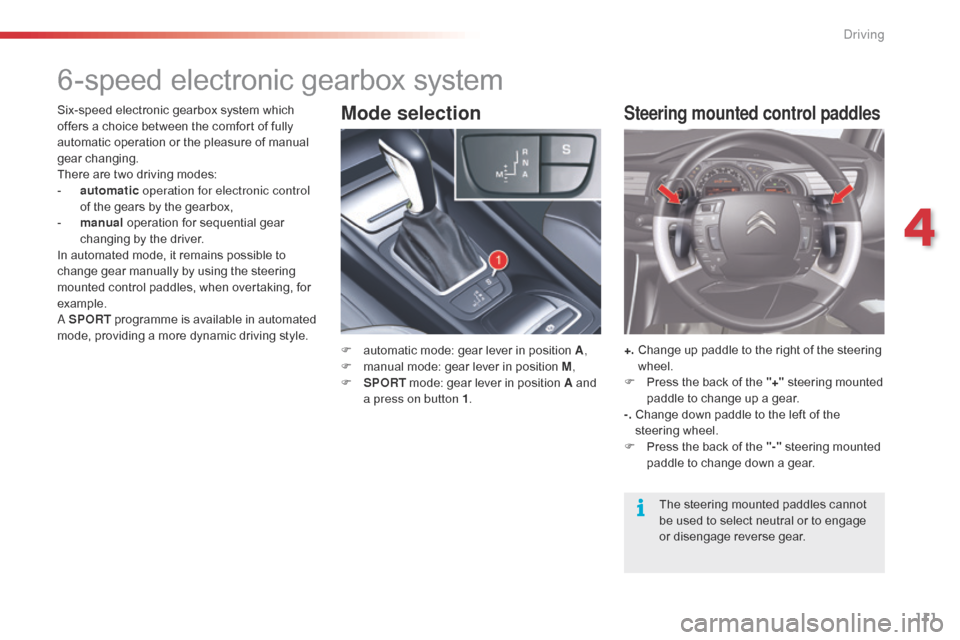

6-speed electronic gearbox system
F automatic mode: gear lever in position A,
F m anual mode: gear lever in position M ,
F

S
PORT mode: gear lever in position A and
a press on button 1 .
Six-speed electronic gearbox system which
offers a choice between the comfort of fully
automatic operation or the pleasure of manual
gear changing.
There are two driving modes:
-

a

utomatic
operation for electronic control
of the gears by the gearbox,
-

m

anual
operation for sequential gear
changing by the driver.
In automated mode, it remains possible to
change gear manually by using the steering
mounted control paddles, when overtaking, for
example.
a

SPORT
programme is available in automated
mode, providing a more dynamic driving style.
Mode selection
+. Change up paddle to the right of the steering
wheel.
F

P
ress the back of the "+" steering mounted
paddle to change up a gear.
-.

C
hange down paddle to the left of the
steering wheel.
F

P
ress the back of the "-" steering mounted
paddle to change down a gear.
Steering mounted control paddles
The steering mounted paddles cannot
be used to select neutral or to engage
or disengage reverse gear.
4
Driving

113
Manual gear changing
This selective gear change mode enables you
to overtake, for example, while still remaining in
automatic mode.
F o
p
erate the + or - steering mounted control
paddle.
The gearbox engages the gear requested if the
engine speed permits.
After a few moments without any action on
the controls, the gearbox resumes automatic
control of the gears.
F

Sel

ect position A .
The gearbox continuously selects the most
suitable gear, depending on the:
-

s

tyle of driving,
-

p

rofile of the road,
-

v

ehicle loading.
Automatic operation
For optimum acceleration, for example
when overtaking another vehicle, press the
accelerator pedal firmly past the point of
resistance.
Manual operation
F Select position M .
The gear change requests are only carried out
if the engine speed permits.
It is not necessary to release the accelerator
during gear changes.
When braking or slowing down, the gearbox
changes down automatically to allow vehicle to
accelerate in the correct gear.
The SPORT programme is inoperative with
sequential operation.
4
Driving

114
SPORT programmeStopping the vehicle
F Wit the gear lever at A and the engine
running, press button S to activate
the
SPORT programme, which provides a
more dynamic driving style.
S appears in the instrument panel.
F

P
ress the S button again to switch it off.
S then disappears from the instrument panel
screen.
On sharp acceleration, the gearbox will
not change up unless the driver acts on
the gear lever or the steering mounted
paddles.
ne

ver select neutral N while the vehicle
is moving.
Only engage reverse gear R when the
vehicle is immobilised with the brake
pedal pressed.
When immobilising the vehicle, with
the engine running, you must place the
gear lever in neutral N.
Before carrying out any work in the
engine compartment, check that the
gear lever is in neutral N and that the
parking brake is applied.
Before switching off the engine, you can
choose to:
-

m
ove to position N to engage neutral,
-
l
eave the gear engaged; in this case, it will
not be possible to move the vehicle.
In both cases, you must apply the parking
brake to immobilise the vehicle.
Driving

115
Operating fault
With the ignition on, the flashing of AUTO,
accompanied by an audible signal and a
message in the multifunction screen, indicates
a fault with the gearbox.
Have it checked by a CITROËN dealer or a
qualified workshop.
You must press the brake pedal when starting
the engine.
Whatever the circumstances, you must
manually apply the parking brake when
parking, unless the parking brake is
programmed in automatic mode.
4
Driving

116
Mode selectionDisplays in the instrument panel
F automatic mode: gear lever in position D,
F m anual mode: gear lever in position M ,
F

S
PORT mode: gear lever in position D and
button A pressed,
F

S
NOW mode: gear lever in position D and
button B pressed. The position of the gear lever and the driving
mode are displayed in the instrument panel
dial C
.
A position grille associated with the gear lever
allows you to view the selected position.
Automatic gearbox
Automatic gearbox which offers a choice
between the comfort of fully automatic
operation, enhanced by the sport and snow
programmes, or manual gear changing.
Four driving modes are provided:
-

a
utomatic operation for electronic control
of the gears by the gearbox,
-

t
he SPORT programme for a more
dynamic driving style,
-

t
he SNOW programme to improve driving
when the grip is poor,
-

m
anual operation for sequential changing
of the gears by the driver. For safety:
-

p
osition P can be disengaged only
if you press the brake pedal,
-

w
hen a door is opened, an audible
signal is heard if the gear lever is
not in position P ,
-

a
lways make sure that the gear
lever is in position P before you
leave your vehicle.
If the gearbox is in position P but the
position of the gear lever is different,
reposition the gear lever on P so that
you can start the vehicle.
Driving

117
Moving off
F To start the engine, the gear lever must be in position P or N .
F

O
perate the starter.
F

W
hen the engine is running, place the gear
lever on R , D or M as required.
F

C
heck, in the instrument panel, the position
engaged.
F

R
elease the brake pedal and accelerate.
F

T
o avoid a possible difference between the
position of the gear lever and the actual
position of the gearbox, always exit from
position P with the ignition on and brake
pedal applied.
Otherwise, when the ignition is on or the engine
is running:
F

r
eposition the gear lever in position P ,
F

p
ut your foot on the brake pedal and then
select the gear you want.
Park
This position of the gear lever is used
to prevent the vehicle from moving
when you are stationary.
Reverse gear
Only engage this position when the
vehicle is stationary. To prevent
snatching, do not accelerate too soon
after selection.
Neutral
never select position N if the vehicle
is moving.
F

T

o select position P
, move the gear lever
back to the highest position (towards R ),
then push it for wards and then to the left.
F

T

o exit position P
, move the gear lever to
the right and then to the position you want.
F
O
nly engage this position when the vehicle
is completely stationary. In this position,
the front wheels are locked. Make sure that
the gear lever is correctly positioned.
ne

ver select positions P or R if the
vehicle is not stationary.
If, while the vehicle is moving,
position


N is engaged inadvertently,
allow the engine to idle before engaging
position D or M .
4
Driving

118
Automatic operation
F Move the gear lever to position D. T
he gearbox constantly selects the
gear that is best suited to the following
parameters:
-

d
riving style,
-
ro

ad profile
-

v
ehicle load.
The gearbox operates without requiring any
intervention on your part.
For certain manoeuvres (for example
overtaking), you can obtain maximum
acceleration by pressing the accelerator pedal
hard down past the point of resistance, which
then produces an automatic change down to a
lower gear. When braking, the gearbox may change down
automatically in order to provide effective
engine braking.
If you lift your foot off the accelerator abruptly,
the gearbox will not engage a higher gear.
Manual operation
Position of the gear lever for manual gear
changing.
F

M
ove the gear lever to position M .
F

P
ush the gear lever towards the " +" sign to
change up a gear.
F

P
ull the gear lever towards the " -" sign to
change down a gear.
-

I
f the vehicle stops or reduces speed (for
example when approaching a stop sign),
the gearbox changes down automatically
to
first gear.
-

I
n sequential mode, it is not necessary
to release the accelerator during gear
changes.
-

A r
equest to change gear is accepted only
if the engine speed permits it.
-

T
he SPORT and SNOW modes do not
operate in sequential mode.
Driving

119
SPORT and SNOW
programmes
SPORT programme "S"
These two special programmes supplement
the automatic operation in very particular
conditions of use.
F
W
ith the gear lever in position D and the
engine running, press button A .
The gearbox automatically favours a dynamic
driving style.
SNOW programme " T"
F With the gear lever in position D and the
engine running, press button B .
The gearbox adapts to driving on slippery
roads.
This programme makes moving off easier and
improves traction in conditions of poor grip.
T appears in the instrument panel.
S appears in the instrument panel.
Return to automatic operation
F At any time, press the button selected again to exit from the programme engaged
and return to auto-adaptive mode. A strong snatch may be felt when
selecting
R for reverse gear.
In the event of a fault, the gearbox is
blocked in one gear; do not exceed a
speed of 62 mph (100 km/h).
Do not turn off the engine while the gear
selector is in position D or R .
Never press the accelerator and brake
pedals simultaneously. Braking and
acceleration should be done with the
right foot only. Pressing both pedals
simultaneously may damage the
gearbox.
Contact a CITROËN dealer or a
qualified workshop.
If the ambient temperature is
below
-23°C, the engine should be left
running at idle for four minutes, in order
to ensure the correct operation and
durability of the engine and gearbox.
4
Driving

120
System which reduces fuel consumption by advising the driver to change up.
The system intervenes only when driving
economically.
Depending on the driving situation and your
vehicle's equipment, the system may advise
you to skip one or more gears. You can
follow this instruction without engaging the
intermediate gears.
The gear engagement recommendations must
not be considered compulsory. In fact, the
configuration of the road, the amount of traffic
and safety remain determining factors when
choosing the best gear. Therefore, the driver
remains responsible for deciding whether or not
to follow the advice given by the system.
This function cannot be deactivated.Example:
-

Y
ou are in third gear.
-

Y
ou press the accelerator pedal
moderately. The information appears in the instrument
panel in the form of an arrow accompanied by
the suggested gear.
Gear efficiency indicator*
In the case of driving which makes
particular demands on the per formance
of the engine (firm pressure on the
accelerator pedal, for example, when
overtaking...), the system will not
recommend a gear change.
The system never suggests:
-

e
ngaging first gear,
-
enga

ging reverse gear,
-

e
ngaging a lower gear.
Operation
* Depending on engine. -
T
he system may suggest that you engage
a higher gear, if appropriate.
With an electronic or automatic
gearbox, the system is only active in
manual mode.
Driving

121
Stop & Start
Operation
- with an electronic gearbox, at speeds
below 4 mph (6 km/h), press the brake
pedal or put the gear lever in position N .
Going into engine STOP
mode
The "ECO" warning lamp comes
on in the instrument panel and the
engine goes into standby:
If your vehicle is fitted with the
system, a time counter calculates
the sum of the periods in STOP
mode during a journey. It rests itself
to zero every time the ignition is
switched on with the key.
Special cases: STOP mode not
available
In this case, the "ECO" warning
lamp flashes for a few seconds then
goes
off.
This operation is perfectly normal. STOP mode is not invoked when:
-

t

he driver's door is open,
-

t

he driver's seat belt is not fastened,
-

t

he vehicle has not exceeded 6 mph
(10 km/h) since the last engine start using
the key,
-

t

he electric parking brake is applied or
being applied,
-

t

he engine is needed to maintain a
comfortable temperature in the passenger
compartment,
-

d

emisting is active,
-

s

ome special conditions (battery charge,
engine temperature, braking assistance,
ambient temperature...) where the engine is
needed to assure control of a system.
The Stop & Start

system puts the engine temporarily into standby - STOP mode - during stops in the traffic (red lights, traffic jams, or other...).
The

engine restarts automatically - START mode - as soon as you want to move off. The restart takes place instantly, quickly and silently.
Per fect for urban use, the Stop & Start system reduces fuel consumption and exhaust emissions as well as the noise level when stationary.
Never refuel with the engine in STOP
mode; you must switch off the ignition
with the key. For your comfort, during parking
maoeuvres, STOP mode is not
available for a few seconds after
coming out of reverse gear.
STOP mode does not affect the
functionality of the vehicle, such as for
example, braking, power steering...
4
driving
