62

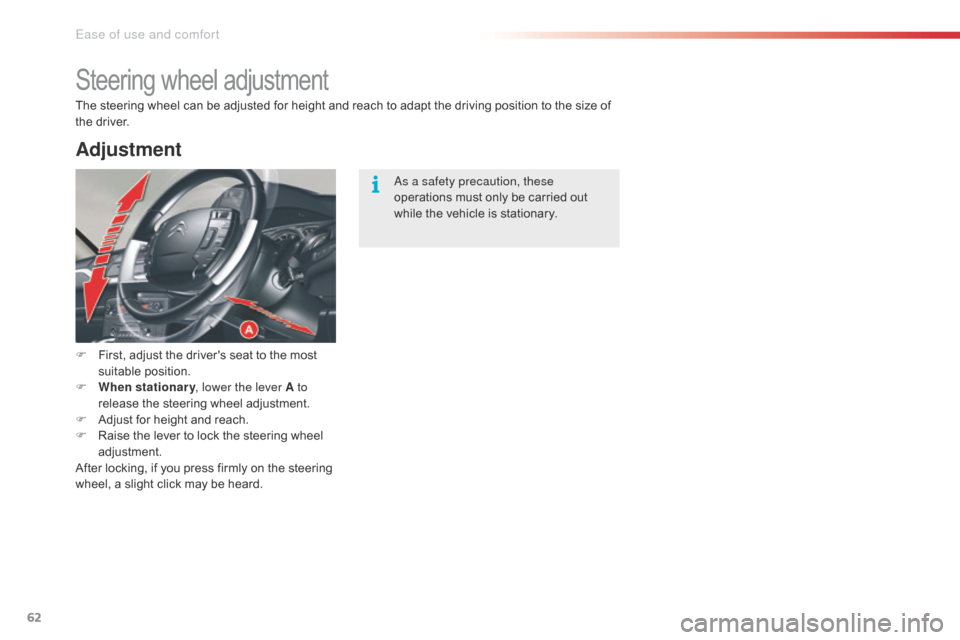

Steering wheel adjustment
F First, adjust the driver's seat to the most suitable position.
F

W
hen stationary , lower the lever A to
release the steering wheel adjustment.
F

A
djust for height and reach.
F

R
aise the lever to lock the steering wheel
adjustment.
After locking, if you press firmly on the steering
wheel, a slight click may be heard. The steering wheel can be adjusted for height and reach to adapt the driving position to the size of
the driver.
Adjustment
as a safety precaution, these
operations must only be carried out
while the vehicle is stationary.
Ease of use and comfort

197
If your vehicle is fitted with a spare
wheel of a different size to those on the
vehicle, you must not exceed 50 mph
(80 km/h) whilst using the spare wheel.
The wheel bolts are specific to the type
of wheel.
If the type of wheel is changed,
check with your CITROËN dealer or a
qualified workshop that the wheel bolts
are compatible with the new wheels.
Take care to note down the code
number engraved on the head of the
security bolt socket. This will enable
you to obtain a replacement security
bolt socket from your dealer.

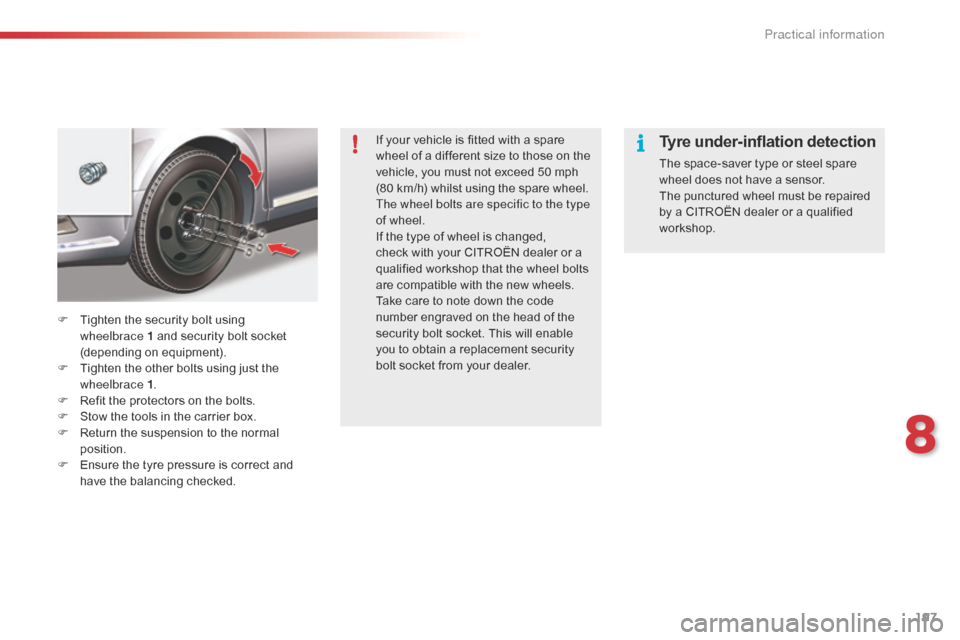

F

T

ighten the security bolt using
wheelbrace


1 and security bolt socket
(depending on equipment).
F

T

ighten the other bolts using just the
wheelbrace 1 .
F

R

efit the protectors on the bolts.
F

S

tow the tools in the carrier box.
F

R

eturn the suspension to the normal
position.
F

E

nsure the tyre pressure is correct and
have the balancing checked.Tyre under-inflation detection
The space-saver type or steel spare
wheel does not have a sensor.
The punctured wheel must be repaired
by a CITROËN dealer or a qualified
workshop.
8
Practical information

198
Snow chains
In wintry conditions, snow chains improve traction as well as the behaviour of the vehicle
when braking.
The snow chains must be fitted only
to the front wheels. They must never
be fitted to "space-saver" type spare
wheels.
Take account of the legislation in force
in your country on the use of snow
chains and the maximum running speed
authorised.Avoid driving with snow chains on
roads that have been cleared of snow,
to
avoid damaging your vehicle's tyres
and the road sur face. If your vehicle
is fitted with alloy wheels, check that
no part of the chain or its fixings is in
contact with the wheel rim.
Advice on installation
F If you have to fit the chains during a journey, stop the vehicle on a flat sur face
on the side of the road.
F

A
pply the parking brake and position any
wheel chocks to prevent movement of your
vehicle.
F

F
it the chains following the instructions
provided by the manufacturer.
F

M
ove off gently and drive for a few
moments, without exceeding 30 mph
(50 km/h).
F

S
top your vehicle and check that the snow
chains are correctly tightened.
It is strongly recommended that before
you leave, you practise fitting the snow
chains on a level and dry sur face.
Use only the chains designed to be fitted to the
type of wheel fitted to your vehicle:
Original
tyre size Chain
specification
225/60 V16 Maximum link
size: 9 mm
225/55 W17
245/45 W18 These tyres cannot
be fitted with chains
245/40 Y19
For more information on snow chains, contact a
CITROËN dealer or a qualified workshop.
