fuse box Citroen C5 RHD 2015 (RD/TD) / 2.G Owner's Manual

7
Instruments and controls
Instrument panels 15
Warning lamps 2 6-33
Indicators
2

1-25
Gear efficiency indicator

1
20
Buttons

2
5
-

trip recorder
-


lighting dimmer
P

arking space sensors
1
35 -136
Windows
4

7- 48
Door mirrors

6
3
Opening the bonnet

2

31
Dashboard fuses

2

10 -213
"Hydractive III +" electronic suspension
14

0 -141
Manual / electronic / automatic g e a r b o x e s
1

0 9 -11 0 , 111 -115 , 11 6 -11 9
Hill start assist

1

08 Courtesy lamps

8

3 - 84
Rear view mirror
6
4
Interior mood lighting
8
4
Sun visor

8

6
Parking brake, manual

1

00
Parking brake, electric

1

01-107
Stop & Start

1

21-123
Multifunction screens

3

4-38
Hazard warning lamps

1

54
Ventilation
6

7-68
Mono-zone digital air conditioning

6
9 -72
Dual-zone digital air conditioning
7

3-76
Programmable heating
7

7-82
Emergency or assistance call

1
55, 257-258
e My Way
2

59 - 312
Audio system

3
13 -331
Setting the date/time

3
6, 38
Steering wheel adjustment

6
2
Interior fittings

8

6 -90
-

glove box
-


auxiliary sockets
-


mats...
.
O

67
Ventilation
A. Sunshine sensor.
B.
S
oft air diffusion grille.
T

he soft air diffusion grille located in the
centre of the dashboard provides optimum
distribution of the air for the front seats.
T

his system eliminates unpleasant
air currents while maintaining an
optimum temperature in the passenger
compartment.
T

o open the soft air diffusion grille, turn the
wheel upwards.
T

o close the soft air diffusion grille, turn the
wheel fully downwards.
I

n very hot weather, to obtain more
satisfactory central and side ventilation, it
is advisable to close the diffused air grille.
C.
C

ooled glove box.
D.
R

ear passenger vents.
3
Ease of use and comfort

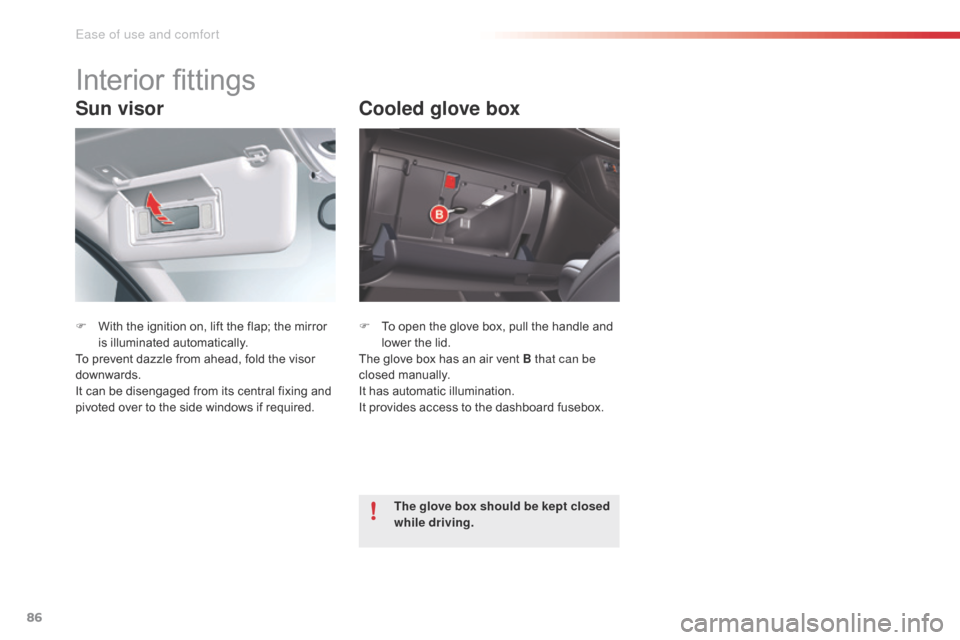

86
Sun visor
F With the ignition on, lift the flap; the mirror is illuminated automatically.
To prevent dazzle from ahead, fold the visor
downwards.
It can be disengaged from its central fixing and
pivoted over to the side windows if required.
Cooled glove box
F To open the glove box, pull the handle and lower the lid.
The glove box has an air vent B that can be
closed manually.
It has automatic illumination.
It provides access to the dashboard fusebox.
The glove box should be kept closed
while driving.
Interior fittings
Ease of use and comfort

210
Changing a fuse
Replacing a fuse
Before replacing a fuse, it is necessary to:
- d etermine the cause of the fault and have it
remedied,
-

s
witch off all electric consumers,
-

p
ark the vehicle and switch off the ignition,
-

i
dentify the failed fuse using the allocation
tables and diagrams presented on the
following pages. Good
Failed
Tw e e z e r 1
To replace a fuse, it is essential to:
-

u
se the special tweezer 1 , placed on the
cover close to the fuseboxes, to extract
the fuse from its holder and check the
condition of its filament,
-

a
lways replace a failed fuse by a fuse of
equivalent rating (same colour); a different
rating could cause a fault (risk of fire).
If the fault recurs soon after replacing the
fuse, have the electrical system checked by a
CITROËN dealer or a qualified workshop. The replacement of a fuse not
mentioned in the tables below may
cause a serious fault on your vehicle.
Contact a CITROËN dealer or a
qualified workshop.
CITROËN declines all responsibility
for the costs incurred in repairing your
vehicle or faults resulting from the
installation of accessories that are not
supplied or recommended by CITROËN
and not installed in conformity with its
requirements, particularly when the
total consumption of additional devices
exceeds 10 milliamperes.Installation of electrical
accessories
Your vehicle’s electrical system
is designed to operate with either
standard or optional equipment.
Before installing electrical equipment
or accessories on your vehicle, consult
a CITROËN dealer or a qualified
workshop.
The 2 fuseboxes are located below the dashboard and under the bonnet.
Practical information

211
Fuses under the dashboard
Access to the fuses
F open the glove box then unclip the access c ove r.
Fusebox C
Fusebox
A
Tweezer1
Fusebox B
8
Practical information

212
Fusebox B
Fuse N°Rating Function
G29 -Not used
G30 5 AHeated door mirrors
G31 5 ARain and sunshine sensor
G32 5 ASeat belt not fastened warning lamps
G33 5 AElectrochrome rear view mirror
G34 20 ASunroof (saloon)
G35 5 APassenger door lighting - passenger door mirror adjustment
G36 30 AElectric tailgate (Tourer)
G37 20 AHeated front seats
G38 30 ADriver’s electric seat
G39 30 APassenger’s electric seat - Hi-Fi amplifier
G40 3 ATrailer relay unit supply
Fuse N° Rating Function
G36 15 A
6 speed automatic gearbox
5 A 4 speed automatic gearbox
G37 10 ADaytime running lamps - Diagnostic socket
G38 3 ADSC/ASR
G39 10 AHydraulic suspension
G40 3 AST
o
P
switch
Fusebox A
Practical information

213
Fusebox C
Fuse N°Rating Function
F1 15 ARear screen wipe (Tourer)
F2 30 ALocking and deadlocking relay
F3 5 AAirbags
F4 10 AAutomatic gearbox - additional heater unit (Diesel) - electrochrome rear view mirror
F5 30 AFront window - sunroof - passenger door lighting - passenger door mirror adjustment
F6 30 ARear window
F7 5 AVanity mirror lighting - Glove box lighting - interior lamps - torch (tourer)
F8 20 ARadio - CD changer - Steering mounted controls - Screen - Under-inflation detection - Electric boot ECU
F9 30 ACigarette lighter - front 12 V socket
F10 15 AAlarm - Steering mounted controls, signalling and wiper controls
F11 15 ALow current ignition switch
F12 15 ADriver’s electric seat - instrument panel - seat belt not fastened warning lamps - air conditioning controls
F13 5 AEngine relay unit - Hydraulic suspension pump cut-off relay - airbag ECU supply
F14 15 ARain and sunshine sensor - parking sensors - passenger’s electric seat - trailer relay unit - HIFI amplifier ECU -
Bluetooth system - Lane Departure Warning System
F15 30 ALocking and deadlocking relay
F17 40 AHeated rear screen - Heated door mirrors
FSH SHUNTPARK SHUNT
8
Practical information

214
Fuses under the bonnet
Access to the fuses
F Undo each screw by a 1/4 turn.
F R emove the cover.
F

R
eplace the fuse. Fuse N°
Rating Function
F1 20 AEngine control unit
F2 15 AHorn
F3 10 AScreen wash pump
F4 10 AHeadlamp wash pump
F5 15 AStarter
F6 10 AAir flow sensor - Directional headlamps - Diagnostic socket
F7 10 AAutomatic gear lever lock - Power steering
F8 25 AStarter motor
F9 10 AClutch switch - S
T
o
P s
witch
F10 30 AActuator motors
F11 40 AAir conditioning blower
F12 30 AWipers
F13 40 ABSI supply (ignition on)
F14 30 A-
F15 10 ARight-hand main beam
F16 10 ALeft-hand main beam
F17 15 ARight-hand dipped beam
F18 15 ALeft-hand dipped beam
F19 15 AActuator motors
F20 10 AActuator motors
F21 5 AActuator motors
On completion, carefully refit the
cover to ensure correct sealing of
the fusebox.
Any work on the MA XI fuses (that
give additional protection), located
in the fuseboxes, must be left to
a CITROËN dealer or a qualified
workshop.
Table of fuses
Practical information

216
battery
Access to the battery
The battery is located under the bonnet.
For access to it:
F
o
pen the bonnet using the interior release
lever, then the exterior safety catch,
F

s
ecure the bonnet stay,
F

r
emove the plastic cover to gain access to
the two terminals,
F

u
nclip the fusebox to remove the battery,
if
necessary.
The presence of this label, in particular
with the Stop & Start system, indicates
the use of a 12 V lead-acid battery with
special technology and specification;
the involvement of a CITROËN dealer
or a qualified workshop is essential
when replacing or disconnecting the
battery.
After refitting the battery, the Stop &
Start system will only be active after a
continuous period of immobilisation of the
vehicle, a period which depends on the
climatic conditions and the state of charge
of the battery (up to about 8 hours).
Procedure for charging your battery when it is flat or for starting the engine using another battery.
Practical information

229
"Multimedia":
Wi-Fi on board, 230V socket, audio systems,
speakers, semi-integral navigation systems,
portable navigation systems, hands-free kit,
DVD player, USB Box, mapping update CD,
driving aid, Hi-Fi module...The fitting of electrical equipment or
accessories which are not recommended
by CITROËN may result in a failure of
your vehicle's electronic system and
excessive electrical consumption.
Contact a CITROËN dealer
for information on the range of
recommended equipment and
accessories.
Installation of radio
communication
transmitters
Before installing any after-market radio
communication transmitter, you can
contact a CITROËN dealer for the
specification of transmitters which can
be fitted (frequency, maximum power,
aerial position, specific installation
requirements), in line with the Vehicle
Electromagnetic Compatibility
Directive (2004/104/EC). Depending on the legislation in force in
the country, certain safety equipment
may be compulsory: high visibility
safety vests, warning triangles,
breathalyzers, spare bulbs, spare fuses,
fire extinguisher, first aid kit, mud flaps
at the rear of the vehicle.
8
Practical information
