parking sensors Citroen C5 RHD 2016 (RD/TD) / 2.G User Guide

207
Fusebox C
Fuse N°Rating Function
F1 15 ARear screen wipe (Tourer)
F2 30 ALocking and deadlocking relay
F3 5 AAirbags
F4 10 AAutomatic gearbox - additional heater unit (Diesel) - electrochrome rear view mirror
F5 30 AFront window - sunroof - passenger door lighting - passenger door mirror adjustment
F6 30 ARear window
F7 5 AVanity mirror lighting - Glove box lighting - interior lamps - torch (Tourer)
F8 20 AAudio system - Steering mounted controls - Screen - Under-inflation detection - Motorised tailgate control unit
F9 30 ACigarette lighter - front 12 V socket
F10 15 AAlarm - Steering mounted controls, signalling and wiper controls
F11 15 ALow current ignition switch
F12 15 ADriver’s electric seat - instrument panel - seat belt not fastened warning lamps -air conditioning controls
F13 5 AEngine relay unit - Hydraulic suspension pump cut-off relay - airbag control unit supply
F14 15 ARain and sunshine sensor - parking sensors - passenger’s electric seat - trailer relay unit - HIFI amplifier control
unit - Bluetooth system - Lane Departure Warning System
F15 30 ALocking and deadlocking relay
F17 40 AHeated rear screen - Heated door mirrors
FSH SHUNTSTOR AGE SHUNT
8
Practical information

217
Blanking cover
When towing, you must remove the blanking
cover in the front bumper as well as the bonnet
seal if fitted.
Contact a CITROËN dealer or a qualified
workshop for this.
Ty r e s
F Check the tyre pressures of the towing
vehicle and of the trailer, observing the
recommended pressures.
Lighting
F Check the electrical lighting and signalling
on the trailer.
The rear parking sensors will be
deactivated automatically if a genuine
CITROËN towbar is used.
Braking
Towing a trailer increases the braking distance.
To avoid overheating of the brakes on a long
mountain type of descent, the use of engine
braking is recommended.
8
Practical information

221
* To avoid any risk of jamming of the pedals:
- ensure that the mat is positioned and
secured correctly,
- never fit one mat on top of another.
accessories
"Comfort":
front and rear parking sensors, isotherm
module, reading lamp, sun blinds, headrest-
mounted coat hanger...
"Transport solutions":
boot liner, boot carpet, towbars, towbar wiring
harness, transverse roof bars, bicycle carrier,
ski carrier, roof boxes, boot dividers, boot net,
boot organiser, sliding boot tray, platform on
towbar, ...
"Style":
alloy wheels, rear spoiler, chromed mirror
shells, door sill protectors, gear lever knobs...
"Security and safety":
anti-intrusion alarm, warning triangle and
high visibility vest, breathalyzer, first aid kit,
snow chains, non-skid covers, security wheel
bolts, vehicle tracking system, child seats, fire
extinguisher, caravan mirror, pet cage and seat
belt, dog guard...
"Protection":
mats*, seat covers, mud flaps, bumper
protectors, vehicle covers, door and boot sill
protectors...
A wide range of accessories and genuine parts is available from the CITROËN dealer network.
These accessories and parts are all suitable for your vehicle and benefit from CITROËN's recommendation and warranty.
8
Practical information

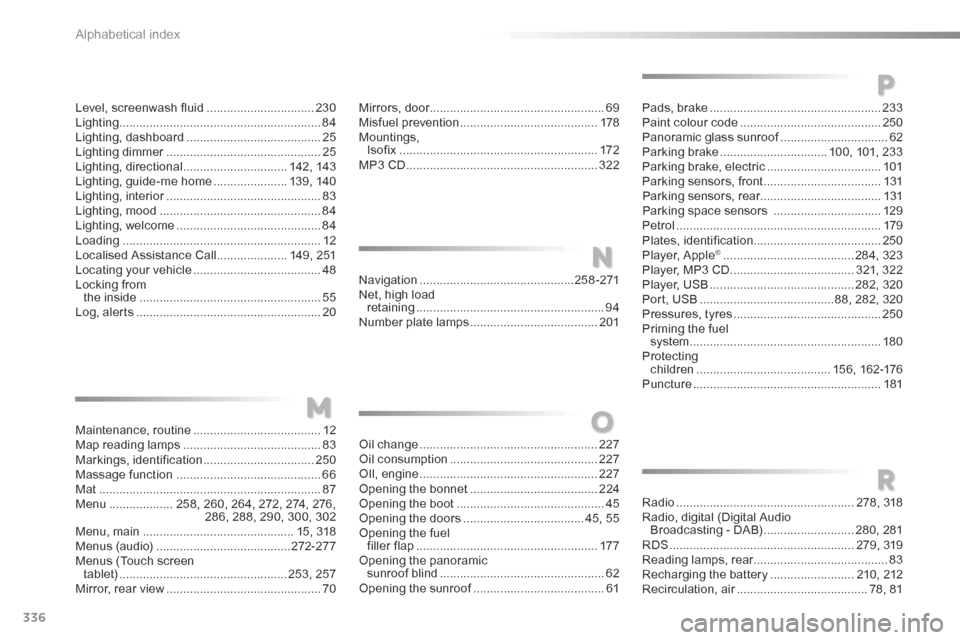

336
Level, screenwash fluid ................................230
Lighting ............................................................ 84
Lighting, dashboard ........................................ 25
Lighting dimmer .............................................. 25
Lighting, directional ............................... 142, 143
Lighting, guide-me home ......................139, 140
Lighting, interior .............................................. 83
Lighting, mood ................................................ 84
Lighting, welcome ........................................... 84
Loading ........................................................... 12
Localised Assistance Call .....................149, 251
Locating your vehicle ...................................... 48
Locking from the inside ...................................................... 55
Log, alerts ....................................................... 20
Oil change ..................................................... 227
Oil consumption ............................................ 227
OIl, engine ..................................................... 227
Opening the bonnet ...................................... 224
Opening the boot ............................................ 45
Opening the doors .................................... 45, 55
Opening the fuel filler flap ...................................................... 17 7
Opening the panoramic sunroof blind ................................................. 62
Opening the sunroof ....................................... 61
O
P
Pads, brake ................................................... 233
Paint colour code .......................................... 250
Panoramic glass sunroof ................................62
Parking brake ................................ 100, 101, 233
Parking brake, electric ..................................101
Parking sensors, front ...................................131
Parking sensors, rear .................................... 131
Parking space sensors ................................129
Petrol ............................................................. 179
Plates, identification ...................................... 250
Player, a pple
® ....................................... 284, 323
Player, MP3 CD ..................................... 321, 322
Player, USB ........................................... 282, 320
Port, USB ........................................ 88, 282, 320
Pressures, tyres ............................................ 250
Priming the fuel system ......................................................... 180
Protecting
children ........................................ 156, 162-176
Puncture ........................................................ 181
Mirrors, door
.................................................... 69
Misfuel prevention ......................................... 178
Mountings,
Isofix ........................................................... 172
MP3 CD ......................................................... 322
M
Maintenance, routine ...................................... 12
Map reading lamps ......................................... 83
Markings, identification ................................. 250
Massage function ........................................... 66
Mat .................................................................. 87
Menu ................... 258, 260, 264, 272, 274, 276,
286, 288, 290, 300, 302
Menu, main ............................................. 15, 318
Menus (audio) ........................................ 272-277
Menus (Touch screen tablet) .................................................. 253, 257
Mirror, rear view .............................................. 70Navigation
.............................................. 25 8 -271
Net, high load retaining ........................................................ 94
Number plate lamps ...................................... 201
N
Radio ..................................................... 278, 318
Radio, digital (Digital Audio Broadcasting - DAB) ...........................280, 281
R dS ....................................................... 279, 319
Reading lamps, rear ........................................ 83
Recharging the battery .........................210, 212
Recirculation, air ....................................... 78, 81
R
alphabetical index
