CRUISE CONTROL
SELECTION OF CRUISE CONTROL
This driving assistance function
allows you to drive at the speed of your choicewithout the need to
action the accelerator.
Cruise control is availablein the
higher gears only, for speedsgreater than 40 km/h (24 mph).Note:Information relating to thecruise control is displayed inzone Aof your instrument panel.To activate cruise control, press button
1to display in zoneAof your instrument panel the symbolCfor cruise control.
The cruise speed is then memorised. The cruise speed will
be displayed in zone Ain the instrument panel. At the time
you select the function, no cruise speed hasyet been memorised.
TO SELECT A CRUISE SPEED
Accelerate to the desired speed, then give a short press on button 3 or button4.
You can then release the accelerator pedal. The vehicle will automaticallykeep to that chosen speed.Note: The vehicle speed may vary slightly from that memorised.
Temporary override of the cruise speed
While cruise control is in operation, it is always possible to go above thecruise speed simply by pressing the accelerator pedal (for example to over-
take another vehicle). The speed displayed fl ashes. You have only to release
the accelerator pedal to return to your cruise speed.Note: If during cruise control the system cannot keep to the cruise speed (e.g. on a steep descent), then the speed fl ashes. If necessary, brake to
curb your speed.

70
II
CRUISE CONTROL
These actions bring up the information "OFF"in the instrument panel.
Adjustment of the memorised speed while cruise control is in operation
To adjust the memorised speed, displayed in zone A, press:Button 3 to increase the speed or
Button 4 to decrease the speed.
Remark: Successive presses will allow to modify the speed in steps of 1 km/h (1 mph) and a continuous press in steps of 5 km/h (3 mph).
Deactivation of cruise control with memorised
speed
Yo u can deactivate cruise control:Either by pressing the brake pedal or the clutchpedal.Or by the ESP or ASR systems being active.
Or by pressing button2.Note:Cruise control is deactivated if the gear lever is in
neutral (position N).
•
•
•
•
•
These actions do not cancel your cruise speed which remains displayed in the instrument panel.
Cruise control must only be used where the traffi c conditions permit driving at a constant speed.
Do not use it on congested roads or when the weather or the road conditions are poor.
The driver still has to remain attentive and in complete control of his vehicle.
You are recommended to keep your feet within range of the pedals.
Reactivation of cruise controlBy recalling the memorised speed:
For that, press on button 2.
Yo ur vehicle willautomatically resume the memo-
rised cruise speed which is displayed in the instru-
ment panel.
Remark
:If the cruise speed already memorised is far higher than the current speed, the vehicle accelerateshard until it reaches the memorised speed.By selecting the current speed:
Give ashort press on button 3or 4as soon asyou have reached the desired speed.
Th
e information "OFF"then disappears from the screen.
To cancel cruise controlGive a long press on button 1.
Or stop the engine.
The speed that was chosen is no lon
ger memo-
rised.
If there is a malfunction, either the memorised speed or
the dashes "- - -" will fl ash and the warning lamp "OFF"
will come on permanently in the display.
Contact a CITROËN dealer or a qualifi ed workshop.
•
•
•
•

71
II
13
24
A
B
SPEED LIMITER
SELECTION OF THE SPEED LIMITER
To select the speed limiter, press on button 1 to display inzoneA of your instrument panel the symbol Bfor the speed
limiter.
The last speed memorised is also displayed.
TO ADJUST THE MAXIMUM SPEED
Provided the engine is running, you can select your maximum speed, with
short or long presses on:Button3to increase the speed orButton4to decrease the speed.
Remark:
Successive presses will allow to modify the speed in steps of 1 km/h (1 mph)and a continuous press in steps of 5 km/h (3 mph).
ACTIVATION OF THE MAXIMUM SPEED
When the desired maximum speed is displayed, press button2 to activatethe speed limiter.
••
The information "OFF" then disappears from the screen.
As long as the function is active, action on the accelerator pedal will not per-
mit the programmed speed to be exceeded, unless you press the pedal hard
down to activate the switch at the end of its travel. See "Temporary overrideof the maximum speed".Note: The vehicle speed may slightly exceed the memorised maximumspeed. This drivin
g assistance functionenables you to select a maximumspeed that you wish not to exceed.This must be greater than 30 km/h(18 mph).Note:The information relating tothe limiter is displayed in zone Aof the instrument panel.

72
II
SPEED LIMITER
DEACTIVATION
To deactivate the maximum speed, press button2.
The information "OFF" will appear in the instrument panel.
This action does not cancel the memorised speed, which remains displayed in the instrument panel.
TEMPORARY OVERRIDE OF THE MAXIMUM SPEED
The accelerator pedal has a switch at the end of its travel. By pressing the pedal hard down to activate this switch at
any time you can go faster than the memorised maximum speed.
Durin
g the time the limit speed is being exceeded, the displayed speed fl ashes.
You have only to release the accelerator pedal to return below the maximum speed, to restore the function.Note:If during speed limitation the system cannot keep to the maximum speed (especially on a steep descent or if
you accelerate too hard), the speed fl ashes. Adapt your speed as necessary.
The function will re-engage when your speed has returned below the desired maximum.
TO CANCEL THE FUNCTIONGive a long press on button1.Or stop the engine.
The speed that you chose is memorised. The information disappears from the instrument panel.
I
f there is a malfunction, the memorised speed will fl ash and the warning lamp "OFF" will come on permanently in
the display.
Contact a CITROËN dealer or a qualifi ed workshop.
••
A fl oor mat that is not recommended by CITROËN could slide underneath the accelerator pedal,thus preventing you from temporarily overriding the maximum speed. Then it would be impossibleto exceed your desired speed, unless by actioning the button.
The driver still has to remain attentive and in complete control of his vehicle.

73
II
ELECTRONIC STABILITY PROGRAMME
TheESP system offers increased
driving safety but is not in place toencourage the driver to take addi-
tional risks or to drive at excessivespeeds.
The operation of this s
ystem is
assured provided that the manufac-
turer’s recommendations concern-
ing the wheels (tyres and rims),
braking components and electricalcomponents are observed, as wellas the fi tting and repair proceduresused by CITROËN dealers andgpp
qualifi ed workshops.
Following an accident, have thesystem checked by a CITROËNg,
dealer or a qualifi ed workshop.
ELECTRONIC STABILITY PROGRAMME (ESP) AND TRACTION
CONTROL (ASR)
These systems are closely associated with ABS and additional to it. In the event of a loss of control of the vehicle by the driver, theESPsystem acts
automatically on one or more wheels and also on the engine to bring the
vehicle back on trajectory. The ASRsystem optimises traction and prevents
wheel spin by acting on the brakes of the driving wheels as well as on the engine. It also improves steering stability during acceleration.
OPERATION
When either the ESPor the ASR system is brought into operation
the warning lamp "ESP/ASR" fl ashes.
DEACTIVATION
In exceptional conditions (vehicle stuck in snow, soft ground, etc.) it mayprove useful to deactivate theESP/ASR systems to allow the wheels tospin and thus regain traction.
Press on buttonA, the"ESP/ASR" warning lamp, as well as the lamp on
the buttonA, light up. TheESP/ASR systems are no longer active.
The ESP/ASR systems will activate again:Automatically after the ignition has been switched off.
Automaticallywhen you drive at above approx. 50 km/h (approx. 30 mph).y
Manuallywith another press on button A.
OPERATIONAL ANOMALY
Should there be a system malfunction, the "ESP/ASR"warning lamp willlight up.
Contact a CITROËN dealer or a qualifi ed workshop to have the systemchecked.
•
•
•

74
II
BRAKES
ABS system
The ABS system enhances your safety by preventing the wheels from locking in the event of sudden brakingor in conditions of poor road adherence. It enables you to retain control of the steering.
The
functioning capability of all the electrical components essential to the ABS is monitored electronically before and
during your journey. The ABS warning lamp lights up when you switch on the ignition: it should go out after a fewseconds.
If the monitoring warning lamp does not go out, that means that the ABS has disconnected because there is a fault.Also, the fact that the monitoring warning lamp comes on during the journey shows that the ABS system is inactive.
In both cases, the normal braking system remains effi cient, exactly as on a vehicle without ABS. However, to restorethe level of safety provided by correct operation of the ABS, the vehicle should be inspected as soon as possible bya CITROÀN dealer or a qualifi ed workshop.yp y p
On roads with poor adherence (chippings, snow, ice etc.), it is always imperative to drive with prudence.
SYSTEM OF EMERGENCY BRAKING ASSISTANCE
The emergency braking assistance system helps you to attain the required braking pressure more rapidly, thus toreduce the stopping distance. It operates depending on the speed of action on the brake pedal, decreasing theresistance to this action. To prolong this action of the emergency braking assistance system, simply keep your foot
on the brake pedal.
If the Electric Parking Brake is off, the lighting of this warning lamp in conjunction with theSTOPwarn-ing lamp indicates that the brake fl uid level is low or that the braking distributor is malfunctioning. It isessential to stop the vehicle. Alert a CITROËN dealer or a qualifi ed workshop as soon as possible.gpgg

75
II
A

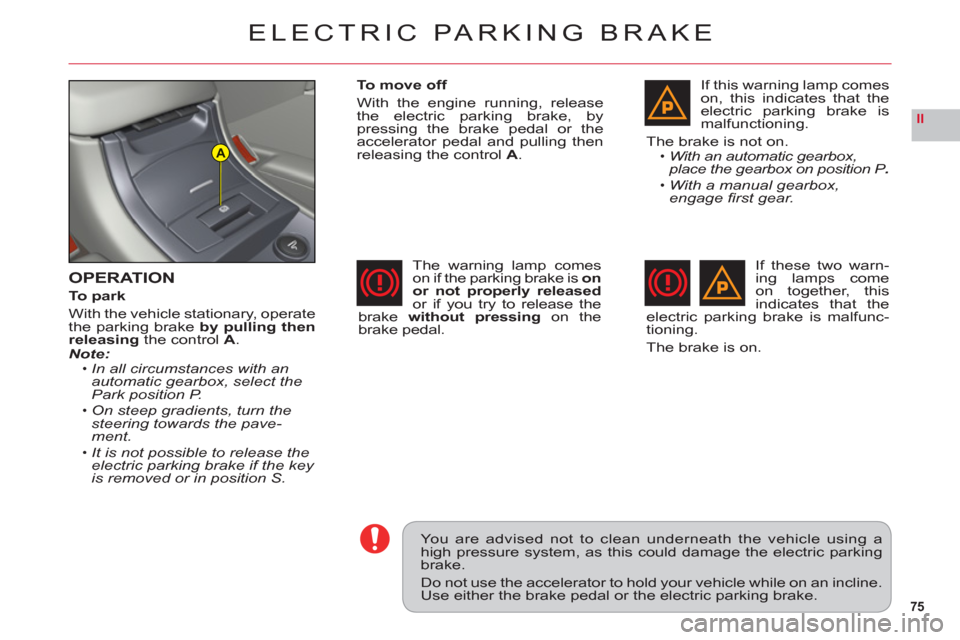

ELECTRIC PARKING BRAKE
OPERATION
To park
With the vehicle stationary, operate
the parking brakeby pulling thenreleasing the controlA.Note:In all circumstances with an
automatic gearbox, select the
Park position P.
On steep
gradients, turn thesteering towards the pave-ment.It is not possible to release the electric parking brake if the key is removed or in positionS.
•
•
•
To move off
With the engine running, release
the electric parking brake, by
pressing the brake pedal or the
accelerator pedal and pulling then
releasin
g the control A.
You are advised not to clean underneath the vehicle using ahigh pressure system, as this could damage the electric parkingbrake.
Do not use the accelerator to hold your vehicle while on an incline.Use either the brake pedal or the electric parking brake.
The warning lamp comes
on if the parking brake is onor not properly releasedor if you try to release thebrake without pressing on thebrake pedal. If th
ese two warn-
ing lamps come
on together, this indicates that the electric parking brake is malfunc-
tioning.
The brake is on.
If this warning lamp comes
on, this indicates that the
electric parking brake is malfunctioning.
Th
e brake is not on.With an automatic gearbox,place the gearbox on position P.PPWith a manual gearbox,engage fi rst gear.
•
•

76
II
B
D
E
C
A

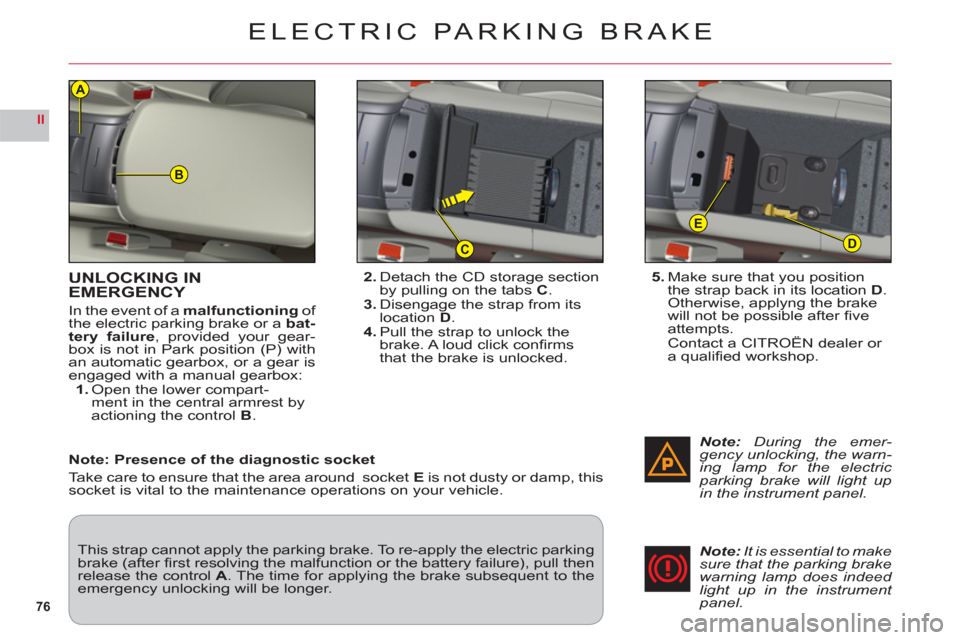

UNLOCKING IN EMERGENCY
In the event of a malfunctioningof
the electric parking brake or a bat-
tery failure, provided your gear-
box is not in Park position (P) with
an automatic gearbox, or a gear isengaged with a manual gearbox:1.Open the lower compart-
ment in the central armrest by
actionin
g the control B.
ELECTRIC PARKING BRAKE
5. Make sure that you position
the strap back in its locationD.Otherwise, applyng the brake
will not be possible after fi ve
attempts.Contact a CITROÀN dealer or
a qualifi ed workshop.
This strap cannot apply the parking brake. To re-apply the electric parking brake (after fi rst resolving the malfunction or the battery failure), pull then release the control A. The time for applying the brake subsequent to the emergency unlocking will be longer.
Note:During the emer-gency unlocking, the warn-ing lamp for the electric parking brake will light upin the instrument panel.
2.Detach the CD storage sectionby pulling on the tabsC.3. Disengage the strap from itslocationD.4.Pull the strap to unlock the brake. A loud click confi rmsthat the brake is unlocked.
Note:It is essential to makesure that the parking brakewarning lamp does indeed light up in the instrument panel.
Note: Presence of the diagnostic socket
Take care to ensure that the area around socketE is not dusty or damp, this socket is vital to the maintenance operations on your vehicle.

77
II

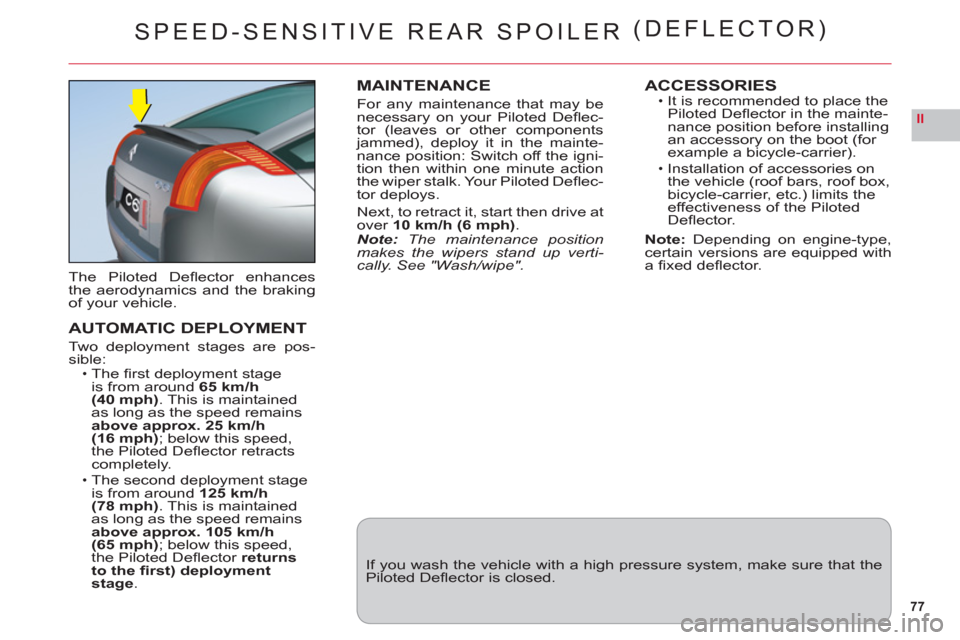

SPEED-SENSITIVE REAR SPOILER(DEFLECTOR)
The Piloted Defl ector enhancesthe aerodynamics and the brakingof your vehicle.
AUTOMATIC DEPLOYMENT
Two deployment stages are pos-sible:The fi rst deployment stageis from around 65 km/h (40 mph). This is maintained
as long as the speed remainsabove approx.25 km/h (16 mph); below this speed,
the Piloted Defl ector retracts completely.
The second deployment stageis from around 125 km/h (78 mph). This is maintained
as long as the speed remainsabove approx.105 km/h (65 mph); below this speed,
the Piloted Defl ector returns
to the fi rst) deployment
stage.
•
•
MAINTENANCE
For any maintenance that may be
necessary on your Piloted Defl ec-
tor (leaves or other components jammed), deploy it in the mainte-
nance position: Switch off the igni-
tion then within one minute action
the wiper stalk. Your Piloted Defl ec-
tor deploys.
Next, to retract it, start then drive at over 10 km/h (6 mph).Note: The maintenance position makes the wipers stand up verti-cally. See "Wash/wipe".
ACCESSORIESIt is recommended to place thePiloted Defl ector in the mainte-nance position before installingan accessory on the boot (for example a bicycle-carrier).
Installation of accessories on
the vehicle (roof bars, roof box,
bicycle-carrier, etc.) limits theeffectiveness of the Piloted Defl ector.
Note:Depending on engine-type,certain versions are equipped witha fi xed defl ector.
•
•
If you wash the vehicle with a high pressure system, make sure that thePiloted Defl ector is closed.

78
II
As the vehicle approaches the
obstacle, the sound signal becomesmore and more urgent and theshaded areas are displayed closer and closer to the vehicle. Proximit
y sensors are located in the front and rear bumpersof your vehicle.
When manœuvringin either forward or reverse gear, at a low speed less
than approx. 10 km/h (6 mph), they inform you of the presence of any
obstacle that is within their zone of detection by:A sound signal emitted by the front or rear loudspeakers.
Display of the outline of your vehicle with shading corresponding to thearea where an obstacle is detected.
As the vehicle approaches the obstacle, the sound signal tells you the posi-
tion of the obstacle according to whether the sound is coming from the front LH or RH or the rear LH or RH loudspeakers.
Note:The sound volume of your audio equipment reduces automatically when a signal is being emitted.
•
•
PARKING ASSISTA NCE
FrontRear
When the obstacle is less
than around 25 centime-
tres
from the vehicle, the sound signal becomes con-
tinuous with display of a"WARN-ING"panel on the screen.
