F U S E S
D A S H B O A R D
FUSEBOXES
T h e r e a r e t w o f u s e b o x e s u n d e r t h e d a s h b o a r d , o n e i n the engine compartment and another in the boot under the left hand wing trim.
Dashboard fuses
To access the fuses under dashboard:1- Open the storage cover as wide as possible with-out forcing.2- T o b e a b l e t o o p e n t h e c o v e r t o t h e m a x i m u m , p u l l it on the right hand side.3- Remove the protective trim located between the fuses and the storage cover to access the fuses.
REPLACING A FUSE
Before replacing a fuse, you should ascertain the cause of the fault and have it remedied. The numbers of the f u s e s a r e i n d i c a t e d o n t h e f u s e b o x .
Replace the fuse that has blown with one of the s a m e r a t i n g ( s a m e c o l o u r ) .
Use the special pliers A p l a c e d o n t h e fl a p c l o s e t o t h e f u s e b o x e s . T h e fl a p a l s o h a s s p a r e f u s e s a v a i l a b l e .
GoodBad
Replacement fuses
and pliers A
Pliers A
Box B
Box B
Page 141 of 216
144
V
101289
11
12
13
14
7345 6
F U S E S
U N D E R T H E B O N N E T
FUSEBOX
T o a c c e s s t h e f u s e b o x i n t h e e n g i n e compartment, undo each screw a 1 / 4 t u r n .
After a repair, take care to reclose the cover.
A n y r e p a i r s o n t h e M A X I f u s e s ( t h a t g i v e a d d i t i o n a l p r o t e c t i o n ) , located in the fuseboxes, must be left to a CITROËN dealer. A n y r e p a i r s o n t h e M A X I f u s e s ( t h a t g i v e a d d i t i o n a l p r o t e c t i o n ) , A n y r e p a i r s o n t h e M A X I f u s e s ( t h a t g i v e a d d i t i o n a l p r o t e c t i o n ) ,
Page 143 of 216
146
V
53 41 2
G36G37 G38 G39 G40

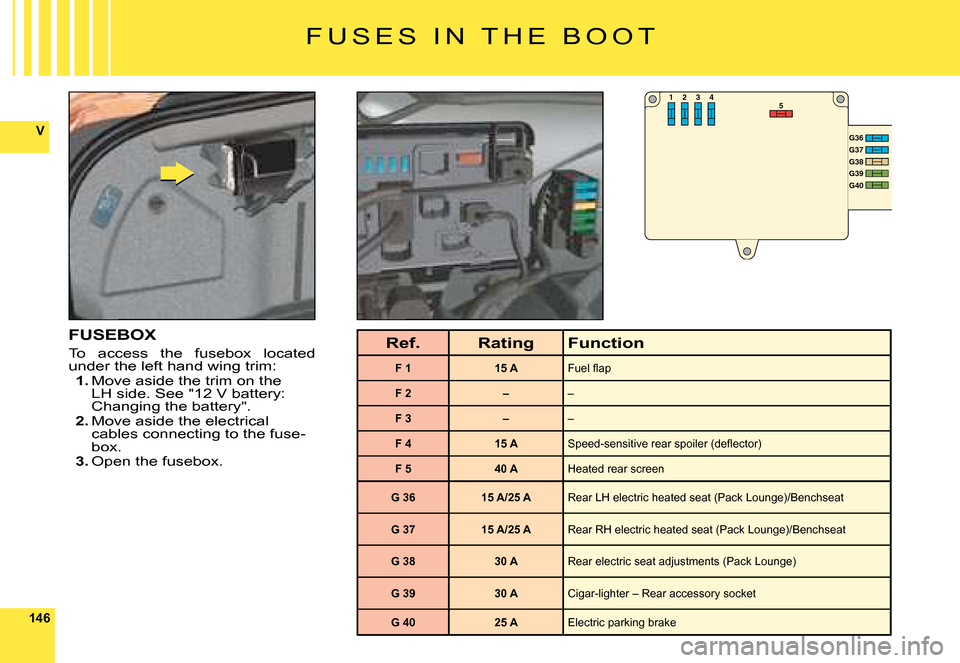

F U S E S I N T H E B O O T
FUSEBOX
T o a c c e s s t h e f u s e b o x l o c a t e d under the left hand wing trim:1. Move aside the trim on the LH side. See "12 V battery: Changing the battery".2. Move aside the electrical cables connecting to the fuse- b o x .3. O p e n t h e f u s e b o x .
Ref.RatingFunction
F 115 A F u e l fl a p
F 2– –
F 3– –
F 415 A S p e e d - s e n s i t i v e r e a r s p o i l e r ( d e fl e c t o r )
F 540 AHeated rear screen
G 3615 A/25 A R e a r L H e l e c t r i c h e a t e d s e a t ( P a c k L o u n g e ) / B e n c h s e a t
G 3715 A/25 A R e a r R H e l e c t r i c h e a t e d s e a t ( P a c k L o u n g e ) / B e n c h s e a t
G 3830 A R e a r e l e c t r i c s e a t a d j u s t m e n t s ( P a c k L o u n g e )
G 3930 A C i g a r - l i g h t e r – R e a r a c c e s s o r y s o c k e t
G 4025 AElectric parking brake
