fuse box CITROEN C6 DAG 2012 Handbook (in English)

8
1
12
6
8
14
13
2
3
5
7910
155
16
1718
4
11
IN BRIE
F
1. Controls - Windows/Rear view mirrors/Child safety
2.Driver's seat adjustment controls and memories
3.
Controls - Lighting/Direction indicators/Rear
fo
glamps/Voice recognition
4.Horn
5.Instrument panel
6. Head-up display cavity
7. Ignition switch
8. Controls - Wipers
9. Controls - Radio controls under the steering wheel
10. Controls at the steering wheel - Speed limiter and
Cruise control
11 .Driver's airbag
12. Gear lever
13.
Electric parking brake
14. Automatic gearbox SPORT/SNOW mode controls
15.
Steering column adjustment
16. Head-up display controls
17. Fuel
fl ap control
18. Oddments tray/Fusebox access fl ap
DASHBOARD

127
IV
F2 F9 F6 F5 F1 F7 F4 F3 F10 F8 F13 F12 F14F17 SH F11
F15F15
G29
G30
G31
G32
G33
G34
G35
G36
G38
G40G37
G39
FUSES
DASHBOARD
FUSEBOXES
There are two fuseboxes under the dashboard, one in
the engine compartment and another in the boot under
the left hand wing trim.
Dashboard fuses
To access the fuses under dashboard:1- Open the storage cover as wide as possiblewithout forcing.2- To be able to open the cover to the maximum, pull
it on the right hand side.3- Remove the protective trim located between the
fuses and the storage cover to access the fuses.
REPLACING A FUSE
Before replacing a fuse, you should ascertain the cause of the fault and have it remedied. The numbers of the
fuses are indicated on the fusebox.
Replace the fuse that has blown with one of the
same rating (same colour).
Use the special pliersAplaced on the fl ap close to the
fuseboxes. The fl ap also has spare fuses available.
Good Bad
Re
placement fuses
and
pliers
A
Pliers A
Box B
Box B

128
IV
TABLE OF FUSES
Ref.RatingFunction
G 295 ADefl ation detection – Changer for 6 CDs
G 305 ADiagnostic socket
G 315 ATelematics according to destination
G 3225 AAmplifi er
G 3310 AHydraulic suspension system
G 3415 AAutomatic gearbox
G 3515 AFront passenger’s heated seat
G 3615 ADriver’s heated seat
G 37––
G 3830 ADriver’s electric seat
G 39––
G 4030 APassenger’s electric seat
DASHBOARD FUSES (BOX B)

129
IV
TABLE OF FUSES
Ref.RatingFunction
F1––
F2––
F 35 AAirbags
F 410 ABraking system – Active bonnet – Cruise contol/speed limiter – Photochromic rear view mirror – Diagnostic socket –Multifunction screen inclination motorgygy
F 530 AFront window – Sun roof
F 630 ARear window
F 75 ASun visor lighting – Glove box lighting – Interior lamps – Rear cigar-lighter
F 820 AControls at the steering wheel – Display – Opening of windows (Micro-descent) – Alarm – Radio
F 930 AFront cigar-lighter
F 1015 ABoot relay unit – Trailer relay unit
F 1115 ASteering lock
F1215 ADriver’s and front passenger’s seat belt warning lamp – Opening of windows (Micro-descent) – Electric seats – Parkingassistance – Audio system JBL
F 135 AActive bonnet – Rain and brightness sensor – Windscreen wiper – Engine relay unit supply
F 1415 ALane Departure Warning System – Air conditioning – Instrument panel – Head-up display – Airbags – Bluetooth®(Hands-free kit) – BHI relaygyg
F 1530 ACentral locking – Child safety
F 16SHUNT–
F 1740 AVentilation
DASHBOARD FUSES (BOX C)

130
IV

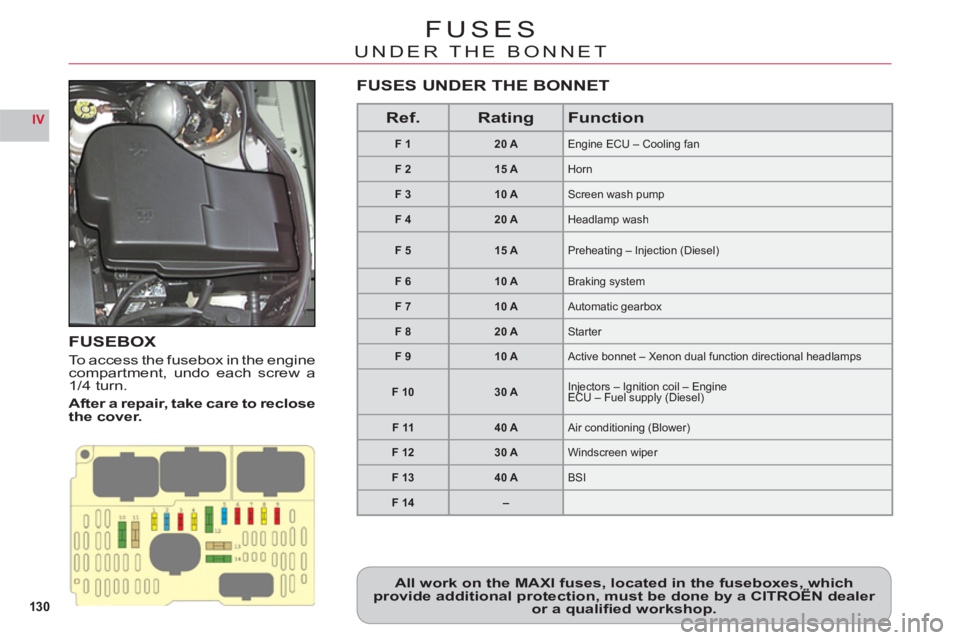

FUSES
UNDER THE BONNET
FUSEBOX
To access the fusebox in the enginecompartment, undo each screw a
1/4 turn.
After a re
pair, take care to reclose
the cover.
All work on the MAXI fuses, located in the fuseboxes, whichprovide additional protection, must be done by a CITROËN dealer ,,
or a qualifi ed workshop.
Ref.RatingFunction
F120 AEngine ECU – Cooling fan
F215 AHorn
F 310 AScreen wash pump
F 420 AHeadlamp wash
F 515 APreheating – Injection (Diesel)
F 610 ABraking system
F710 AAutomatic gearbox
F 820 AStarter
F 910 AActive bonnet – Xenon dual function directional headlamps
F 1030 AInjectors – Ignition coil – Engine ECU – Fuel supply (Diesel)jgjg
F 1140 AAir conditioning (Blower)
F 1230 AWindscreen wiper
F 1340 ABSI
F 14–
FUSES UNDER THE BONNET

131
IV
53412
G36G37G38G39G40
FUSES IN THE BOOT
FUSEBOX
To access the fusebox locatedunder the left hand wing trim:1. Move aside the trim on theLH side. See "12 V battery:Changing the battery".2. Move aside the electrical cablesconnecting to the fusebox.3. Open the fusebox.
RatingFunction
F 115 AFuel fl ap
F 2––
F 3––
F 415 ASpeed-sensitive rear spoiler (defl ector)
F 540 AHeated rear screen
G 3615 A/25 ARear LH electric heated seat (Pack Lounge)/Benchseat
G 3715 A/25 ARear RH electric heated seat (Pack Lounge)/Benchseat
G 3830 ARear electric seat adjustments (Pack Lounge)
G 3930 ACigar-lighter – Rear accessory socket
G 4025 AElectric parking brake

7.27
1
22
33
55
66
44
06TELEPHONE
CALLING A CONTACT
Turn the dial and select the DIAL function.
Press the PICK UP button to displaythe telephone short-cut menu.
Press the dial to confi rm the selection.
Dial the telephone number of your contact using the alphanumeric keypad.
Press the PICK UP button to call the number dialled.
Press the HANG UP button to endthe call.


ACCEPTING OR REFUSING A CALL
Press the PICK UP button to accepta call.
Press the HANG UP button to refuse a call.

Press the end of the steering wheel stalk for more than 2 seconds to access the telephone menu: calls log, directory, voice mailbox.
To select the telephone used, press MENU, then select TELEMATICS, then BLUETOOTH FUNCTIONS, then BLUETOOTH ACT I VAT ION MODE. Then select:- DEACTIVATED: to use the internal telephone,- ACTIVATED AND VISIBLE: to use the bluetooth telephone, visible to all telephones,- ACTIVATED AND NOT VISIBLE: to use the bluetooth telephone, not visible to other telephones, it is not possible to match a new telephone.
Select CALL LIST or PHONE BOOK and press OK. Select the number required and confi rm to make the call.
DIAL

150
INDEX
E
Electronic stability programme(ESP)..........................................73
Engine coolant .............46 - 121 -123
Engine oil...........................121 - 123
Engine oil level indicator...............r33
Ensure passenger safety..............17
Exterior...........................................r4
F
Flap for transport of long objects........................................98
Floor lighting................................110
Foglamp........................................52
Fold-back of door mirrors.............63
Folding rear benchseat .................98
Front armrest ...............................115
Front central oddments tray.........11 2
Front demisting - defrosting ..........90
Front foglamps..............................52
Front passenger’s airbag deactivation .......................15 - 101
Front seats.............................58 - 59
Fuel......................................35 - 133
Fuel gauge....................................35
Fuel tank..............................32 - 133
Fuses ...............................127 → 131
G
General.......................................145
General radio functions ..............122
Getting started.....................10 → 12
Glovebox.....................................111
Grab handles ...............................11 6
G
Ground clearance
adjustment.......................107 - 108
Guide-me-home lighting........24 - 51
H
Half-moon storage pockets..........114
HDi engine ..................................121
Head restraints .............58 - 97 - 100
Headlamp fl ash.............................50
Head-up display.....................37 - 38
Heated seats.........................58 - 97
Horn ..............................................50
I
Ignition.......................................... 28
Indexed position
for the rear
view mirrors ................................64
In
dicators ......................................50
Instrument panel ..................
30 → 36
Instrument panel warninglamps .....................................31-32
Interior............................................r7
Interior comfort ................111 → 116
IInterior lighting..................109 - 110
Interior rear view mirror................r62
ISOFIX child seats.............104 - 105
ISOFIX fi xings.................... 104 - 105
K
Keys.............................................. 25
L
Lane Departure Warning System ...80
Levels
(engine) ...........................121
L
Levels (temperature)..................123
Lighting ..................................51 - 52
Lighting control stalk.....................51
Lighting rheostat...........................36
Loads and towing ........................XVI
Locating o
f the vehicle .................. 24
Lo
g of alerts..................................40
M
Main beams..................................51
Main Menu .............................39 - 43
Maintenance ....................120 → 132
Maintenance....................XX→XXII
Maintenance indicator...........r34 - 35
Maintenance intervals...................35
Maintenance position....................55
Manual steering column adjustment..................................57
Maximum speed ....................71 - 72
Memorisation ................................60
Mileage recorder...........................35
Monitoring..............................15 - 16
Multifunction screens...........39 → 43
N
NaviDrive…… ............43, 7.01 - 7.43
NaviDrive colour screen...............43
Night driving..................................36
O
Oil gauge....................................136
Oil temperature ............................. 46
