Citroen C6 RHD 2011 1.G User Guide

9
2324
25
33
27
32
20
22
21
26
29
30
31
34
28IN BRIE
F
20. Passenger's airbag
21. Sunlight sensor
22.Multifunction display
23. Central air vents
24.Radio or NaviDrive
25. Controls - Lane Departure Warning System/
Anti-intrusion alarm
26. Gear lever
27. Hazard lamps button
28. Ashtray
29. Controls - Electronic stability programme
(ESP/ASR)/Central locking of doors and boot/
Parking assistance
30. Air conditioning controls
31.
Cup-holder
32.
Glovebox/Vehicle document storage/Fusebox
access fl ap/Audio-video sockets
33
.Lateral air vent
34. Bonnet release
DASHBOARD

10
A
B
FED
C
21G
IN BRIE
F
FRONT SEATS
C.Adjustment of the backrest angle.
D. Adjustment of the backrest lumbar support.
E.Seat height and slide adjustments.
F
. Adjustment of the seat cushion
angle.
G
.Memorisation of dashboard
adjustments:
- Driver's seat.
-
Steering wheel.
- Exterior rear view mirrors.
- Head-up displa
y.
You have the possibility to memo-
risetwo driving positions using buttons1and 2.
Electric adjustments
A. Adjustment of the backrest angle.
B.Controls for the heated seats.
5859
GETTING STARTED
Thecorrect positioningof the belt strap is through the middle of the
shoulder. See "Seat belts".
To a djust the seat belt for height, compress the control and slideit
in the desired direction.
SEAT BELT HEIGHTADJUSTMENT
57
Manual adjustments

11
12
IN BRIE
F
While the vehicle is stationary, unlock
the steering wheel by pushing thelever forward.
Adjust the height and the reach
of the steering wheel, then lock
the position by pulling the lever upwards.
STEERING COLUMN ADJUSTMENT
57
While the vehicle is stationary,
adjust the height or the reach of
the steering wheel by moving the control:forward or rearward to adjust
the reach,up or down to adjust the height.
•
•
Electric adjustment
INTERIOR REAR VIEW MIRROR
62
The steering wheel adjustment is memorised with the driving position. (See "Memorisation").
57
These provide an automatic and progressive change between day use and night use.
Operation
Switch on the ignition and pressbutton 1.Warning lamp2 on: automaticmode.Warning lamp2 off: automatic
mode stopped. The mirror
remains in its lightest defi nition.
ï
ï
GETTING STARTED
Manual adjustment

12
12
ba
c15
42
3
IN BRIE
F
5663
1.Driver's electric window control.
2.Passenger's electric window control.
3.Right-hand rear electric window control.
4.Left-hand rear electric window control.
5.Deactivation control for rear electric windows and rear door
opening from inside.
1. Selection of rear view mirror: a- Left hand side.
b- Right hand side.
c- Folded/Automatic
deployment.
2.Mirror directional control.
ELECTRIC EXTERIOR REAR VIEW MIRRORSELECTRIC WINDOWSCONTROL
GETTING STARTED
The whole or just part of the bench-seat can be folded. It is necessaryto remove the head restraints.
REAR SEATS
98
Note:The benchseat backrest can be folded in two sections.When you reposition the back-rest, make sure that it locks inplace.

13
A
B
IN BRIE
F
LIGHTING
Ring A
Sidelamps.
Dipped beams/
main beams. Lam
ps off.
Pull the controlstalktowards you
to change between dipped beamand main beam.Front
foglamps and
rear foglamps on.
Front foglamps on.
Switching off
First action rearwards, rear foglamps off.
Second action rearwards, front and
rear foglamps off.
Ring BWIPER
S
Control positions2. Rapid wipe.1. Normal wipe.I.Intermittent wipe.0. Off.
One press downwards:AUTO:Automatic wipe activated.
Single wipe.
•
•
5451
VISIBILITY

14
IN BRIE
F
AUTOMATIC AIR CONDITIONING
Adjustment of air distribution on passenger’s side
Adjustment of air distribution on passenger’s side
Adjustment of temperatureon passenger’s side
Adjustment of temperature on passenger’s side
Automatic operation
Air recirculation – Entry of air from outsideDeicing – Demisting of rear screenand exterior rear view mirrors
Front demisting - deicing
Adjusting the air fl ow
Note:It is recommended to use automatic mode by pressing on the "AUTO"button.
42- 85
VENTILATION

15
A
KJIHGFE
DB
B
CA
ML
B
IN BRIE
F
Deactivation of passenger's airbag
When you switch on the ignition, the airbag warninglamp M lights up if the passenger's airbag has beendeactivated.
Hazard warning lamps
Driver's seat belt fastening sensor
When you switch on the ignition, seat belt warning lamp L lights up accompanied by a sound signal if the driver has not fastened his seat belt.
Warning lampLgoes out when the seat belt has been fastened.
INSTRUMENT PANEL
The hazard lamps can also be used with the ignition switched off.
MONITORING
A.Signalling warning lamps.B. Operational warning lamps.C. Cruise control/speed limiter information.D. Fuel gauge.E.Trip mileage recorder.F. Total mileage recorder, maintenance indicator.
G.Speed indicator.H.Display of automatic gearbox information.
I. Display of suspension sport mode.
J. Rev counter.K.Reset button for trip mileage recorder and
maintenance indicator.
Note:When the ignition is switched on, the orange and red warning lamps light up.
When the engine is running, these warning lamps should go out.
If any warning lamps remain lit, refer to the relevant page.
•
•
•

16
12
3
IN BRIE
F

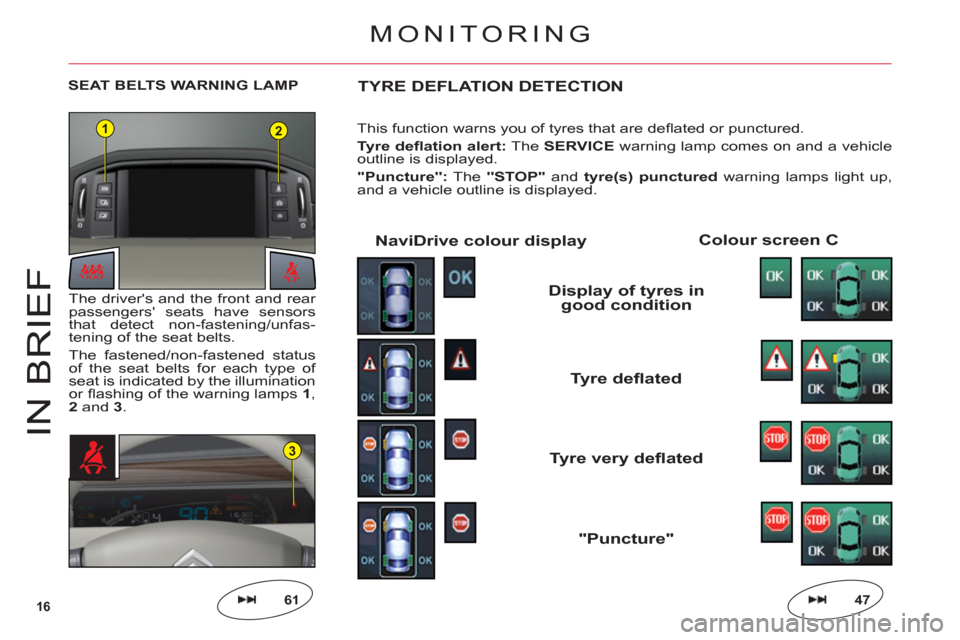

SEAT BELTS WARNING LAMPTYRE DEFLATION DETECTION
This function warns you of tyres that are defl ated or punctured.
Tyre defl ation alert:TheSERVICEwarning lamp comes on and a vehicle
outline is displayed.
"Puncture": The"STOP"and tyre(s) punctured warning lamps light up,
and a vehicle outline is displayed.
Colour screen CNaviDrive colour display
Display of tyres in good condition
Tyre very defl ated
Tyre defl ated
"Puncture"
47
The driver's and the front and rear passengers' seats have sensors
that detect non-fastening/unfas-
tening of the seat belts.
The fastened
/non-fastened status
of the seat belts for each type of seat is indicated by the illumination
or fl ashing of the warning lamps 1,2 and 3.
MONITORING
61

17
D
C
E
B
A
IN BRIE
F
FRONT PASSENGER'S
AIRBAG DEACTIVATIONCHILD SAFETYTHE ISOFIX FASTENING
SYSTEM
In order to be able to use a rear-facing child seat in the front passen-ger's seat position, it is imperative to
deactivate the passenger's airbag.
For that:With the ignition switched off,insert the key into the switch A.
Turn the key to the "OFF"position, the passenger's airbag is deactivated.
The front passenger's airbag deac-
tivation warning lamp, in the instru-
ment panel, lights up when youswitch on the ignition.
•
•
This deactivates the controls in therear of the vehicle, both for the rear
windows and for opening the rear doors from the inside. The electricchild safety device is activated bypressing on buttonB.
A message appears to confi rm that
the child safety is activated.The I
SOFIX system features3ringsfor each lateral rear seat position:Two bottom rings C and Dlocated between the backrestand the seat cushion. These are about 28 cm apart, and in
the case of a benchseat,
concealed under a fl ap with
the logo ISOFIX.
One top ring E fi xed on therear shelf, concealed under a fl ap with the logoTOP TETHER behind the headrestraint.
•
•
10456101
ENSURE THE SAFETY OF PASSENGERS

18
1
2
3
4
1
2
3
4
A
IN BRIE
F
This system allows you to main-
tain a constant vehicle speed pro-grammed by the driver.1. "CRUISE" button: Activation/deactivation of cruise controlmode.2.Suspension or reactivation of cruise control.3. "SET +"button: Increase of
the memorised speed.4. "SET -"button: Reduction of
the memorised speed.
CRUISE CONTROL
SPEED LIMITER
This system allows you to choose
a maximum speed that you do not
wish to exceed.1."LIMIT"button: Activation of speed limiter mode.2.Disengagement of the maxi-
mum speed.3. "SET +"button: Activation of
the maximum speed.4."SET -" button: Reduction of
the maximum speed.
To move off
With the engine running, release
the electric parking brake, by
pressing the brake pedal or the
accelerator pedal and pulling then
releasin
g the control A.
To park
With the vehicle stationary, operate
the parking brake by pulling then
releasingthe control A.
ELECTRIC PARKINGBRAKE
697175
Note:It is not possible to releasethe electric parking brake if thekey is removed or in position S.
Note: Function may be activated at speeds over 18 mph (30 km/h).Cruise control is availableinthe higher gears only, for speeds greater than 24 mph(40 km/h).
DRIVING
