Citroen C6 RHD 2011 1.G Owner's Manual

7.51
11
66
22
77
44
99
55
101
33
88
06
Saisir code authentification
01
OK Del23456789 _

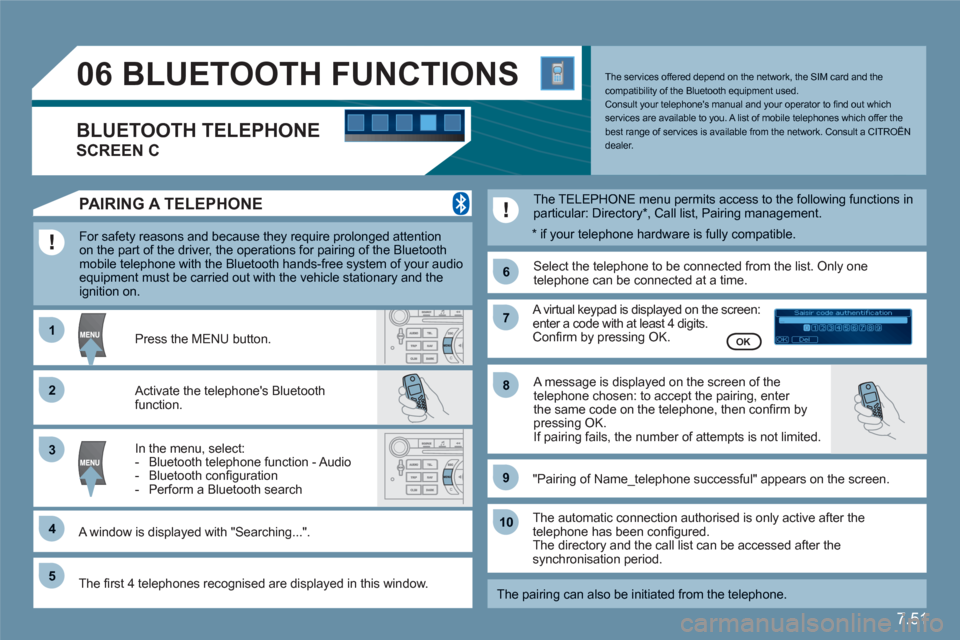

BLUETOOTH FUNCTIONS
For safety reasons and because they require prolonged attention on the part of the driver, the operations for pairing of the Bluetooth mobile telephone with the Bluetooth hands-free system of your audioequipment must be carried out with the vehicle stationary and the ignition on.

Activate the telephone's Bluetooth function.

A window is displayed with "Searching...".

Press the MENU button.

In the menu, select:


- Bluetooth telephone function - Audio

- Bluetooth confi guration

- Perform a Bluetooth search

The services offered depend on the network, the SIM card and thecompatibility of the Bluetooth equipment used.
Consult your telephone's manual and your operator to fi nd out whichservices are available to you. A list of mobile telephones which offer thebest range of services is available from the network. Consult a CITROËN dealer. BLUETOOTH TELEPHONE
SCREEN C

The TELEPHONE menu permits access to the following functions inparticular: Directory *
, Call list, Pairing management.
The fi rst 4 telephones recognised are displayed in this window.
A virtual keypad is displayed on the screen: enter a code with at least 4 digits. Confi rm by pressing OK.
"Pairing of Name_telephone successful" appears on the screen.
Select the telephone to be connected from the list. Only onetelephone can be connected at a time.

A message is displayed on the screen of thetelephone chosen: to accept the pairing, enter the same code on the telephone, then confi rm bypressing OK. If pairing fails, the number of attempts is not limited.
The automatic connection authorised is only active after the telephone has been confi gured.The directory and the call list can be accessed after thesynchronisation period.
OK


PAIRING A TELEPHONE
The pairing can also be initiated from the telephone.



*
if your telephone hardware is fully compatible.

7.52
11
22
11
11
22
33
22
YES

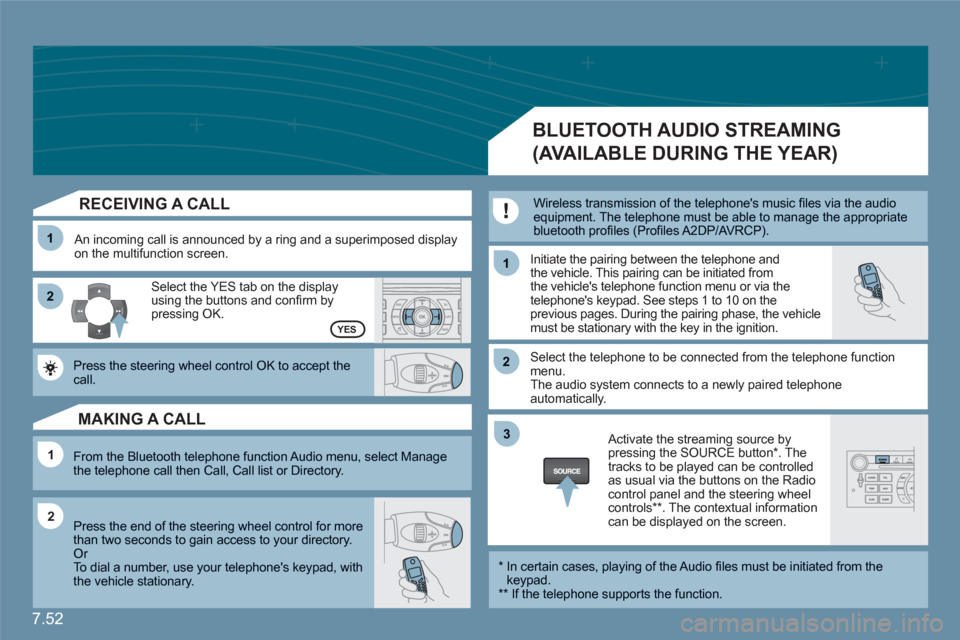

RECEIVING A CALL

An incoming call is announced by a ring and a superimposed display on the multifunction screen. Initiate the pairing between the telephone and the vehicle. This pairing can be initiated fromthe vehicle's telephone function menu or via the telephone's keypad. See steps 1 to 10 on theprevious pages. During the pairing phase, the vehiclemust be stationary with the key in the ignition.
Select the telephone to be connected from the telephone function menu.The audio system connects to a newly paired telephone automatically.
Select the YES tab on the display using the buttons and confi rm bypressing OK.

Press the steering wheel control OK to accept the call.

From the Bluetooth telephone function Audio menu, select Manage the telephone call then Call, Call list or Directory.

Press the end of the steering wheel control for more than two seconds to gain access to your directory. Or To dial a number, use your telephone's keypad, withthe vehicle stationary.


MAKING A CALL
BLUETOOTH AUDIO STREAMING
(AVAILABLE DURING THE YEAR)

Wireless transmission of the telephone's music fi les via the audio equipment. The telephone must be able to manage the appropriatebluetooth profi les (Profi les A2DP/AVRCP).
*

In certain cases, playing of the Audio fi les must be initiated from thekeypad. **

If the telephone supports the function.
Activate the streaming source bypressing the SOURCE button * . Thetracks to be played can be controlled as usual via the buttons on the Radio control panel and the steering wheel controls
** . The contextual information can be displayed on the screen.

7.53

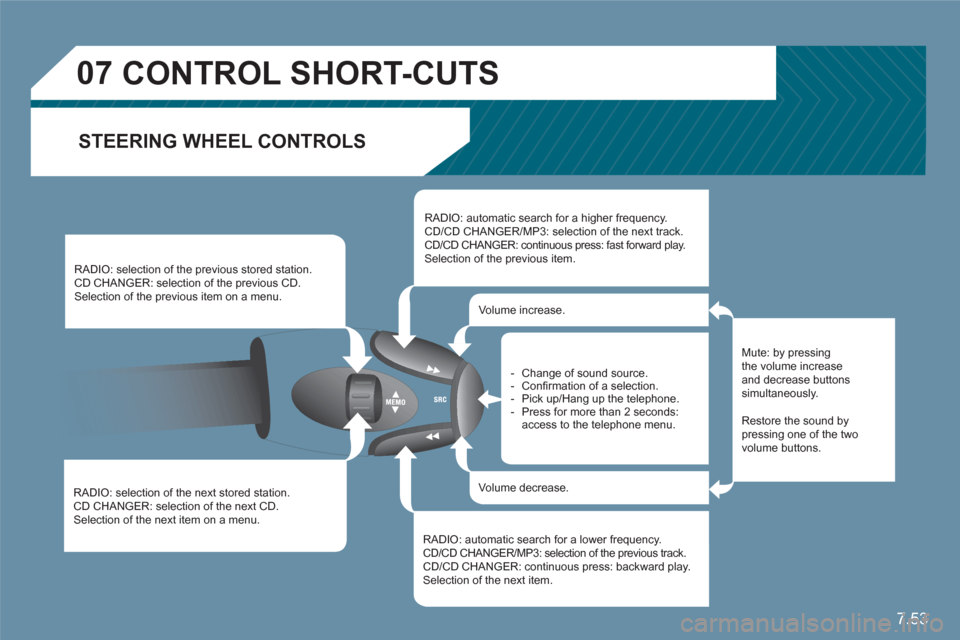

07CONTROL SHORT-CUTS
STEERING WHEEL CONTROLS
RADIO: selection of the next stored station. CD CHANGER: selection of the next CD.Selection of the next item on a menu.
RADIO: selection of the previous stored station.CD CHANGER: selection of the previous CD.Selection of the previous item on a menu.


RADIO: automatic search for a higher frequency. CD/CD CHANGER/MP3: selection of the next track. CD/CD CHANGER: continuous press: fast forward play.
Selection of the previous item.
RADIO: automatic search for a lower frequency.CD/CD CHANGER/MP3: selection of the previous track.CD/CD CHANGER: continuous press: backward play.Selection of the next item.


Volume increase.
Volume decrease.
Mute: by pressingthe volume increaseand decrease buttonssimultaneously.
Restore the sound bypressing one of the two volume buttons.
- Change of sound source. - Confi rmation of a selection. - Pick up/Hang up the telephone. - Press for more than 2 seconds: access to the telephone menu.

7.54
55
66
77
88
11
22
33
44

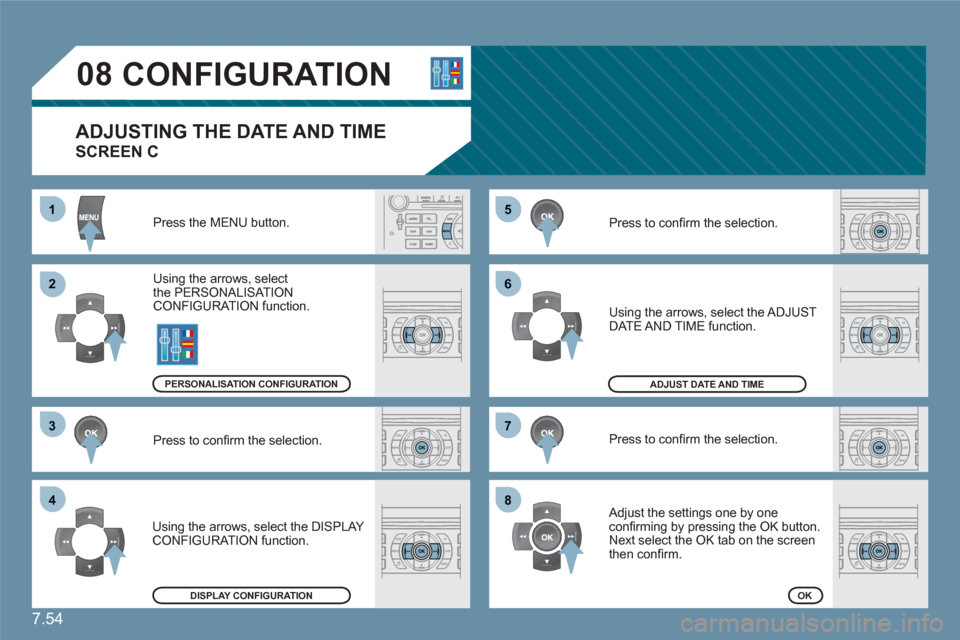

08CONFIGURATION
Press the MENU button.
Using the arrows, select the PERSONALISAT ION CONFIGURATION function.
Press to confi rm the selection.

Using the arrows, select the DISPLAY CONFIGURATION function.
Press to confi rm the selection.
Press to confi rm the selection.
Using the arrows, select the ADJUSTDATE AND TIME function.

Adjust the settings one by oneconfi rming by pressing the OK button.Next select the OK tab on the screen then confi rm.

DISPLAY CONFIGURATION
ADJUST DATE AND TIME
OK
PERSONALISATION CONFIGURATION
ADJUSTING THE DATE AND TIME
SCREEN C

7.55
123
23
1
2
3
4
3
4
3
4
2
3
4
3
4
3
3
3
2
1
2
2
1
2
3
2
3
4
4
4
4
4
4
09
3
3
3
2
3
3
3
3
3
date and time adjustment
day/month/year adjustment

hour/minute adjustment

choice of 12 h/24 h mode
py

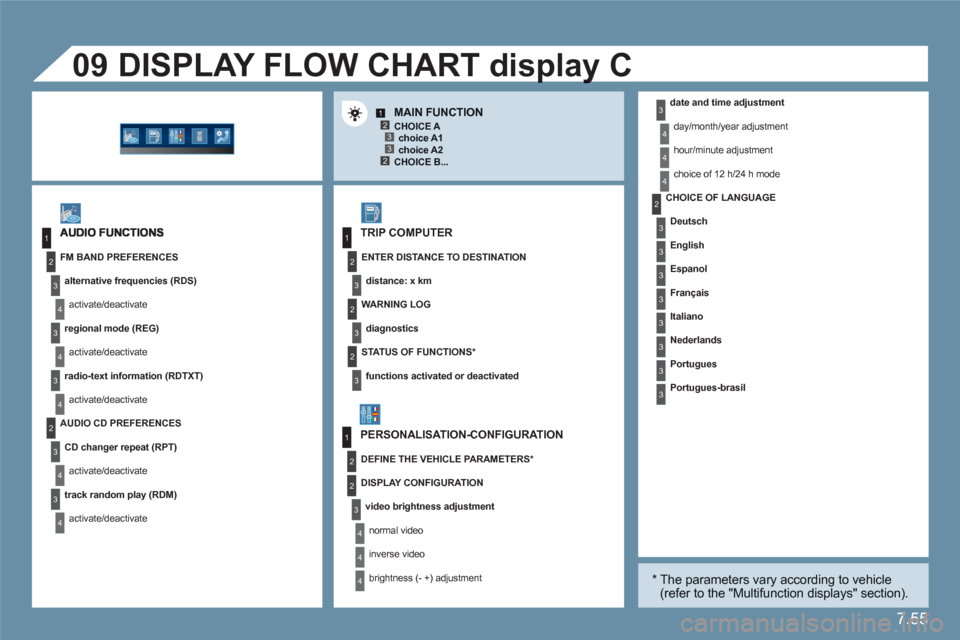

DISPLAY FLOW CHART display C
TRIP COMPUTER
MAIN FUNCTION

*

The parameters vary according to vehicle (refer to the "Multifunction displays" section).


CHOICE A

choice A1

choice A2


CHOICE B...


track random play (RDM)

activate/deactivate


FM BAND PREFERENCES


alternative frequencies (RDS)

activate/deactivate


regional mode (REG)
activate/deactivate


radio-text information (RDTXT)

activate/deactivate


AUDIO CD PREFERENCES
CDchanger repeat (RPT)
activate/deactivate
ENTER DISTANCE TO DESTINATION
distance: x km

WARNING LOG
diagnostics

video brightness adjustment

normal video

inverse video

brightness (- +) adjustment
STATUS OF FUNCTIONS *
functions activated or deactivated
PERSONALISATION-CONFIGURATION
DEFINE THE VEHICLE PARAMETERS
*
DISPLAY CONFIGURATION


CHOICE OF LANGUAGE


Deutsch


English

Espanol

Français


Italiano


Nederlands


Portugues

Portugues-brasil

7.56
1
2
3
2
1
2
3
3
1
2
2
2
2
1
2
1
2
2

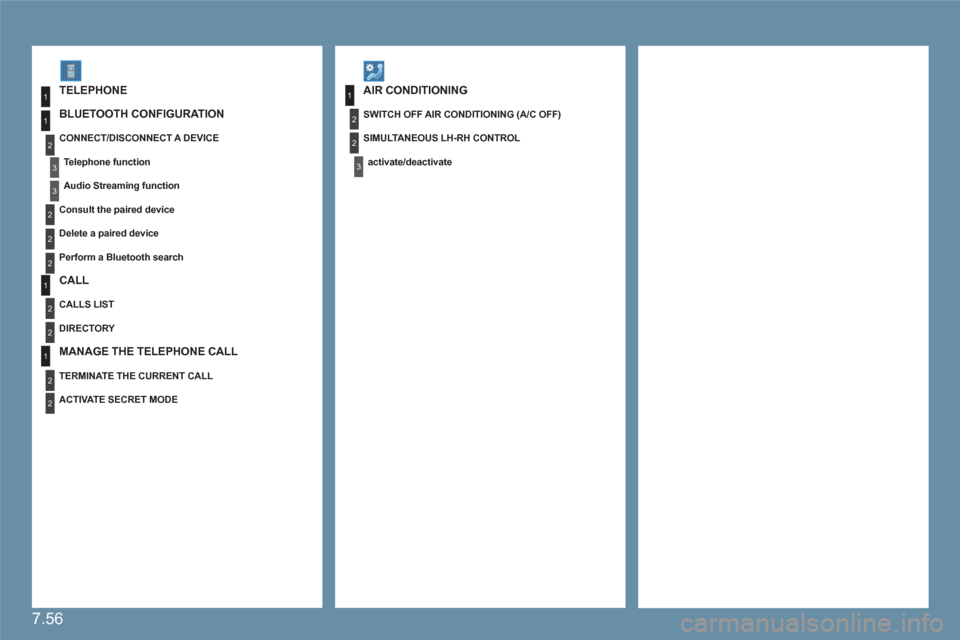

AIR CONDITIONING

SWITCH OFF AIR CONDITIONING (A/C OFF)
SIMULTANEOUS LH-RH CONTROL


activate/deactivate

TELEPHONE
BLUETOOTH CONFIGURATION
CONNECT/DISCONNECT A DEVICE
Telephone function
Audio Streaming function


Consult the paired device


Delete a paired device


Perform a Bluetooth search

MANAGE THE TELEPHONE CALL
TERMINATE THE CURRENT CALL


ACTIVATE SECRET MODE


CALL
CALLS LIST


DIRECTORY

7.57

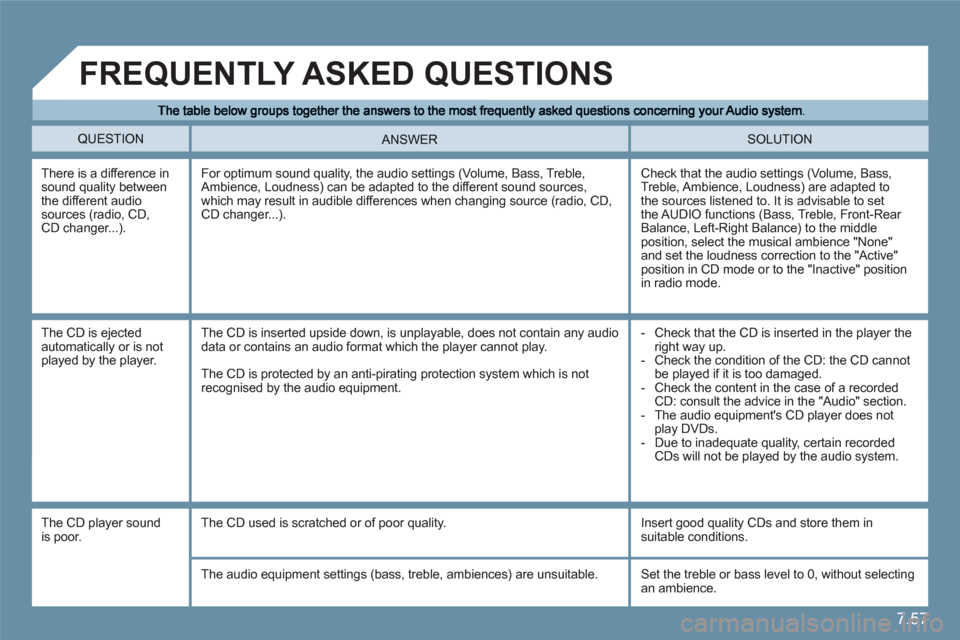

QUESTION SOLUTION ANSWER
There is a difference in sound quality between the different audio sources (radio, CD,CD changer...).
Check that the audio settings (Volume, Bass, Treble, Ambience, Loudness) are adapted to the sources listened to. It is advisable to set the AUDIO functions (Bass, Treble, Front-Rear Balance, Left-Right Balance) to the middle position, select the musical ambience "None"and set the loudness correction to the "Active" position in CD mode or to the "Inactive" position in radio mode.
For optimum sound quality, the audio settings (Volume, Bass, Treble, Ambience, Loudness) can be adapted to the different sound sources, which may result in audible differences when changing source (radio, CD,CD changer...).
The CD is ejectedautomatically or is notplayed by the player.


- Check that the CD is inserted in the player the right way up.

- Check the condition of the CD: the CD cannot be played if it is too damaged.

- Check the content in the case of a recordedCD: consult the advice in the "Audio" section.

- The audio equipment's CD player does not play DVDs.

- Due to inadequate quality, certain recordedCDs will not be played by the audio system.

The CD is inserted upside down, is unplayable, does not contain any audiodata or contains an audio format which the player cannot play.

The CD is protected by an anti-pirating protection system which is notrecognised by the audio equipment.

FREQUENTLY ASKED QUESTIONS
The CD player sound is poor.
The CD used is scratched or of poor quality.
Insert good quality CDs and store them in suitable conditions.

The audio equipment settings (bass, treble, ambiences) are unsuitable. Set the treble or bass level to 0, without selectingan ambience.

7.58

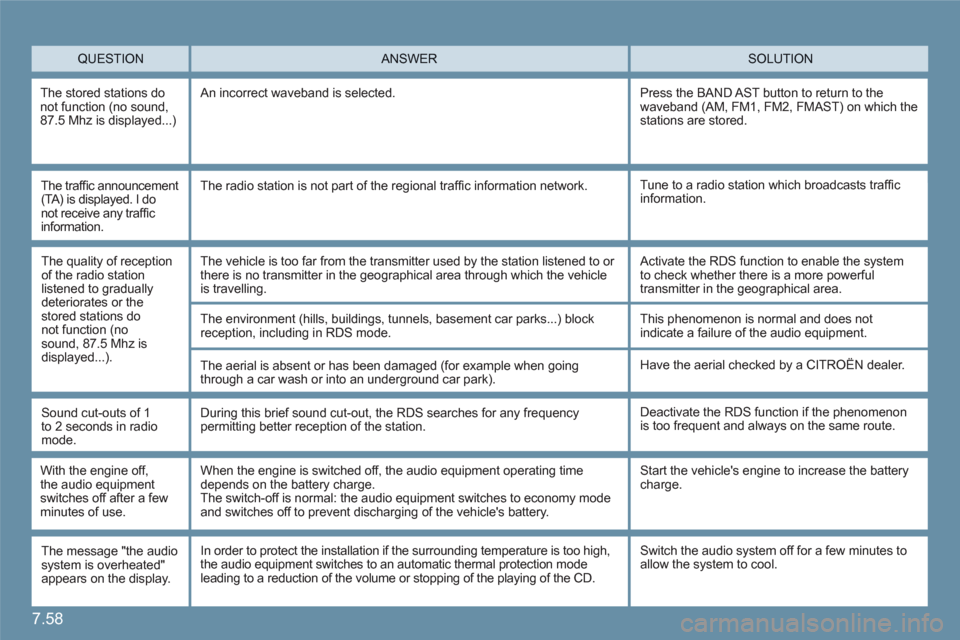

QUESTION SOLUTION ANSWER
The stored stations donot function (no sound,87.5 Mhz is displayed...)

An incorrect waveband is selected.
Press the BAND AST button to return to the waveband (AM, FM1, FM2, FMAST) on which thestations are stored.

The traffi c announcement (TA) is displayed. I do not receive any traffi c information.

Tune to a radio station which broadcasts traffi cinformation. The radio station is not part of the regional traffi c information network.
The quality of receptionof the radio stationlistened to graduallydeteriorates or the stored stations donot function (no sound, 87.5 Mhz isdisplayed...).
The vehicle is too far from the transmitter used by the station listened to or there is no transmitter in the geographical area through which the vehicleis travelling.
The environment (hills, buildings, tunnels, basement car parks...) block reception, including in RDS mode.
The aerial is absent or has been damaged (for example when goingthrough a car wash or into an underground car park).

Activate the RDS function to enable the systemto check whether there is a more powerful transmitter in the geographical area.
This phenomenon is normal and does notindicate a failure of the audio equipment.

Have the aerial checked by a CITROÀN dealer.
Sound cut-outs of 1to 2 seconds in radio mode.
During this brief sound cut-out, the RDS searches for any frequencypermitting better reception of the station.
Deactivate the RDS function if the phenomenonis too frequent and always on the same route.
With the engine off, the audio equipmentswitches off after a few minutes of use.
When the engine is switched off, the audio equipment operating time depends on the battery charge.The switch-off is normal: the audio equipment switches to economy modeand switches off to prevent discharging of the vehicle's battery.
Start the vehicle's engine to increase the batterycharge.
The message "the audiosystem is overheated"appears on the display.

Switch the audio system off for a few minutes to allow the system to cool.In order to protect the installation if the surrounding temperature is too high,the audio equipment switches to an automatic thermal protection modeleading to a reduction of the volume or stopping of the playing of the CD.

149

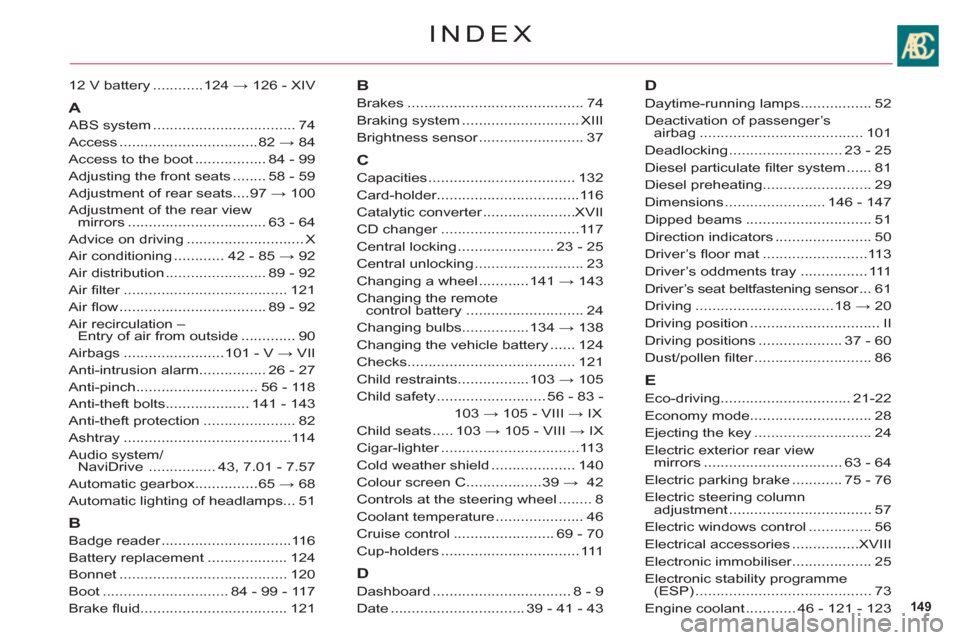

INDEX
12 V battery ............124 → 126 - XIV
A
ABS system..................................74
Access.................................82 → 84
Access to the boot .................84 - 99
Adjusting the front seats........58 - 59
Adjustment of rear seats....97 → 100
Adjustment of the rear view mirrors.................................63 - 64
Advice on driving ............................X
Air conditioning............ 42 - 85 → 92
Air distribution........................89 - 92
Air fi lter.......................................r121
Air fl ow ...................................89 - 92
Air recirculation ñEntry of air from outside.............90
Airbags ........................101 - V → VII
Anti-intrusion alarm................26 - 27
Anti-pinch.............................56 - 118
Anti-theft bolts....................141 - 143
Anti-theft protection......................82
Ashtray........................................11 4
Audio system/NaviDrive ................43, 7.01 - 7.57
Automatic gearbox...............65 → 68
Automatic lighting of headlamps...51
B
Badge reader...............................r11 6
Battery replacement ...................124
Bonnet........................................120
Boot ..............................84 - 99 - 117
Brake fl uid...................................121
B
Brakes.......................................... 74
Braking system ............................XIII
Brightness sensor.........................r37
C
Capacities ................................... 132
Card-holder..................................11 6
Catalytic converter......................rXVII
CD changer.................................r117
Central locking.......................23 - 25
Central unlocking..........................23
Changing a wheel............141 → 143
Changing the remotecontrol battery............................24
Changing bulbs................134 → 138
Changing the vehicle battery......124
Checks........................................ 121
Child restraints.................103 → 105
Child safety ..........................56 - 83 -

103 → 105 - VIII → IX
Child seats.....103 → 105 - VIII → IX
Cigar-lighter.................................r113
Cold weather shield....................140
Colour screen C..................39 → 42
Controls at the steering wheel........8
Coolant temperature.....................46
Cruise control ........................69 - 70
Cup-holders .................................111
D
Dashboard.................................8 - 9
Date ................................39 - 41 - 43
D
Daytime-running lamps.................52
Deactivation of passenger’s airbag.......................................101
Deadlocking...........................23 - 25
Diesel particulate fi lter system ......81
Diesel preheating..........................29
Dimensions........................146 - 147
Dipped beams ..............................51
Direction indicators .......................50
Driverís fl oor mat.........................113
Driverís oddments tray ................ 111
Driverís seat beltfastening sensor...r61
Driving.................................18 → 20
Driving position............................... II
Driving positions....................37 - 60
Dust/pollen fi lter............................r86
E
Eco-driving............................... 21-22
Economy mode.............................28
Ejecting the key............................24
Electric exterior rear viewmirrors.................................63 - 64
Electric parking brake ............75 - 76
Electric steering column adjustment..................................57
Electric windows control...............56
Electrical accessories ................XVIII
Electronic immobiliser...................25
Electronic stability programme(ESP)..........................................73
Engine coolant ............ 46 - 121 - 123

150
INDEX
E
Engine oil ...........................121 - 123
Engine oil level indicator...............r33
Ensure passenger safety .............. 17
Exterior...........................................r4
F
Flap for transportof long objects ............................98
Floor lighting................................110
Foglamp........................................52
Fold-back of door mirrors.............63
Folding rear benchseat.................98
Front armrest ...............................11 5
Front central oddments tray.........11 2
Front demisting - deicing..............90
Front foglamps..............................52
Front passenger’s airbag deactivation .......................15 - 101
Front seats.............................58 - 59
Fuel......................................35 - 133
Fuel gauge....................................35
Fuel tank..............................32 - 133
Fuses ...............................127 → 131
G
General.......................................145
General radio functions ..............122
Getting started.....................10 → 12
Glovebox.....................................111
Grab handles ...............................11 6
Ground clearance adjustment.......................107 - 108
Guide-me-home lighting........24 - 51
H
Half-moon storage pockets..........11 4
HDi engine .................................. 121
Head restraints.............58 - 97 - 100
Headlamp fl ash.............................50
Head-up display.....................37 - 38
Heated seats.........................58 - 97
Horn ..............................................50
I
Ignition..........................................28
Indexed position for the rear viewmirrors........................................64
Indicators......................................50
Instrument panel ..................30 → 36
Instrument panel warninglamps .....................................31-32
Interior............................................r7
Interior comfort................111 → 116
IInterior lighting..................109 - 11 0
Interior rear view mirror................r62
ISOFIX child seats.............104 - 105
ISOFIX fi xings.................... 104 - 105
K
Keys.............................................. 25
L
Lane Departure Warning System ...80
Levels
(engine)...........................121
Levels (temperature) ..................123
Lighting..................................51 - 52
Lighting control stalk.....................51
Lighting rheostat ...........................36
L
Loads and towing........................XVI
Locating of the vehicle..................24
Log of alerts ..................................40
M
Main beams..................................51
Main Menu.............................39 - 43
Maintenance....................120 → 132
Maintenance....................XX→XXII
Maintenance indicator...........r34 - 35
Maintenance intervals...................35
Maintenance position....................55
Manual steering column adjustment..................................57
Maximum speed....................71-72
Memorisation................................60
Mileage recorder...........................35
Monitoring..............................15 - 16
Multifunction displays..........39 → 43
N
NaviDrive/Audio system ..........43, 7.01 - 7.57
NaviDrive colour display ...............43
Night driving..................................36
O
Oil gauge....................................136
Oil temperature .............................46
P
Pack lounge seats ......................100
Paint colour code ........................148
Parking assistance ................78 - 79
