31
II
Imperative stop
warning lamp
When the warning
lamp comes on, it is
imperative to stop the vehicle and
switch off the engine.
This lamp is accompanied by a
STOP symbol on the display.
Contact a CITROËN dealer.
SERVICE warning lamp
This warning lamp remains
on for as long as the fault
associated with the alert
message is present (this in the
case of a serious fault).
Contact a CITROËN dealer as
soon as possible
The lamp stays on only for a short
time for a minor fault.
Contact a CITROËN dealer.
To recall the corresponding alert
message, see “Log of alerts”.
Battery charge
Should not be lit when
the engine is running. If it
lights permanently, contact
a CITROËN dealer. Engine oil pressure and
temperature warning
lamp
If it lights while you are
driving, stop the engine, check the
level, (see Chapter IV - “Levels”).
If it remains lit despite the level
being correct, contact a CITROËN
dealer. Driver’s and/or
passenger’s seat belt
not fastened warning
lamp
Comes on if the driver’s and/
or passenger’s seat belt is not
fastened.
The lighting of the warning lamp
is accompanied by a sound
signal and a message for about
90 seconds when the vehicle
exceeds a speed of 25 km/h
(approx. 15 mph).
Warning lamp for
handbrake, brake
luid level and braking
distribution fault.
When the engine is running, this
warning lamp indicates that the
handbrake is applied or incom-
pletely released, that the brake
luid level is insuficient, or that the
braking system is malfunctioning.
If the warning lamp remains lit
when the handbrake is released,
stop immediately and contact a
CITROËN dealer. Airbags warning lamp
It comes on for a few
seconds every time you
switch on the ignition.
Airbags malfunction
Flashing indicates that the airbags
are malfunctioning.
Contact a CITROËN dealer as
soon as possible.
Passenger’s airbag
deactivation
If the passenger’s airbag
is deactivated, the warning
lamp remains on.
W A R N I N G L A M P S

32 II
ESP/ASR warning lamp
In operation
When either the ESP or
ASR system is brought into opera-
tion, the ESP/ASR warning lamp
lashes.
In the event of a problem
Should there be a malfunction-
ing of the systems, the ESP/ASR
warning lamp comes on, ac -
companied by a message on the
MULTIFUNCTION DISPLAY and
by an audible signal. Consult a
CITROËN dealer to have the sys-
tem checked.
Deactivation
On deactivating the ESP/ASR sys-
tem, the lighting of the ESP/ASR
warning lamp is accompanied by
an audible signal and the mes-
sage ESP/ASR DEACTIVATED
on the multifunction screen. Anti-lock Braking
System
The ABS warning lamp
lights when the ignition is
switched on and should go out
after a few seconds.
If the warning lamp does not
go out, there may be a system
malfunction. (See Chapter II -
“Brakes”). Depollution system
warning lamp
If it lashes or lights up
while you are driving, this
indicates that the depollution sys-
tem has a functioning problem.
Contact a CITROËN dealer as
soon as possible.
LH direction indicator
See “Signalling” Diesel Preheater
See the instructions for
starting the engine.
Refer to section II - Driving
“Starting”.
RH direction indicator
See “Signalling”
All the direction indicators lash simultaneously when th e hazard
warning lamps are switched on.
Dipped beam
See “Signalling” Main beam
See “Signalling”
Foglamps
See “Signalling” Front foglamps
See “Signalling”
W A R N I N G L A M P S

5 II
Operation
When either the ESP or ASR system is brought into operation, the ESP/
ASR warning lamp lashes.
Deactivation
In exceptional conditions (vehicle stuck in snow, soft ground, e tc.) it may
prove useful to deactivate the ESP/ASR system to allow the wheels to spin
and thus regain traction.
- press control A.
- The ESP/ASR warning lamp lights up, accompanied by an audible signal
and the message ESP/ASR DEACTIVATED on the multifunction screen.
Then the ESP/ASR systems are no longer active.
The ESP/ASR systems will redeploy:
- automatically if the ignition has been switched off or as soon as the
vehicle reaches approx. 50 km/h (approx. 30 mph),
- manually by a renewed press on the control A.
Operational anomaly
If the system is malfunctioning, ESP/ASR warning lamp lights up al ong
with the SERVICE warning lamp, a beep and the message “ESP/ASR
FAULT” on the multifunction screen.
Consult a CITROËN dealer to have the system checked.
Electronic Stability Programme (ESP) and Traction Control (ASR)
These systems are closely connected to the ABS and additional to i
t. In
the event of a loss of control of the vehicle by the driver, the ESP system
acts automatically on one or more brakes and also on the engine to bring
the vehicle back on trajectory. The ASR system optimises traction and
prevents wheel spin by acting on the brakes of the driving whe els. It also
improves steering stability during acceleration. E L E C T R O N I C S T A B I L I T Y P R O G R A M M E
Safety recommendations
The ESP system offers increased
driving safety but is not in place
to encourage the driver to take
additional risks or to drive at
excessive speeds.
The functioning of this system is
subject to compliance with the
manufacturer’s recommendations
on wheels (tyres and rims), brake
parts and electronic components,
as well as with CITROËN’s
assembly and repair procedures.
After any collision, have this
system checked by a CITROËN
dealer.

A

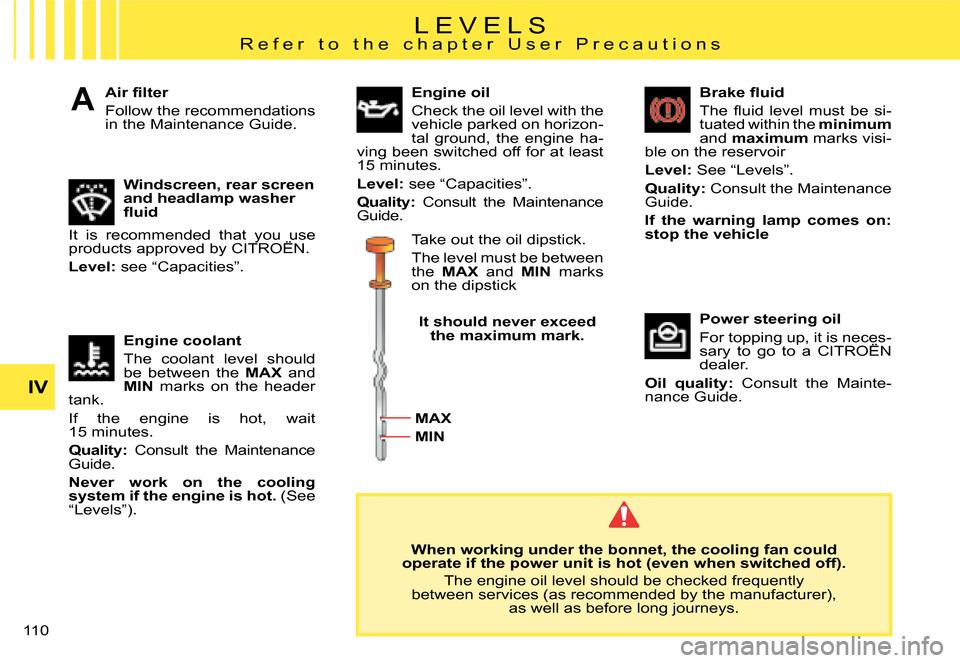

110 IV Air ilter
Follow the recommendations
in the Maintenance Guide.
When working under the bonnet, the cooling fan could
operate if the power unit is hot (even when switched off).
The engine oil level should be checked frequently
between services (as recommended by the manufacturer), as well as before long journeys.
Engine coolant
The coolant level should
be between the
MAX and
MIN marks on the header
tank.
If the engine is hot, wait
15 minutes.
Quality: Consult the Maintenance
Guide.
Never work on the cooling
system if the engine is hot. (See
“Levels”). Engine oil
Check the oil level with the
vehicle parked on horizon-
tal ground, the engine ha-
ving been switched off for at least
15 minutes.
Level: see “Capacities”.
Quality: Consult the Maintenance
Guide. Brake luid
The luid level must be si
-
tuated within the minimum
and maximum marks visi-
ble on the reservoir
Level: See “Levels”.
Quality: Consult the Maintenance
Guide.
If the warning lamp comes on:
stop the vehicle
Power steering oil
For topping up, it is neces-
sary to go to a CITROËN
dealer.
Oil quality: Consult the Mainte-
nance Guide.
Take out the oil dipstick.
The level must be between
the
MAX and MIN marks
on the dipstick
It should never exceed the maximum mark.
L E V E L S
R e f e r t o t h e c h a p t e r U s e r P r e c a u t i o n s
Windscreen, rear screen
and headlamp washer
luid
It is recommended that you use
products approved by CITROËN.
Level: see “Capacities”.
MAX
MIN

111
IV

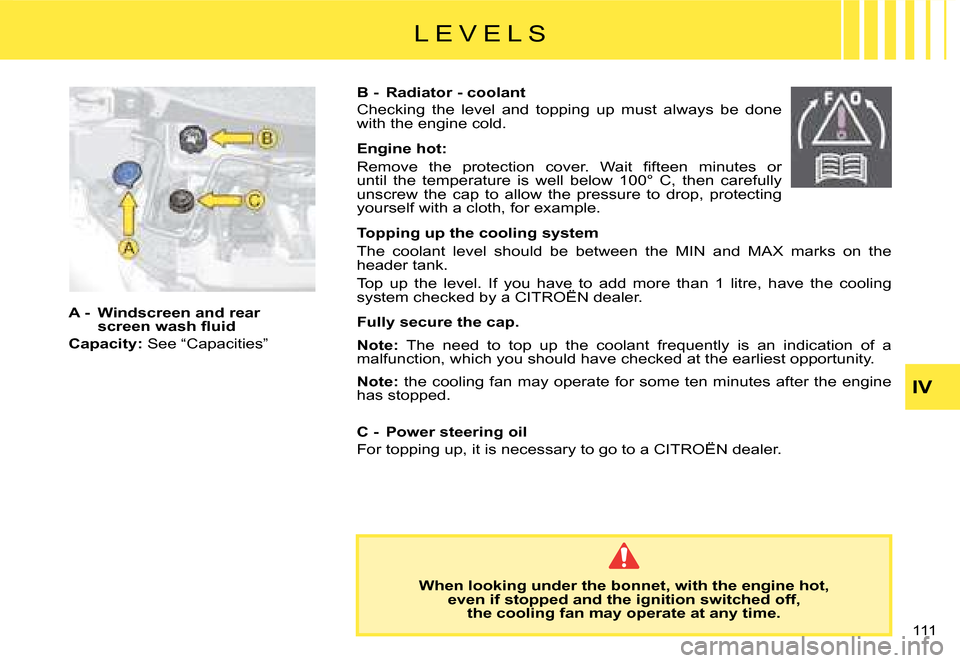

A - Windscreen and rear
screen wash luid
Capacity: See
“Capacities”
When looking under the bonnet, with the engine hot,
even if stopped and the ignition switched off, the cooling fan may operate at any time.
B - Radiator - coolant
Checking the level and topping up must always be done
with the engine cold.
Engine hot:
Remove the protection cover. Wait ifteen minutes or
until the temperature is well below 100° C, then carefull
y
unscrew the cap to allow the pressure to drop, protecting
yourself with a cloth, for example.
Topping up the cooling system
The coolant level should be between the MIN and MAX marks on t he
header tank.
Top up the level. If you have to add more than 1 litre, h ave the cooling
system checked by a CITROËN dealer.
Fully secure the cap.
Note: The need to top up the coolant frequently is an indicat ion of a
malfunction, which you should have checked at the earliest op portunity.
Note: the cooling fan may operate for some ten minutes after the e ngine
has stopped.
C - Power steering oil
For topping up, it is necessary to go to a CITROËN dealer. L E V E L S

112 IV

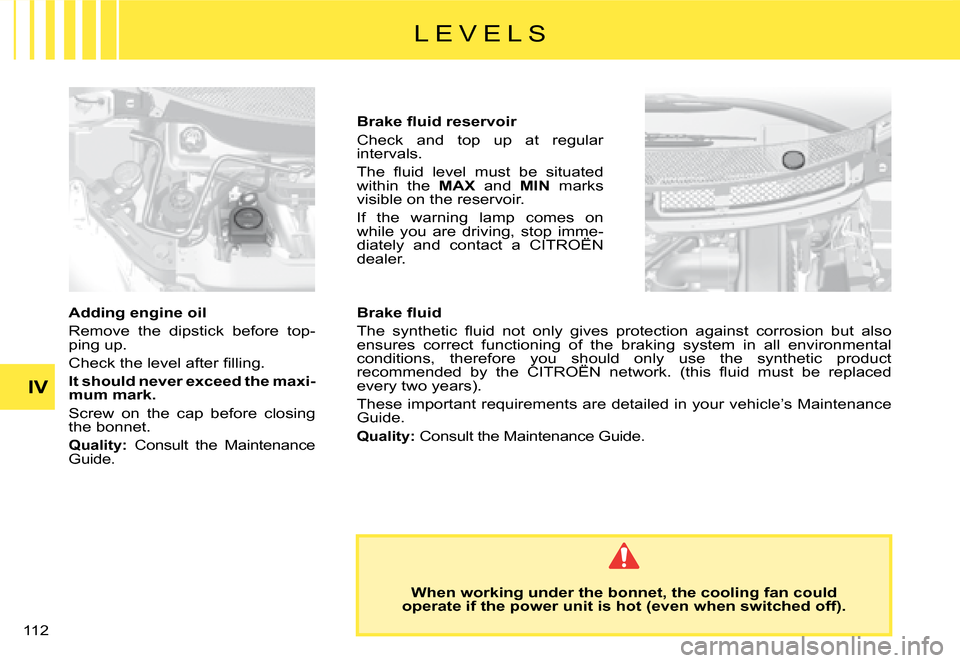

Adding engine oil
Remove the dipstick before top-
ping up.
Check the level after illing.
It should never exceed the maxi-
mum mark.
Screw on the cap before closing
the bonnet.
Quality:
Consult the Maintenance
Guide.
Brake luid
The synthetic luid not only gives protection against corrosion bu t also
ensures correct functioning of the braking system in all environment al
conditions, therefore you should only use the synthetic product
recommended by the CITROËN network. (this luid must be replaced
every two years).
These important requirements are detailed in your vehicle’s Maint enance
Guide.
Quality: Consult the Maintenance Guide.
Brake luid reservoir
Check and top up at regular
intervals.
The luid level must be situated
within the MAX and MIN marks
visible on the reservoir.
If the warning lamp comes on
while you are driving, stop imme-
diately and contact a CITROËN
dealer.
When working under the bonnet, the cooling fan could
operate if the power unit is hot (even when switched off). L E V E L S

C
A
4 2
1
3
B
115 IV
B A T T E R Y
Access to the battery
The battery is located under the loor on the front right
hand side (see “Battery compartment fuses”).
Emergency starting with a slave battery
A vehicle with a discharged battery can be started
with either a slave battery or the battery of another
vehicle.
A Discharged battery
B Slave battery
C Earth point on broken down vehicle.
It is essential to proceed strictly following the sequence
indicated.
Check that the emergency battery is correctly charged
up (12 volts). If you are using the battery on another
vehicle, stop the engine of the assisting vehicle. The
two vehicles must not come into direct contact with
each other.
Connect the cables in the order indicated in the
diagram. Make sure that the clamps are properly
secured (risk of sparks).
Start the engine of the assisting vehicle. Let the engine
run for about a minute at a slightly accelerated speed.
Never apply a lame or create sparks close
to the battery (explosive gas). The battery contains diluted sulphuric acid which is highly corrosive.
If ever you are handling the battery, protect your eyes a nd face.
In the event of any contact with the skin, rinse
immediately with copious amounts of fresh water.
Advice
Replace it with a battery of the
same type (voltage, amp rating).
Do not touch the cable clamps
during the procedure.
Do not lean over the batteries.
Disconnect the cables in the
reverse order to connection,
ensuring that they do not touch
each other. Start the engine of the assisted vehicle.
Note:
For any repair necessitating a disconnection
of the battery, it is essential to wait three minutes
after switching off the ignition and to avoid any action
that could prevent the vehicle’s electrical circuit from
changing to standby mode (such as opening and
closing doors, using the remote control etc.).

565656
IX

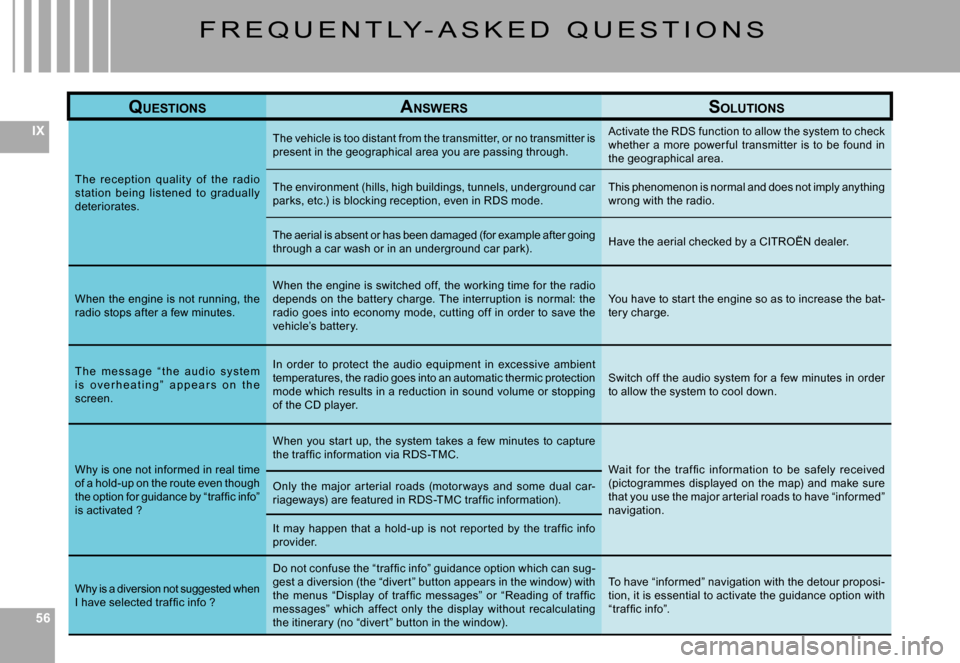

F R E Q U E N T LY - A S K E D Q U E S T I O N S
QUESTIONSANSWERSSOLUTIONS
The rec eption qualit y of the radio station being listened to gradually deteriorates.
The vehicle is too distant from the transmitter, or no transmitter is present in the geographical area you are passing th rough.
Activate the RDS function to allow the system to chec k whether a more power ful transmitter is to be found in the geographical area.
The environment (hills, high buildings, tunnels, underground car parks, etc.) is blocking reception, even in RDS mode.This phenomenon is normal and does not imply anythi ng wrong with the radio.
The aerial is absent or has been damaged (for example after going through a car wash or in an underground car park).Have the aerial checked by a CITROËN dealer.
When the engine is not running, the radio stops after a few minutes.
When the engine is switched off, the working time fo r the radio depends on the batter y charge. The interruption is nor mal: the radio goes into economy mode, cutting off in order to save the vehicle’s batter y.
You have to star t the engine so as to increase the bat-ter y charge.
T h e m e s s a g e “ t h e a u d i o s y s t e m i s o v e r h e a t i n g ” a p p e a r s o n t h e screen.
In order to protect the audio equipment in excessiv e ambient temperatures, the radio goes into an automatic thermic protection mode which results in a reduction in sound volume or stopping of the CD player.
Switch off the audio system for a few minutes in order to allow the system to cool down.
Why is one not informed in real time of a hold-up on the route even though the option for guidance by “traffi c info” is activated ?
When you star t up, the system takes a few minutes to c apture the traf fi c information via RDS-TMC.Wait for the traf fi c information to be safely received (pictogrammes displayed on the map) and make sure that you use the major ar terial roads to have “inform ed” navigation.
Only the major ar terial roads (motor ways and some d ual car-riageways) are featured in RDS-TMC traf fi c information).
It may happen that a hold-up is not repor ted by the tr af fi c info provider.
Why is a diversion not suggested when I have selected traf fi c info ?
Do not confuse the “traf fi c info” guidance option which can sug-gest a diversion (the “diver t” button appears in the w indow) with the menus “Display of traf fi c messages” or “Reading of traf fi c messages” which af fect only the display without recalculating the itinerar y (no “diver t” button in the window).
To have “informed” navigation with the detour proposi-tion, it is essential to activate the guidance option with “traf fi c info”.
