7
I
IN BRIEF
I N T E R I O R
1. Electric rear view mirror
controls.
- Electric window controls.
- Deactivation of rear electric
window controls.
2. Upper driver’s glove box.
3. Adjustable central air vents.
4. RD4 radio or GPS NaviDrive
radio telephone with shutter.
5. Instrument panel / Large
colour screen.
6. Sunlight and cabin
temperature sensor.
7. Upper passenger’s glove box.
8. Windscreen deicing and
demisting vent.
9. Loudspeaker (tweeter).
10. Window deicing and
demisting vent.
11. Passenger’s airbag
deactivation switch (if i tted). 26.
Bonnet opening (under
cover) – left-hand side.
27. Acoustic windscreen.
12.
Adjustable side air vent.
13. Battery / Fuse box.
14. Passenger’s airbag.
15. Lower passenger’s glove
box / CD changer.
16. Air conditioning controls.
17. Cigar lighter / 12 V accessory
socket.
18. Hazard warning lamps.
19. Oddments tray or additional
telematics control.
20. Refrigerated compartment.
21. Ashtray / Bottle-holder.
22. Seat adjustment control.
23. Storage.
24. Fuse box.
25. Parking brake – left-hand
side.
 71
DATE AND TIME
ADJUSTMENT
ADDITIONAL HEATING
With the engine idle or with
the vehicle stationary it is
usual to notice a whistling
noise and some minor
emissions (steam / odours). 
35-36


I
IN BRIEF

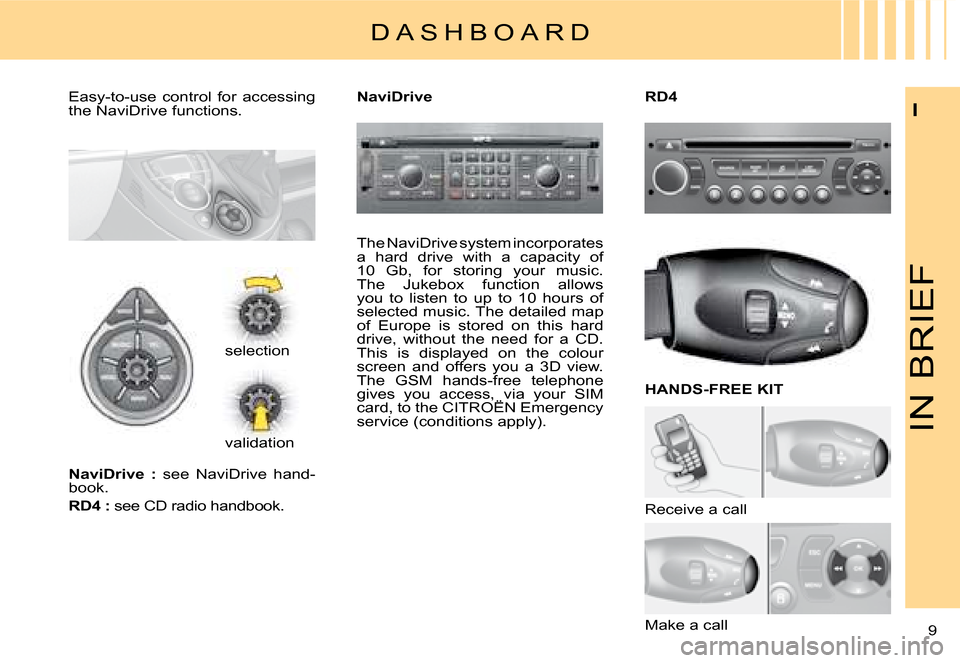

D A S H B O A R D
Easy-to-use control for accessing
the NaviDrive functions.
NaviDrive : see NaviDrive hand-
book.
RD4 : see CD radio handbook. NaviDrive
The NaviDrive system incorporates
a hard drive with a capacity of
10 Gb, for storing your music.
The Jukebox function allows
you to listen to up to 10 hours of
selected music. The detailed map
of Europe is stored on this hard
drive, without the need for a CD.
This is displayed on the colour
screen and offers you a 3D view.
The GSM hands-free telephone
gives you access, via your SIM
card, to the CITROËN Emergency
service (conditions apply).
RD4
HANDS-FREE KIT
Receive a call
Make a call
selection
validation

1 II

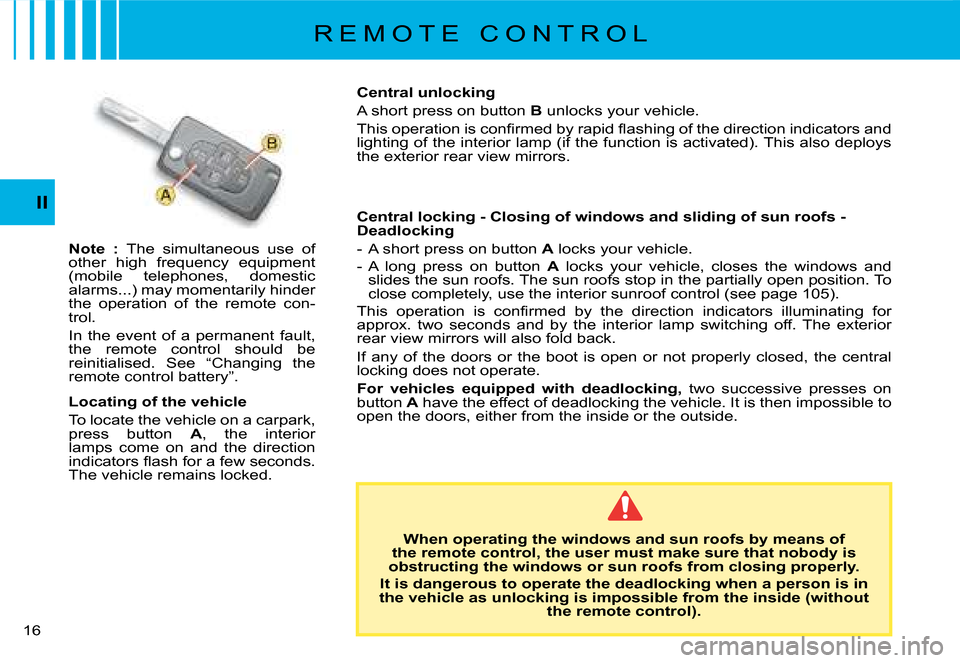

R E M O T E C O N T R O L
Note : The simultaneous use of
other high frequency equipment
(mobile telephones, domestic
alarms...) may momentarily hinder
the operation of the remote con-
trol.
In the event of a permanent fault,
the remote control should be
reinitialised. See “Changing the
remote control battery”.
Locating of the vehicle
To locate the vehicle on a carpark,
press button A, the interior
lamps come on and the direction
indicators lash for a few seconds.
The vehicle remains locked.
When operating the windows and sun roofs by means of
the remote control, the user must make sure that nobody is
obstructing the windows or sun roofs from closing proper ly.
It is dangerous to operate the deadlocking when a perso n is in
the vehicle as unlocking is impossible from the inside (without
the remote control).
Central unlocking
A short press on button
B unlocks your vehicle.
This operation is conirmed by rapid lashing of the direction ind icators and
lighting of the interior lamp (if the function is activated ). This also deploys
the exterior rear view mirrors.
Central locking - Closing of windows and sliding of sun roofs -
Deadlocking
- A short press on button A locks your vehicle.
- A long press on button A locks your vehicle, closes the windows and
slides the sun roofs. The sun roofs stop in the partially open position. To
close completely, use the interior sunroof control (see page 105 ).
This operation is conirmed by the direction indicators illuminati ng for
approx. two seconds and by the interior lamp switching off. Th e exterior
rear view mirrors will also fold back.
If any of the doors or the boot is open or not properly closed , the central
locking does not operate.
For vehicles equipped with deadlocking, two successive presses on
button A have the effect of deadlocking the vehicle. It is then imp ossible to
open the doors, either from the inside or the outside.

3 II

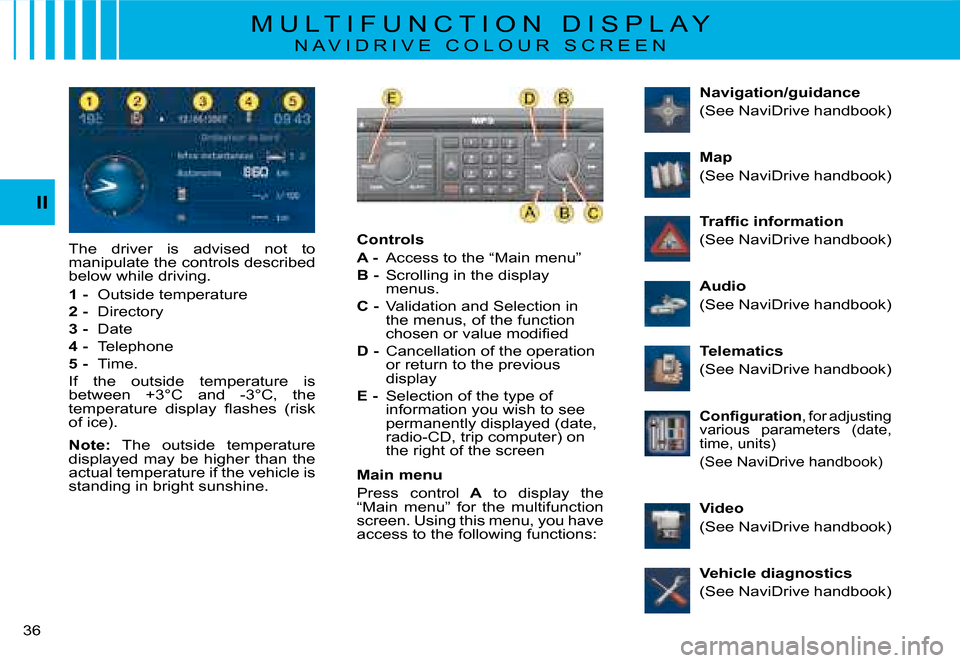

M U L T I F U N C T I O N D I S P L A Y
N A V I D R I V E C O L O U R S C R E E N
Controls
A -
Access to the “Main menu”
B - Scrolling in the display
menus.
C - Validation and Selection in
the menus, of the function
chosen or value modiied
D - Cancellation of the operation
or return to the previous
display
E - Selection of the type of
information you wish to see
permanently displayed (date,
radio-CD, trip computer) on
the right of the screen
Main menu
Press control A to display the
“Main menu” for the multifunction
screen. Using this menu, you have
access to the following functions: Trafic information
(See NaviDrive handbook)
Vehicle diagnostics
(See NaviDrive handbook)
Telematics
(See NaviDrive handbook)
Coniguration
, for adjusting
various parameters (date,
time, units)
(See NaviDrive handbook)
Map
(See NaviDrive handbook)
Video
(See NaviDrive handbook)
Navigation/guidance
(See NaviDrive handbook)
Audio
(See NaviDrive handbook)
The driver is advised not to
manipulate the controls described
below while driving.
1 -
Outside temperature
2 - Directory
3 - Date
4 - Telephone
5 - Time.
If the outside temperature is
between +3°C and -3°C, the
temperature display lashes (risk
of ice).
Note: The outside temperature
displayed may be higher than the
actual temperature if the vehicle is
standing in bright sunshine.

11
1

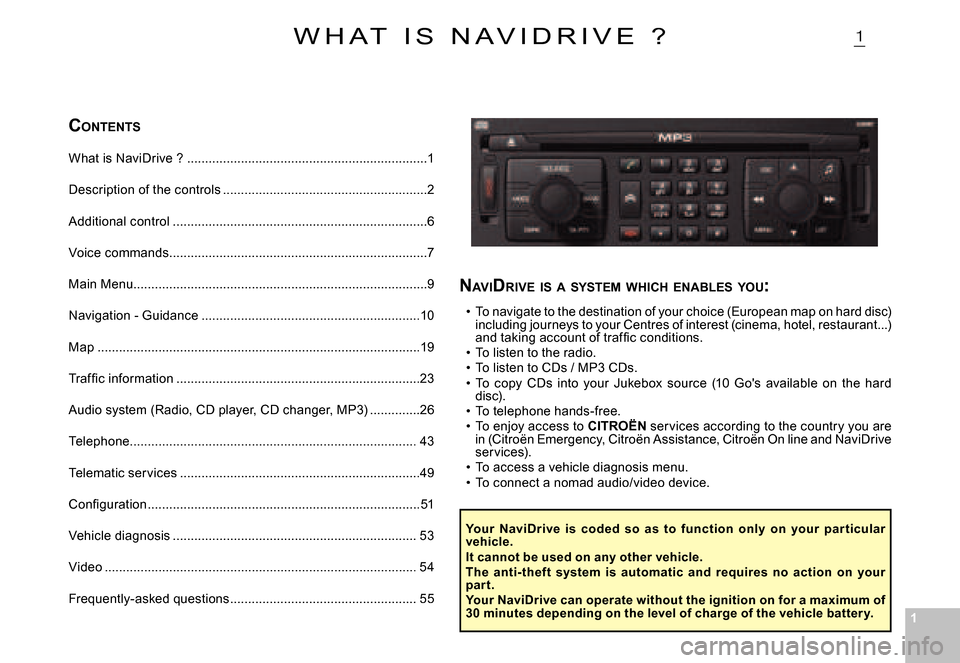

CONTENTS
What is NaviDrive ? .................................................. .................1
Description of the controls .........................................................2
Additional control .................................................. .....................
Voice commands ........................................................................7
Main Menu................................................... ...............................
Navigation - Guidance .............................................................10
Map .................................................. ........................................1
Traffi c information ....................................................................23
Audio system (Radio, CD player, CD changer, MP3) ..............2
Telephone................................................... .............................43
Telematic services ...................................................................4
Confi guration ............................................................................51
Vehicle diagnosis .................................................. ..................53
Video .......................................................................................54
Frequently-asked questions ....................................................55
W H A T I S N A V I D R I V E ?
NAVI DRIVE IS A SYSTEM WHICH ENABLES YOU :
To navigate to the destination of your choice (Euro pean map on hard disc) including journeys to your Centres of interest (cinema, hotel, restaurant...) and taking account of traffi c conditions.To listen to the radio.To listen to CDs / MP3 CDs.To copy CDs into your Jukebox source (10 Go's avail able on the hard disc).To telephone hands-free.To enjoy access to CITROËN services according to the country you are in (Citroën Emergency, Citroën Assistance, Citroën On line and NaviDrive services).To access a vehicle diagnosis menu.To connect a nomad audio/video device.

22
1
9
11
53
8
6724
10

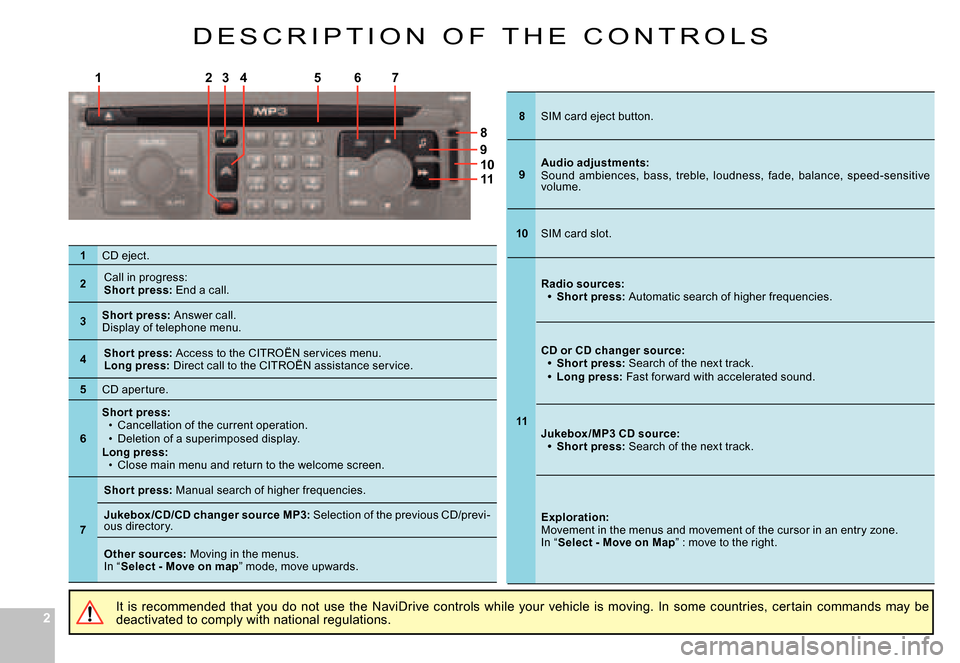

D E S C R I P T I O N O F T H E C O N T R O L S
It is recommended that you do not use the NaviDrive controls while your vehicle is moving. In some countries, certain commands may be deactivated to comply with national regulations.
1CD eject.
2Call in progress:Shor t press: End a call.
3Shor t press: Answer call.Display of telephone menu.
4Shor t press: Access to the CITROËN ser vices menu.Long press: Direct call to the CITROËN assistance ser vice.
5CD aper ture.
6
Shor t press:Cancellation of the current operation.Deletion of a superimposed display.Long press:Close main menu and return to the welcome screen.

66
A

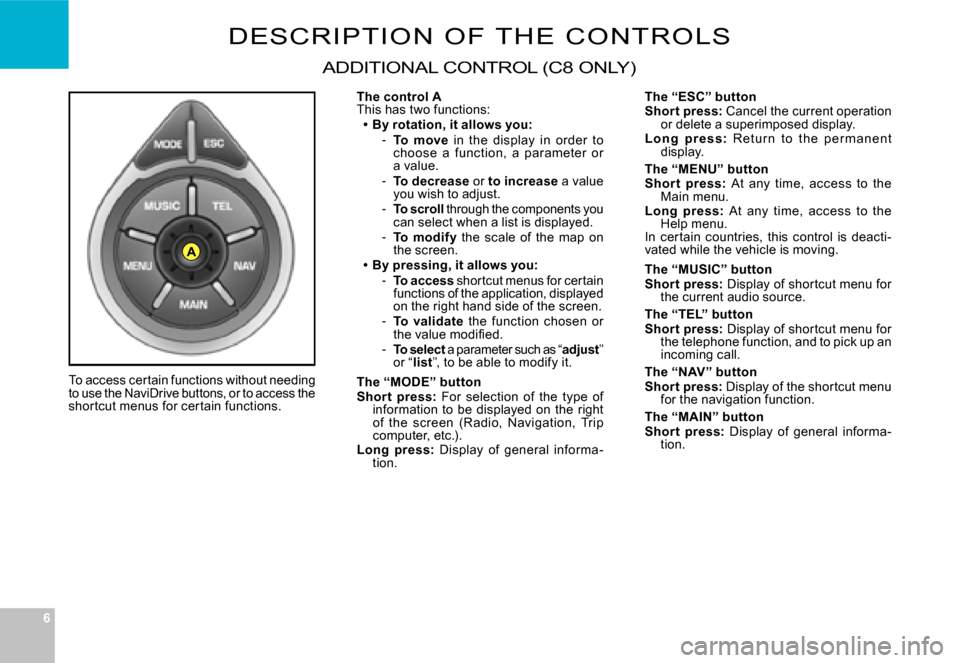

D ESCRIPTIO N O F TH E CO NTRO LS
ADDITIONAL CONTROL (C ONLY)
The “ESC” buttonShor t press: Cancel the current operation or delete a superimposed display.L o n g p r e s s: Ret u r n t o t h e p e r m a n e nt display.
The “MENU” buttonShor t press: At any time, access to the Main menu.Long press: At any time, access to the Help menu.In certain countries, this control is deacti-vated while the vehicle is moving.
The “MUSIC” buttonShor t press: Display of shortcut menu for the current audio source.
The “TEL” buttonShor t press: Display of shortcut menu for the telephone function, and to pick up an incoming call.
The “NAV” buttonShor t press: Display of the shortcut menu for the navigation function.
The “MAIN” buttonShor t press: Display of general informa-tion.
To access certain functions without needing to use the NaviDrive buttons, or to access the shortcut menus for certain functions.
The control AThis has two functions:By rotation, it allows you:To move in the display in order to choose a function, a parameter or a value.To decrease or to increase a value you wish to adjust.To scroll through the components you can select when a list is displayed.To modify the scale of the map on the screen.By pressing, it allows you:To access shortcut menus for certain functions of the application, displayed on the right hand side of the screen.To validate the function chosen or the value modifi ed.To select a parameter such as “lectadjust” or “list”, to be able to modify it.
The “MODE” buttonShor t press: For selection of the type of information to be displayed on the right of the screen (Radio, Navigation, Trip computer, etc.).Long press: Display of general informa-tion.

88
Press on the end of the lighting control stalk to start voice recognition and say "Help" or " What can I say " to display the list of voice commands that are available.
CD playerDetail page 3
CD player
RandomDetail page 2ListTrack number1-20Previous trackNext trackScanDetail page 2Detail page 2
FolderRepeatNextPreviousJukeboxDetail page 3Detail page 3
Jukebox
RandomDetail page 2Detail page 2ListTrack number1-20Previous trackNext trackScanDetail page 2Detail page 2
FolderRepeatNextPreviousCD changerDetail page 42
CD changer
Disc number1-5Detail page 42Detail page 42Previous discNext discRandomDetail page 2Detail page 2ListTrack number1-20Detail page 42Detail page 42Previous trackDetail page 42Detail page 42Next trackDetail page 42Detail page 42RepeatScanDetail page 2
Display
AudioDetail page 2NavigatorDetail page 12Trip computerTelephoneDetail page 45
Telephone
Voice mailDetail page 45Redial
Adress book“Pre-recorded label”Detail page 45
Call“Pre-recorded label”Detail page 47
MessageDisplayDetail page 4ReadDetail page 4
Navigator
StopDetail page 12
Adress book“Pre-recorded label”Detail page 13
Restar tDetail page 12
ShowDestinationDetail page 25VehicleDetail page 25Zoom outDetail page 1Zoom inDetail page 1Guide to“Pre-recorded label”
Traf fi c InfoDisplayDetail page 25ReadDetail page 25RadioDetail page 31
Radio
AutostoreDetail page 32ListDetail page 32Memor y1- Detail page 31PreviousDetail page 31NextDetail page 31
L I S T A N D S T R U C T U R E O F V O I C E
C O M M A N D S
HOW TO ACCESS THE LIST OF PRE -RECORDED VOICE COMMANDS ?

4343
V
T E L E P H O N E
G E N E R A L
The telephone function consists of a GSM telephone incorporated in NaviDrive.It has a “Hands-free” function, provided by a microphone located in the front interior lamp and controls at the steering wheel for accessing the majority of operations.
As wit h any mobil e t el ephone, t his t el ep hon e op er at e s t hanks to b ot h cellular and terrestrial networks. For this reason, it cannot guarantee a con-nection in all cases.
Do not allow yourself to be distracted while you are driving.I t i s e s s e n t i a l t o c o m p l y w i t h t h e national legislation in force.Stop the vehicle if you wish to pursue a telephone conversation or proceed w i t h c e r t a i n a c t i o n s (c o m p o si n g a number for example).
Apart from during a communication, it indi-cates to you:the presence of voice messages or text messages (S M S) that have not been read,the communication time since the last update,the level of reception of the networks.
Dur ing a c ommunic ation, it indic ates to you:the time elapsed since the star t of the communication,the number (provided the option and the service are available),the name of your correspondant (if this is recorded in the directory),the level of reception of the network.

4545
V
A
B
C
D
A
BC
A
D

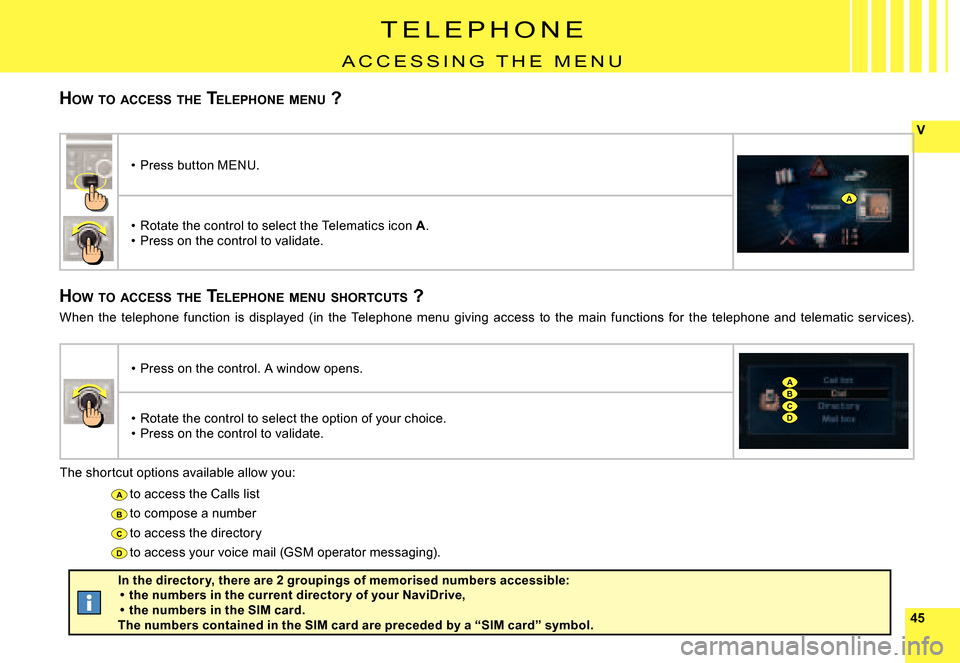

T E L E P H O N E
A C C E S S I N G T H E M E N U
HOW TO ACCESS THE TELEPHONE MENU ?
HOW TO ACCESS THE TELEPHONE MENU SHORTCUTS ?
The shortcut options available allow you:
to access the Calls list
to compose a number
to access the directory
to access your voice mail (GSM operator messaging).
In the director y, there are 2 groupings of memorised numbers accessible:the numbers in the current director y of your NaviDriv e,the numbers in the SIM card.The numbers contained in the SIM card are preceded b y a “SIM card” symbol.
