stop start Citroen C8 2008 1.G Owner's Manual

22 II
S: IGNITION
To free the steering lock, gently
action the steering wheel while
turning the key, without using
undue force.
When removing the key, turn the
steering wheel until the steering
locks. The key can only be re-
moved from position S.
M: DRIVE POSITION
The steering is freed (by turning
the key to position M, action the

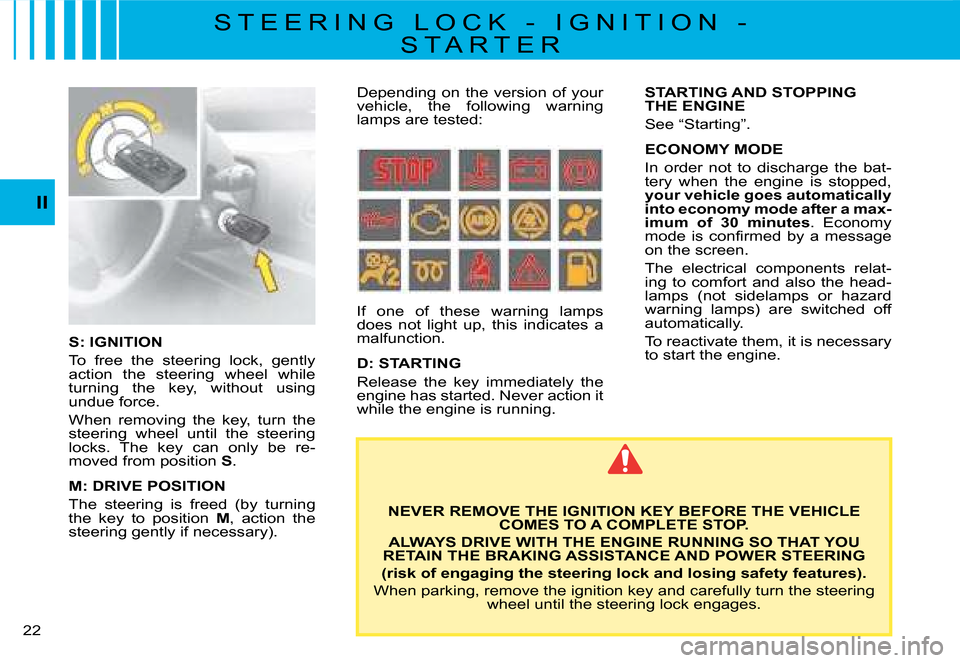

steering gently if necessary). S T E E R I N G L O C K - I G N I T I O N -
S T A R T E R
NEVER REMOVE THE IGNITION KEY BEFORE THE VEHICLE COMES TO A COMPLETE STOP.
ALWAYS DRIVE WITH THE ENGINE RUNNING SO THAT YOU
RETAIN THE BRAKING ASSISTANCE AND POWER STEERING
(risk of engaging the steering lock and losing safety fea tures).
When parking, remove the ignition key and carefully turn the st eering
wheel until the steering lock engages.
Depending on the version of your
vehicle, the following warning
lamps are tested:
If one of these warning lamps
does not light up, this indicates a
malfunction.
D: STARTING
Release the key immediately the
engine has started. Never action it
while the engine is running.
STARTING AND STOPPING
THE ENGINE
See “Starting”.
ECONOMY MODE
In order not to discharge the bat-
tery when the engine is stopped,
your vehicle goes automatically
into economy mode after a max-
imum of 30 minutes
. Economy
mode is conirmed by a message
on the screen.
The electrical components relat-
ing to comfort and also the head-
lamps (not sidelamps or hazard
warning lamps) are switched off
automatically.
To reactivate them, it is necessary
to start the engine.

C
A
4 2
1
3
B
115 IV
B A T T E R Y
Access to the battery
The battery is located under the loor on the front right
hand side (see “Battery compartment fuses”).
Emergency starting with a slave battery
A vehicle with a discharged battery can be started
with either a slave battery or the battery of another
vehicle.
A Discharged battery
B Slave battery
C Earth point on broken down vehicle.
It is essential to proceed strictly following the sequence
indicated.
Check that the emergency battery is correctly charged
up (12 volts). If you are using the battery on another
vehicle, stop the engine of the assisting vehicle. The
two vehicles must not come into direct contact with
each other.
Connect the cables in the order indicated in the
diagram. Make sure that the clamps are properly
secured (risk of sparks).
Start the engine of the assisting vehicle. Let the engine
run for about a minute at a slightly accelerated speed.
Never apply a lame or create sparks close
to the battery (explosive gas). The battery contains diluted sulphuric acid which is highly corrosive.
If ever you are handling the battery, protect your eyes a nd face.
In the event of any contact with the skin, rinse
immediately with copious amounts of fresh water.
Advice
Replace it with a battery of the
same type (voltage, amp rating).
Do not touch the cable clamps
during the procedure.
Do not lean over the batteries.
Disconnect the cables in the
reverse order to connection,
ensuring that they do not touch
each other. Start the engine of the assisted vehicle.
Note:
For any repair necessitating a disconnection
of the battery, it is essential to wait three minutes
after switching off the ignition and to avoid any action
that could prevent the vehicle’s electrical circuit from
changing to standby mode (such as opening and
closing doors, using the remote control etc.).

88
Press on the end of the lighting control stalk to start voice recognition and say "Help" or " What can I say " to display the list of voice commands that are available.
CD playerDetail page 3
CD player
RandomDetail page 2ListTrack number1-20Previous trackNext trackScanDetail page 2Detail page 2
FolderRepeatNextPreviousJukeboxDetail page 3Detail page 3
Jukebox
RandomDetail page 2Detail page 2ListTrack number1-20Previous trackNext trackScanDetail page 2Detail page 2
FolderRepeatNextPreviousCD changerDetail page 42
CD changer
Disc number1-5Detail page 42Detail page 42Previous discNext discRandomDetail page 2Detail page 2ListTrack number1-20Detail page 42Detail page 42Previous trackDetail page 42Detail page 42Next trackDetail page 42Detail page 42RepeatScanDetail page 2
Display
AudioDetail page 2NavigatorDetail page 12Trip computerTelephoneDetail page 45
Telephone
Voice mailDetail page 45Redial
Adress book“Pre-recorded label”Detail page 45
Call“Pre-recorded label”Detail page 47
MessageDisplayDetail page 4ReadDetail page 4
Navigator
StopDetail page 12
Adress book“Pre-recorded label”Detail page 13
Restar tDetail page 12
ShowDestinationDetail page 25VehicleDetail page 25Zoom outDetail page 1Zoom inDetail page 1Guide to“Pre-recorded label”
Traf fi c InfoDisplayDetail page 25ReadDetail page 25RadioDetail page 31
Radio
AutostoreDetail page 32ListDetail page 32Memor y1- Detail page 31PreviousDetail page 31NextDetail page 31
L I S T A N D S T R U C T U R E O F V O I C E
C O M M A N D S
HOW TO ACCESS THE LIST OF PRE -RECORDED VOICE COMMANDS ?

131313
I
B1B2B3B4
C1C2C3C4C5
A1
A2
A3
A4
B1
B2
B3
B4
C1
C2
C3
C4
C5
D
A
B
C
ABCD
A1A2A3A4
N A V I G A T I O N / G U I D A N C E
M E N U S T R U C T U R E
WHAT ARE THE FUNCTIONS OF THE NAVIGATION /GUIDANCE MENU ?
CHOOSE A DESTINATION
Enter a city name, a street name, a street no. or inter -section.Enter the GPS coordinates for a location.
Select a location that is stored in the directory.
Select a location from among the last twenty destina-tions requested.
ENTER STAGES AND ITINERARY
Add a stage to an itinerary after starting a guidance .
Order or delete stages when creating an itinerary.
Divert an itinerary according to the number of kilome -tres (or miles) you will have indicated (for example to avoid a traffi c hold-up).
Alter the destination initially chosen.
SET PARAMETERS FOR THE GUIDANCE OPTIONS
Defi ning the route calculation criteria.
Adjust the volume of the voice synthesis.
Activate/Deactivate the pronunciation of a street n ame in the voice instructions.View the types of navigation information available o n the hard disc.Delete the last destinations automatically memorised.
STOP /RESUME THE CURRENT GUIDANCE

292929
IV
A1
A2
A3
A4
B1
B2
B3
B4
A1A2A3A4
ABC
B1B2B3B4
C
A
B
WHAT ARE THE FUNCTIONS OF THE AUDIO MENU ?
SETTING PARAMETERS FOR RADIO SOURCE
Manually enter the frequency of a station.
Activate or deactivate RDS search.
Activate or deactivate regional search mode.
To activate or deactivate display of the text informa tion broadcast by the station being listened to (name of singer, title of song, etc.).
SETTING PARAMETERS FOR CD AND JUKEBOX SOURCES
Activate or deactivate playback of the start of eac h track of the CD/CD MP3.
Activate or deactivate playback of all the tracks of t he CD or of all the directory of the Jukebox.
Activate or deactivate repetition of the current album or CD-cover.
Activate or deactivate display of the information on the CD (Name of the album, artist, etc.).
COPY OR STOP COPYING A CD OR A CD MP3
A U D I O
S T R U C T U R E O F T H E M E N U ( 1 / 2 )
