Page 87 of 268
SAFETY
91
Parking assistance
4
FRONT AND/OR REAR
PARKING ASSISTANCE
I f fi t t e d o n y o u r v e h i c l e , t h e s y s t e m i s
audible and/or visual and consists of
four proximity sensors, located in the
f r o n t a n d / o r r e a r b u m p e r . T h e s e n s o r s
detect any obstacle which enters
t h e fi e l d : p e r s o n , v e h i c l e , t r e e , g a t e ,
located in front of or behind the vehicle
d u r i n g t h e m a n o e u v r e .
Objects the size or thickness of which
is detected at the beginning of the
manoeuvre, may no longer be detected
at the end of the manoeuvre: due to
blind spots between and below the
s e n s o r s . E x a m p l e s : s t a k e , r o a d w o r k s
c o n e , k e r b s t o n e .
This system does not take the place of
the vigilance and responsibility of the
d r i v e r .
Switching the system on
The system is activated as soon as:
- reverse gear is engaged,
- the speed falls below 6 mph ( 1 0 k m / h ) i n f o r w a r d g e a r .
This is accompanied by an audible
signal and displaying of the vehicle,
d e p e n d i n g o n t h e d i s p l a y .
The proximity information is given by:
- an audible signal, which becomes more rapid as the vehicle
approaches the obstacle,
- a graphic on the display, with blocks which become progressively
c l o s e r t o t h e v e h i c l e .
The obstacle is located in relation to the
emission of the audible signal from the
s p e a k e r s , f r o n t o r r e a r a n d r i g h t o r l e f t .
Switching the system off
Press the button again to re-activate
t h e s y s t e m . T h e i n d i c a t o r l i g h t o n t h e
b u t t o n s w i t c h e s o f f . In bad or wintry weather, ensure
that the sensors are not covered
w i t h m u d , f r o s t o r s n o w .
I n t h i s c a s e ( e . g . s e n s o r s d i r t y ) , w h e n
reverse gear is engaged, the indicator
l i g h t fl a s h e s , a c c o m p a n i e d b y a n a u d i b l e
s i g n a l a n d a m e s s a g e o n t h e d i s p l a y .
C o n s u l t a C I T R O Ë N d e a l e r .
Deactivation Press the button on the fascia
to deactivate the system
( t o a v o i d w a k i n g a c h i l d . . . ) .
The indicator light on the
b u t t o n c o m e s o n .
The system returns to the inactive
status:
- when you exit reverse gear,
- when the speed increases to above
6 mph (10 km/h),
- at the end of the manoeuvre, when the vehicle becomes stationary
( f r o n t p a r k i n g a s s i s t a n c e o n l y ) .
RE-ACTIVATION
When the distance between the vehicle
and the obstacle is less than approximately
thirty centimetres, the audible signal
becomes continuous and the "Danger"
s y m b o l a p p e a r s d e p e n d i n g o n t h e d i s p l a y .
This function will be deactivated
automatically when the vehicle is
towing a trailer or when a bicycle
c a r r i e r i s fi t t e d ( v e h i c l e fi t t e d w i t h
towing attachment or bicycle carrier
r e c o m m e n d e d b y C I T R O Ë N ) .
Page 107 of 268
107
Towing a trailer
ACCESSORIES
5
TOWING A TRAILER, CARAVAN, BOAT, ETC...
Refer to the administrative
documents (V5, ...) or to the Petrol
or Diesel "Dimensions, weights
and towed loads" section of
chapter 8.
Distribution of loads: distribute the
load in the trailer so that the heaviest
loads are as close as possible to the
axle and the nose weight is close
to the maximum authorised without,
however, exceeding it.
Cooling: towing a trailer on a slope
increases the coolant temperature.
As the fan is electrically controlled, its
cooling capacity is not dependent on
the engine speed.

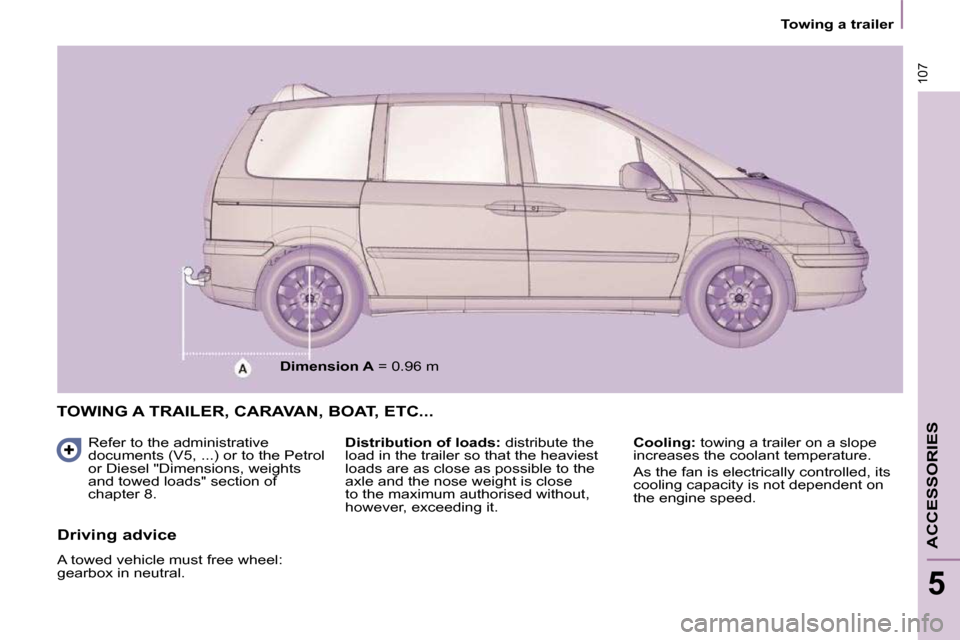

Dimension A = 0.96 m
Driving advice
A towed vehicle must free wheel:
gearbox in neutral.
Page 108 of 268
108
Towing a trailer
On the contrary, use a high gear to
lower the engine speed and reduce
your speed.
In all cases, pay attention to the
coolant temperature.
Brakes: towing increases the braking
distance. Drive at a moderate speed,
change down early and brake
gradually. P l e a s e c o n t a c t a C I T R O Ë N d e a l e r fi r s t
for further information .
Automatic adjustment
For vehicles with Xenon bulbs, and if
the change in load makes it necessary,
this system automatically corrects the
height of the beam after approximately
2 minutes. The driver is then assured
of having optimum lighting and not
causing a nuisance to other road
users.
In certain cases of particularly
arduous use (towing the
maximum load up a steep slope
in high temperatures), the engine
automatically limits its power. In this
case, cutting off the air conditioning
allows the engine power to be
recovered, and therefore the towing
s p e e d t o b e s i g n i fi c a n t l y i n c r e a s e d
(approximately 12 mph [20 km/h]
more). Sequential control of the
gearbox may also become unavailable.
Lighting
Bicycle carrier
R e f e r t o t h e " I d e n t i fi c a t i o n
features" section of chapter 8. Refer to the "Steering wheel
controls" section of chapter 3.
When using a trailer connection,
you must add a fuse. Refer to
the "Changing a fuse" section of
chapter 7.
If the coolant temperature warning light
comes on, stop the vehicle and switch
off the engine as soon as possible.
Tyres: check the tyre pressures of
the towing vehicle and of the trailer,
observing the recommended pressure.
Side wind: sensitivity to side wind is
increased. Drive smoothly and at a
moderate speed.
Towbar
We recommend the use of original
CITROËN towbars, which have been
tested for endurance from the design
stage of your vehicle.
T o w i n g e q u i p m e n t m u s t b e fi t t e d i n
accordance with the manufacturer’s
instructions, with particular attention to
the towing capacities of your vehicle,
the load towed, the nose weight and
t h e e l e c t r i c a l c o n n e c t i o n . A s t h i s fi t t i n g
should be carried out by a professional,
we recommend that you entrust the
fi t t i n g o f t h i s e q u i p m e n t t o a C I T R O Ë N
dealer.
In accordance with the general
instructions referred to above, we draw
your attention to the risk connected
w i t h fi t t i n g a t o w b a r o r o t h e r e l e c t r i c a l
accessory which is not recommended
by the CITROËN network. Fitting such
equipment could result in a failure of
your vehicle’s electronic system. Manual adjustment
Adjust your headlamps so as not to
dazzle other road users. Check the
electrical signalling of the trailer.
I f y o u fi t a b i c y c l e c a r r i e r o n
the tailgate, deactivate the
rear wiper from the display's
c o n fi g u r a t i o n m e n u .
Page 146 of 268
141
Petrol and Diesel technical data
TECHNICAL DATA
8
The GTW and towing load values indicated are valid up to a maximum altitude of 1 000 metres; the towing load
mentioned must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High exterior temperatures may result in a reduction in the perf ormance of the vehicle in order to protect the engine;
when the exterior temperature is above 37 °C, restrict the towe d weight.
Model codes
EARFJ__ EBRFJ__
7 seats 8 seats
Engines
2.0 PETROL
Manual
Gross train weight (GTW) 3 705 3 705
Gross vehicle weight (GVW) 2 405 2 405
Gross weight
on axle 1 1 270
on axle 2 1 300
Gross towed weight 1 750 1 700
Gross weight of unbraked trailer750 750
Gross weight on towing attachment 76 76
Page 148 of 268
145
Petrol and Diesel technical data
TECHNICAL DATA
The GTW and towing load values indicated are valid up to a maximum altitude of 1 000 metres; the towing load ment ioned
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High exterior temperatures may result in a reduction in the perf ormance of the vehicle in order to protect the engine; when
the exterior temperature is above 45 °C, restrict the towed wei ght.
Model codes EARHKH EBRHKH EARHRH EBRHRH EA4HTH
EA4HPH EA4HRJ EA4HSJ EB4HTH
EB4H PH EB4HRJ EB4HSJ
7 seats 8 seats 7 seats 8 seats 7 seats 8 seats
Engines 2.0 HDi 2.0 HDi PEF 2.2 HDi PEF
Gross train weight (GTW) 3 875 3 945 3 945
Gross vehicle weight (GVW) 2 530 2 530 2 570 on Axle 1 1 253 1 259 1 256 1 263 1 304 1 318
on Axle 2 1 277 1 271 1 274 1 267 1 266 1 252
Gross weight
on Axle 1 1 270 1 270 1 270 1 270 1 370 1 370
on Axle 2 1 300 1 300 1 300 1 300 1 300 1 300
Gross towed weight 1 820 1 800 1 850
Gross weight of unbraked trailer 750 750 750 75 0 750 750
Gross weight on towing
attachment 73 72 76 76 75 75
