Citroen C8 2010 1.G User Guide
Manufacturer: CITROEN, Model Year: 2010, Model line: C8, Model: Citroen C8 2010 1.GPages: 236, PDF Size: 11.67 MB
Page 11 of 236
33
Interior
16
VENTILATION
65 - 73 56 ADAPT CORRECTLY
Automatic with separate adjustment
P r e s s , A U T O i s d i s p l a y e d , t h i s i s t h e
usual mode.
Details of the modularity of the seats
are indicated in chapter 3.
Good practice when moving a seat.
O b s e r v e t h e o r d e r o f t h e s t e p s r e f e r r e d
to in the document, place the head
restraint in the lowest position, fold
the seat back onto the seat cushion,
e n s u r e t h a t t h e r e fi t t i n g p o s i t i o n i s
compatible with the type of seat, offer
up the front feet of the seat directly
above the slides or retaining hooks on
t h e fl o o r b e f o r e t r i g g e r i n g t h e r e fi t t i n g
of the rear feet.
Air conditioning
Page 12 of 236
17
1
FAMILIARISATION
I d e n t i fi c a t i o n f e a t u r e s
IDENTIFICATION FEATURES - the wheel and tyre sizes,
- the brands of tyres approved by the manufacturer, - the tyre pressures
(the tyre
pressure must be checked when
the tyre is cold, at least once a
month) ,
- the paint colour reference.

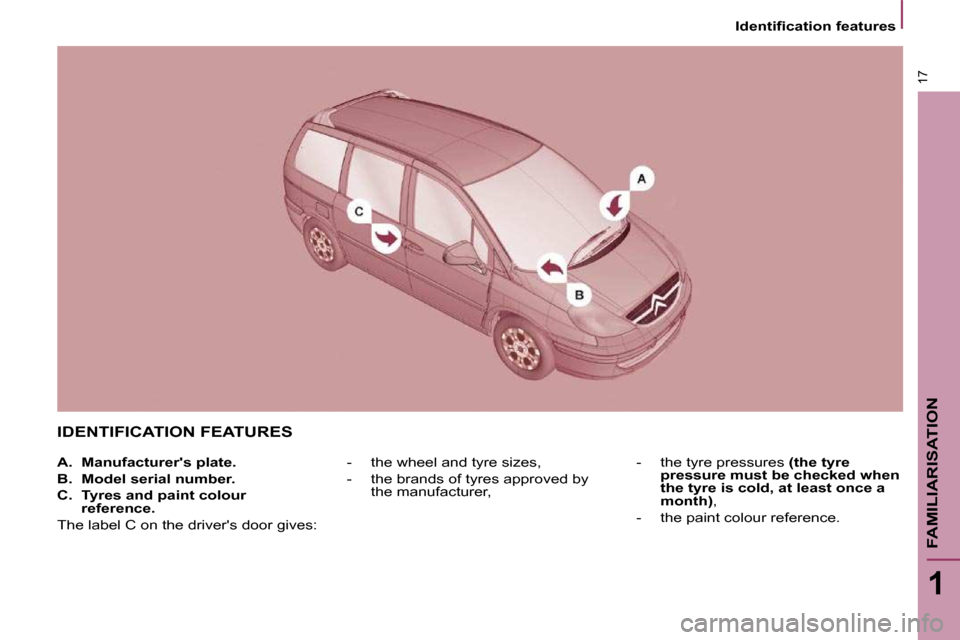

A. Manufacturer's plate.
B. Model serial number.
C. Tyres and paint colour
reference.
The label C on the driver's door gives:
Page 13 of 236
Accesses
18
REMOTE CONTROL
Deadlocking
KEYS
Deadlocking renders the internal
and external door locking
controls inoperative. Never leave
anyone inside the vehicle when it is
deadlocked.
If the deadlocking is operated from
inside the vehicle, it will change to
normal locking when the vehicle is
started.
ACCESSES Press the closed padlock to
lock the vehicle.
T h i s i s c o n fi r m e d b y fi x e d
lighting of the direction
indicators for approximately
two seconds.
Central locking
From the driver's door or passenger
door, the keys allow you to lock,
deadlock or unlock the doors and
t a i l g a t e , a s w e l l a s f o l d b a c k t h e
exterior mirrors.
If one of the doors or the tailgate is
open, the central locking does not
work.
The remote control performs the
same functions at a distance. The key allows you to switch on the
ignition and to mechanically operate
t h e l o c k o n t h e f u e l fi l l e r c a p , t h e g l o v e
b o x , t h e p a s s e n g e r a i r b a g d i s a r m i n g
switch and the mechanical child lock. Normal locking
I f y o u r v e h i c l e i s fi t t e d w i t h
deadlocking, a second
press on the closed padlock
w i t h i n fi v e s e c o n d s o f l o c k i n g
changes this to deadlocking.
T h i s i s c o n fi r m e d b y fi x e d l i g h t i n g
of the direction indicators for
approximately two seconds.
Page 14 of 236
Accesses
READY TO GO
2
19 P r e s s i n g o n e o f t h e b u t t o n s
opens or closes the
corresponding rear door
(right or left). Locating your vehicle
Key in ignition
A b u z z e r s o u n d s o n o p e n i n g t h e
d r i v e r ' s d o o r , i f t h e k e y h a s b e e n l e f t i n
the ignition.
Folding/opening out the key
Unlocking Press the open padlock to
unlock the vehicle.
T h i s i s c o n fi r m e d b y r a p i d
fl a s h i n g o f t h e d i r e c t i o n
indicators.
If the vehicle is locked and unlocking
is activated inadvertently, unless the
doors are opened within 30 seconds,
the vehicle will lock automatically. This press unlocks the entire
v e h i c l e b e f o r e o p e n i n g t h e s l i d i n g
door.
Opening/Closing the electric
sliding side doors
T o t u c k a w a y t h e k e y b l a d e ,
p r e s s t h e b u t t o n , t h e n f o l d i t
down into the remote control
module.
To open out the key, press
t h e b u t t o n .
To locate your vehicle, if you
have locked it, in a car park.
Press the closed padlock, the
courtesy lights come on and
t h e d i r e c t i o n i n d i c a t o r s fl a s h
for a few seconds.
Pressing the closed
padlock for more than
2 seconds , in addition to
locking or deadlocking,
permits automatic closing of
the windows and places the sunroofs
in the partially open position, if they
were open. To close them completely,
y o u m u s t p r e s s t h e i r s w i t c h b e f o r e
leaving the vehicle.
Page 15 of 236
Accesses
18
REMOTE CONTROL
Deadlocking
KEYS
Deadlocking renders the internal
and external door locking
controls inoperative. Never leave
anyone inside the vehicle when it is
deadlocked.
If the deadlocking is operated from
inside the vehicle, it will change to
normal locking when the vehicle is
started.
ACCESSES Press the closed padlock to
lock the vehicle.
T h i s i s c o n fi r m e d b y fi x e d
lighting of the direction
indicators for approximately
two seconds.
Central locking
From the driver's door or passenger
door, the keys allow you to lock,
deadlock or unlock the doors and
t a i l g a t e , a s w e l l a s f o l d b a c k t h e
exterior mirrors.
If one of the doors or the tailgate is
open, the central locking does not
work.
The remote control performs the
same functions at a distance. The key allows you to switch on the
ignition and to mechanically operate
t h e l o c k o n t h e f u e l fi l l e r c a p , t h e g l o v e
b o x , t h e p a s s e n g e r a i r b a g d i s a r m i n g
switch and the mechanical child lock. Normal locking
I f y o u r v e h i c l e i s fi t t e d w i t h
deadlocking, a second
press on the closed padlock
w i t h i n fi v e s e c o n d s o f l o c k i n g
changes this to deadlocking.
T h i s i s c o n fi r m e d b y fi x e d l i g h t i n g
of the direction indicators for
approximately two seconds.
Page 16 of 236
Accesses
READY TO GO
2
19 P r e s s i n g o n e o f t h e b u t t o n s
opens or closes the
corresponding rear door
(right or left). Locating your vehicle
Key in ignition
A b u z z e r s o u n d s o n o p e n i n g t h e
d r i v e r ' s d o o r , i f t h e k e y h a s b e e n l e f t i n
the ignition.
Folding/opening out the key
Unlocking Press the open padlock to
unlock the vehicle.
T h i s i s c o n fi r m e d b y r a p i d
fl a s h i n g o f t h e d i r e c t i o n
indicators.
If the vehicle is locked and unlocking
is activated inadvertently, unless the
doors are opened within 30 seconds,
the vehicle will lock automatically. This press unlocks the entire
v e h i c l e b e f o r e o p e n i n g t h e s l i d i n g
door.
Opening/Closing the electric
sliding side doors
T o t u c k a w a y t h e k e y b l a d e ,
p r e s s t h e b u t t o n , t h e n f o l d i t
down into the remote control
module.
To open out the key, press
t h e b u t t o n .
To locate your vehicle, if you
have locked it, in a car park.
Press the closed padlock, the
courtesy lights come on and
t h e d i r e c t i o n i n d i c a t o r s fl a s h
for a few seconds.
Pressing the closed
padlock for more than
2 seconds , in addition to
locking or deadlocking,
permits automatic closing of
the windows and places the sunroofs
in the partially open position, if they
were open. To close them completely,
y o u m u s t p r e s s t h e i r s w i t c h b e f o r e
leaving the vehicle.
Page 17 of 236
Accesses
20
Changing the remote control
battery
Battery ref.: CR1620/3 volts.
T h e i n f o r m a t i o n " b a t t e r y fl a t " i s g i v e n
b y a n a u d i b l e s i g n a l , a c c o m p a n i e d b y
a message on the multifunction display.
T o r e p l a c e t h e b a t t e r y , u n c l i p t h e
casing using a coin at the ring.
If the remote control does not work
a f t e r t h e b a t t e r y h a s b e e n c h a n g e d ,
re-programme the remote control. Programming the remote
control
Following changing of the
r e m o t e c o n t r o l b a t t e r y o r
disconnection of the vehicle
b a t t e r y , t h e r e m o t e c o n t r o l m a y
h a v e t o b e r e p r o g r a m m e d .
Do not discard the remote control
b a t t e r i e s , t h e y c o n t a i n m e t a l s w h i c h
are harmful to the environment.
Take them to a CITROËN dealer , or to
any other approved collection point. Wait at least one minute
b e f o r e u s i n g t h e r e m o t e
control.
Insert the key in the ignition
s w i t c h w i t h t h e b u t t o n s
(padlocks) of the remote control
facing you.
Switch on the ignition.
Press the locking padlock for at
l e a s t fi v e s e c o n d s w i t h i n t h e n e x t
ten seconds.
Switch off the ignition.
W a i t a t l e a s t o n e m i n u t e b e f o r e u s i n g
the remote control.
The remote control is now working
again.
Page 18 of 236
Accesses
READY TO GO
2
21
ELECTRONIC ENGINE
IMMOBILISER
This locks the engine control system as
s o o n a s t h e i g n i t i o n h a s b e e n s w i t c h e d
off and therefore prevents starting of
t h e v e h i c l e b y a n y o n e w h o d o e s n o t
have the key.
The ignition key has an electronic
chip which has a special code. When
the ignition is switched on, the code
m u s t b e r e c o g n i s e d f o r s t a r t i n g t o b e
p o s s i b l e .
If the system does not function
c o r r e c t l y , t h e c e n t r a l l o c k i n g b u t t o n
indicator light, situated on the courtesy
l i g h t c o n s o l e , fl a s h e s r a p i d l y w h e n t h e
ignition is switched on (2nd notch).
In this case your vehicle will not start.
Contact a CITROËN dealer as soon as
p o s s i b l e . Good practice
If the keys are lost
A C I T R O Ë N d e a l e r w i l l b e a b l e
to retrieve the key code and the
transponder code to order a
replacement key if you show him your
V 5 r e g i s t r a t i o n c e r t i fi c a t e a n d p e r s o n a l
i d e n t i fi c a t i o n .
Key, remote control
Take care not to allow the key to come
into contact with grease, dust, rain or a
damp environment.
A h e a v y o b j e c t a t t a c h e d t o t h e k e y
(key ring, ...) weighing on the shaft
of the key in the switch may cause a
malfunction.
The high frequency remote control is
a sensitive system; do not operate it
while it is in your pocket as there is
a p o s s i b i l i t y t h a t i t m a y u n l o c k y o u r
v e h i c l e , w i t h o u t y o u b e i n g a w a r e o f i t .
D o n o t r e p e a t e d l y p r e s s t h e b u t t o n s o f
your remote control out of range and
out of sight of your vehicle. You run
the risk of stopping it from working and
t h e r e m o t e c o n t r o l w o u l d h a v e t o b e
reprogrammed.
The remote control does not operate
when the key is in the ignition, even
when the ignition is switched off,
except for reprogramming.
D o n o t m a k e a n y m o d i fi c a t i o n s t o t h e
e l e c t r o n i c e n g i n e i m m o b i l i s e r s y s t e m . Safety
In the event of a serious impact the
doors are unlocked automatically
t o p e r m i t a c c e s s b y t h e e m e r g e n c y
services.
Remove the ignition key when you
leave the vehicle, even for a short time,
i f t h e r e a r e c h i l d r e n o n b o a r d .
Purchasing a second-hand vehicle
Ensure that you are given the anti-theft
s o c k e t f o r a l l o y w h e e l s ( r e m e m b e r t o
note the code engraved on the head of
the socket).
H a v e t h e k e y c o d e s m e m o r i s e d b y a
CITROËN dealer, to ensure that the
keys in your possession are the only
ones which can start the vehicle.
Page 19 of 236
Accesses
22
ALARM
I f fi t t e d o n y o u r v e h i c l e , t h i s p r o v i d e s
two types of protection:
- exterior protection: it sounds if a d o o r , t h e t a i l g a t e o r t h e b o n n e t i s
opened.
- interior protection: it sounds if the volume inside the passenger
c o m p a r t m e n t c h a n g e s ( b r e a k i n g o f
a window or a movement inside the
vehicle).
A red indicator light, located in the
centre of the fascia, indicates the
i n f o r m a t i o n d e t a i l e d b e l o w .
To lock your vehicle without setting the
alarm, insert the key in the lock then
lock the vehicle (e.g. for washing).
When the alarm is triggered, the siren
sounds and the direction indicator lights
fl a s h f o r t h i r t y s e c o n d s .
Warning - alarm triggered: the red indicator
l i g h t fl a s h e s r a p i d l y , i n s e r t t h e k e y a n d
switch on the ignition to switch it off.
W h e n t h e a l a r m h a s b e e n t r i g g e r e d t e n
times in succession (on the eleventh time)
the alarm is deactivated. Repeat the rules
for setting the alarm.
- Close the sunroofs,
- Switch off the ignition,
- In the next ten seconds, press b u t t o n A , located on the left-hand
side of the fascia, until the red
indicator light is on continuously,
- Get out of the vehicle,
- W i t h i n t h e n e x t fi v e m i n u t e s , s e t t h e a l a r m b y l o c k i n g o r d e a d l o c k i n g u s i n g
the remote control (the red indicator
l i g h t fl a s h e s o n c e a s e c o n d ) .
D o n o t m a k e a n y m o d i fi c a t i o n s
to the alarm system as this could
cause faults.
Setting the alarm
- Switch off the ignition and get out of
the vehicle.
- S e t t h e a l a r m w i t h i n fi v e m i n u t e s o f
g e t t i n g o u t o f t h e v e h i c l e , b y l o c k i n g
or deadlocking using the remote
control (the red indicator light
fl a s h e s o n c e p e r s e c o n d ) . Disarming
Unlock the vehicle with the remote
control (the red indicator light goes out).
To set the alarm with exterior
protection only
If, while you are away from the vehicle,
you wish to leave a window partially
open or a pet inside the vehicle, you
should choose exterior protection only. Incorrect operation
When the ignition is switched on, if the red
indicator light remains on for ten seconds,
there is a fault in the siren connection.
Consult a CITROËN dealer to have the
system checked.
Automatic setting of the alarm
I f fi t t e d o n y o u r v e h i c l e , t h e a l a r m i s s e t
automatically 2 minutes after the last
door or the tailgate is closed.
To prevent triggering of the alarm when
a door or the tailgate is opened, it is
imperative to press the remote control
u n l o c k i n g b u t t o n a g a i n . W h e n t h e a l a r m i s s e t b u t t h e
remote control does not operate:
- Unlock the doors with the key and open the door. The alarm is
triggered.
- Switch on the ignition in the next ten seconds. The alarm is
disarmed.
Page 20 of 236
Accesses
READY TO GO
2
23
DOORS
Automatic central locking
The doors can lock automatically when
you are driving (at a speed of more
than 6 mph (10 km/h)).
You can activate or deactivate this
function. To deactivate
With the ignition on, press
and hold the padlock.
Deactivation of the function is
a c c o m p a n i e d b y a n a u d i b l e s i g n a l .
Opening the doors from outside Opening the doors
from inside
If the vehicle is locked or
deadlocked from the outside, the
r e d w a r n i n g l i g h t fl a s h e s a n d t h e
padlock does not function. In this case,
use the key or the remote control to
unlock from the outside.
The door opening switches do
not function when the vehicle is
deadlocked. Locking/Unlocking from
the inside
Press the padlock, the red
warning light comes on when
the vehicle is locked and switches off
when it is unlocked.
This locks/unlocks the doors and the
tailgate.
To activate
With the ignition on, press
and hold the padlock.
Activation of the function is
a c c o m p a n i e d b y a n a u d i b l e s i g n a l a n d
a message on the display . "Door open" alert
If a door or the tailgate is not closed
properly:
-
when the engine is running , you
a r e w a r n e d b y a g r a p h i c a n d a
message on the display for a few
seconds,
- when the vehicle is moving
( s p e e d a b o v e 6 m p h ( 1 0 k m / h ) ) ,
the service warning light comes on.
I t i s a c c o m p a n i e d b y a n a u d i b l e
signal, a message and a graphic on
the display for a few seconds.
