Page 28 of 236

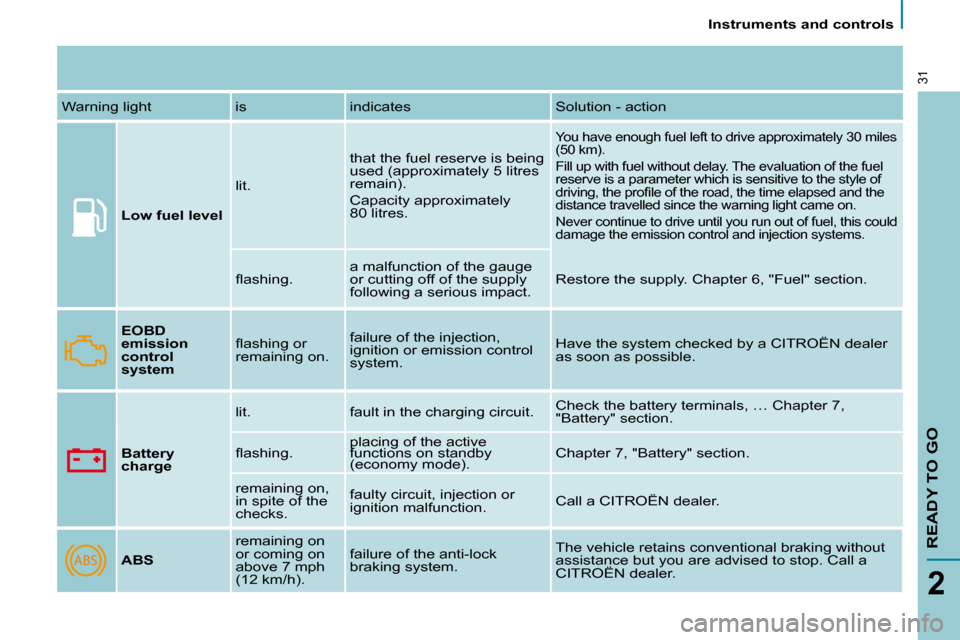

Instruments and controls
READY TO GO
2
31
Warning light is indicates Solution - action
Low fuel level lit.
t h a t t h e f u e l r e s e r v e i s b e i n g
used (approximately 5 litres
remain).
Capacity approximately
80 litres.
You have enough fuel left to drive approximately 3
0 miles
(50 km).
Fill up with fuel without delay. The evaluation of the fuel
reserve is a parameter which is sensitive to the st yle of
d r i v i n g , t h e p r o fi l e o f t h e r o a d , t h e t i m e e l a p s e d a n d t h e
distance travelled since the warning light came on.
Never continue to drive until you run out of fuel, this could
d a m a g e t h e e m i s s i o n c o n t r o l a n d i n j e c t i o n s y s t e m s .
fl a s h i n g . a malfunction of the gauge
or cutting off of the supply
following a serious impact. Restore the supply. Chapter 6, "Fuel" section.
EOBD
emission
control
system fl a s h i n g o r
remaining on.
f a i l u r e o f t h e i n j e c t i o n ,
ignition or emission control
system. H a v e t h e s y s t e m c h e c k e d b y a C I T R O Ë N d e a l e r
a s s o o n a s p o s s i b l e .
Battery
charge lit. fault in the charging circuit.
C h e c k t h e b a t t e r y t e r m i n a l s , … C h a p t e r 7 ,
"Battery" section.
fl a s h i n g . placing of the active
f u n c t i o n s o n s t a n d b y
(economy mode). Chapter 7, "Battery" section.
remaining on,
in spite of the
checks. f a u l t y c i r c u i t , i n j e c t i o n o r
ignition malfunction.
Call a CITROËN dealer.
ABS remaining on
or coming on
a b o v e 7 m p h
(12 km/h). failure of the anti-lock
b r a k i n g s y s t e m .
T h e v e h i c l e r e t a i n s c o n v e n t i o n a l b r a k i n g w i t h o u t
a s s i s t a n c e b u t y o u a r e a d v i s e d t o s t o p . C a l l a
CITROËN dealer.
Page 109 of 236
109
Fuel
CHECKS
6
LOW FUEL LEVEL Filling with fuel
T h e t a n k m u s t b e fi l l e d w i t h f u e l w i t h
the engine off .
- O p e n t h e f u e l fi l l e r fl a p .
- Insert the key then turn it to the left.
- Remove the cap and attach it to the clip located on the inside of the
fl a p .
It is usual to hear an air intake noise
when opening the cap as there is a
vacuum linked with the sealing of the
fuel circuit.
A l a b e l o n t h e i n s i d e o f t h e fl a p
indicates which type of fuel to use.
More than 5 litres of fuel must be
added in order to be registered by the
fuel gauge.
I f y o u fi l l y o u r t a n k , d o n o t c o n t i n u e
after the third cut-off of the pump
nozzle. This could result in vehicle
malfunctions.
FILLING THE FUEL TANK
I f t h e w a r n i n g l i g h t fl a s h e s , t h i s
indicates a fuel gauge malfunction.
Consult a CITROËN dealer.
When the tank's minimum
level is reached, this warning
light comes on, accompanied
by the message "Fuel level
low" on the display. When
t h i s w a r n i n g l i g h t fi r s t c o m e s o n , y o u
have approximately 8 litres left,
depending on driving conditions and
the engine.
Fill up with fuel as soon as possible to
avoid running out.
Never continue to drive until you run
out of fuel as this could damage the
emission control and injection systems. The capacity of the tank is
approximately 18 gallons (
80 litres).
- A f t e r fi l l i n g t h e t a n k , l o c k t h e c a p a n d c l o s e t h e fl a p . W h e n t h e f u e l fi l l e r fl a p i s o p e n , a
system limits the opening of the
rear left sliding side door.
The key cannot be removed from the
c a p ' s l o c k u n t i l t h e c a p i s r e fi t t e d o n t h e
tank.
Page 135 of 236
133

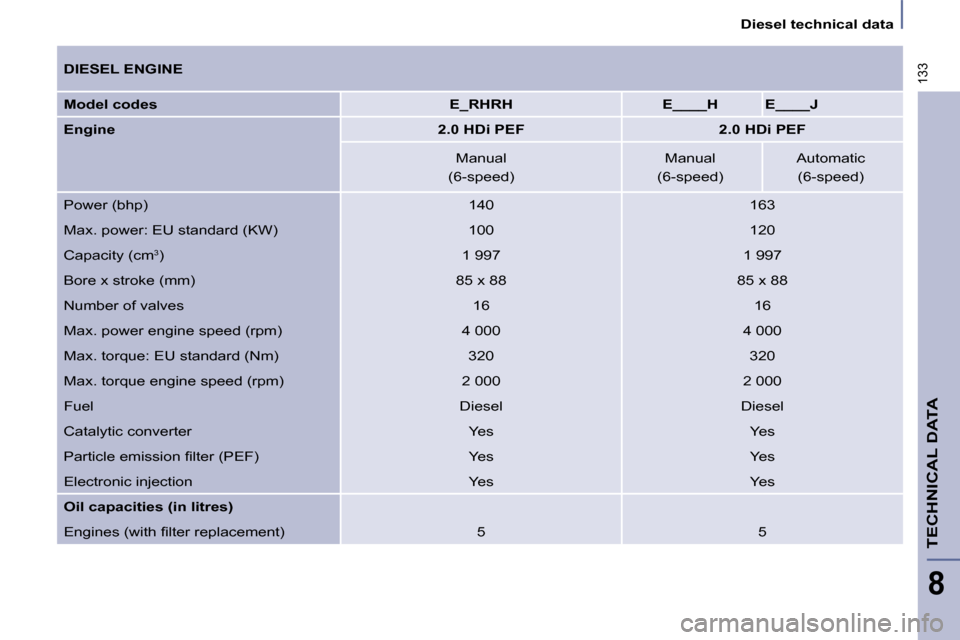

Diesel technical data
TECHNICAL DATA
8
DIESEL ENGINE
Model codes
E_RHRH E____H E____J
Engine
2.0 HDi PEF 2.0 HDi PEF
Manual Manual Automatic
(6-speed) (6-speed) (6-speed)
Power (bhp) 140 163
Max. power: EU standard (KW) 100 120
Capacity (cm 3
) 1 997 1 997
Bore x stroke (mm) 85 x 88 85 x 88
Number of valves 16 16
Max. power engine speed (rpm) 4 000 4 000
Max. torque: EU standard (Nm) 320 320
Max. torque engine speed (rpm) 2 000 2 000
Fuel Diesel Diesel
Catalytic converter Yes Yes
P a r t i c l e e m i s s i o n fi l t e r ( P E F ) Yes Yes
Electronic injection Yes Yes
Oil capacities (in litres)
E n g i n e s ( w i t h fi l t e r r e p l a c e m e n t ) 5 5
