Page 25 of 236
Instruments and controls
28
INSTRUMENT PANELS
With monochrome display With colour display
1. Rev counter
2. Speedometer * .
3. Fuel level and coolant temperature.
4. Display.
* Version in kilometres, according to country.
Page 32 of 236
Instruments and controls
34
I n t h e e v e n t o f a b r e a k d o w n a n d i n
order to avoid any risk of scalding,
unscrew the cap two turns to allow
the pressure to drop.
When the pressure has dropped,
remove the cap and top up the level.

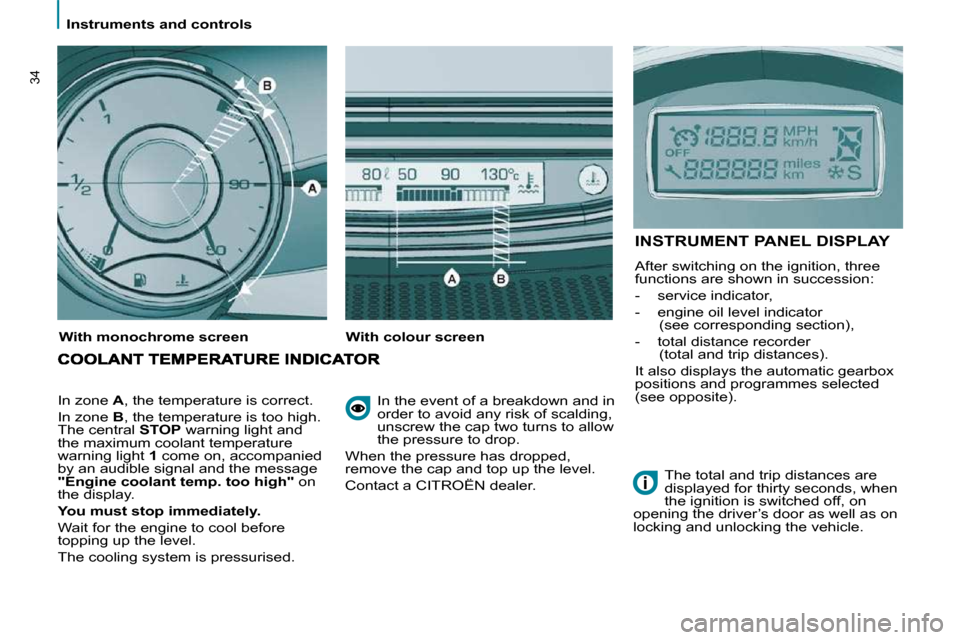

Contact a CITROËN dealer . I n z o n e A , the temperature is correct.
I n z o n e B , the temperature is too high.
The central STOP warning light and
the maximum coolant temperature
warning light 1 come on, accompanied
b y a n a u d i b l e s i g n a l a n d t h e m e s s a g e
"Engine coolant temp. too high" on
the display.
You must stop immediately.
W a i t f o r t h e e n g i n e t o c o o l b e f o r e
topping up the level.
The cooling system is pressurised.
With monochrome screen
With colour screen
INSTRUMENT PANEL DISPLAY
After switching on the ignition, three
functions are shown in succession:
- service indicator,
- engine oil level indicator
(see corresponding section),
- total distance recorder (total and trip distances).
I t a l s o d i s p l a y s t h e a u t o m a t i c g e a r b o x
positions and programmes selected
(see opposite).
The total and trip distances are
displayed for thirty seconds, when
the ignition is switched off, on
opening the driver’s door as well as on
locking and unlocking the vehicle.
Page 35 of 236
Gearbox and stearing wheel
READY TO GO
2
37

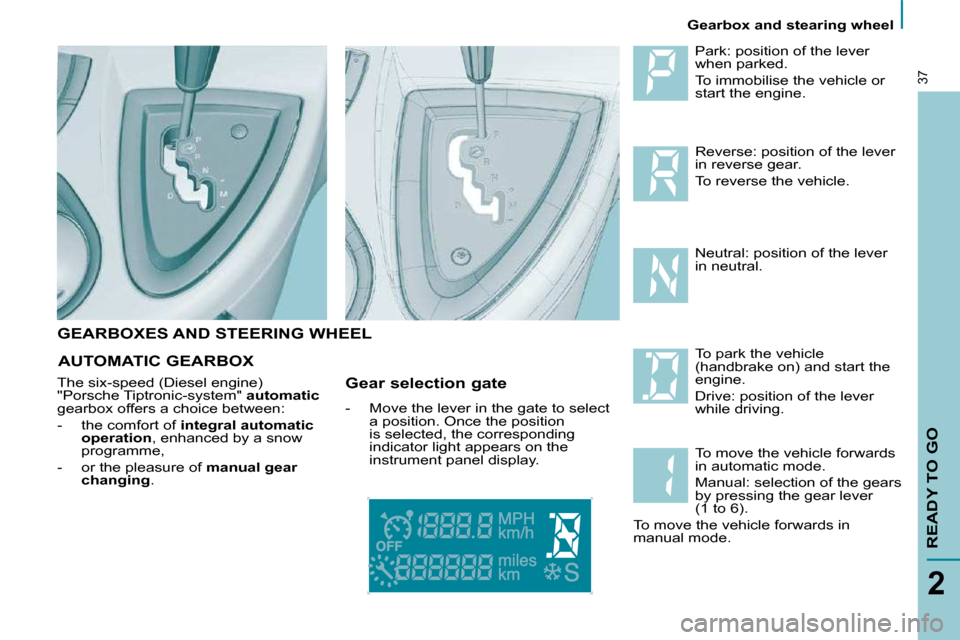

GEARBOXES AND STEERING WHEEL
Park: position of the lever
when parked.
T o i m m o b i l i s e t h e v e h i c l e o r
start the engine.
To park the vehicle
( h a n d b r a k e o n ) a n d s t a r t t h e
engine.
Drive: position of the lever
while driving.
Reverse: position of the lever
in reverse gear.
To reverse the vehicle.
Neutral: position of the lever
in neutral.
To move the vehicle forwards
in automatic mode.
Manual: selection of the gears
b y p r e s s i n g t h e g e a r l e v e r
(1 to 6).
To move the vehicle forwards in
manual mode.
AUTOMATIC GEARBOX
The six-speed (Diesel engine)
"Porsche Tiptronic-system" automatic
g e a r b o x o f f e r s a c h o i c e b e t w e e n :
- the comfort of integral automatic
operation , e n h a n c e d b y a s n o w
programme,
- or the pleasure of manual gear
changing . Gear selection gate
- Move the lever in the gate to select
a position. Once the position
is selected, the corresponding
indicator light appears on the
instrument panel display.
Page 38 of 236
Gearbox and stearing wheel
40
Good practice
Never select position N when the
vehicle is moving.
Never select positions P or R unless
the vehicle is stationary.
N e v e r c h a n g e b e t w e e n p o s i t i o n s t o
o p t i m i s e b r a k i n g o n a s l i p p e r y s u r f a c e .
There is a risk of damage to the
g e a r b o x :
- if you press the accelerator and b r a k e p e d a l s a t t h e s a m e t i m e ,
- if you force the lever from position P
to another position in the event of a
b a t t e r y f a i l u r e .
W h e n t h e e n g i n e i s a t i d l e , b r a k e s
not applied, if position R , D or M is
selected the vehicle moves even
w i t h o u t t h e a c c e l e r a t o r b e i n g p r e s s e d .
For this reason, do not leave children
unsupervised inside the vehicle,
with the engine running .
Operating abnormality
A n y o p e r a t i n g a b n o r m a l i t y i s i n d i c a t e d
b y a n a u d i b l e s i g n a l , a c c o m p a n i e d b y
the message
"Automatic gear fault"
o n t h e d i s p l a y a n d fl a s h i n g o f t h e S n o w
s n o w fl a k e o n t h e i n s t r u m e n t p a n e l .
I n t h i s s i t u a t i o n t h e g e a r b o x o p e r a t e s i n
downgrade mode (locked in 3rd gear).
Y o u m a y f e e l a s u b s t a n t i a l k n o c k w h e n
changing from P to R and from N to R
(this will not cause any damage to the
g e a r b o x ) .
Do not exceed 60 mph (100 km/h),
keeping within the limit of local speed
restrictions.
Contact a CITROËN dealer as soon as
p o s s i b l e .
You can return to the automatic
programme at any time.
- P r e s s b u t t o n
again to switch off
the programme you are in.
Snow programme
In addition to the automatic
programme, there is a special
Snow programme.
This improves starting
and drive when traction is
p o o r . T h e s n o w fl a k e a p p e a r s o n t h e
instrument panel display.
- P r e s s b u t t o n
once the
v e h i c l e h a s b e e n s t a r t e d
and position D selected.
T h e g e a r b o x a d a p t s t o d r i v i n g
on slippery roads.
Page 43 of 236
Steering wheel controls
44
F r o n t f o g l i g h t s ( g r e e n )
a n d r e a r f o g l i g h t s
( a m b e r , 2 n d r o t a t i o n o f
t h e r i n g f o r w a r d s ) . T o s w i t c h o f f t h e f r o n t a n d r e a r
f o g l i g h t s , t u r n t h e r i n g r e a r w a r d s
twice in succession.
Front and rear fog lights
Rotate ring B f o r w a r d s t o s w i t c h o n
a n d r e a r w a r d s t o s w i t c h o f f . T h e s t a t u s
i s c o n fi r m e d b y t h e l i g h t o n
the instrument panel.
T h e s e o p e r a t e w i t h t h e s i d e l i g h t s a n d
t h e d i p p e d b e a m h e a d l a m p s . I n c l e a r w e a t h e r o r i n r a i n , b o t h
d a y a n d n i g h t , r e a r f o g l i g h t s
d a z z l e a n d a r e p r o h i b i t e d .
Do not forget to switch them off
w h e n t h e y a r e n o l o n g e r n e e d e d .
Automatic switching on of the lights
s w i t c h e s o f f t h e r e a r f o g l a m p s , b u t t h e
front fog lamps remain on. Daytime lights
D e p e n d i n g o n t h e c o u n t r y i n w h i c h
t h e v e h i c l e i s s o l d , t h e v e h i c l e m a y
b e e q u i p p e d w i t h d a y t i m e l i g h t s . T h e
d i p p e d h e a d l a m p s c o m e o n w h e n t h e
v e h i c l e i s s t a r t e d .
T h e i n s t r u m e n t s a n d c o n t r o l s
( i n s t r u m e n t p a n e l , d i s p l a y , a i r
c o n d i t i o n i n g c o n t r o l p a n e l , . . . )
are only lit on switching to the
automatic switching on of the lights
m o d e o r w h e n t h e l i g h t s a r e s w i t c h e d
on manually.
Dipped beam/main beam change
P u l l t h e s t a l k f u l l y t o w a r d s y o u .
F r o n t f o g l i g h t s ( g r e e n ,
1st rotation of the ring
f o r w a r d s ) .
Lights-on buzzer
W h e n t h e i g n i t i o n i s s w i t c h e d o f f , w h e n
t h e d r i v e r ' s d o o r i s o p e n e d , a b u z z e r
s o u n d s i f y o u h a v e l e f t y o u r l i g h t s o n .
This warning light comes on
on the instrument panel.
Page 85 of 236
86
Driving safety

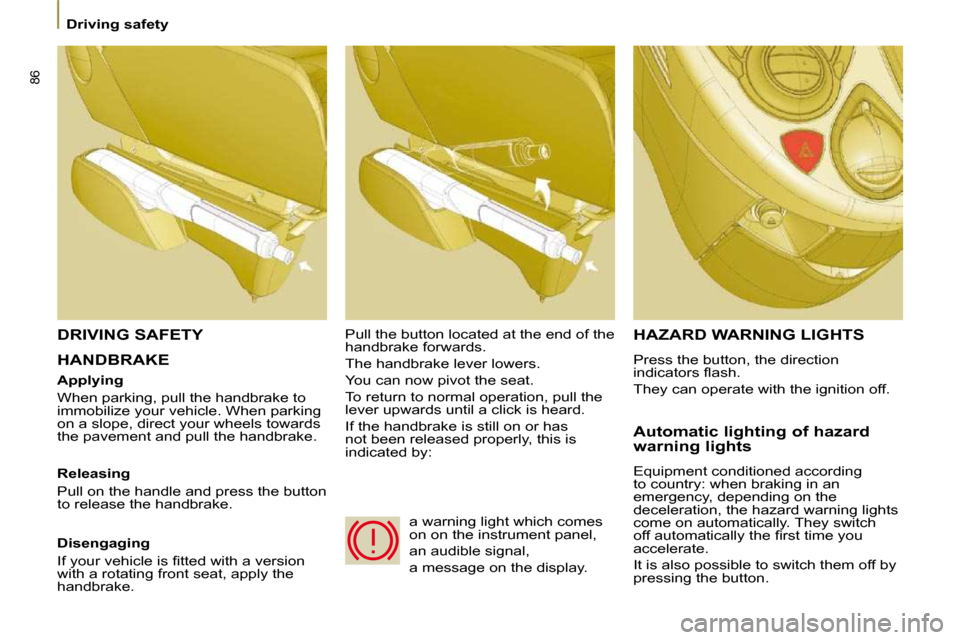

HANDBRAKE
HAZARD WARNING LIGHTS
Press the button, the direction
i n d i c a t o r s fl a s h .
T h e y c a n o p e r a t e w i t h t h e i g n i t i o n o f f .
Automatic lighting of hazard
warning lights
Equipment conditioned according
to country: when braking in an
emergency, depending on the
deceleration, the hazard warning lights
c o m e o n a u t o m a t i c a l l y . T h e y s w i t c h
o f f a u t o m a t i c a l l y t h e fi r s t t i m e y o u
a c c e l e r a t e .
It is also possible to switch them off by
p r e s s i n g t h e b u t t o n .
DRIVING SAFETY
Applying
When parking, pull the handbrake to
i m m o b i l i z e y o u r v e h i c l e . W h e n p a r k i n g
on a slope, direct your wheels towards
t h e p a v e m e n t a n d p u l l t h e h a n d b r a k e .
Releasing
Pull on the handle and press the button
t o r e l e a s e t h e h a n d b r a k e . Pull the button located at the end of the
h a n d b r a k e f o r w a r d s .
T h e h a n d b r a k e l e v e r l o w e r s .
Y o u c a n n o w p i v o t t h e s e a t .
To return to normal operation, pull the
l e v e r u p w a r d s u n t i l a c l i c k i s h e a r d .
If the handbrake is still on or has
not been released properly, this is
indicated by:
Disengaging
I f y o u r v e h i c l e i s fi t t e d w i t h a v e r s i o n
with a rotating front seat, apply the
h a n d b r a k e . a warning light which comes
on on the instrument panel,
an audible signal,
a m e s s a g e o n t h e d i s p l a y .
Page 94 of 236
96

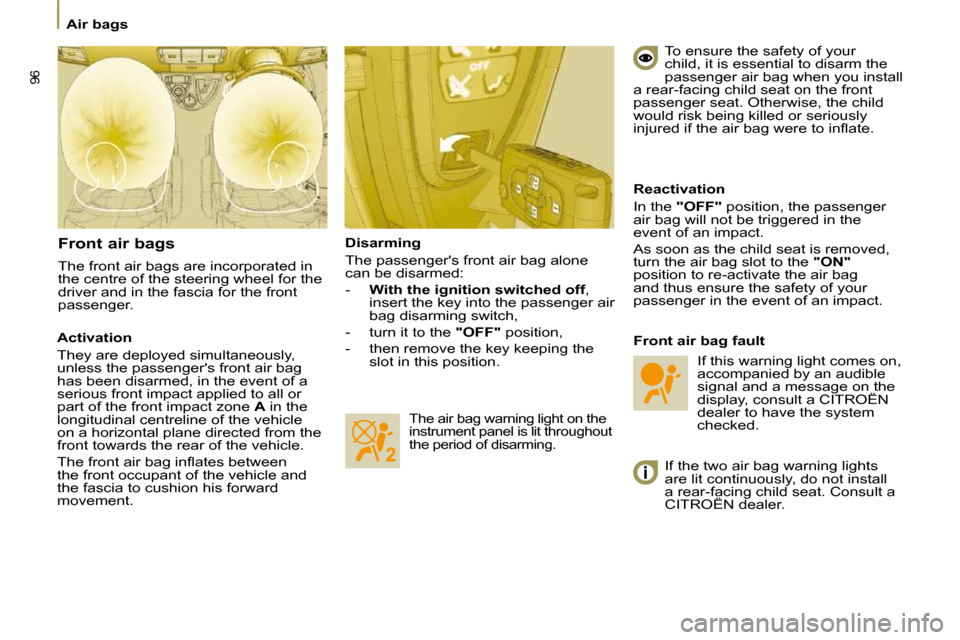

Air bags Disarming
The passenger's front air bag alone
can be disarmed:
- With the ignition switched off ,
insert the key into the passenger air
bag disarming switch,
turn it to the "OFF" position,
- then remove the key keeping the s l o t i n t h i s p o s i t i o n .
Front air bags
The front air bags are incorporated in
the centre of the steering wheel for the
driver and in the fascia for the front
p a s s e n g e r .
Front air bag fault
Reactivation
In the
"OFF" position, the passenger
air bag will not be triggered in the
e v e n t o f a n i m p a c t .
As soon as the child seat is removed,
turn the air bag slot to the "ON"
position to re-activate the air bag
and thus ensure the safety of your
p a s s e n g e r i n t h e e v e n t o f a n i m p a c t . To ensure the safety of your
child, it is essential to disarm the
passenger air bag when you install
a rear-facing child seat on the front
p a s s e n g e r s e a t . O t h e r w i s e , t h e c h i l d
would risk being killed or seriously
i n j u r e d i f t h e a i r b a g w e r e t o i n fl a t e .
The air bag warning light on the
instrument panel is lit throughout
t h e p e r i o d o f d i s a r m i n g .
If the two air bag warning lights
are lit continuously, do not install
a r e a r - f a c i n g c h i l d s e a t . C o n s u l t a
C I T R O Ë N d e a l e r .
Activation
They are deployed simultaneously,
unless the passenger's front air bag
has been disarmed, in the event of a
serious front impact applied to all or
part of the front impact zone
A in the
longitudinal centreline of the vehicle
on a horizontal plane directed from the
f r o n t t o w a r d s t h e r e a r o f t h e v e h i c l e .
T h e f r o n t a i r b a g i n fl a t e s b e t w e e n
the front occupant of the vehicle and
the fascia to cushion his forward
m o v e m e n t . If this warning light comes on,
accompanied by an audible
signal and a message on the
display, consult a CITROËN
dealer to have the system
c h e c k e d .
Page 97 of 236
SAFETY
95
Air bags
4
Side air bags
I f fi t t e d o n y o u r v e h i c l e , t h i s i s a s y s t e m
which protects the driver and front
passenger in the event of a serious
side impact in order to limit the risk of
i n j u r y t o t h e c h e s t .
Each side air bag is incorporated in the
f r o n t s e a t b a c k f r a m e , o n t h e d o o r s i d e . T h e c u r t a i n a i r b a g i n fl a t e s b e t w e e n
the front or rear occupant of the vehicle
a n d t h e w i n d o w s .

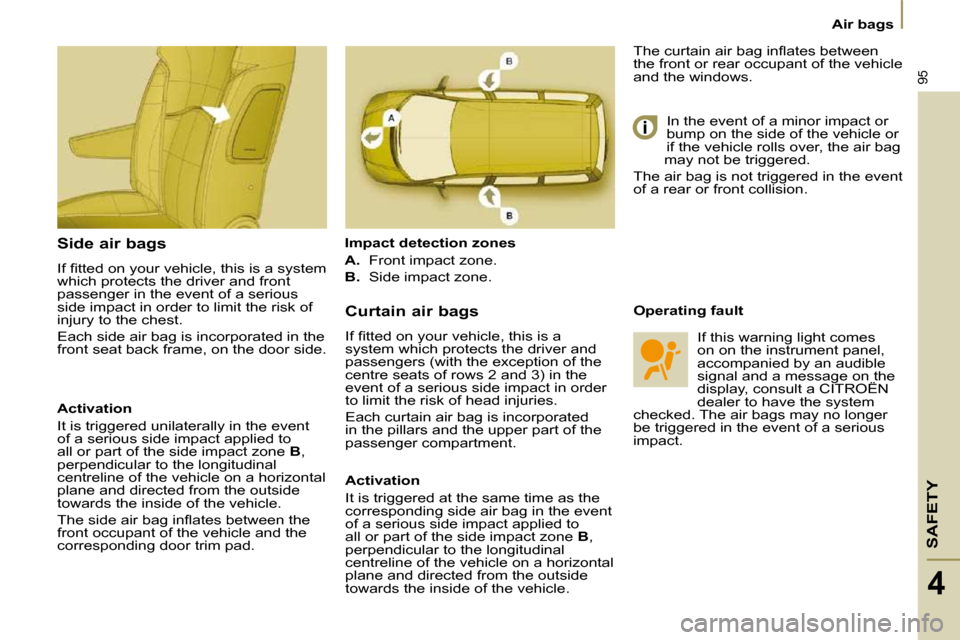

Impact detection zones
A. F r o n t i m p a c t z o n e .
B. S i d e i m p a c t z o n e . In the event of a minor impact or
bump on the side of the vehicle or
if the vehicle rolls over, the air bag
m a y n o t b e t r i g g e r e d .
The air bag is not triggered in the event
o f a r e a r o r f r o n t c o l l i s i o n .
Operating fault
Curtain air bags
I f fi t t e d o n y o u r v e h i c l e , t h i s i s a
system which protects the driver and
passengers (with the exception of the
c e n t r e s e a t s o f r o w s 2 a n d 3 ) i n t h e
event of a serious side impact in order
t o l i m i t t h e r i s k o f h e a d i n j u r i e s .
Each curtain air bag is incorporated
in the pillars and the upper part of the
p a s s e n g e r c o m p a r t m e n t .
Activation
It is triggered unilaterally in the event
of a serious side impact applied to
all or part of the side impact zone
B ,
perpendicular to the longitudinal
centreline of the vehicle on a horizontal
plane and directed from the outside
t o w a r d s t h e i n s i d e o f t h e v e h i c l e .
T h e s i d e a i r b a g i n fl a t e s b e t w e e n t h e
front occupant of the vehicle and the
c o r r e s p o n d i n g d o o r t r i m p a d . Activation
It is triggered at the same time as the
corresponding side air bag in the event
of a serious side impact applied to
all or part of the side impact zone
B ,
perpendicular to the longitudinal
centreline of the vehicle on a horizontal
plane and directed from the outside
t o w a r d s t h e i n s i d e o f t h e v e h i c l e . If this warning light comes
on on the instrument panel,
accompanied by an audible
signal and a message on the
display, consult a CITROËN
dealer to have the system
c h e c k e d . T h e a i r b a g s m a y n o l o n g e r
be triggered in the event of a serious
i m p a c t .
Page 114 of 236
113
Levels
CHECKS
6
These regular maintenance
operations will keep your vehicle
in good running order. Consult the
instructions at CITROËN dealerships
or in the servicing booklet enclosed in
the handbook pack. To maintain the reliability of engines
and emission control systems, the use
of additives in engine oil is prohibited.
Oil change
It is imperative that this is carried out at
t h e i n t e r v a l s s p e c i fi e d a n d t h e v i s c o s i t y
g r a d e o f t h e o i l s e l e c t e d m u s t f u l fi l t h e
requirements in accordance with the
manufacturer's servicing schedule.
Consult the instructions at CITROËN
dealerships.
R e m o v e t h e d i p s t i c k b e f o r e fi l l i n g .
C h e c k t h e l e v e l a f t e r fi l l i n g ( n e v e r
exceed the max mark).
Screw the cap back onto the sump
before closing the bonnet.
LEVELS
I f y o u h a v e t o r e m o v e / r e fi t t h e
engine style cover, handle it with
c a r e t o a v o i d d a m a g i n g t h e fi x i n g
clips.
Dipstick Warning lights
Oil level
Check the level regularly and top up
between changes. The maximum
consumption is 0.5 litre per 600 miles
(1 000 km).
Check the level with the vehicle level,
engine cold, using the dipstick.
Viscosity selection
In all cases, the oil selected must meet
the manufacturer's requirements. Checking by means of the
warning lights on the instrument
panel is described in chapter 2,
"Instruments and controls" section.
Changing the brake fluid
T h e b r a k e fl u i d m u s t b e c h a n g e d a t
the intervals stated, according to the
manufacturer's servicing schedule.
U s e fl u i d s r e c o m m e n d e d b y t h e
m a n u f a c t u r e r , w h i c h f u l fi l D O T 4
standards.
The level must be between the MIN
and MAX marks on the reservoir.
I f fl u i d h a s t o b e a d d e d f r e q u e n t l y ,
this indicates a failure which must be
checked by a CITROËN dealer as
soon as possible.
There are two marks
on the dipstick:
A = maximum
I f y o u fi l l p a s t t h i s
mark, contact a
CITROËN dealer.
B = minimum
Never allow the level
to fall below this
mark.
Page 126 of 236
124

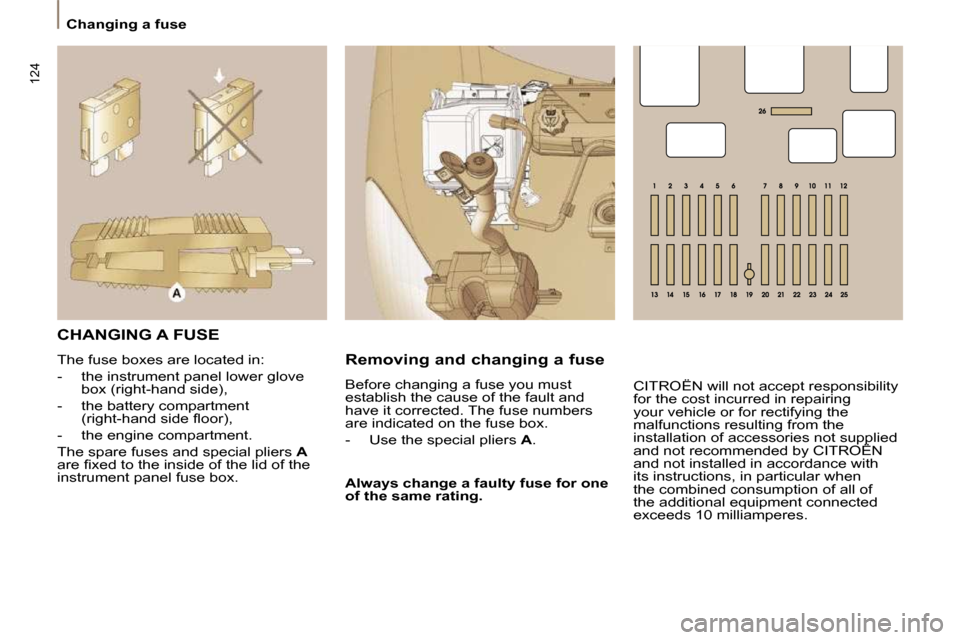

Changing a fuse
CHANGING A FUSE
T h e f u s e b o x e s a r e l o c a t e d i n :
- the instrument panel lower glove b o x ( r i g h t - h a n d s i d e ) ,
- the battery compartment ( r i g h t - h a n d s i d e fl o o r ) ,
- the engine compartment.
The spare fuses and special pliers A
a r e fi x e d t o t h e i n s i d e o f t h e l i d o f t h e
i n s t r u m e n t p a n e l f u s e b o x . Before changing a fuse you must
establish the cause of the fault and
have it corrected. The fuse numbers
a r e i n d i c a t e d o n t h e f u s e b o x .
- Use the special pliers
A .
Always change a faulty fuse for one
of the same rating.
Removing and changing a fuse
CITROËN will not accept responsibility
for the cost incurred in repairing
your vehicle or for rectifying the
malfunctions resulting from the
installation of accessories not supplied
and not recommended by CITROËN
and not installed in accordance with
its instructions, in particular when
the combined consumption of all of
the additional equipment connected
e x c e e d s 1 0 m i l l i a m p e r e s .
