Page 11 of 234
9
1
FAMILIARISATIO
N
Interior
13.
Battery/Fuse box.
14.
Passenger airbag.
15.
Passenger's lower glove box/
Fuse box/RCA sockets.
16.
Air conditioning controls.
17.
Cigarette lighter /
12 V accessory socket.
18.
Hazard warning lamps switch.
19.
Storage compartment or additional
telematics control.
20.
Cooled compartment.
21.
Ashtray / Cup holder.
22.
Seat adjustment control.
23.
Storage compartment.
24.
Parking brake - on the left.
1.
Electric mirror controls.
- Electric window controls.
- Deactivation of the rear electric
controls.
2.
Driver's upper glove box.
3.
Central adjustable vents.
4.
Audio equipment or GPS
multimedia audio equipment
with fl ap.
5.
Instrument panel / Large colour
display screen.
6.
Sunshine and passenger
compartment temperature sensor.
7.
Passenger's upper glove box.
25.
Bonnet release under cover -
on the left.
26.
Acoustic windscreen.
INTERIOR OVERVIEW
SETTING THE DATE AND
TIME
For more information about
this adjustment, refer to the
"Setting the date and time" section of
the "In-car technology" section.
ADDITIONAL HEATER
With the engine at idle
or when the vehicle is
stationary, it is normal
to notice a high-pitched
whistling and a slight emission of
smoke and odour.
Bluetooth functions.
8.
Windscreen demisting vents.
9.
Speaker (tweeter).
10.
Front window demisting vents.
11 .
Passenger airbag deactivation
switch, if fi tted on your vehicle.
12.
Side adjustable vent.
Page 17 of 234
4
244
7
6
4 3 3
415
1
FAMILIARISATIO
N
Interior
Battery
11 6
Child surveillance mirror
102
Deactivating the passenger's front airbag
96
Opening control
Sliding side doors from the
inside. 24
Parking brake
86
Bonnet opening controls
The bonnet release lever is
a red handle under a cover.
Release the bonnet from
inside the vehicle then go to
the front and insert your hand
under the badge to open and
raise the bonnet, place the
stay in its location securely. 111
Safety anti-pinch.
97 102 84 83
Electric windows/Safety anti-pinch
CHILD SAFETY
Surveillance mirror.
Child seats.
closing
On a steep gradient,
guide the side door
manually to assist
closing.
Page 22 of 234
Access
20
Changing the remote control
battery
Battery ref.: CR1620/3 volts.
The information "battery fl at" is given
by an audible signal, accompanied by
a message on the multifunction display.
To replace the battery, unclip the
casing using a coin at the ring.
If the remote control does not work
after the battery has been changed,
re-programme the remote control.
Reinitialising the remote control
Following changing of the
remote control battery or
disconnection of the vehicle
battery, the remote control
may have to be reinitialised.
Do not discard the remote control
batteries, they contain metals which
are harmful to the environment.
Take them to a CITROËN dealer , or to
any other approved collection point. Wait at least one minute
before using the remote
control.
Insert the key in the ignition
switch with the buttons
(padlocks) of the remote control
facing you.
Switch on the ignition.
Press the locking padlock for at
least fi ve seconds within the next
ten seconds.
Switch off the ignition.
Wait at least one minute before using
the remote control.
The remote control is now working
again.
Page 28 of 234
Access
26

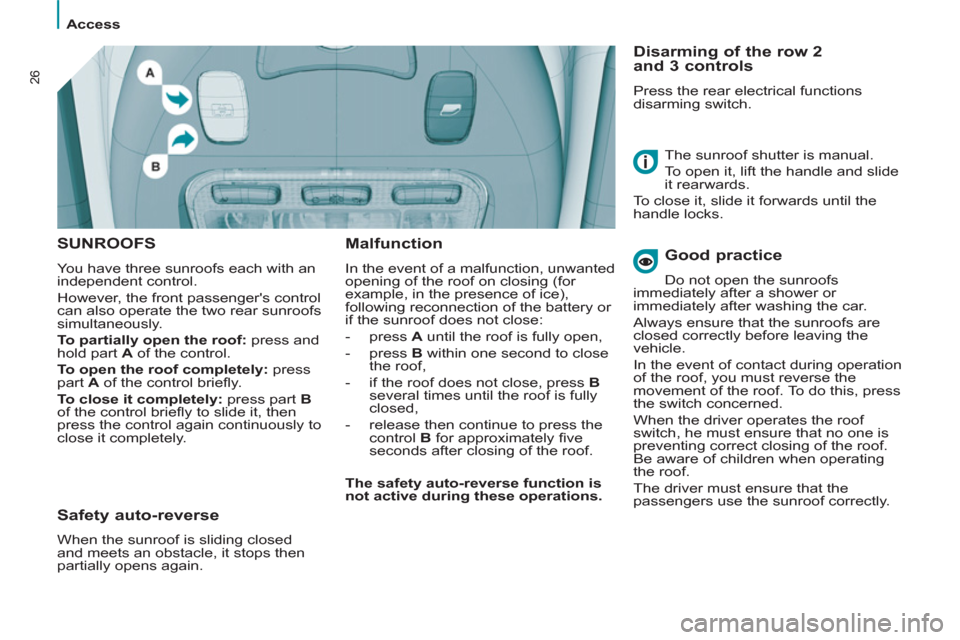

SUNROOFS
You have three sunroofs each with an
independent control.
However, the front passenger's control
can also operate the two rear sunroofs
simultaneously.
To partially open the roof:
press and
hold part A
of the control.
To open the roof completely:
press
part A
of the control briefl y.
To close it completely:
press part B
of the control briefl y to slide it, then
press the control again continuously to
close it completely.
Malfunction
In the event of a malfunction, unwanted
opening of the roof on closing (for
example, in the presence of ice),
following reconnection of the battery or
if the sunroof does not close:
- press A
until the roof is fully open,
- press B
within one second to close
the roof,
- if the roof does not close, press B
several times until the roof is fully
closed,
- release then continue to press the
control B
for approximately fi ve
seconds after closing of the roof.
The safety auto-reverse function is
not active during these operations.
Disarming of the row 2
and 3 controls
Press the rear electrical functions
disarming switch.
The sunroof shutter is manual.
To open it, lift the handle and slide
it rearwards.
To close it, slide it forwards until the
handle locks.
Good practice
Do not open the sunroofs
immediately after a shower or
immediately after washing the car.
Always ensure that the sunroofs are
closed correctly before leaving the
vehicle.
In the event of contact during operation
of the roof, you must reverse the
movement of the roof. To do this, press
the switch concerned.
When the driver operates the roof
switch, he must ensure that no one is
preventing correct closing of the roof.
Be aware of children when operating
the roof.
The driver must ensure that the
passengers use the sunroof correctly.
Safety auto-reverse
When the sunroof is sliding closed
and meets an obstacle, it stops then
partially opens again.
Page 33 of 234
Instruments and controls
READY TO GO
2
31
Warning light is indicates Solution - action
Low fuel level
lit. that the fuel reserve is being
used (approximately 5 litres
remain).
Capacity approximately
80 litres.
You have enough fuel left to drive approximately 30 miles
(50 km).
Fill up with fuel without delay. The evaluation of the fuel
reserve is a parameter which is sensitive to the style of
driving, the profi le of the road, the time elapsed and the
distance travelled since the warning light came on.
Never continue to drive until you run out of fuel, this could
damage the emission control and injection systems.
fl ashing. a malfunction of the gauge
or cutting off of the supply
following a serious impact. Restore the supply. Chapter 6, "Fuel" section.
EOBD
emission
control
system
fl ashing or
remaining on. failure of the injection,
ignition or emission control
system. Have the system checked by a CITROËN dealer
as soon as possible.
Battery
charge
lit. fault in the charging circuit. Check the battery terminals, … Chapter 7,
"Battery" section.
fl ashing. placing of the active
functions on standby
(economy mode). Chapter 7, "Battery" section.
remaining on,
in spite of the
checks. faulty circuit, injection or
ignition malfunction. Call a CITROËN dealer.
ABS
remaining on
or coming on
above 7 mph
(12 km/h). failure of the anti-lock
braking system. The vehicle retains conventional braking without
assistance but you are advised to stop. Call a
CITROËN dealer.
Page 38 of 234
Instruments and controls
36
Zero re-set
Your CITROËN dealer carries out this
operation after each service.
However, if you carry out the service
yourself, the re-set procedure is as
follows:
- Switch off the ignition,
- Press and hold the trip recorder
reset button,
- Switch on the ignition.
The display begins a countdown.
When the display shows " =
0 "
, release
the button; the spanner disappears.
Engine oil level indicator
When the ignition is switched on, the
engine oil level is indicated for a few
seconds, after the service information.
Oil level correct
Lack of oil
Flashing of "OIL"
,
linked with the
service warning light,
accompanied by an
audible signal and a message on the
display, indicates a lack of oil which
could damage the engine.
If the lack of oil is confi rmed by a check
using the dipstick, it is essential that
the level is topped up.
Oil level gauge fault
Flashing of "OIL --"
indicates a
malfunction of the
engine oil level gauge.
Consult a CITROËN
dealer.
Dipstick
A
= maximum, never exceed
this level as a surplus of oil
may damage the engine.
Contact a CITROËN dealer
without delay.
B
= minimum, top up the level
via the oil fi ller cap, using
the type of oil suited to your
engine.
Trip recorder zero
reset button
With the ignition on, press
the button until the zeros
appear.
Lighting rheostat
With the lights on, press
the button to vary the
intensity of the lighting
of the instruments and
controls. When the lighting reaches
the minimum (or maximum) setting,
release the button then press it again
to increase (or reduce) the brightness.
As soon as the lighting is of the
required brightness, release the button.
The level read will only be correct
if the vehicle is on level ground
and the engine has been off for
more than 15 minutes. After this operation, if you wish
to disconnect the battery, lock
the vehicle and wait for at least
fi ve minutes, otherwise the zero re-set
will not be registered.
Page 41 of 234
Gearbox and stearing wheel
READY TO GO
2
39
- press the lever to the +
sign to change to a higher
gear, from 1 to 6,
- conversely, press the lever
to the - sign to change to a
lower gear. You can change from position D
(automatic mode) to position M
(manual mode) at any time.
Stopping the vehicle, starting
the engine
Reverse gear
- Select position R
, with the
vehicle stationary and the
engine at idle.
If the battery is fl at and the lever is
in position P
, it will be impossible
to change to another position.
- Select position P
to
immobilise the vehicle
or
to start the engine
, with
the handbrake on or off.
- You can also select
position N
to park
or to
start the engine
, with the
handbrake on.
If position N
is engaged
inadvertently while driving, allow
the engine to return to idle before
engaging position D
to accelerate.
Manual mode
Manual changing of the gears by
pressing.
- Select lever position M
, In manual mode, it is only possible to
change from one gear to another if
the vehicle speed and engine speed
permit. If they do not, the vehicle will
operate temporarily in automatic mode.
When the vehicle is stationary or
moving very slowly, the gearbox
automatically selects gear 1.
The
7 (snow) programme does not
operate in manual mode.
Page 42 of 234
Gearbox and stearing wheel
40
Good practice
Never select position N
when the
vehicle is moving.
Never select positions P
or R
unless
the vehicle is stationary.
Never change between positions to
optimise braking on a slippery surface.
There is a risk of damage to the
gearbox:
- if you press the accelerator and
brake pedals at the same time,
- if you force the lever from position P
to another position in the event of a
battery failure.
When the engine is at idle, brakes
not applied, if position R
, D
or M
is
selected the vehicle moves even
without the accelerator being pressed.
For this reason, do not leave children
unsupervised inside the vehicle,
with the engine running
.
Operating abnormality
Any operating abnormality is indicated
by an audible signal, accompanied by
the message "Automatic gear fault"
on the display and fl ashing of the Snow
snowfl ake on the instrument panel.
In this situation the gearbox operates
in downgrade mode (locked in 3rd
gear). You may feel a substantial knock
when changing from P
to R
and from N
to R
(this will not cause any damage to
the gearbox).
Do not exceed 60 mph (100 km/h),
keeping within the limit of local speed
restrictions.
Contact a CITROËN dealer as soon as
possible.
You can return to the automatic
programme at any time.
- Press button
7 again to switch off
the programme you are in.
Snow programme
In addition to the automatic
programme, there is a special
Snow programme.
This improves starting
and drive when traction is
poor. The snowfl ake appears on the
instrument panel display.
- Press button
7 once the
vehicle has been started
and position D
selected.
The gearbox adapts to driving
on slippery roads.
Page 86 of 234
84
Mirrors and windows

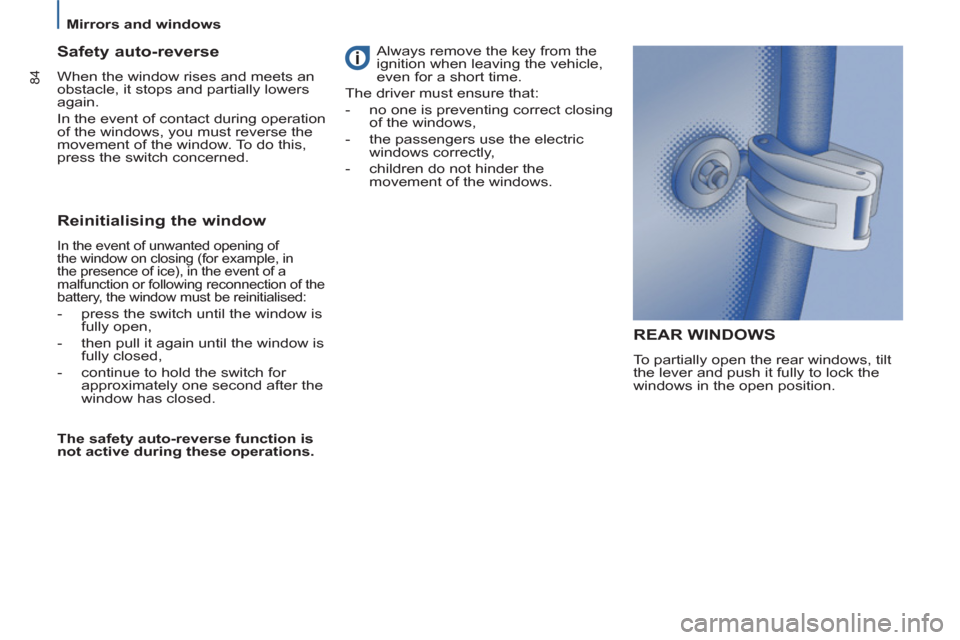

REAR WINDOWS
To partially open the rear windows, tilt
the lever and push it fully to lock the
windows in the open position.
Safety auto-reverse
When the window rises and meets an
obstacle, it stops and partially lowers
again.
In the event of contact during operation
of the windows, you must reverse the
movement of the window. To do this,
press the switch concerned.
Reinitialising the window
In the event of unwanted opening of
the window on closing (for example, in
the presence of ice), in the event of a
malfunction or following reconnection of the
battery, the window must be reinitialised:
- press the switch until the window is
fully open,
- then pull it again until the window is
fully closed,
- continue to hold the switch for
approximately one second after the
window has closed.
The safety auto-reverse function is
not active during these operations. Always remove the key from the
ignition when leaving the vehicle,
even for a short time.
The driver must ensure that:
- no one is preventing correct closing
of the windows,
- the passengers use the electric
windows correctly,
- children do not hinder the
movement of the windows.
