Page 109 of 270
107
Towing a trailer
ACCESSORIES
5
TOWING A TRAILER, CARAVAN, BOAT, ETC...
Refer to the administrative
documents (V5, ...) or to the Petrol
or Diesel "Dimensions, weights
and towed loads" section of
chapter 8.
Distribution of loads: distribute the
load in the trailer so that the heaviest
loads are as close as possible to the
axle and the nose weight is close
to the maximum authorised without,
however, exceeding it.
Cooling: towing a trailer on a slope
increases the coolant temperature.
As the fan is electrically controlled, its
cooling capacity is not dependent on
the engine speed.
Dimension A = 0.96 m
Driving advice
A towed vehicle must free wheel:
gearbox in neutral.
Page 147 of 270
Petrol and Diesel technical data
140
PETROL DIMENSIONS, WEIGHTS AND TOWING LOADS (in mm - in kg)
Model codes
EARFJ__ EBRFJ__
7 seats 8 seats
Manual
Engines
2.0 PETROL
Wheelbase(s) (at full load) 2 823
on Axle 1 1 570
on Axle 2 1 548
Length 4 727
Width 1 850
Height at kerb weight
without roof bars 1 745 to 1 759
w i t h fi x e d r o o f b a r s 1 854 to 1 863
Kerb weight 1 738 to 1 825 1 706 to 1 875
on Axle 1 1 018 to 1 043 1 014 to 1 060
on Axle 2 720 to 782 692 to 815
Page 149 of 270
Petrol and Diesel technical data
144 DIESEL DIMENSIONS, WEIGHTS AND TOWING LOADS (in mm - in kg)
Model codes EARHKH EBRHKH EARHRH EBRHRH
EA4HTH
EA4HPH
EA4HRJ EA4HSJ
EB4HTH
EB4HPH
EB4HRJ EB4HSJ
7 seats 8 seats 7 seats 8 seats 7 seats 8 seats
Engines 2.0 HDi 2.0 HDi PEF 2.2 HDi PEF
Wheelbase(s) (at full load) 2 823
on Axle 1 1 570
on Axle 2 1 548
Length 4 727
Width 1 850
Height at kerb weight
without roof bars 1 745 to 1 759
w i t h fi x e d r o o f b a r s 1 854 to 1 863
Kerb weight 1 846 to 1 949 1 811 to 1 976 1 854 to 1 957 1 818 to 1 983 1 902 to 1 988 1 875 to 2 017
on Axle 1 1 117 to 1 153 1 114 to 1 158 1 121 t o 1 157 1 117 to 1 161 1 170 to 1 204 1 169 to 1 217
on Axle 2 729 to 796 697 to 818 733 to 800 701 to 822 732 to 784 696 to 800
Page 151 of 270
146
Dimensions
T o fi n d o u t m o r e a b o u t d i m e n s i o n s : r e f e r t o t h e " D i m e n s i o n s , w e i g h t s a n d
t o w i n g l o a d s " s e c t i o n f o r b o t h p e t r o l a n d d i e s e l e n g i n e s i n c h a p t e r 8 .

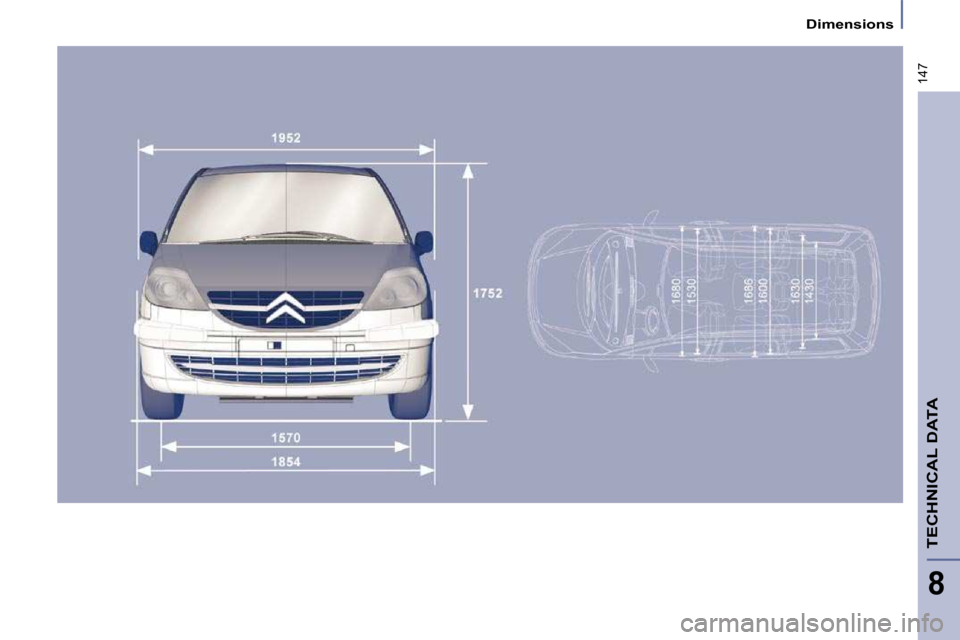

Page 152 of 270
147
8
Dimensions
TECHNICAL DATA

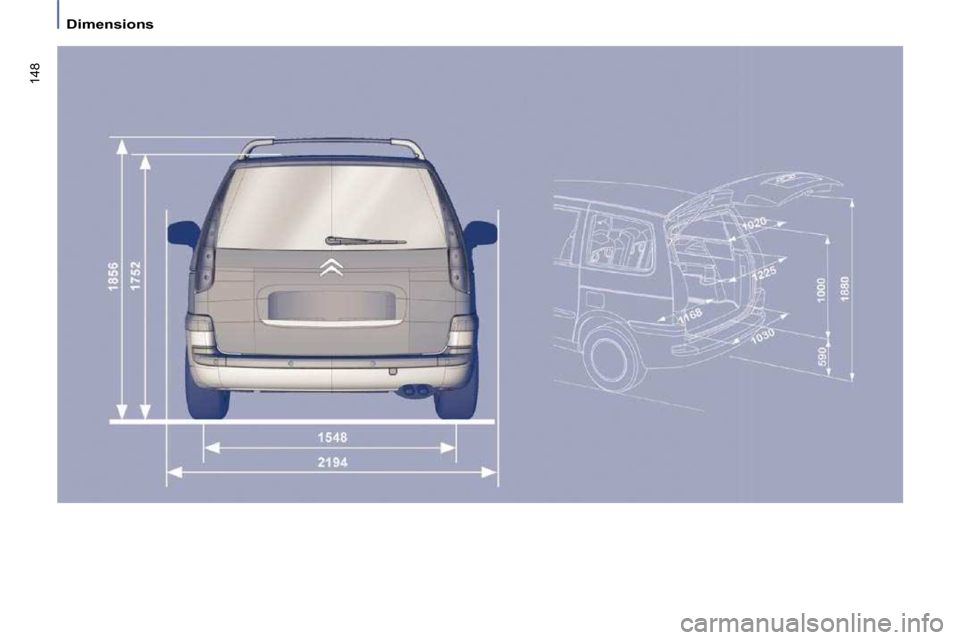

Page 153 of 270
148
Dimensions
