sensor CITROEN DISPATCH SPACETOURER 2017 Handbook (in English)

257
Activation
Activation is automatic on engaging reverse.
The function is displayed in the touch screen.
To close the window displayed, press on the
red cross at the top left of the screen.On display of the sub-menu, select one of the
four views:
"Standard view".
"180° view".
"Zoom view".
"AUTO mode".
You can choose the display mode at any time
by pressing on this area. Check the cleanliness of the camera
lenses regularly.
Periodically clean the reversing camera
with a soft dry cloth.
"AUTO mode"
This mode is activated by default.
Using sensors in the rear bumper, the
automatic view allows a change from the rear
view to the view from above as an obstacle is
approached during a manoeuvre.
The system is automatically deactivated
when towing a trailer or carrying a
bicycle on the towbar (vehicle fitted with
a towbar installed as recommended by
the manufacturer).
Quick start mode
This mode displays, as quickly as possible, the
contextual view (left-hand part) and the view
from above the vehicle. High pressure jet wash (if muddy, for
example)
When washing your vehicle, do not
place the tip of the lance within 30 cm of
the camera lenses, as other wise there
is a risk of damaging them.
A message is displayed advising you to check
your vehicle's surroundings before starting the
manoeuvre.
6
Driving

258
Under-inflation detection
The system monitors the pressures in the four
tyres, once the vehicle is moving.
It compares the information given by the four
wheel speed sensors with reference values,
which must be reinitialised ever y time the
tyre pressures are adjusted or a wheel
changed.
The system triggers an alert as soon as it
detects a drop in the inflation pressure of one
or more tyres. The under-inflation detection system
does not replace the need for vigilance
on the part of the driver.
This system does not avoid the need to
check the tyre pressures (including the
spare wheel) every month as well as
before a long journey.
Driving with under-inflated tyres impairs
road holding, extends braking distances
and causes premature tyre wear,
particularly under arduous conditions
(high loading, high speed, long journey).
System which automatically checks the pressures of the tyres while driving.
The inflation pressures defined for
your vehicle can be found on the tyre
pressure label.
For more information on the
Identification markings, refer to the
corresponding section.
Tyre pressures should be checked
when the tyres are "cold" (vehicle
stopped for 1 hour or after a journey of
less than 6 miles (10 km) at moderate
speeds).
Other wise (when hot), add 0.3 bar to
the pressures shown on the label.
Driving with under-inflated tyres
increases fuel consumption.
Snow chains
The system does not have to be
reinitialised after fitting or removing
snow chains.
Spare wheel
The steel spare wheel does not have an
under-inflation detection sensor.
Driving

267
Accessories
A wide range of accessories and genuine parts is available from the CITROËN dealer network.
These accessories and parts are all suitable for your vehicle and benefit from CITROËN's
recommendation and warranty.
"Comfort"
Door deflectors, cigarette lighter, boot dividers,
coat hanger fixed to head restraint, front and
rear parking sensors, styling mudflaps, boot
management system, ...
"Transport solutions"
Boot liners, roof bars, bicycle carrier on roof
bars, ski carrier, roof box, towbar harness, ...
Tow bar, which must be fitted by CITROËN
dealer or a qualified workshop.
"Styling"
Wheel trims, wheel caps, door sills, gear lever
knobs, ...
"Security and safety"
Anti-theft alarm, window engraving, wheel
security bolts, child seats, breathalyzer, first aid
kit, warning triangle, high visibility jacket, stolen
vehicle tracking system, fleet management unit,
snow chains, tyre snow socks, front foglamps
kit, ...
"Protection"
Mats*, seat covers compatible with lateral
airbags, mud flaps, side protection rubbing
strips, bumper protectors, loading area
protection (on wood or plastic), rear sill
finishers, rear mat, ...
The fitting of electrical equipment or
accessories which are not recommended
by CITROËN may result in a failure of
your vehicle's electronic system and
excessive electrical consumption.
Contact a CITROËN dealer
for information on the range of
recommended equipment and
accessories.
Installation of radio
communication
transmitters
Before installing any after-market radio
communication transmitter, you can
contact a CITROËN dealer for the
specification of transmitters which can
be fitted (frequency, maximum power,
aerial position, specific installation
requirements), in line with the Vehicle
Electromagnetic Compatibility
Directive
(2004/104/EC).
Depending on the legislation in force in
the country, certain safety equipment
may be compulsory: high visibility
safety vests, warning triangles,
breathalyzers, spare bulbs, spare fuses,
fire extinguisher, first aid kit, mud flaps
at the rear of the vehicle. *

T
o avoid any risk of jamming of the pedals:
-

e
nsure that the mat is positioned and
secured correctly,
-

n
ever fit one mat on top of another.
7
Practical information

297
F If your vehicle is so equipped, tighten the security bolt using the wheelbrace 1 fitted
with the security socket 4 .
F

T
ighten the other bolts using the
wheelbrace 1 o n l y.
F

S
tow the tools in the tool box. The tyre inflation pressures are given on this
label.
After changing a wheel
Stow the punctured wheel in the carrier.
Have the tightening of the bolts and the
pressure of the spare wheel checked
by a CITROËN dealer or a qualified
workshop without delay.
Have the punctured wheel repaired
and refitted to the vehicle as soon as
possible.
If your vehicle has tyre under-inflation
detection, check the tyre pressures and
reinitialise the system.
Tyre under-inflation detection
The steel spare wheel does not have a
sensor.
Wheel with large wheel
trim
When refitting the wheel
, refit the
wheel trim by placing its cut-out at the
valve, and press round its edge with the
palm of your hand.
For more information on Under-
inflation detection
, refer to the
corresponding section.
8
In the event of a breakdown

313
FuseN° Rating
(A) Functions
F1 10Electric power steering, clutch switch.
F4 15Horn.
F5 20Front/rear screenwash pump.
F6 20Front/rear screenwash pump.
F7 10Rear 12 V accessory socket.
F8 20Single or double rear wipers.
F10/F11 30Front /rear exterior and interior locks.
F13 10Front air conditioning controls, audio system controls, gear
lever, head-up display.
F14 5Alarm, emergency and assistance calls.
F17 5Instrument panel.
F19 3Steering mounted controls.
F21 3"Keyless Entry and Starting" system or ignition switch.
F22 3Rain and sunshine sensor, multifunction detection camera.
F23 5Seat belt unfastened or not fastened display screen.
F24 5Touch screen, reversing camera and parking sensors.
F25 5Airbags.
F29 20Audio system, touch screen, CD player, navigation.
F31 15Audio system (battery +).
F32 15Front 12 V accessory socket.
F34 5Blind spot monitoring system, door mirror electric controls.
F35 5Heated washer jets, headlamp beam height control.
F36 5Torch charger, rear courtesy lamp.Version 1 (Eco)
The fuses described hereafter vary according
to the equipment in your vehicle.
8
In the event of a breakdown

314
FuseN° Rating
(A) Functions
F1 3"Keyless Entry and Starting" system or ignition switch.
F5 5Touch screen, reversing camera and parking sensors.
F7 10Rear air conditioning controls, Hi-Fi amplifier.
F8 20Single or double rear wiper.
F10/F11 30Front /rear exterior and interior locks.
F12 3Alarm.
F17 10Rear 12 V accessory socket.
F18 5Emergency and assistance calls.
F21 3Torch charger, rear courtesy lamp.
F22 3Glove box lamp, rear courtesy lamps.
F23 5Blind spot monitoring system, door mirror electric controls.
F24 5Steering mounted controls.
F25 5Headlamp beam height control.
F26 3Seat belt unfastened or not fastened display screen.
F27 3Rain and sunshine sensor, multifunction detection camera.
F28 10Front air conditioning controls, radio controls, gear lever, head-
up display.
F30A or B 15Audio system (battery +).
F31 5Airbags.
F33 15Front 12 V accessory socket.
F35 5Instrument panel.
F36 20Audio system, touch screen, CD player, navigation.Version 2 (Full)
The fuses described hereafter vary according
to the equipment in your vehicle.
In the event of a breakdown

500
Radio ............................................ 384, 440, 478
Radio, digital (Digital Audio Broadcasting - DAB)

.................. 3
86, 442, 480
Radio Media

..........................................3
78, 434
Range
................

.............................................. 40
Range, AdBlue

...............................
.................33
RDS
................

............................... 385, 441, 478
Rear screen, demisting
................................. 13

3
Rear screen, opening

..................................... 8

2
Recharging the battery

.................................31

8
Recirculation, air
...............................

.... 125, 130
Reduction of electrical load

..........................26

6
Regeneration of the particle filter

.................2

76
Reinitialisation of the under-inflation detection system

......................................... 25

9
Reinitialising the remote control

............... 5
1, 62
Reminder, key in ignition

...............................19

7
Reminder, lighting on

.................................... 14

6
Remote control

.......................................... 45

-65
Removing a wheel

..............................
..........294
Removing the mat

...............................
..........11 0
Replacing bulbs
..............................

..............298
Replacing fuses
..............................

..............311
Replacing the air filter

...................................2

76
Replacing the oil filter

...................................2

76
Replacing the passenger
compartment filter

...................................... 2

76
Reservoir, headlamp wash

...........................2

75
Reservoir, screenwash
................................. 2

75
Resetting the service indicator

.......................31
R

esetting the trip recorder
..............................36
R

ev counter
............................................... 1
3, 14
Reversing camera
...............................

..........255
Reversing camera (on interior mirror)

..........25

4
Reversing lamp
.................................... 3

05, 308
Roof bars
....................................................... 26

8
Roof rack

....................................................... 26

8
Running out of fuel (Diesel)

..........................32

2
Oil change
...............................
...................... 273
Oil consumption
............................................ 2
73
OIl, engine
...............................

...................... 273
On-board tools

...................................... 28

2, 284
Opening the bonnet

...................................... 2

71
Opening the boot

..............................

..45, 54, 81
Opening the doors

................. 6

5, 66, 68, 76, 77
Opening to 180°

...............................

............... 79
O
P
R
Pads, brake ................................................... 2 77
Paint colour code .......................................... 3
27
Panoramic glass sunroof

..............................12

0
Parcel shelf, rear
........................................... 11

8
Parking brake

.................................. 1
6, 201, 277
Parking sensors, audible and visual

.............25

3
Plates, identification ...................................... 327
Player, Apple
® .............................. 3 89, 445, 485
Player, MP3 CD ............................... ..............484
Player, USB

.................................. 3
88, 444, 482
Port, USB

............................. 1
13, 388, 444, 482
Pressures, tyres
............................ 2

90, 297, 327
Pre-tensioning seat belts

.............................. 16

4
Priming the fuel system

................................ 32

2
Profiles
................................................. 4

08, 464
Protecting children

................. 1
67, 170, 173 -191
Puncture
................

........................................ 285 Safety, children

...................... 1
67, 170, 173 -191
Saturation of the particle filter (Diesel)
....................................................... 2
76
Screen, instrument panel
..........................3
8, 39
Screen menu map
....... 3
42, 344, 346, 348, 350,

352, 360, 362, 364, 368, 374, 376,
378, 380, 382, 390, 392, 394, 402,
404, 406, 424, 430, 432, 434, 436, 438, 446, 448, 450, 458, 460, 462
Screen menus
...............................3
35, 423, 477
Screenwash
..............................
....................
15 6
Screenwash, rear
...............................
...........
155
SCR (Selective Catalytic Reduction)
.................................................. 2
78
Seat and bench seat, rear, fixed
......................................................9
8, 109
Seat and bench seat, rear, on rails
................................................ 10
1, 109
Seat belts
............................... 1
64-167, 179, 180
Seat belts, rear
...............................
...............
165
Seat, bench front, 2-seat
........................9
3, 165
Seats, electric
................................................. 90
Se
ats, front
...............................
................. 87, 90
Seats, front bench
...............................
............
94
Seats, heated
...............................
............. 91, 94
Seat(s), individual, rear, on rails ................................................ 10 5, 166
Seats, rear .........................................9 5, 98, 101
Selector, gear
................................................ 2

10
Serial number, vehicle

..................................3

27
Service indicator
....................................... 2

9, 31
Service (warning lamp)
...............................

...............26
Servicing
...............................

..........................11
Settings
...............

.402, 404, 406, 458, 460, 462
Settings, system

...............................
..... 410, 466
Sidelamps
.....................1

44, 299 -301, 305, 308
Side repeater
..............................

..................300
S
Alphabetical index

19
6
Driving

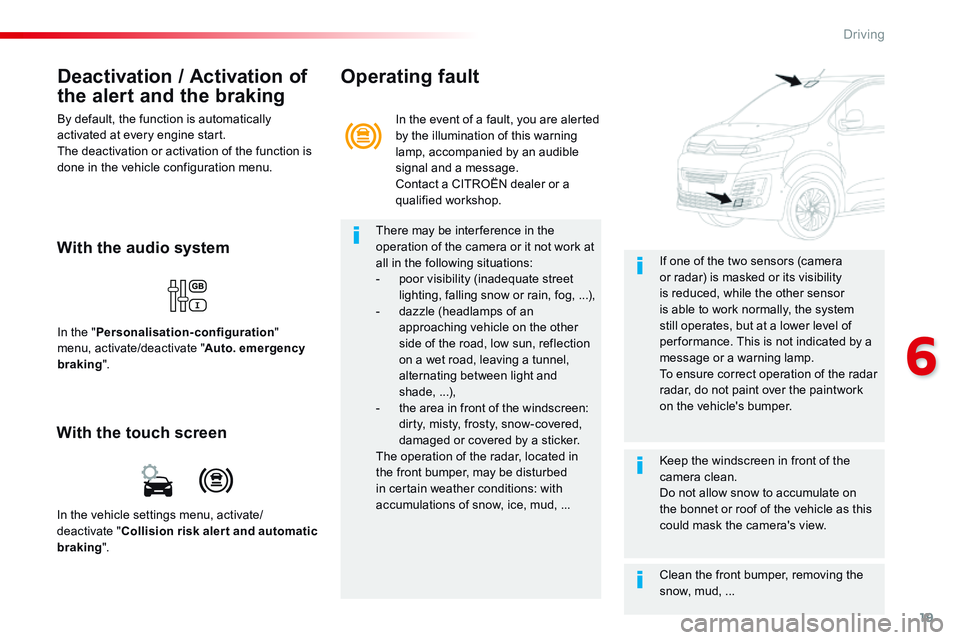

Comp _Spacetourer_01_16_EN
Deactivation / Activation of
the alert and the braking
By default, the function is automatically activated at every engine start. The deactivation or activation of the function is done in the vehicle configuration menu.
With the audio system
In the " Personalisation-configuration " menu, activate/deactivate " Auto. emergency braking ".
With the touch screen
In the vehicle settings menu, activate/deactivate " Collision risk alert and automatic
braking ".
In the event of a fault, you are alerted by the illumination of this warning lamp, accompanied by an audible signal and a message. Contact a CITROËN dealer or a qualified workshop.
Operating fault
There may be interference in the operation of the camera or it not work at all in the following situations: - poor visibility (inadequate street lighting, falling snow or rain, fog, ...), - dazzle (headlamps of an approaching vehicle on the other side of the road, low sun, reflection on a wet road, leaving a tunnel, alternating between light and shade, ...), - the area in front of the windscreen: dirty, misty, frosty, snow-covered,
damaged or covered by a sticker. The operation of the radar, located in the front bumper, may be disturbed in certain weather conditions: with accumulations of snow, ice, mud, ...
Clean the front bumper, removing the snow, mud, ...
If one of the two sensors (camera or radar) is masked or its visibility is reduced, while the other sensor is able to work normally, the system still operates, but at a lower level of per formance. This is not indicated by a message or a warning lamp. To ensure correct operation of the radar radar, do not paint over the paintwork on the vehicle's bumper.
Keep the windscreen in front of the camera clean. Do not allow snow to accumulate on the bonnet or roof of the vehicle as this could mask the camera's view.

19
6
Driving
Comp _Spacetourer_01_16_EN
Deactivation / Activation of
the alert and the braking
By default, the function is automatically activated at every engine start. The deactivation or activation of the function is done in the vehicle configuration menu.
With the audio system
In the " Personalisation-configuration " menu, activate/deactivate " Auto. emergency braking ".
With the touch screen
In the vehicle settings menu, activate/deactivate " Collision risk alert and automatic
braking ".
In the event of a fault, you are alerted by the illumination of this warning lamp, accompanied by an audible signal and a message. Contact a CITROËN dealer or a qualified workshop.
Operating fault
There may be interference in the operation of the camera or it not work at all in the following situations: - poor visibility (inadequate street lighting, falling snow or rain, fog, ...), - dazzle (headlamps of an approaching vehicle on the other side of the road, low sun, reflection on a wet road, leaving a tunnel, alternating between light and shade, ...), - the area in front of the windscreen: dirty, misty, frosty, snow-covered,
damaged or covered by a sticker. The operation of the radar, located in the front bumper, may be disturbed in certain weather conditions: with accumulations of snow, ice, mud, ...
Clean the front bumper, removing the snow, mud, ...
If one of the two sensors (camera or radar) is masked or its visibility is reduced, while the other sensor is able to work normally, the system still operates, but at a lower level of per formance. This is not indicated by a message or a warning lamp. To ensure correct operation of the radar radar, do not paint over the paintwork on the vehicle's bumper.
Keep the windscreen in front of the camera clean. Do not allow snow to accumulate on the bonnet or roof of the vehicle as this could mask the camera's view.
