mirror CITROEN DISPATCH SPACETOURER 2017 Handbook (in English)
[x] Cancel search | Manufacturer: CITROEN, Model Year: 2017, Model line: DISPATCH SPACETOURER, Model: CITROEN DISPATCH SPACETOURER 2017Pages: 774, PDF Size: 48.25 MB
Page 430 of 774
428
12:13
23 °C531 kHz
MirrorLinkTM smartphone connection
Audio and Telematics
Page 431 of 774
429
As a safety measure and because it
requires the sustained attention of
the driver, using a smartphone when
driving is prohibited.
Operation must be with the vehicle
stationary.
The synchronisation of a
smartphone allows applications on a
smartphone that are adapted to the
MirrorLink
TM technology to be displayed
i
n the vehicle's screen.
The principles and standards
are constantly evolving. For the
communication process between
the smartphone and the system to
work correctly, the smartphone must
be unlocked; update the operating
system of your smar tphone as
well as the date and time in the
smartphone and the system .
For the list of eligible smartphones,
connect to the brand's internet website
in your country. The "
MirrorLink
TM" function requires
the use of a compatible smartphone
and applications.
There may be a wait for the availability
of applications, depending on the
quality of your network.
When connecting a smartphone to
the system, it is recommended that
Bluetooth
® be started on the smartphone
Depending on the smartphone, it may be
necessary to activate the "MirrorLinkTM" function.
During the procedure, several screen
pages relating to certain functions
are displayed.
Accept to start and end the
connection. Connect a USB cable. The
smartphone charges when
connected by a USB cable.
Press " MirrorLink
TM" to start the
application in the system. Once connection is established, a page
is displayed with the applications already
downloaded to your smartphone and adapted
to MirrorLink
TM technology.
Access to the different audio sources remains
accessible in the margin of the MirrorLink
TM
display, using touch buttons in the upper bar.
Access to the menus for the system is possible
at any time using the dedicated buttons
From the system, press on
" Connectivity " to display the primary
page.
As a safety measure, applications
can only be viewed with the vehicle
stationary; display is interrupted once
the vehicle is moving.
.
Audio and Telematics
Page 433 of 774
431
Level 1Level 2 Level 3 Comments
Connectivity MirrorLink
TM
Go to or return to the applications already
downloaded to your smartphone and adapted to
MirrorLink
TM technology.
Go to a menu list depending on the application
chosen.
"Back": abandon the current operation, go up
one level.
"Home": go to or return to the "Car mode" page
on your smartphone.
Go to the primary page of the "Connectivity"
menu.
.
Audio and Telematics
Page 499 of 774
497
D
E
Checks ..........................................272, 276, 277
Child lock, electric, manual
...............
......................................... 19 0
Child lock on rear windows
...................................................... 19
1
Children
...............................
... 167, 170, 173 -191
Children (safety)
...............................
.............19 0
Child seats
..............................
......................180
Child seats, conventional
........................................ 17
9 -18 2
Child seats, ISOFIX
..............................18
4 -18 6
C
ITROËN
C
onnect Box
...............................32
8
CITROËN Connect Nav
................................ 3
31
CITROËN Connect Radio
.............................41
9
C
ITROËN
L
ocalised
Emergency Call
..................................1
58, 328
Closing the boot
...............................
... 76, 79, 81
Closing the doors
...............................
.......65 -78
Coat hook
...................................................... 11
5
Collision risk alert
....................2
1, 239 -241, 243
Compressor, tyre inflation
............................28
5
Connection, Bluetooth
..... 3
70, 396 -398, 426, 452- 454, 488
Connection, MirrorLink
............................3
72, 374, 428, 430
Connection, Wi-Fi network
..............................
....... 371, 427
Connectivity
...............................
...........368, 424
Control, emergency
boot release
...............................
...................81
Control, back-up door
...............................5
0, 60
Control, heated seats
................................ 9
1, 94
Control stalk, lighting
.................................... 14
4
Control stalk, wipers
..................................... 15
4
Courtesy lamp, front
..................... 1
40, 307, 310
Courtesy lamp, rear
...................... 1
40, 307, 310
Courtesy lamps
............................. 1
40, 307, 310
Cover, load space
................................. 11
5 , 118
Cruise control
................................................ 2
28 Doors ..............................................................
.65
Doors, rear
............................... .......................79
Doors, side-hinged
.......... 5
7, 58, 61, 79, 80, 305, 306
Driver’s attention warning
...............................
........................247
Driver's door open warning
...............................
.................... 18, 72
Driving abroad ............................................... 146
Driving economically ....................................... 11
Driving time warning
............................. 2
47, 248
Dynamic stability control (DSC)
............................................ 2
3, 159, 161
DAB (Digital Audio Broadcasting) - Digital radio
................................ 3
86, 442, 480
Date (setting)
...............................
....44, 410, 466
Daytime running lamps
......... 1
44, 147, 299 -301
Deactivating the passenger
airbag
.................................................. 17
0, 176
Deactivation of DSC (ESC)
...............
...........................................161
Deadlocking
...............................
........ 48, 53, 58
Demisting, defrosting, front
..........................13
1
Demisting, defrosting, rear
........................... 13
2
Diagnostic system, engine
...............
............................................19
Dials
...............
........................................... 13, 14
Diesel
...............................
.............................263
Dimensions
..............................
.....................323
Dipstick
................
....................................32, 273
Direction indicators
...........1
46, 299, 302, 303, 305, 308
Display, head-up
........................................... 2
18
Display screen, instrument panel
............................. 1
3, 14, 204
Door pockets
.................................................11
2EBA
.............................................................
..159
Eco-driving (advice)
........................................ 11
E
lectronic brake force
distribution (EBFD)
..................................... 15
9
Emergency call
.....................................1
58, 328
Emergency warning lamps
...................1
58, 282
Emissions control system, SCR
..............................
........................25, 278
Energy economy mode
.................................26
6
Engine compartment
.................................... 2
72
Engine, Diesel
........ 1
9, 263, 272, 322, 325, 326
Environment
................1
1, 51, 62, 132, 133, 134,
138, 209, 258, 275, 280, 316
ESC (electronic stability control)
............2
3, 159
Cruise control, dynamic
................................2
32
Cruise control by speed limit recognition
.................................................. 2
23
Cup holder
...............................
......................115
.
Alphabetical index
Page 501 of 774
499
Key ..................................................................45
Keyless Entry and Starting
............................................ 5
2-59
Key with remote control
............................4
5-49
Kit, hands-free
............. 3
96, 397, 452, 453, 487
Kit, temporary puncture repair
.................................. 2
84, 285
Labels
................
...................................... 10, 109
Labels, identification
..................................... 3
27
Lane Departure Warning System (LDWS)
.................................................2
8, 245
Level, brake fluid
........................................... 2
74
Level, Diesel additive
............................ 2
75, 276
Level, engine coolant
.............................. 2
9, 274
Level, engine oil
...............................
.......32, 273
K
L
Jack ............................................................... 291Level, headlamp wash .......................... 1 56, 275
Level, power steering fluid ............................2
74
Levels and checks
..............................
...272-275
Level, screenwash fluid
........................ 1
56, 275
Lighting
................
....................................28, 144
Lighting, cornering
...............................
.........150
Lighting dimmer
..............................
................37
Lighting, guide-me home
..............................14
8
Lighting, interior
.................................... 1
19, 153
Lighting, mood
..............................
................153
Lighting, welcome
.........................................14
9
Loading
..............................
..................... 11, 268
Load reduction mode
....................................26
6
Localised Assistance Call
.....................1
58, 328
Locating your vehicle
................................4
9, 59
Locking
.......................................... 4
7, 52, 56, 63
Locking from the inside
...................................64
L
ow fuel level
..............................
............ 18, 261
Lumbar
...............................
.......................88, 92
J
Maintenance, routine ................ ........................................... 11
Markings,
identification
............................................... 3
27
Massage function
...............................
............92
Mats
...............................
........................ 110, 198
Memorising a speed
..................................... 2
20
M
Menu ................... 342, 344, 346, 348, 350, 352,
360, 362, 364, 368, 374, 376, 378, 380, 382,
390, 392, 394, 402, 404, 406, 424, 430, 432, 434, 436, 438, 446, 448, 450, 458, 460, 462
Menus (audio)
..............................
.........335, 423
Messages
...............................
.............. 400, 456
Messages, quick
................................... 4
01, 457
Mirror, rear view
............................................ 14
3
Mirrors, door.................. 132, 133, 141, 142, 249
Mirror, vanity
..............................
...................111
Misfuel prevention
...............................
..........262
Mountings, Isofix
...............................
............183
MP3 CD
................
......................................... 484
Navigation
...............................
......................342
Navigation,
connected
...............................
....................358
Net, high load retaining
...............
...............................115 , 11 6
Net, storage................................................... 115
Number plate lamps
..............................
................... 306, 309
N
.
Alphabetical index
Page 502 of 774
500
Radio ............................................ 384, 440, 478
Radio, digital (Digital Audio Broadcasting - DAB)
.................. 3
86, 442, 480
Radio Media
..........................................3
78, 434
Range
................
.............................................. 40
Range, AdBlue
...............................
.................33
RDS
................
............................... 385, 441, 478
Rear screen, demisting
................................. 13
3
Rear screen, opening
..................................... 8
2
Recharging the battery
.................................31
8
Recirculation, air
...............................
.... 125, 130
Reduction of electrical load
..........................26
6
Regeneration of the particle filter
.................2
76
Reinitialisation of the under-inflation detection system
......................................... 25
9
Reinitialising the remote control
............... 5
1, 62
Reminder, key in ignition
...............................19
7
Reminder, lighting on
.................................... 14
6
Remote control
.......................................... 45
-65
Removing a wheel
..............................
..........294
Removing the mat
...............................
..........11 0
Replacing bulbs
..............................
..............298
Replacing fuses
..............................
..............311
Replacing the air filter
...................................2
76
Replacing the oil filter
...................................2
76
Replacing the passenger
compartment filter
...................................... 2
76
Reservoir, headlamp wash
...........................2
75
Reservoir, screenwash
................................. 2
75
Resetting the service indicator
.......................31
R
esetting the trip recorder
..............................36
R
ev counter
............................................... 1
3, 14
Reversing camera
...............................
..........255
Reversing camera (on interior mirror)
..........25
4
Reversing lamp
.................................... 3
05, 308
Roof bars
....................................................... 26
8
Roof rack
....................................................... 26
8
Running out of fuel (Diesel)
..........................32
2
Oil change
...............................
...................... 273
Oil consumption
............................................ 2
73
OIl, engine
...............................
...................... 273
On-board tools
...................................... 28
2, 284
Opening the bonnet
...................................... 2
71
Opening the boot
..............................
..45, 54, 81
Opening the doors
................. 6
5, 66, 68, 76, 77
Opening to 180°
...............................
............... 79
O
P
R
Pads, brake ................................................... 2 77
Paint colour code .......................................... 3
27
Panoramic glass sunroof
..............................12
0
Parcel shelf, rear
........................................... 11
8
Parking brake
.................................. 1
6, 201, 277
Parking sensors, audible and visual
.............25
3
Plates, identification ...................................... 327
Player, Apple
® .............................. 3 89, 445, 485
Player, MP3 CD ............................... ..............484
Player, USB
.................................. 3
88, 444, 482
Port, USB
............................. 1
13, 388, 444, 482
Pressures, tyres
............................ 2
90, 297, 327
Pre-tensioning seat belts
.............................. 16
4
Priming the fuel system
................................ 32
2
Profiles
................................................. 4
08, 464
Protecting children
................. 1
67, 170, 173 -191
Puncture
................
........................................ 285 Safety, children
...................... 1
67, 170, 173 -191
Saturation of the particle filter (Diesel)
....................................................... 2
76
Screen, instrument panel
..........................3
8, 39
Screen menu map
....... 3
42, 344, 346, 348, 350,
352, 360, 362, 364, 368, 374, 376,
378, 380, 382, 390, 392, 394, 402,
404, 406, 424, 430, 432, 434, 436, 438, 446, 448, 450, 458, 460, 462
Screen menus
...............................3
35, 423, 477
Screenwash
..............................
....................
15 6
Screenwash, rear
...............................
...........
155
SCR (Selective Catalytic Reduction)
.................................................. 2
78
Seat and bench seat, rear, fixed
......................................................9
8, 109
Seat and bench seat, rear, on rails
................................................ 10
1, 109
Seat belts
............................... 1
64-167, 179, 180
Seat belts, rear
...............................
...............
165
Seat, bench front, 2-seat
........................9
3, 165
Seats, electric
................................................. 90
Se
ats, front
...............................
................. 87, 90
Seats, front bench
...............................
............
94
Seats, heated
...............................
............. 91, 94
Seat(s), individual, rear, on rails ................................................ 10 5, 166
Seats, rear .........................................9 5, 98, 101
Selector, gear
................................................ 2
10
Serial number, vehicle
..................................3
27
Service indicator
....................................... 2
9, 31
Service (warning lamp)
...............................
...............26
Servicing
...............................
..........................11
Settings
...............
.402, 404, 406, 458, 460, 462
Settings, system
...............................
..... 410, 466
Sidelamps
.....................1
44, 299 -301, 305, 308
Side repeater
..............................
..................300
S
Alphabetical index
Page 534 of 774
100
21,518,5
Transversal-Citroen_en_Chap02_RCC-2-2-0_ed01-2016
Menus
Radio Media
Applications
Select an audio source or radio station.
Access configurable equipment.
Air conditioning
Manage the different temperature and air flow
settings.
Navigation
Configure the guidance and select your
destination via MirrorLinkTM or CarPlay®.
According to version.
Audio and Telematics
Page 535 of 774
101
Transversal-Citroen_en_Chap02_RCC-2-2-0_ed01-2016
SettingsDriving
Telephone
Configure a personal profile and/or configure
the sound (balance, ambience,
...) and the
display (language, units, date, time,
...).Activate, deactivate or configure certain vehicle
functions.
Connect a telephone by Bluetooth®.
Operate certain applications on a smartphone
connected via MirrorLink
TM or CarPlay®.
.
Audio and Telematics
Page 553 of 774
119
1
2
3
4
Transversal-Citroen_en_Chap02_RCC-2-2-0_ed01-2016

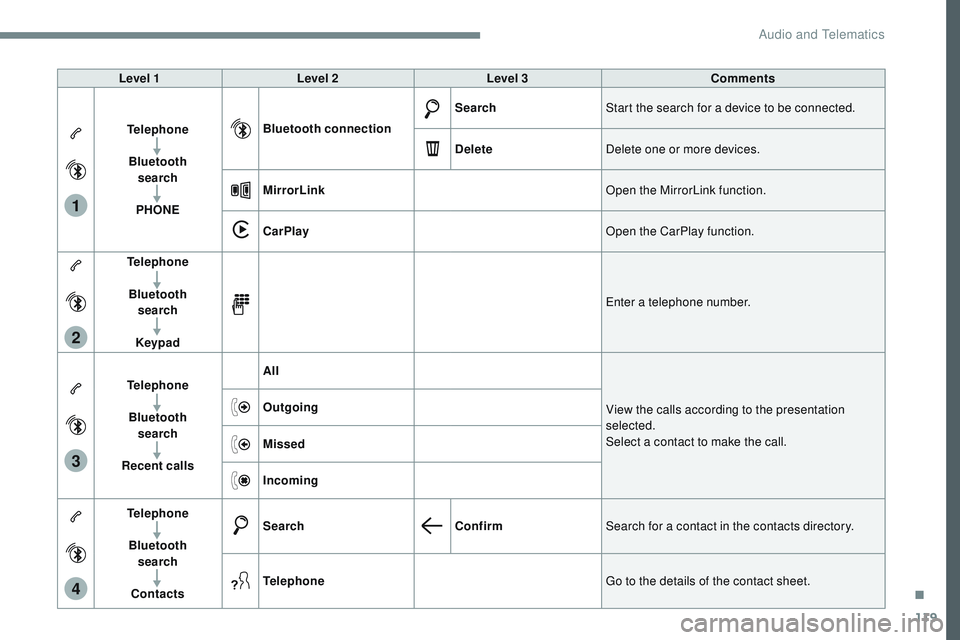

Level 1Level 2 Level 3 Comments
Telephone Bluetooth search
PHONE Bluetooth connection
Search
Start the search for a device to be connected.
Delete Delete one or more devices.
MirrorLink Open the MirrorLink function.
CarPlay Open the CarPlay function.
Telephone
Bluetooth search
Keypad Enter a telephone number.
Telephone Bluetooth search
Recent calls All
View the calls according to the presentation
selected.
Select a contact to make the call.
Outgoing
Missed
Incoming
Telephone Bluetooth search
Contacts Search
ConfirmSearch for a contact in the contacts directory.
Telephone Go to the details of the contact sheet.
.
Audio and Telematics
Page 556 of 774
122
1
Transversal-Citroen_en_Chap02_RCC-2-2-0_ed01-2016
MirrorLinkTM smartphone connection
Audio and Telematics
