tailgate CITROEN DISPATCH SPACETOURER DAG 2017 Handbook (in English)

82
Spacetourer-VP_en_Chap02_ouvertures_ed01-2016
For more information on the Key,
Remote control or Keyless Entr y and
Starting , and in particular unlocking
the vehicle, refer to the corresponding
section. For more information on the Key,

Remote control or Keyless Entr y and
Starting , and in particular unlocking
the vehicle, refer to the corresponding
section.
The tailgate and tailgate screen cannot
both be open at the same time, to avoid
damaging them.
Tailgate rear screen
The opening rear screen allows you to access
the rear of the vehicle directly, without having to
open the tailgate.
Opening Closing
After unlocking the vehicle using the key,
remote control or Keyless Entry and Starting
(depending on equipment) press this control
and raise the rear screen to open it. Close the rear screen by pressing the centre of
the glass until it is fully closed.
If the tailgate rear screen is not fully
closed:
- v ehicle stationary and the engine
running, this warning lamp
comes on, accompanied by an
alert message for a few seconds,
-

v
ehicle moving (speed above
6 mph (10 km/h)), this warning
lamp comes on, accompanied
by an audible signal and an alert
message for a few seconds.
Access

83
Spacetourer-VP_en_Chap02_ouvertures_ed01-2016
System which protects and provides a deterrent
against theft and break-ins.
AlarmExterior perimeter
The system checks for opening of the vehicle.
The alarm is triggered if anyone tries to open
one of the doors or the bonnet.
Self-protection function
The system checks for the
disconnection of any of its components.
The alarm is triggered if the battery,
the button or the siren wiring is
disconnected or damaged.For all work on the alarm system,
contact a CITROËN dealer or a
qualified workshop.
Volumetric
The system monitors the passenger
compartment for any variation in volume.
The alarm is triggered if someone breaks
the windscreen, penetrates the passenger
compartment or moves around inside the
vehicle.
If your vehicle is fitted with the
programmable heating / ventilation,
volumetric monitoring is not compatible
with this system.
For more information on
Programmable Heating / Ventilation ,
refer to the corresponding section. F

L
ock the vehicle using the "Keyless Entry
and Starting" system.
Total protection
Activation
F Lock the vehicle using the remote control.
or
The monitoring system is active: the indicator
lamp in the button flashes once per second
and the direction indicators come on for about
2 seconds.
Following a command to lock the vehicle
using the remote control or the Keyless Entry
and Starting system, the exterior perimeter
monitoring is activated after a delay of
5

seconds, the interior volumetric monitoring
after 45 seconds.
If an opening (door, tailgate or side-hinged
doors, bonnet...) is not closed fully, the vehicle
is not locked but monitoring will be activated
after a delay of 45 seconds. F

Switch off the ignition and get out of the vehicle.
2
Access

140
Spacetourer-VP_en_Chap03_ergonomie-et-confort_ed01-2016
Individual reading lamp
RearCourtesy lampsAutomatic operation
The front courtesy lamp comes on when the
key is removed from the ignition switch.
All of the courtesy lamps come on when
the vehicle is unlocked, when one of the
corresponding doors is opened and for location
of the vehicle using the remote control.
They go off gradually after the ignition is
switched on and when the vehicle is locked.
Front
Permanently off.
Row 2 and row 3: comes on when one
of the rear doors or the boot is opened
(sliding side door and depending on
equipment, the left hand side-hinged
door or the tailgate).
Front: comes on when one of
the front or rear doors is opened
(sliding side door and depending on
equipment, the left hand side-hinged
door or the tailgate).
Permanently on, ignition on. Take care not to leave anything in
contact with the courtesy lamp.If fitted to the vehicle, these are
operated by means of a manual
switch.
With the ignition on, operate the
corresponding switch.
Ease of use and comfort

190
Spacetourer-VP_en_Chap05_securite_ed01-2016

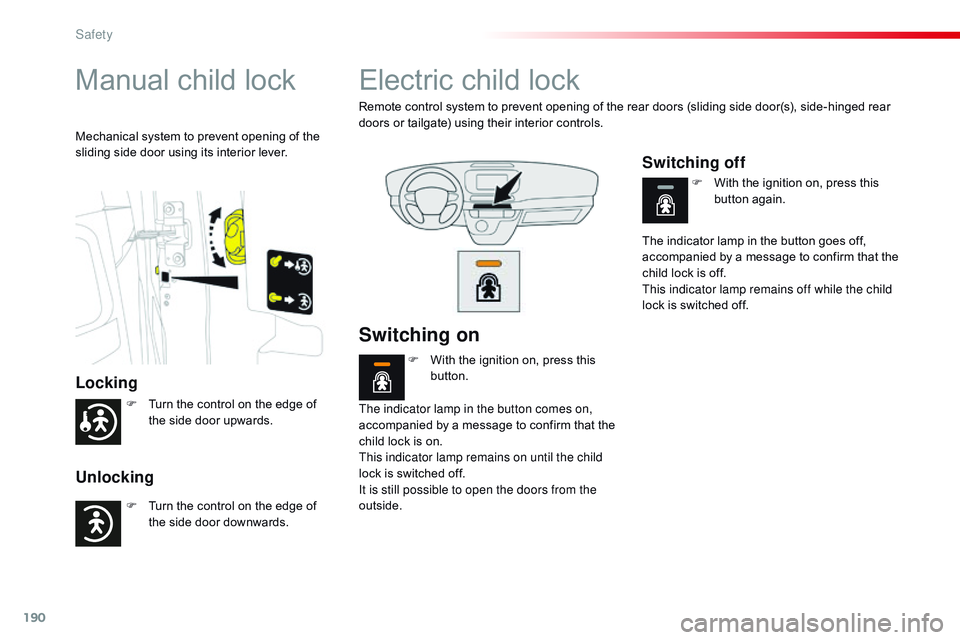

Manual child lock
Locking
Unlocking
Mechanical system to prevent opening of the
sliding side door using its interior lever.
Electric child lock
Remote control system to prevent opening of the rear doors (sliding side door(s), side-hinged rear
doors or tailgate) using their interior controls.The indicator lamp in the button comes on,
accompanied by a message to confirm that the
child lock is on.
This indicator lamp remains on until the child
lock is switched off.
It is still possible to open the doors from the
outside. The indicator lamp in the button goes off,
accompanied by a message to confirm that the
child lock is off.
This indicator lamp remains off while the child
lock is switched off.
Switching on
F With the ignition on, press this
button. F

W
ith the ignition on, press this
button again.
Switching off
F Turn the control on the edge of the side door upwards.
F

T
urn the control on the edge of
the side door downwards.
Safety

254
Spacetourer-VP_en_Chap06_conduite_ed01-2016
Reversing camera with display in the interior mirror
The visual aid reversing camera is activated
automatically when reverse gear is engaged.
The function may be completed with parking
sensors.Opening the tailgate or rear door
(depending on equipment) can inter fere
with the display.
If a side door is open, allow for the
space it occupies.
Some deformation of the image is
normal.
The reversing camera cannot in any
circumstances be a substitute for
vigilance on the part of the driver. Check the cleanliness of the camera
lens regularly.
Clean the reversing camera regularly
using a soft, dry cloth.
The image is displayed in the interior mirror.
High pressure jet washing (if muddy,
for example)
When washing your vehicle, do not
place the tip of the lance within 30
cm
of the camera as there is a risk of
damaging it.
The blue lines represent the width of your
vehicle including the mirrors.
The red line represents a distance of 30 cm
from the rear bumper and the thin blue lines
respectively 1 m (
A) and 2 m ( B).
Driving

256
Spacetourer-VP_en_Chap06_conduite_ed01-2016
"Standard view""180° view"
"Zoom view" (reconstructed)
The camera records the surroundings during a
manoeuvre in order to create a reconstruction
of the view from above the rear of the vehicle in
its close surroundings, allowing the vehicle to
be manoeuvred among the obstacles nearby.
This view is available with AUTO view or by
selecting of the view in the change view menu.
180° view makes it possible to reverse out of
a parking space while being able to see the
arrival of vehicles, pedestrians or cyclists.
This view is not recommended for carrying out
a complete manoeuvre.
It is made up of the following:
The area to the rear of your vehicle is displayed
in the screen.
The blue outline represents the width of your
vehicle (with mirrors): its orientation depends
on the position of the steering wheel.
The red line represents a distance of 30

cm
from the rear bumper and the two blue lines,
1

m and 2 m respectively.
Rear views
Engage reverse gear to activate the camera,
located on the tailgate or rear door.
The rear parking sensors also
provide information on the vehicle's
surroundings.
Obstacles may appear further away
than they are in reality.
It is important to check the side views
using the mirrors during the manoeuvre.
Driving

292
Spacetourer-VP_en_Chap08_En-cas-de-panne_ed01-2016
F Access to the spare wheel is from the rear.
F O pen the side-hinged rear doors or the
tailgate, according to the configuration of
your vehicle. F

A
ccess the carrier bolt, located on the rear
door sill.
F
T
urn the bolt anti-clockwise using the
wheelbrace (about 14 turns) until the
carrier is low enough to allow the carrier
hook to be disengaged.
Access to the spare wheel
F If your vehicle is fitted with a towbar, raise the rear of the vehicle using the jack (must
be at jacking point B ) to allow sufficient
space to remove the spare wheel.
Removing
To avoid any unwanted opening of the
electric side door(s), deactivate the
" Hands-Free Access " function in the
vehicle configuration menu.
For more information on the Hands-
free sliding side door , refer to the
corresponding section.
In the event of a breakdown

308
Spacetourer-VP_en_Chap08_En-cas-de-panne_ed01-2016
Rear lamps
(tailgate)
For more information on Changing a bulb and
in particular, the types of bulbs, refer to the
corresponding section.
F

W
hile holding the lamp in place, press the
clip on the inside then carefully remove the
lamp.
F

D
isconnect the electrical connector.
F

I
dentify the failed bulb then open the boot.
For vehicles with interior trim, contact
a CITROËN dealer or a qualified
workshop to have the work done.
1.
B

rake lamps / sidelamps.
Ty

p e B, P21/5W-21/5W.
2.
D

irection indicators.
Ty

p e B, PY21W-21W (amber)
3.
R

eversing lamps.
Ty

p e B, P21W-21W
4.
F

oglamps / sidelamps.
Ty

p e B, P21/4W-21/4W. F

F
rom inside, remove the cover, if your
vehicle has one.
F

F
rom the outside, press on the inner clips
on the plastic finisher then tip it towards the
outside to remove it.
F

U
nscrew the two lamp fixing screws.F

S
pread the three lugs slightly, then extract
the bulb holder.
F

R
emove the failed bulb by pressing
lightly on it, then turning it a quarter turn
clockwise.
F

C
hange the bulb.
To reassemble, carry out these operations in
reverse order.
In the event of a breakdown

309
Spacetourer-VP_en_Chap08_En-cas-de-panne_ed01-2016
To refit, press on the lens to clip it in place.
F

U

nclip the trim at each end by turning it
upwards.
F

P

ull on the trim to disengage the central
clips, then remove it.
F

U

sing a screwdriver through the aperture,
push the lamp towards the outside.
F

D

isconnect the electrical connector.
F

R

emove the lamp.
F

T

urn the bulb holder a quarter turn anti-
clockwise.
F

C

hange the failed bulb.
To refit, carry out these operations in reverse
o r d e r.
To refit the lamp and trim, press on them to clip
them in place.
Third brake lamp
(tailgate)
Ty p e A , W5W-5W
Number plate lamps
(tailgate)
Ty p e A, W5W-5W
F

O

pen the tailgate. F

I
nsert a thin screwdriver into one of the cut-
outs in the lens.
F

P
ush it outwards to unclip it.
F

R
emove the lens.
F

C
hange the failed bulb.
8
In the event of a breakdown

323
Spacetourer-VP_en_Chap09_caracteristiques-techniques_ed01-2016
Mirrors folded
Side-hinged doors TailgateC o m p a c t ( L1)
Standard (L2)
Long (L3)
* Increased payload.
** Payload increased with high body.
*** Depending on the country of sale.
Dimensions (in mm)
These dimensions have been measured on an unladen vehicle.
9
Technical data
