parking sensors CITROEN DISPATCH SPACETOURER DAG 2017 Handbook (in English)

.
.
Spacetourer-VP_en_Chap00a_sommaire_ed01-2016
Driving recommendations 192
Starting-switching off the engine, manual key, remote control

1
95
Starting and switching off the engine,

1
98
"Keyless Entry and Starting"

1
98
Parking brake

2
01
Hill start assist

2
02
5 -speed manual gearbox

2
03
6 -speed manual gearbox

2
03
Gear shift indicator

2
04
Automatic gearbox

2
05
Electronic gearbox

2
10
Stop & Start

2
14
Head-up display

2
18
Memorising speeds

2
20
Speed limit recognition

2
21
Speed limiter

2
25
Cruise control

2
28
Dynamic cruise control

2
32
Collision Risk Alert and Active Safety Brake
23

9
Lane departure warning system

2
45
Fatigue detection system

2
47
Blind spot monitoring system

2
49
Parking sensors

2
52
Reversing camera, interior mirror

2
54

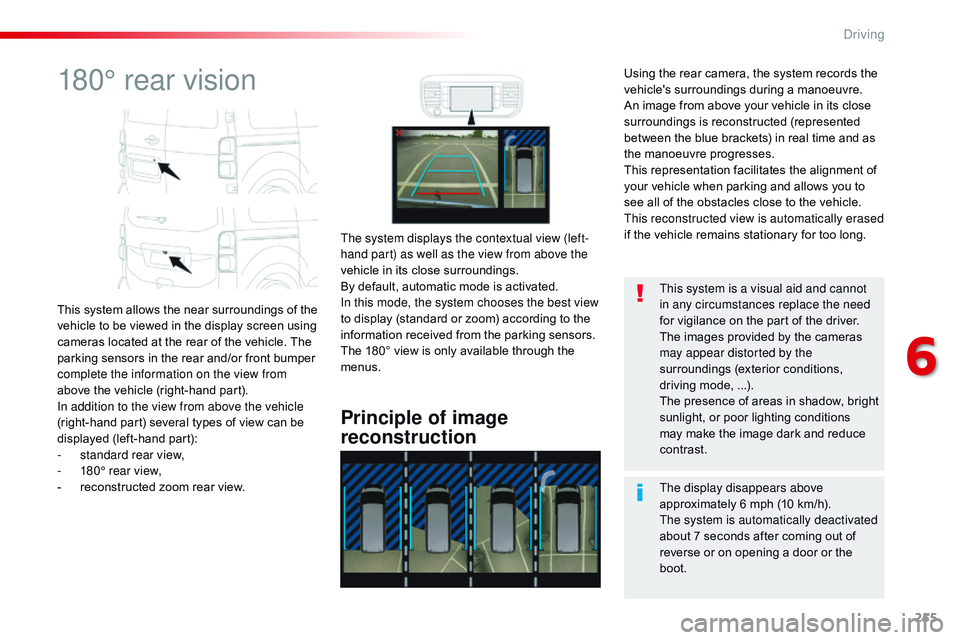

180° rear vision

2
55
Under-inflation detection
2

58Fuel tank
2 61
Diesel misfuel prevention 26
2
Snow chains

2
64
Towing a trailer

2
65
Energy economy mode

2
66
Accessories
2

67
Roof bars / Roof rack

2
68
Changing a wiper blade

2
69
B o nnet
2

71
Diesel engine

2
72
Checking levels

2
73
Checks
2

76
AdBlue
® and SCR system
(BlueHDi Diesel) 2 78
Warning triangle (stowing)

2
82
Tool box

2
82
Temporary puncture repair kit

2
85
Changing a wheel

2
91
Changing a bulb

2
98
Changing a fuse

3
11
12 V battery

3
16
To w i n g
3

2 0
Running out of fuel (Diesel)

3
22Dimensions


323
Engines
3
24
Weights
3
24
Identification markings
3
27
Driving
Practical information
In the event of a breakdown Technical data
Emergency or assistance 3
28
CITROËN Connect Nav 3 31
CITROËN Connect Radio

4
19
Bluetooth
® audio system 4 73
Audio and telematics
Alphabetical index
Contents

4
Spacetourer-VP_en_Chap00b_vue-ensemble_ed01-2016
Exterior
Filler cap, fuel tank 261-262
Misfuel prevention 26 2-263
Running out of Diesel fuel, priming

3
22
Under-inflation detection
2

58-260
Tyres, pressures

2
59 -260, 327
ESC system

1
59 -161
ABS, EBFD

1
59 -160
DSC, ASR

1
61
Grip control
16

1, 162-163
Snow chains

2
64
Front doors

6
5
AdBlue
® tank 2 78 -281
Tool box 2 82-284
Automatic illumination of headlamps
1
47
Automatic headlamp dipping
1
51-152
Direction indicators
1

46
Adjusting the headlamp beam height

1

53
Changing front bulbs

2

98 -304
Headlamp wash

1

56
Panoramic sunroof
1

20
Accessories
26

7-268
Opening the bonnet

2

71 Key
4
5
Key, remote control
4
5 -50
Changing the battery, reinitialisation
5
1
Keyless Entry and Starting
5
2- 62
Changing the cell battery, reinitialisation
6
2
Starting - switching off the engine
1
98-200
-

k

ey, remote control
-

K

eyless Entry and Starting remote
control
Locking - unlocking from inside
6
4
Alarm
8
3-85
Speed limit recognition

2

21-224
Collision Risk Alert

2

39 -242
Active Safety Brake

2

42-244
Changing a wiper blade

2

69
Automatic wiping

1

55 -156
Front demisting, defrosting

1

31
Front foglamps

1

45, 299, 304
Daytime running lamps

1

47, 300
Cornering lighting

1

50
Parking sensors

2

52-253
Towing
32

0-321
Over view

5
Spacetourer-VP_en_Chap00b_vue-ensemble_ed01-2016
Number plate lamp 306, 309
- s ide-hinged doors
-
t

ailgate
Reversing camera

2
54
Rear vision

2
55 -257
Changing rear bulbs

2
98, 305 -310
Rear lamps (side-hinged doors)
2
98, 305 -307
Rear lamps (tailgate)
2
98, 308 -310
3
rd brake lamp 3 06, 309
-
s ide-hinged doors
-
t

ailgate
Warning triangle

2
82
Temporary puncture repair kit

2
85 -290
Spare wheel, jack, changing a wheel
29

1-297
Inflation, pressures

2
97, 327Electric door
mir ror s

141-142
Demisting-defrosting
the mirrors
1
32
Blind Spot Monitoring System
2
49-251
Fatigue detection system
2
47-248
Lane Departure Warning System
2
45 -246
Direction indicator side repeaters
3
00
Manual sliding side door(s)

6
6 - 67
Electric sliding side door(s)

6
8 -71
Hands-free sliding side door(s)

7
5 -78
Manual child lock

1
90
Electric child lock

1
90
Rear window child lock

1
91
Accessories
26

7-268
Roof bars / Roof rack
2
68
Towing
32
0-321
Trailer towbar

1
94, 265
Rear parking sensors

2
52-253
Side-hinged doors

7
9 - 80
Tailgate
8
1
Tailgate screen
8
2
Demisting-defrosting
the rear screen
1
33
Exterior (continued)
.
Over view

43
Spacetourer-VP_en_Chap01_instruments-de-bord_ed01-2016
ButtonCorresponding function Comments
Vehicle settings
To deactivate/activate a
function, press OFF/ON.
To modify a setting (lighting
duration,
...) or find additional
information, press the symbol
for the function. Access to other functions with settings that can be adjusted.
Select or deselect the tabs at the bottom of the touch screen to sort the display of the desired
functions.
-

L
ighting:
-

"
Directional headlamps": activation/deactivation of the directional headlamps.
-

"
Guide-me-home lighting": activation/deactivation of the automatic guide-me-home lighting.
-

"
Welcome lighting": activation/deactivation of the exterior welcome lighting.
-

"
Mood lighting": activation/deactivation of the interior mood lighting.
-

A
ccess:
-

"
Hands-Free Access": activation/deactivation of the motorized opening and closing of a side
door by the hands-free system,
-

"
Locks your vehicle after the motorized closing of a side door, using hands-free access.":
activation/deactivation of the locking of your vehicle after the motorized closing of a side door
by the hands-free system.
-

A
ssistance (driving aids):
-

"
Rear wiper in reverse": activation/deactivation of the operation of the rear wiper in reverse.
-

"
Recommended speed display": activation/deactivation of the speed limit recognition system,
allowing a speed setting to be given to the cruise control or speed limiter.
-

"
Collision risk alert and automatic braking": activation/deactivation of collision risk alerts.
-

"
Fatigue Detection System": activation/deactivation of the driver fatigue detection system.
Diagnostic List of current alerts.
Parking sensors Activation/Deactivation of the function.
Adjust speed settings Memorisation of speed settings for the speed limiter or active cruise control.
1
Instruments

194
Spacetourer-VP_en_Chap06_conduite_ed01-2016
When towing
Distribution of loads
F Distribute the load in the trailer so that the heaviest items are as close as possible to
the axle and the nose weight approaches
the maximum permitted without
exceeding
it.
Air density decreases with altitude, thus
reducing engine per formance. Above
1
000 metres, the maximum towed load must
be reduced by 10
% for every 1 000 metres of
altitude.
Side wind
F Take into account the increased sensitivity to side wind.
Cooling
Towing a trailer on a slope increases the
temperature of the coolant.
As the fan is electrically controlled, its cooling
capacity is not dependent on the engine speed.
F

T
o lower the engine speed, reduce your
speed.
The maximum towed load on a long incline
depends on the gradient and the ambient
temperature.
In all cases, keep a check on the coolant
temperature.
F

I
f the warning lamp and the
STOP warning lamp come on,
stop the vehicle and switch off
the engine as soon as possible.
Braking
Towing a trailer increases the braking distance.
To avoid overheating of the brakes, the use of
engine braking is recommended.
Ty r e s
F Check the tyre pressures of the towing vehicle and of the trailer, observing the
recommended pressures.
Lighting
F Check the electrical lighting and signalling on the trailer and the headlamp beam
height of your vehicle.
For more information on Weights
, refer
to the corresponding section.
The rear parking sensors will be
deactivated automatically to avoid the
audible signal if a genuine CITROËN
towbar is used.
If the ambient temperature is high, it
is recommended that the engine be
allowed to idle for 1 to 2 minutes after
the vehicle comes to a stop, to facilitate
its cooling. For more information on Adjusting the
headlamp beam height
, refer to the
corresponding section.
Driving

252
Spacetourer-VP_en_Chap06_conduite_ed01-2016
This system indicates the proximity of an
obstacle (examples: pedestrian, vehicle, tree,
gate) which comes within the field of detection
of sensors located in the bumper.
Certain types of obstacle (examples: stake,
roadworks cone) detected initially will no longer
be detected at the end of the manoeuvre, if
they are located in blind spots in the sensors'
field of detection.
Parking sensors
The system is switched on by engaging reverse
g e a r.
This is confirmed by an audible signal.
The system is switched off when you come out
of reverse gear.
Audible assistance
Rear parking sensors
This supplements the audible signal by
displaying bars in the screen or the instrument
panel which move progressively nearer to
the vehicle. When the obstacle is near, the
"Danger" symbol is displayed.
Visual assistance
This system cannot in any
circumstances replace the need for
vigilance on the part of the driver.The proximity information is given by an
intermittent audible signal, the frequency of
which increases as the vehicle approaches the
obstacle.
The sound emitted by the speaker (right or
left) indicates the side on which the obstacle is
located.
When the distance between the vehicle and
the obstacle becomes less than approximately
thirty centimetres, the audible signal becomes
continuous.
Driving

253
Spacetourer-VP_en_Chap06_conduite_ed01-2016
Front parking sensors
As an addition to the rear parking sensors, the
front parking sensors are triggered when an
obstacle is detected in front and the speed of
the vehicle is still below 6 mph (10 km/h).
The front parking sensors are interrupted if
the vehicle stops for more than three seconds
in for ward gear, if no further obstacles are
detected or when the speed of the vehicle
exceeds 6 mph (10 km/h).
With the audio system
Deactivation / Activation
Deactivation or activation of the system is done
via the vehicle configuration menu.
The sound from the speakers (front or
rear) indicates whether the obstacle is
in front or behind. The system will be automatically
deactivated where a towbar or towbar-
mounted bicycle carrier is fitted
(vehicle fitted with a towbar installed as
recommended by a CITROËN dealer).
In the " Personalisation-configuration " menu,
activate/deactivate " Parking assistance ".
With the touch screen
In the Driving menu, activate/deactivate
" Parking sensors ". When engaging reverse and depending on the
vehicle's equipment, in the event of a fault:
Contact a CITROËN dealer or a qualified
workshop.
This warning lamp comes on and a
message appears, accompanied by
an audible signal.
The warning lamp in this button
flashes and a message appears,
accompanied by an audible signal.
In bad weather or in winter, ensure
that the sensors are not covered with
mud, ice or snow. When reverse gear is
engaged, an audible signal (long beep)
indicates that the sensors may be dirty.
Certain sound sources (motorcycle,
lorry, pneumatic drill, etc.) may trigger
the audible signals of the parking
sensor system.
High pressure jet wash
When washing your vehicle, do not
place the tip of the lance within 30 cm
of the sensors, as there is a risk of
damaging them.
Operating fault
6
Driving

254
Spacetourer-VP_en_Chap06_conduite_ed01-2016
Reversing camera with display in the interior mirror
The visual aid reversing camera is activated
automatically when reverse gear is engaged.
The function may be completed with parking
sensors.Opening the tailgate or rear door
(depending on equipment) can inter fere
with the display.
If a side door is open, allow for the
space it occupies.
Some deformation of the image is
normal.
The reversing camera cannot in any
circumstances be a substitute for
vigilance on the part of the driver. Check the cleanliness of the camera
lens regularly.
Clean the reversing camera regularly
using a soft, dry cloth.
The image is displayed in the interior mirror.
High pressure jet washing (if muddy,
for example)
When washing your vehicle, do not
place the tip of the lance within 30
cm
of the camera as there is a risk of
damaging it.
The blue lines represent the width of your
vehicle including the mirrors.
The red line represents a distance of 30 cm
from the rear bumper and the thin blue lines
respectively 1 m (
A) and 2 m ( B).
Driving

255
Spacetourer-VP_en_Chap06_conduite_ed01-2016
180° rear vision
This system allows the near surroundings of the
vehicle to be viewed in the display screen using
cameras located at the rear of the vehicle. The
parking sensors in the rear and/or front bumper
complete the information on the view from
above the vehicle (right-hand part).
In addition to the view from above the vehicle
(right-hand part) several types of view can be
displayed (left-hand part):
-
s
tandard rear view,
-

1
80° rear view,
-

r
econstructed zoom rear view.
Principle of image
reconstruction
The system displays the contextual view (left-
hand part) as well as the view from above the
vehicle in its close surroundings.
By default, automatic mode is activated.
In this mode, the system chooses the best view
to display (standard or zoom) according to the
information received from the parking sensors.
The 180° view is only available through the
menus. The display disappears above
approximately 6 mph (10 km/h).
The system is automatically deactivated
about 7 seconds after coming out of
reverse or on opening a door or the
boot. This system is a visual aid and cannot
in any circumstances replace the need
for vigilance on the part of the driver.
The images provided by the cameras
may appear distorted by the
surroundings (exterior conditions,
driving mode,
...).
The presence of areas in shadow, bright
sunlight, or poor lighting conditions
may make the image dark and reduce
contrast.
Using the rear camera, the system records the
vehicle's surroundings during a manoeuvre.
An image from above your vehicle in its close
surroundings is reconstructed (represented
between the blue brackets) in real time and as
the manoeuvre progresses.
This representation facilitates the alignment of
your vehicle when parking and allows you to
see all of the obstacles close to the vehicle.
This reconstructed view is automatically erased
if the vehicle remains stationary for too long.
6
Driving

256
Spacetourer-VP_en_Chap06_conduite_ed01-2016
"Standard view""180° view"
"Zoom view" (reconstructed)
The camera records the surroundings during a
manoeuvre in order to create a reconstruction
of the view from above the rear of the vehicle in
its close surroundings, allowing the vehicle to
be manoeuvred among the obstacles nearby.
This view is available with AUTO view or by
selecting of the view in the change view menu.
180° view makes it possible to reverse out of
a parking space while being able to see the
arrival of vehicles, pedestrians or cyclists.
This view is not recommended for carrying out
a complete manoeuvre.
It is made up of the following:
The area to the rear of your vehicle is displayed
in the screen.
The blue outline represents the width of your
vehicle (with mirrors): its orientation depends
on the position of the steering wheel.
The red line represents a distance of 30

cm
from the rear bumper and the two blue lines,
1

m and 2 m respectively.
Rear views
Engage reverse gear to activate the camera,
located on the tailgate or rear door.
The rear parking sensors also
provide information on the vehicle's
surroundings.
Obstacles may appear further away
than they are in reality.
It is important to check the side views
using the mirrors during the manoeuvre.
Driving
