CITROEN DISPATCH SPACETOURER DAG 2018 Handbook (in English)

39
Using the remote control with
electric sliding side door(s)
F To unlock the vehicle and open the side door,
press and hold this
button until the door has
opened.
Unlocking is confirmed by rapid flashing
of the direction indicators for around two
seconds.
At the same time, depending on your
version, the door mirrors unfold.
Locking
With the key
F To unlock the vehicle totally , turn the key to
the rear of the vehicle.
If your vehicle has an alarm, this will not be
activated.
Using the remote control
F To lock the vehicle totally , press
this button.
Ensure that no person or object prevents
the correct closing of the windows.
Be particularly aware of children when
operating the windows.
If a door is not properly closed
(except the right-hand door with side-
hinged rear doors):
-

v
ehicle stationary and the engine
running, this warning lamp
comes on, accompanied by an
alert message for a few seconds,
-

v
ehicle moving (speed above
6
mph (10 km/h)), this warning
lamp comes on, accompanied
by an audible signal and an alert
message for a few seconds. Driving with the doors locked could make
it difficult for the emergency ser vices to
enter the vehicle in an emergency.
As a safety measure (children on board),
never leave the vehicle without your
remote control with you, even for a short
period.
If your vehicle is not fitted with an
alarm, locking is signalled by the fixed
illumination of the direction indicators for
about two seconds.
At the same time, depending on your
version, the door mirrors fold.
If one of the opening elements (doors or
boot) is still open, the central locking does
not take place.
When the vehicle is locked, if it is
unlocked inadvertently, it will lock itself
again automatically after about thirty
seconds unless a door is opened.
And if your vehicle has an alarm, this will
be reactivated (with volumetric monitoring,
even if this had been deactivated).
The automatic folding and unfolding of the
electric door mirrors can be deactivated
by a CITROËN dealer or a qualified
workshop.
2
Access

40

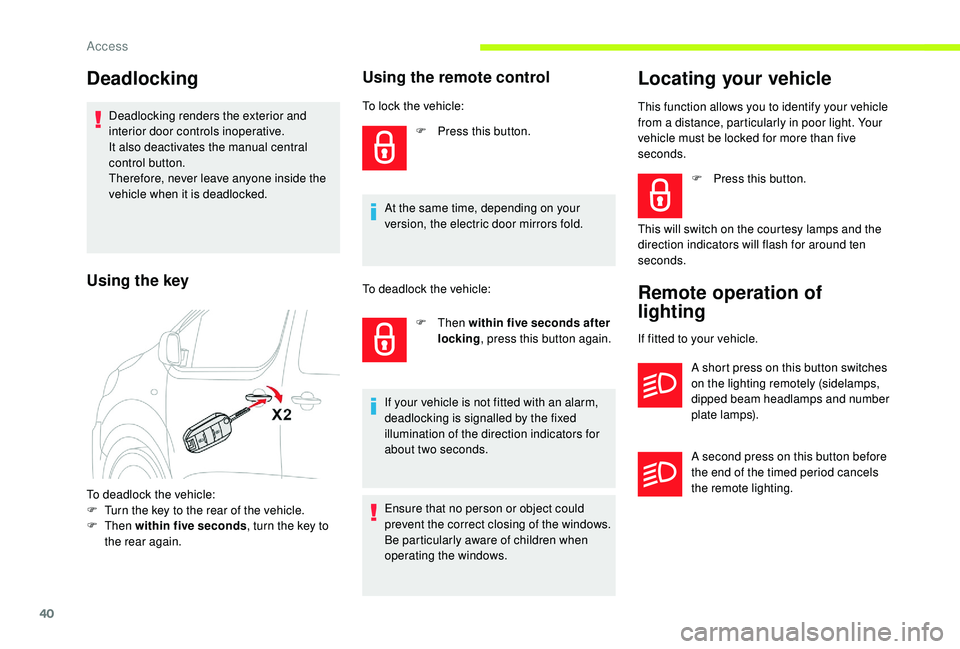

Deadlocking
Deadlocking renders the exterior and
interior door controls inoperative.
It also deactivates the manual central
control button.
Therefore, never leave anyone inside the
vehicle when it is deadlocked.
Using the remote control
F Press this button.
At the same time, depending on your
version, the electric door mirrors fold.
F
Then within five seconds after
locking , press this button again.
If your vehicle is not fitted with an alarm,
deadlocking is signalled by the fixed
illumination of the direction indicators for
about two seconds.
Ensure that no person or object could
prevent the correct closing of the windows.
Be particularly aware of children when
operating the windows.
Locating your vehicle
This function allows you to identify your vehicle
from a distance, particularly in poor light. Your
vehicle must be locked for more than five
seconds.
Remote operation of
lighting
If fitted to your vehicle. A short press on this button switches
on the lighting remotely (sidelamps,
dipped beam headlamps and number
plate lamps).
A second press on this button before
the end of the timed period cancels
the remote lighting.
Using the key
To deadlock the vehicle:
F T urn the key to the rear of the vehicle.
F
Then within five seconds , turn the key to
the rear again. To lock the vehicle:
To deadlock the vehicle:
F
P
ress this button.
This will switch on the courtesy lamps and the
direction indicators will flash for around ten
seconds.
Access

41
B a c k- u p c o nt r o l (s)
Locking the driver's door
F Insert the key in the door lock, then turn it to the rear.
Unlocking
F Insert the key in the door lock, then turn it to the front. If your vehicle has an alarm, it will not be
deactivated/activated on unlocking/locking
the vehicle.
Opening a door will trigger the alarm,
which can be stopped by switching the
ignition on.
Locking the front
passenger door
F Open the door.
F

R
emove the cap on the edge of the door.
F

I
nsert the key into the latch aperture
(without forcing) and turn the assembly.
F

R
emove the key and refit the cap.
F

C
lose the door and check from the outside
that it has locked correctly.
For mechanically locking and unlocking the
doors in the event of a fault with the central
locking system or a battery failure.
Anti-theft protection
Electronic engine immobiliser
The remote control contains an electronic chip
which has a secret code. When the ignition is
switched on, this code must be recognised in
order for starting to be possible.
A few seconds after switching off the ignition,
this system locks the engine control system,
therefore preventing the engine from being
started in the event of a break-in.
In the event of a fault, you are
informed by illumination of this
warning lamp, an audible signal and
a message in the screen.
The vehicle will not start; contact a CITROËN
dealer as soon as possible.
2
Access

42
Unlocking
Use the interior door handle.
Locking the sliding side
door
F If fitted to your vehicle, check that the electric child lock is not on.
F

O
pen the door.
F

R
emove the cap on the edge of the door.
F

I
nsert the key into the latch aperture
(without forcing) and turn the assembly.
F

R
emove the key and refit the cap.
F

C
lose the door and check from the outside
that it has locked correctly.
Unlocking
F Use the interior door handle.
For more information on the Child lock ,
refer to the corresponding section.
Locking the side-hinged
doors
F If fitted to your vehicle, check that the electric child lock is not on.
F

O
pen the left-hand side-hinged door.
Unlocking
F Use the interior door handle.
Remote control problem
Following disconnection of the vehicle battery,
replacement of the remote control battery or
in the event of a remote control malfunction,
you can no longer unlock, lock or locate your
vehicle.
F

F
irst of all, use the key in the door lock to
unlock or lock your vehicle.
F

T
hen reinitialise the remote control.
If the problem persists, contact a CITROËN
dealer as soon as possible.
Reinitialisation
F Lock the driver's door using the key.
F
P
ress one of the remote control
buttons.
F

I

nsert the key into the latch aperture on the
edge of the door (without forcing) and slide
the assembly upward.
F

R

emove the key.
F

C

lose the door and check from the outside
that it has locked correctly.
Access

43
F Turn the key to position 2 (Ignition on).
F S witch the ignition off and remove the key
from the switch.
The remote control is now fully operational
again.
Changing the battery
If the battery is flat, you will be
informed by lighting of this warning
lamp in the instrument panel, an
audible signal and a message in the
screen.
Battery ref.: CR1620
/ 3 volts.
Do not throw the remote control
batteries away, they contain metals
which are harmful to the environment.
Take them to an approved collection
point.
F

U
nclip the cover using a small screwdriver
at the cutout.
F
L
ift off the cover.
F
R
emove the flat battery from its
compartment.
F
F
it the new battery into its compartment
observing the original fitting direction.
F
C
lip the cover onto the casing.
" Keyless Entry and
Starting"
Remote control
Unlocking
With electric sliding side door(s)
F To unlock the vehicle
and open the side door,
press and hold this
button until the door has
opened.
F

T

o unlock the vehicle, press this
button.
It allows the central locking or unlocking of the
vehicle from a distance.
It is also used to locate and start the vehicle, as
well as providing protection against theft.
2
Access

44
Unlocking is confirmed by rapid flashing
of the direction indicators for around two
seconds.
At the same time, depending on your
version, the door mirrors unfold.
Locking
F To lock the vehicle totally, press
this button.
If the system is fitted to your
vehicle, pressing and holding
this button closes the windows.
If you release the button, the
window will stop.
Ensure that no person or object prevents
the correct closing of the windows.
Be particularly aware of children when
operating the windows. If a door is not properly closed (except
the right-hand door with side-hinged
rear doors):
-

v
ehicle stationary and the engine
running, this warning lamp comes
on, accompanied by an alert
message for a few seconds,
-
v
ehicle moving (speed above
6 mph (10 km/h)), this warning
lamp comes on, accompanied
by an audible signal and an alert
message for a few seconds.
Deadlocking
Deadlocking renders the exterior and
interior door controls inoperative.
It also deactivates the manual central
control button.
Therefore, never leave anyone inside the
vehicle when it is deadlocked.
Driving with the doors locked could make
it difficult for the emergency ser vices to
enter the vehicle in an emergency.
As a safety measure (children on board),
never leave the vehicle without taking your
remote control, even for a short period.
If your vehicle is not fitted with an
alarm, locking is signalled by the fixed
illumination of the direction indicators for
about two seconds.
At the same time, depending on your
version, the door mirrors fold. If one of the opening elements (doors or
boot) is still open, the central locking does
not take place.
When the vehicle is locked, if it is
unlocked inadvertently, it will lock itself
again automatically after about thirty
seconds unless a door is opened.
And if your vehicle has an alarm, this will
be reactivated (with volumetric monitoring,
even if this had been deactivated).
The automatic folding and unfolding of the
electric door mirrors can be deactivated
by a CITROËN dealer or a qualified
workshop.
Access

45
If the system is fitted to your
vehicle, pressing and holding
this button closes the windows.
If you release the button, the
window will stop.Ensure that no person or object prevents
the correct closing of the windows.
Be particularly aware of children when
operating the windows.
" Keyless Entry and
Starting" on your person
This allows the unlocking, locking and starting
of the vehicle while keeping the remote control
on your person.
In the ignition on (accessories) position,
with the "START/STOP" button, the
hands-free function is deactivated.
For more information on Starting/
switching off the engine,

K
eyless Entr y
and Starting and in particular the "ignition
on" position, refer to the corresponding
section.
The unlocking, locking or deadlocking
does not take place:
-
i
f the ignition is on,
-
i
f one of the doors or the tailgate is still
open,
-
i
f the key for the
K
eyless Entry and
Starting system has been left inside
the vehicle.
When the vehicle is locked (with the
remote control or
K
eyless Entry and
Starting), if it is unlocked inadvertently,
it will lock itself again automatically after
about thirty seconds unless a door has
been opened.
And if your vehicle has an alarm, this will
be reactivated (with volumetric monitoring,
even if this had been deactivated).
F

P

ress this button.
At the same time, depending on your
version, the electric door mirrors fold.
F

Then
within five seconds after
locking , press this button again.
If your vehicle is not fitted with an alarm,
deadlocking is signalled by the fixed
illumination of the direction indicators for
about two seconds.
To lock the vehicle:
To deadlock the vehicle:
2
Access

46
The folding and unfolding of the door
mirrors by the remote control can be
deactivated by a CITROËN dealer or a
qualified workshop.
As a safety measure (children on board),
never leave the vehicle without taking your
K
eyless Entry and Starting remote control,
even for a short period.
Be aware of the risk of theft when the

K

eyless Entry and Starting remote control
is in the recognition zone with the vehicle
unlocked.
In order to preser ve the charge of the
battery in the remote control, the "hands-
free" functions go into extended stand-by
after 21
days of non-use.
To restore these functions, press one of
the remote control buttons or start the
engine with the remote control at the
reader.Unlocking
F To unlock the vehicle, remote control on your person and in recognition area A , run
your hand behind one of the door handles
(front doors, manual sliding side doors).
F

P
ull the handle to open the corresponding
d o o r.
With electric sliding side door(s)
F To unlock the vehicle, remote control on your person and in the recognition zone A ,
pull and release the door handle to
trigger the electric powered opening of the
corresponding door.
Access

47
With side-hinged doorsWith tailgate
Unlocking is indicated by rapid flashing of
the direction indicators for a few seconds.
Depending on version, the door mirrors
unfold, the alarm is deactivated.
F

T

o unlock the vehicle, remote control in
recognition area A , run a hand behind the
handle of the side-hinged door.
F

T

hen pull the handle to open it.
F

T
o unlock the vehicle, remote control on
your person and in the recognition zone A ,
pull the tailgate handle.
F

Ra
ise the tailgate.
With an opening rear screen in the tailgate
F To unlock the vehicle, remote control on
your person and in the recognition zone A ,
press the unlocking button for the tailgate
opening screen.
The screen partly opens.
Unlocking is indicated by rapid flashing of
the direction indicators for a few seconds.
Depending on version, the door mirrors
unfold, the alarm is deactivated.
2
Access

48
Locking
F To totally lock the vehicle, with the remote
control in recognition area A , press with
a finger or thumb at the markings on one
of the front or manual sliding side door
handles.
If a door is not properly closed (except
the right-hand door with side-hinged
rear doors):
-

v
ehicle stationary and the engine
running, this warning lamp comes
on, accompanied by an alert
message for a few seconds,
-

v
ehicle moving (speed above
6
mph (10 km/h)), this warning
lamp comes on, accompanied
by an audible signal and an alert
message for a few seconds.
With electric sliding side door(s)
F To totally lock the vehicle, with the remote
control in recognition area A , press with a
finger or thumb at the markings on one of
the front door handles.
With side-hinged doors
F To lock the vehicle, with the remote control in recognition area A , press the left-hand
door locking control.
Access
