Citroen DS3 2010 1.G Owner's Manual

Interior lighting
Interior lamp (1/W5W)
Detach the cover of the interior lamp 1 with a thin screwdriver, close to the button, to access the faulty bulb.
Map reading lamps (2/W5W)
Detach the cover of the interior lamp 1 . To access the faulty bulb, detach the par tition for the reading lamp 2 concerned.
Boot lamp (W5W)
Detach the unit by pushing it rear wards.
Footwell and central storage illumination (W5W)
Detach the unit for access to the bulb.

199Practical information
Changing a fuse
Installing electrical accessories
Your vehicle’s electrical system is designed to operate with standard or optional equipment. Before installing other electrical equipment or accessories on your vehicle, contact a CITROËN dealer.
CITROËN will not accept responsibility for the cost incurred in repairing your vehicle or for rectifying malfunctions resulting from the installation of accessories not supplied and not recommended by CITROËN and not installed in accordance with its instructions, in par ticular when the combined consumption of all of the additional equipment connected exceeds 10 milliamperes.
The extraction pliers and the spare fuse storage locations are fitted to the back of the dashboard fuse box cover.
For access to them:  open the glove box lid,  unclip the fusebox cover by pulling on the
side,  remove the cover completely,  remove the pliers.
Access to the tools
Before changing a fuse, the cause of the failure must be identified and rectified.  Identify the faulty fuse by checking the condition of its filament.
Changing a fuse
CorrectIncorrect
 Use the special pliers to extract the fuse from its housing.
 Always replace the faulty fuse with a fuse of the same rating.  Check the correspondence between the number etched on the box, the rating etched on the fuse and the tables below.

Dashboard fusebox
The fusebox is loacted inside the glove box.
Access to the fuses
 Refer to the paragraph "Access to the tools".
Fuse tables
Fuse N°RatingFunctions
FH365 A Trailer relay unit.
FH37- Not used.
FH3820 A Hi-Fi amplifier.
FH39- Not used.
FH4030 A Trailer relay unit.
RatingFunctions
F115 A Rear wiper.
F2- Not used.
F35 A Airbags and pretensioners control unit.
F410 A
Air conditioning, clutch switch, electrochromatic mirror,
par ticle filter pump (Diesel), diagnostic socket, airflow sensor (Diesel).
F530 A Electric windows panel, passenger’s electric window co ntrol,
front electric window motor.
F630 A Driver’s electric window motor.
F75 A Cour tesy lamp.

201Practical information
Fuse N°RatingFunctions
F820 A Multifunction screen, audio system, navigation radio, alarm control unit, alarm siren.
F930 A 12 V socket, por table navigation suppor t supply.
F1015 A Steering wheel controls.
F1115 A Ignition, diagnostic socket, automatic gearbox contro l unit.
F1215 A Rain/brightness sensor, trailer relay unit.
F135 A Main stop switch, engine relay unit.
F1415 A Parking sensors control unit, airbag control unit, instrument panel, digital air conditioning, USB Box, Hi-Fi ampli fier.
F1530 A Locking.
F16- Not used.
F1740 A Rear screen and door mirrors demisting/defrosting.
SH- PARC shunt.

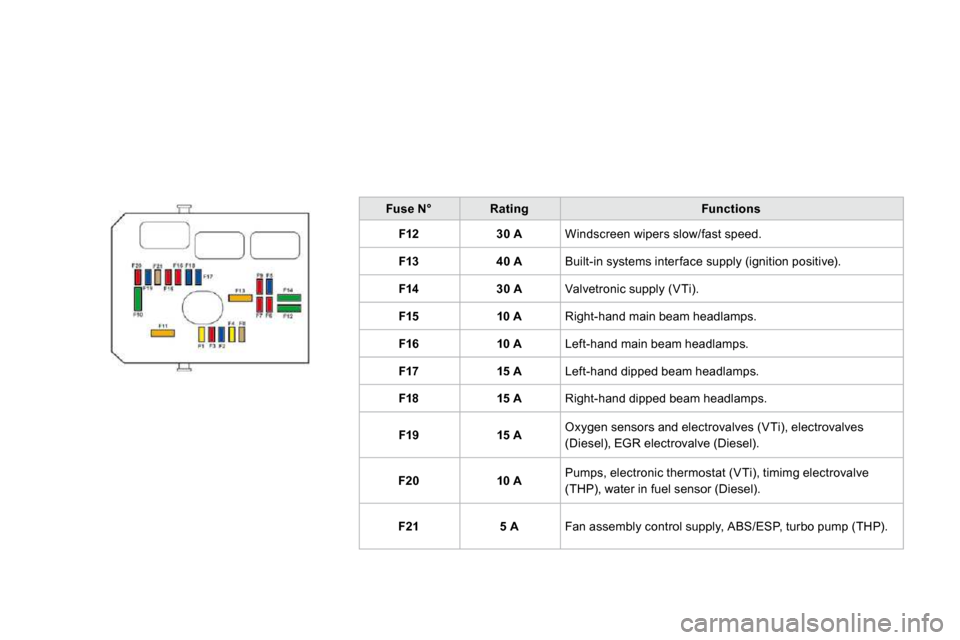

Engine compartment
fusebox
The fusebox is placed in the engine compar tment near the battery (left-hand side). Access to the fuses
 Unclip the cover.  Change the fuse (see corresponding paragraph).  When you have finished, close the cover carefully to ensure the sealing of the fusebox.

203Practical information
Fuse table
Fuse N°RatingFunctions
F120 A Engine control unit supply, cooling fan unit control relay, multifunction engine control main relay, injection pump (Diesel).
F215 A Horn.
F310 A Front /rear wash-wipe.
F420 A LED lamps.
F515 A Diesel heater (Diesel), par ticle filter additive pum p (Diesel), air flow sensor (Diesel), blow-by heater an d electrovalves (VTi).
F610 A ABS/ESP control unit, secondary stop switch.
F710 A Electric power steering, automatic gearbox.
F825 A Star ter control.
F910 A Switching and protection unit (Diesel).
F1030 A Fuel heater (Diesel), blow-by heater (Diesel), fuel pump (VTi), injectors and ignition coils (petrol).
F1140 A Heater blower.

Fuse N°RatingFunctions
F1230 A Windscreen wipers slow/fast speed.
F1340 A Built-in systems inter face supply (ignition positive).
F1430 A Valvetronic supply (VTi).
F1510 A Right-hand main beam headlamps.
F1610 A Left-hand main beam headlamps.
F1715 A Left-hand dipped beam headlamps.
F1815 A Right-hand dipped beam headlamps.
F1915 A Oxygen sensors and electrovalves (VTi), electrovalve s
(Diesel), EGR electrovalve (Diesel).
F2010 A Pumps, electronic thermostat (VTi), timimg electrovalve
(THP), water in fuel sensor (Diesel).
F215 A Fan assembly control supply, ABS/ESP, turbo pump (T HP).

205Practical information
Table of maxi-fuses
Fuse N°RatingFunctions
MF1 * 60 A Fan assembly.
MF2 * 30 A ABS/ESP pump.
MF3 * 30 A ABS/ESP electrovalves.
MF4 * 60 A Built-in Systems Inter face (BSI) supply.
MF5 * 60 A Built-in Systems Inter face (BSI) supply.
MF6 * 20 A Additional cooling fan unit (THP).
MF7 * - Dashboard fusebox.
MF8 * - Not used.
* The maxi-fuses provide additional protection for the electrical systems. All work on the maxi-fuses m ust be carried out by a CITROËN dealer.

Battery Procedure for charging your battery when it is flat or for star ting the engine using another battery.
The battery is located under the bonnet. To gain access to it:  open the bonnet using the interior release lever, then the exterior safety catch,  secure the bonnet stay,
 remove the plastic cover by pulling on its grip for access to the two terminals,  unclip the fusebox to remove the battery, if necessary.
Access to the battery
 Connect the red cable to the positive terminal (+) of the flat battery A , then to the positive terminal (+) of the slave battery B .
Starting using another
battery
After refitting the battery, the Stop & Start system will only be active after a continuous period of immobilisation of the vehicle, a period which depends on the climatic conditions and the state of charge of the battery (up to about 8 hours).
The presence of this label, in par ticular with the Stop & Star t system, indicates the use of a 12 V lead-acid battery with special technology and specification, for which the involvement of a CITROËN dealer is required when replacing or disconnecting the battery. Failure to obser ve this recommendation may cause premature wear of
the battery.

207Practical information
 Connect one end of the green or black cable to the negative terminal (-) of the slave battery B .  Connect the other end of the green or black cable to the negative terminal (-) of the flat battery A .
 Star t the slave vehicle.  Operate the star ter of the broken down
vehicle and let the engine run.  Wait until the engine returns to idle and disconnect the cables.
Charging the battery using
a battery charger
Batteries contain harmful substances such as sulphuric acid and lead. They must be disposed of in accordance with regulations and must not, in any circumstances, be discarded with household waste. Take used remote control batteries and vehicle batteries to a special collection point.
 Disconnect the battery from the vehicle.
 Follow the instructions for use provided by the manufacturer of the charger.  Reconnect star ting with the negative terminal (-).  Check that the terminals and connectors are clean. If they are covered with sulphate (whitish or greenish deposit), remove them
and clean them.
The Stop & Star t battery does not have to be disconnected for charging. It is advisable to disconnect the battery if the vehicle is to be left unused for more than one month.
