Page 24 of 257
49Multifunction screens
Radio-CD
With the Audio system switched on, once the "Radio- CD" menu has been selected you can activate or deactivate the functions linked with use of the radio (RDS, REG), or the CD (introscan, shuffle, CD repeat). For more information on the "Radio- CD" application, refer to the Audio system par t of the "Audio and Telematics" section.
V e h i c l e c o n fi g u r a t i o n
Once the "Vehicle Configuration" menu has been selected, you can activate or deactivate the following equipment: - wiper linked with reverse gear (refer to the "Visibility" section), - guide-me-home lighting (refer to the "Visibility" section), - parking sensors (refer to the "Driving" section).
Options
Once the "Options" menu has been selected, you can star t diagnostics of the status of the equipment (active, not active, faulty).
Page 28 of 257
53Multifunction screens
"Personalisation-
C o n f i g u r a t i o n " m e n u
Once this menu has been selected, you can gain access to the following functions: - define the vehicle parameters, - display configuration, - choice of language.
D e fi n e t h e v e h i c l e p a r a m e t e r s
Once this menu has been selected, you can activate or deactivate the following equipment: - wiper linked to reverse gear (refer to the "Visibility" section), - guide-me-home lighting - parking sensors (refer to the "Driving" section).
Example: setting of the duration of the guide-
me-home lighting Press the " " or " " buttons, then the "OK" button to select the menu required.
Press the " " or " " buttons, then the "OK" button to select the "Guide-me-home headlamps" line.
Press the " " or " " buttons to set the value required (15, 30 or 60 seconds), then press the "OK" button to confirm.
Press the " " or " " buttons, then the "OK" button to select the "OK" box and confirm or press the "ESC" button to cancel.
Page 31 of 257

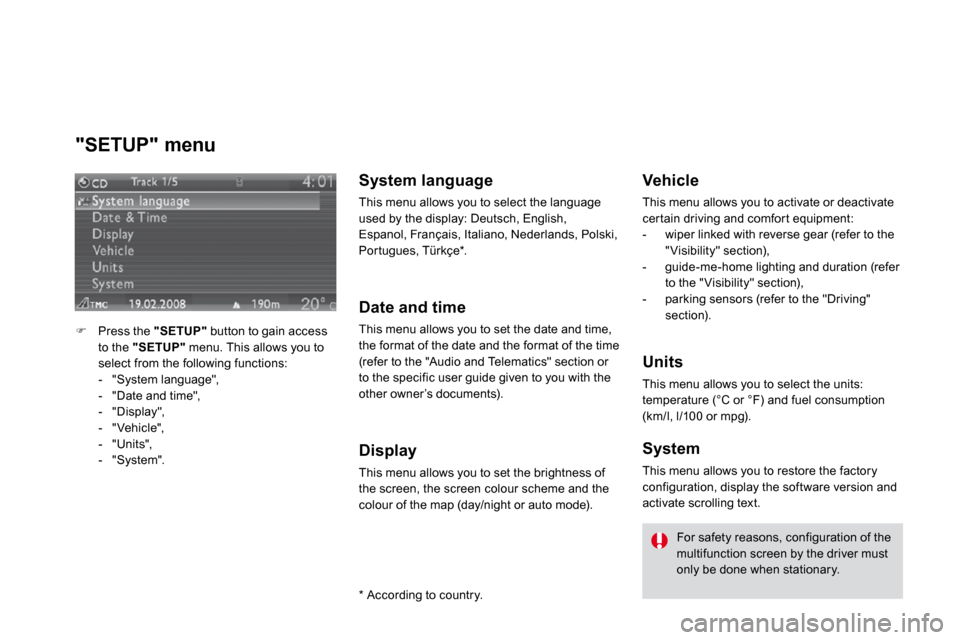

"SETUP" menu
Press the "SETUP" button to gain access to the "SETUP" menu. This allows you to select from the following functions: - "System language", - "Date and time", - "Display", - "Vehicle", - "Units", - "System".
S y s t e m l a n g u a g e
This menu allows you to select the language used by the display: Deutsch, English, Espanol, Français, Italiano, Nederlands, Polski, Por tugues, Türkçe * .
Date and time
This menu allows you to set the date and time, the format of the date and the format of the time (refer to the "Audio and Telematics" section or to the specific user guide given to you with the other owner’s documents).
Display
This menu allows you to set the brightness of the screen, the screen colour scheme and the colour of the map (day/night or auto mode).
* According to country.
Vehicle
This menu allows you to activate or deactivate cer tain driving and comfor t equipment: - wiper linked with reverse gear (refer to the "Visibility" section), - guide-me-home lighting and duration (refer to the "Visibility" section), - parking sensors (refer to the "Driving" section).
Units
This menu allows you to select the units: temperature (°C or °F) and fuel consumption (km/l, l/100 or mpg).
System
This menu allows you to restore the factory
configuration, display the software version and activate scrolling text.
For safety reasons, configuration of the multifunction screen by the driver must only be done when stationary.
Page 33 of 257
61Comfort
Recommendations for ventilation and air co nditioning
If after an extended stop in sunshine, the interior temperature is very high, first ventilate the passenger compar tment for a few moments.
Put the air flow control at a setting high enough to quickly change the air in the passenger compar tment. The air conditioning system does not contain chlorine and does not present any danger to the ozone layer.
In order for these systems to be fully effective, follow the operation and maintenance guidelines below: To obtain an even air distribution, take care not to obstruct the exterior air intake grilles located at the base of the windscreen, the nozzles, the vents and the air outlets, as well as the air extractor located in the boot. Do not cover the sunshine sensor, located on the d ashboard; this is used for regulation of the digital air conditioning system. Operate the air conditioning system for at least 5 to 10 minutes, once or twice a month to keep it in per fect working order. Ensure that the passenger compar tment filter is in g ood condition and have the filter elements replaced regularly (refer to the "Checks" secti on). We recommend the use of a combined passenger compa r tment filter. Thanks to its special active additive, it contributes to the purification of the air breathed by the occupants and the cleanliness of the passenger compar t ment (reduction of allergic symptoms, bad odours and greasy deposits). To ensure correct operation of the air conditioning system, you are also advised to have it checked regularly as recommended in the Maintenanc e and Warranty Guide.
If the system does not produce cold air, deactivate it and contact a CITROËN dealer. When towing the maximum load on a steep gradient in high temperatures, switching off the air conditioning increases the available engine power and so improves the towing ability.
The condensation created by the air conditioning results in a discharge of water under the vehicle which is per fectly normal.
Page 56 of 257
79Comfort
R e a r v i e w m i r r o r
Adjustable mirror providing a central rear ward view. Equipped with an anti-dazzle system, useful in poor light.
M a n u a l d a y / n i g h t m o d e l
Adjustment
Adjust the mirror so that the glass is directed correctly in the "day" position.
D a y / n i g h t p o s i t i o n
Pull the lever to change to the "night" anti-dazzle position.
Push the lever to change to the normal "day" position.
By means of a sensor, which measures the light from the rear of the vehicle, this system automatically and progressively changes between the day and night uses.
A u t o m a t i c d a y / n i g h t m o d e l
In order to ensure optimum visibility during your manoeuvres, the mirror lightens automatically when reverse gear is engaged.
As a safety precaution, the mirrors must be adjusted to reduce the "blind spot".
It has an anti-dazzle system which darkens the
mirror glass: this reduces any driver discomfor t caused by the light beams of following vehicles, the sun...
Page 82 of 257
are switched on automatically, without any action on the par t of the driver, when a low level of external light is detected or in cer tain cases of activation of the windscreen wipers. As soon as the brightness returns to a sufficient level or after the windscreen wipers are switched off, the lamps are switched off automatically.
Automatic illumination of headlamps
Activation
Turn ring A to the A"AUTO" position. The automatic illumination of headlamps is accompanied by a message on the multifunction screen.
Deactivation
Turn ring A to a position other than "AUTO" . Deactivation is accompanied by a message on the multifunction screen.
Coupling with the automatic "Guide-me-home" lighting
Association with the automatic illumination of headlamps provides "guide-me-home" lighting with the following additional options: - selection of the lighting duration to
15, 30 or 60 seconds in the vehicle parameters on the multifunction screen configuration menu (except in the case of the monochrome screen A, for which the duration is set: 60 seconds), - automatic activation of "guide-me-home" lighting when automatic illumination of headlamps is in operation.
Operating fault
In the event of a fault with the sunshine sensor, the lighting comes on, this warning lamp is displayed on the instrument panel and/or a message appears on the multifunction screen, accompanied by an audible signal Consult a CITROËN dealer.
In fog or snow, the sunshine sensor may detect sufficient light. Therefore, the lighting will not come on
automatically. Do not cover the sunshine sensor, coupled with the rain sensor and located in the centre of the windscreen behind the rear view mirror; the associated functions would no longer be controlled.
Page 86 of 257
windscreen wipers
The windscreen wipers operate automatically, without any action on the par t of the driver, if rain is detected (sensor behind the rear view mirror), adapting their speed to the intensity of the rainfall.
Activation
This is controlled manually by the driver by pushing stalk A to the "AUTO" position.
It is accompanied by the lighting of this indicator lamp in the instrument panel and a message on the multifunction screen.
Switching off
This is controlled manually by the driver by moving stalk A upwards, returning it to
position "0" .
It is accompanied by the indicator lamp in the instrument panel switching off and a message on the multifunction screen.
The automatic wiping must be reactivated if the ignition has been off for more than one minute, by pushing stalk A downwards.
Page 87 of 257
111Visibility
Operating fault
If an automatic wiping malfunction occurs, the wipers will operate in intermittent mode. Have it checked by a CITROËN dealer. To retain the effectiveness of the "flat-blade" wiper blades, it is advisable to: - handle them with care, - clean them regularly using soapy water, - not use them to hold a sheet of cardboard against the windscreen, - replace them at the first signs of wear.
Do not cover the rain sensor, linked with the sunshine sensor and located in the centre of the windscreen behind the rear view mirror. Switch off the automatic wiping when using an automatic car wash. In winter, it is advisable to wait until the
windscreen is completely clear of ice before activating the automatic wiping.
This position allows the wiper blades to be lifted for winter parking, cleaning or replacement without damaging the bonnet. In the minute following switching off of the ignition, any action on the wiper stalk positions the wipers ver tically. To park the wipers after this has been done,
switch on the ignition and operate the wiper stalk.
Vertical windscreen wiper
position
Page 88 of 257
windscreen wipers
The windscreen wipers operate automatically, without any action on the par t of the driver, if rain is detected (sensor behind the rear view mirror), adapting their speed to the intensity of the rainfall.
Activation
This is controlled manually by the driver by pushing stalk A to the "AUTO" position.
It is accompanied by the lighting of this indicator lamp in the instrument panel and a message on the multifunction screen.
Switching off
This is controlled manually by the driver by moving stalk A upwards, returning it to
position "0" .
It is accompanied by the indicator lamp in the instrument panel switching off and a message on the multifunction screen.
The automatic wiping must be reactivated if the ignition has been off for more than one minute, by pushing stalk A downwards.
Page 89 of 257
111Visibility
Operating fault
If an automatic wiping malfunction occurs, the wipers will operate in intermittent mode. Have it checked by a CITROËN dealer. To retain the effectiveness of the "flat-blade" wiper blades, it is advisable to: - handle them with care, - clean them regularly using soapy water, - not use them to hold a sheet of cardboard against the windscreen, - replace them at the first signs of wear.
Do not cover the rain sensor, linked with the sunshine sensor and located in the centre of the windscreen behind the rear view mirror. Switch off the automatic wiping when using an automatic car wash. In winter, it is advisable to wait until the
windscreen is completely clear of ice before activating the automatic wiping.
This position allows the wiper blades to be lifted for winter parking, cleaning or replacement without damaging the bonnet. In the minute following switching off of the ignition, any action on the wiper stalk positions the wipers ver tically. To park the wipers after this has been done,
switch on the ignition and operate the wiper stalk.
Vertical windscreen wiper
position
