stop start Citroen DS3 2011 1.G User Guide
[x] Cancel search | Manufacturer: CITROEN, Model Year: 2011, Model line: DS3, Model: Citroen DS3 2011 1.GPages: 324, PDF Size: 25.11 MB
Page 92 of 324
This is indicated by lighting of the cour tesy
lamps and flashing of the direction indicators
for a few seconds.
Locating your vehicle
)
Press the closed padlock to
locate your locked vehicle in a
car park.
Anti-theft protection
Electronic engine immobiliser
The key contains an electronic chip which has
a special code. When the ignition is switched
on, this code must be recognised in order for
star ting to be possible.
This electronic engine immobiliser locks the
engine management system a few minutes
after the ignition is switched off and prevents
star ting of the engine by anyone who does not
have the key.
In the event of a malfunction, you
are informed by lighting of this
warning lamp, an audible signal and a message
on the multifunction screen.
In this case, your vehicle does not start; contact
a CITROËN dealer as soon as possible.
- Position 1: Stop
- Position 2: Ignition
- Position 3: Starting
Ignition switch
Page 93 of 324

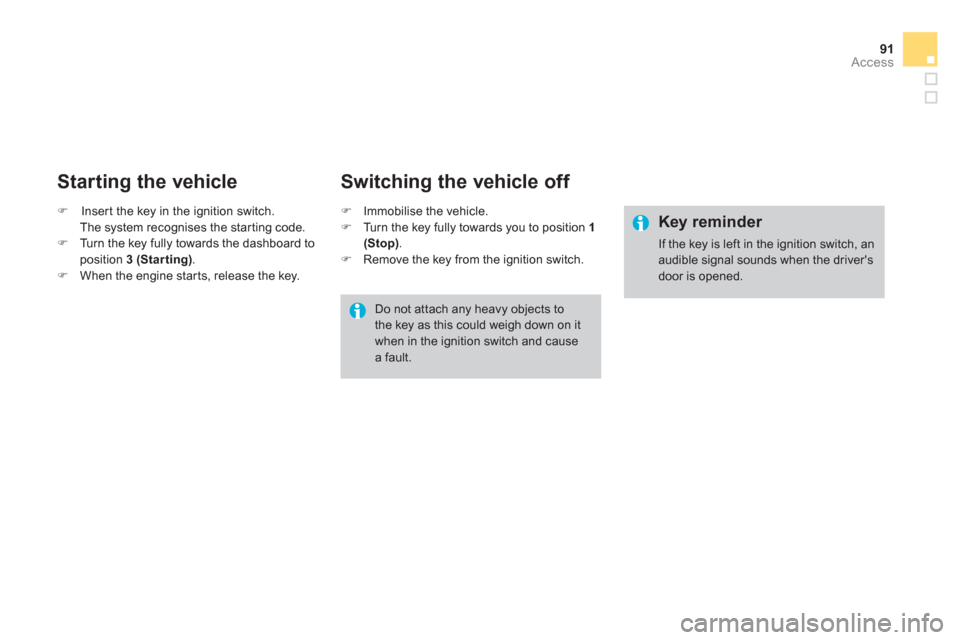

91Access
Starting the vehicle
)
Inser t the key in the ignition switch.
The system recognises the star ting code.
)
Turn the key fully towards the dashboard to
position 3 (Star ting)
.
)
When the engine star ts, release the key.
)
Immobilise the vehicle.
)
Turn the key fully towards you to position 1
(Stop)
.
)
Remove the key from the ignition switch.
Switching the vehicle off
Do not attach any heavy objects to
the key as this could weigh down on it
when in the ignition switch and cause
a fault.
Key reminder
If the key is left in the ignition switch, an
audible signal sounds when the driver's
door is opened.
Page 156 of 324
009
Driving
This section describes the use of the parking brake, the manual,
SensoDrive or automatic gearbox, the gear shift indicator and
Stop & Start to help reduce fuel consumption, the speed limiter to
avoid exceeding a programmed speed, cruise control to maintain a
programmed speed, the rear parking sensors to detect obstacles.
Page 162 of 324

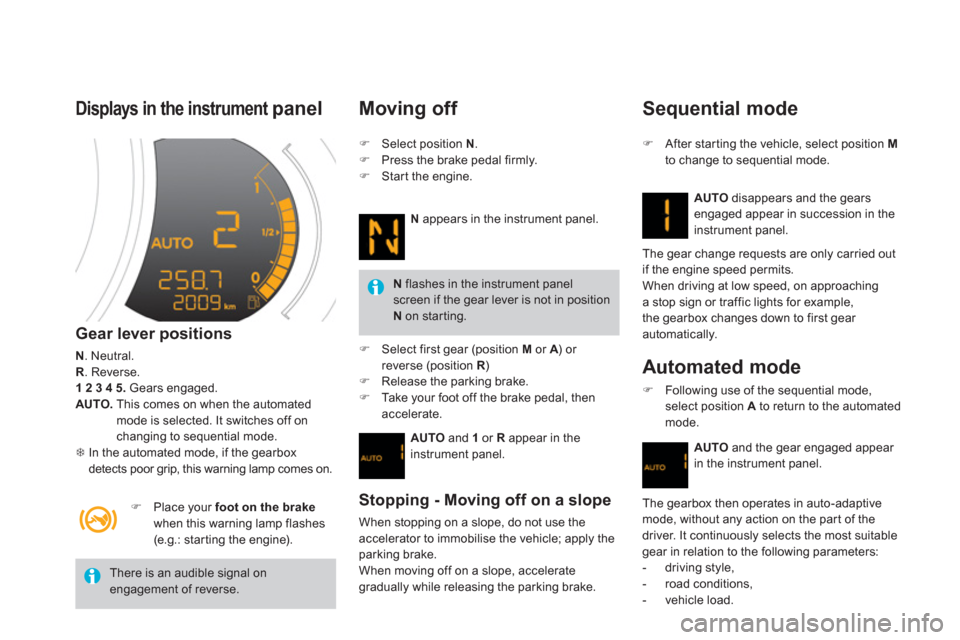

Displays in the instrument panel
Gear lever positions
N
. Neutral.
R
. Reverse.
1 2 3 4 5.
Gears engaged.
AUTO.
This comes on when the automated
mode is selected. It switches off on
changing to sequential mode.
7
In the automated mode, if the gearbox
detects poor grip, this warning lamp comes on.
)
Place your foot on the brake
when this warning lamp flashes
(e.g.: starting the engine).
There is an audible signal on
engagement of reverse.
Moving off
)
Select position N
.
)
Press the brake pedal firmly.
)
Star t the engine.
N
appears in the instrument panel.
N
flashes in the instrument panel
screen if the gear lever is not in position
N
on star ting.
)
Select first gear (position M
or A
) or
reverse (position R
)
)
Release the parking brake.
)
Take your foot off the brake pedal, then
accelerate.
AUTO
and 1
or R
appear in the
instrument panel.
Stopping - Moving off on a slope
When stopping on a slope, do not use the
accelerator to immobilise the vehicle; apply the
parking brake.
When moving off on a slope, accelerate
gradually while releasing the parking brake.
Sequential mode
)
After star ting the vehicle, select position M
to change to sequential mode.
AUTO
disappears and the gears
engaged appear in succession in the
instrument panel.
The gear change requests are only carried out
if the engine speed permits.
When driving at low speed, on approaching
a stop sign or traffic lights for example,
the gearbox changes down to first gear
automatically.
Automated mode
)
Following use of the sequential mode,
select position A
to return to the automated
mode.
AUTO
and the gear engaged appear
in the instrument panel.
The gearbox then operates in auto-adaptive
mode, without any action on the par t of the
driver. It continuously selects the most suitable
gear in relation to the following parameters:
- driving style,
- road conditions,
- vehicle load.
Page 168 of 324

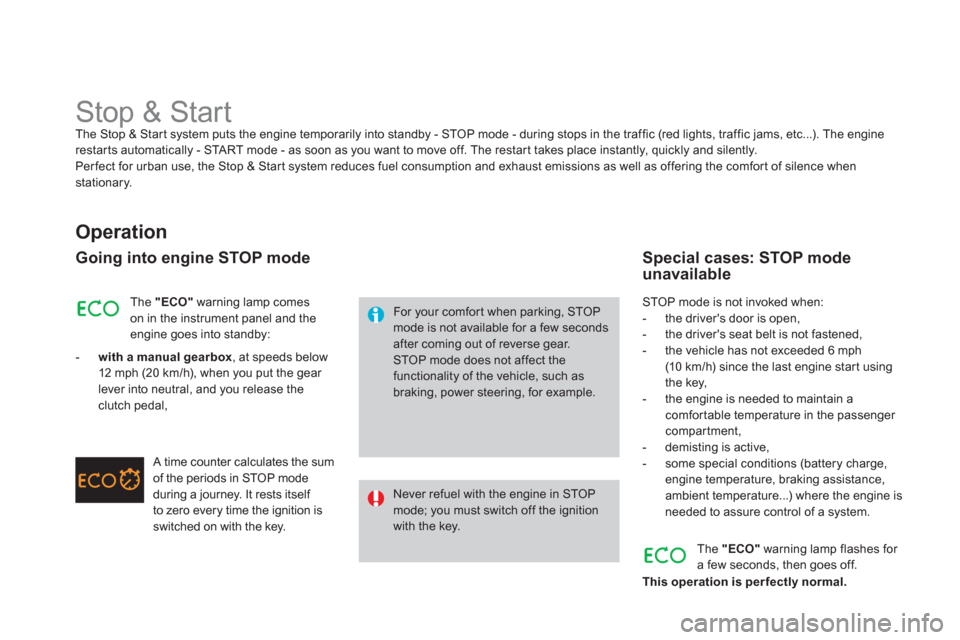

Stop & Start
The Stop & Start system puts the engine temporarily into standby - STOP mode - during stops in the traffic (red lights, traffic jams, etc...). The engine
restarts automatically - START mode - as soon as you want to move off. The restart takes place instantly, quickly and silently.
Per fect for urban use, the Stop & Start system reduces fuel consumption and exhaust emissions as well as offering the comfort of silence when
stationary.
Operation
Going into engine STOP mode
For your comfort when parking, STOP
mode is not available for a few seconds
after coming out of reverse gear.
STOP mode does not affect the
functionality of the vehicle, such as
braking, power steering, for example.
Never refuel with the engine in STOP
mode; you must switch off the ignition
with the key. The "ECO"
warning lamp comes
on in the instrument panel and the
engine goes into standby:
- with a manual gearbox
, at speeds below
12 mph (20 km/h), when you put the gear
lever into neutral, and you release the
clutch pedal,
A time counter calculates the sum
of the periods in STOP mode
during a journey. It rests itself
to zero every time the ignition is
switched on with the key. STOP mode is not invoked when:
- the driver's door is open,
- the driver's seat belt is not fastened,
- the vehicle has not exceeded 6 mph
(10 km/h) since the last engine star t using
the key,
- the engine is needed to maintain a
comfor table temperature in the passenger
compartment,
- demisting is active,
- some special conditions (battery charge,
engine temperature, braking assistance,
ambient temperature...) where the engine is
needed to assure control of a system.
Special cases: STOP mode
unavailable
The "ECO"
warning lamp flashes for
a few seconds, then goes off.
This operation is per fectly normal.
Page 169 of 324
167Driving

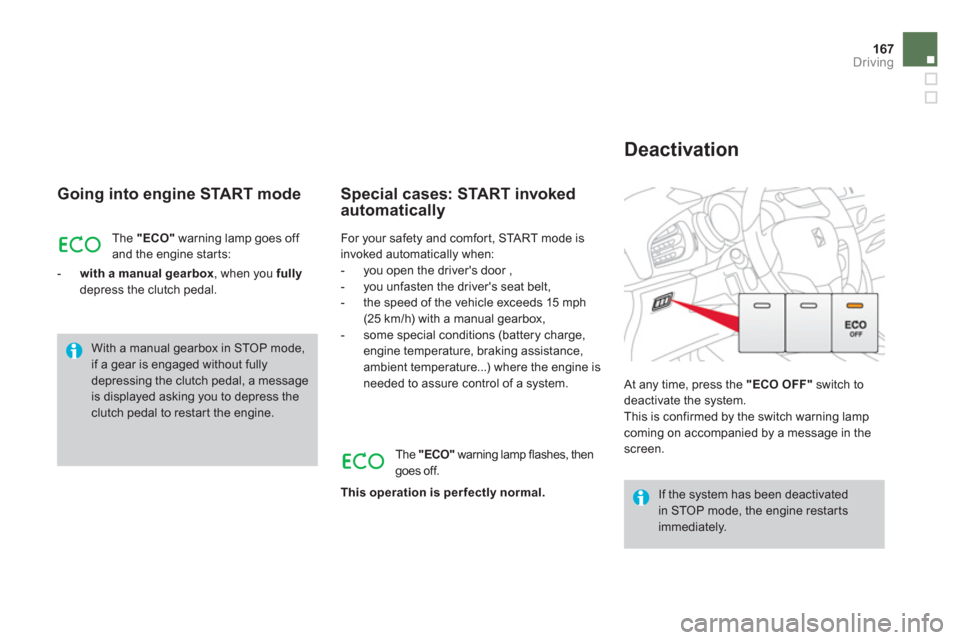

Going into engine START mode
The "ECO"
warning lamp goes off
and the engine star ts:
- with a manual gearbox
, when you fully
depress the clutch pedal.
Special cases: START invoked
automatically
If the system has been deactivated
in STOP mode, the engine restarts
immediately. At any time, press the "ECO OFF"
switch to
deactivate the system.
This is confirmed by the switch warning lamp
coming on accompanied by a message in the
screen.
Deactivation
For your safety and comfort, START mode is
invoked automatically when:
- you open the driver's door ,
- you unfasten the driver's seat belt,
- the speed of the vehicle exceeds 15 mph
(25 km/h) with a manual gearbox,
- some special conditions (battery charge,
engine temperature, braking assistance,
ambient temperature...) where the engine is
needed to assure control of a system.
The "ECO"
warning lamp flashes, then
goes off.
This operation is per fectly normal.
With a manual gearbox in STOP mode,
if a gear is engaged without fully
depressing the clutch pedal, a message
is displayed asking you to depress the
clutch pedal to restar t the engine.
Page 170 of 324
The system is reactivated automatically
at every new star t using the key.
Reactivation
This system requires a battery with a special
specification and technology (reference
numbers available from a CITROËN dealer or a
qualified workshop).
Fitting a battery not listed by
CITROËN introduces the risk of malfunction of
the system. In the event of a malfunction with the system,
the "ECO OFF"
switch warning lamp flashes,
then comes on continuously.
Have it checked by a CITROËN dealer or a
qualified workshop.
In the event of a fault in STOP mode, the
vehicle may stall. It is then necessary to switch
off the ignition and star t the engine again using
the key.
Operating fault
Maintenance
Before working under the bonnet,
deactivate the Stop & Start system to
avoid any risk of injury resulting from
automatic operation of START mode.
The Stop & Star t system makes use of
advanced technology. All work on this
battery must be done by a CITROËN
dealer or a qualified workshop. Press the "ECO OFF"
switch again.
The system is active again; this is confirmed
by the switch warning lamp going off,
accompanied by a message in the screen.
Page 181 of 324
179Checks
Bonnet
Protects the components of the engine and provides access for checking levels.
Opening
)
Open the front left door.
)
Pull the interior release lever A
, located at
the bottom of the door aper ture.
)
Push the exterior safety catch B
to the left
and raise the bonnet.
)
Unclip the bonnet stay C
from its housing,
holding it by its foam protection.
)
Fix the stay in the notch to hold the bonnet
open.
The location of the interior release lever
prevents opening of the bonnet while
the front left door is closed.
When the engine is hot, handle the
exterior safety catch and the stay
with care.
Before doing anything under the
bonnet, switch off the Stop & Start
system to avoid any risk of injury
resulting from an automatic change to
START mode.
Page 216 of 324
Fuse table
Fuse N°
Rating
Functions
F1
20 A
Engine control unit supply, cooling fan unit control relay, multifunction engine control main relay, injection pump
(Diesel).
F2
15 A
Horn.
F3
10 A
Front/rear screenwash.
F4
20 A
LED lamps.
F5
15 A
Diesel heater (Diesel), par ticle filter additive pump (Diesel), air flow sensor (Diesel), blow-by heater and
electrovalves (VTi).
F6
10 A
ABS/ESP control unit, secondary stop switch.
F7
10 A
Electric power steering, automatic gearbox.
F8
25 A
Starter control.
F9
10 A
Switching and protection unit (Diesel).
F10
30 A
Fuel heater (Diesel), blow-by heater (Diesel), fuel pump (VTi), injectors and ignition coils (petrol).
F11
40 A
Heater blower.
Page 219 of 324
217Practical information
Battery
Procedure for charging your battery when it is flat or for starting the engine using another battery.
The battery is located under the bonnet.
To gain access to it:
)
open the bonnet using the interior release
lever, then the exterior safety catch,
)
secure the bonnet stay,
)
lift the plastic cover on the (+) terminal.
Access to the battery
)
Connect the red cable to the positive
terminal (+) of the flat battery A
, then to the
positive terminal (+) of the slave battery B
.
Starting using another
battery
After refitting the battery by a
CITROËN dealer or a qualified
workshop, the Stop & Star t system
will only be active after a continuous
period of immobilisation of the vehicle,
a period which depends on the climatic
conditions and the state of charge of
the battery (up to about 8 hours).
The presence of this label, in particular
with the Stop & Star t system, indicates
the use of a 12 V lead-acid battery with
special technology and specification;
the involvement of a CITROËN dealer
or a qualified workshop is essential
when replacing or disconnecting the
battery.
Failure to obser ve this recommendation
may cause premature wear of
the battery.
)
Connect one end of the green or black
cable to the negative terminal (-) of the
slave battery B
.
)
Connect the other end of the green or black
cable to the remote negative terminal (-) of
your vehicle.
