235Technical data

*

The weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount; warning,
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.



WEIGHTS AND TOWED LOADS (in kg)



LPG engines



VTi 95



Gearbox



Manual



Model codes:
SA...


8FR0/GPL




- Unladen weight

1 152


- Kerb weight

1 227


- Gross vehicle weight (GV W)
1 552


- Gross train weight (GTW)
on a 12 % slope
2 452


- Braked trailer (within GTW limit)
on a 12 % slope
900


- Braked trailer * (with load transfer within the
GTW limit)
1 150


- Unbraked trailer

570


- Recommended nose weight
46
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.

MODELS:



ENGINES AND GEARBOXES



Model codes:
SA...


8HR0



9HP4



9HP0
9HP0/S



9HR8



DIESEL ENGINES


HDi 70
PEF



HDi 90 PEF
99g



HDi 90 PEF



HDi 110 PEF


Cubic capacity (cc)
1 398
1 560
1 560
Bore x stroke (mm)
73.7 x 82
75 x 88.3
75 x 88.3
Max power: EU standard (kW)
50
68
82
Max power engine speed (rpm)
4 000
4 000
3 600
Max torque: EU standard (Nm)
160
230
270
Max torque engine speed (rpm)
2 000
1 750
1 750
Fuel
Diesel
Diesel
Diesel
Catalytic conver ter
yes
yes
yes
Particle emissions filter (PEF)
yes
yes
yes

GEARBOX

Manual
(5 -speed)
Manual
(5 -speed)
Manual
(6 -speed)

OIL CAPACITIES (in litres)








Engine (with filter replacement)
3.75
3.75
3.75

.../S:
e-HDi model fitted with Stop & Star t.

237Technical data


WEIGHTS AND TOWED LOADS (in kg)



Diesel engines


HDi 70
PEF



HDi 90 PEF 99g



HDi 90 PEF



e-HDi 90 PEF



HDi 110 PEF



Gearbox


Manual



Manual



Manual



Manual



Manual



Model codes:
SA...


8HR0



9HP4



9HP0



9HP0/S



9HR8




- Unladen weight
1 070
1 080
1 080
1 085
1 090


- Kerb weight
1 145
1 155
1 155
1 160
1 165


- Gross vehicle weight (GV W)
1 553
1 565
1 584
1 602
1 612


- Gross train weight (GTW)
on a 12 % gradient
2 253
2 065
2 484
2 502
2 512


- Braked trailer (within GTW limit)
on 12 % gradient
700
500
900
900
900


- Braked trailer * (with load transfer with
the GTW limit)
950
500
1 150
1 150
1 150


- Unbraked trailer
570
500
570
570
570


- Recommended nose weight
46
46
46
46
46
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.
*

The weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount. Warning:
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

247

The MyWay is protected in such a way that it will only
operate in your vehicle. If it is to be installed in another
vehicle, contact a CITROËN dealer for confi guration of
the system.

Certain functions described in this handbook will
become available during the year.


MYWAY


For safety reasons, the driver must carry out operations
which require prolonged attention while the vehicle is
stationary.
When the engine is switched off and to prevent
discharging of the battery, the MyWay switches off
following the activation of the Energy Economy mode.


MULTIMEDIA AUDIO SYSTEM/BLUETOOTH TELEPHONE
SATELLITE NAVIGATION SYSTEM FOR EUROPE BY SD CARD


01 First steps
CONTENTS

02 Steering mounted controls

03 General operation

04 Navigation - Guidance

05 Traffic information

06 Radio

07 Music media players

08 Bluetooth telephone

09 Configuration

10 Trip computer p.
p.
p.
p.
p.
p.
p.
p.
p.
p.

11 Screen menu map

Frequently asked questions p.
p. 248
249
250
253
261
263
264
267
270
271
272
276

01
1
5
10 234 6
1311
9
14 157812 16


1. Engine not running
- Short press: on/off.
- Long press: CD pause, mute for the radio.
Engine running
- Short press: CD pause, mute for the radio.
- Long press: reinitialisation of the system.

2. Volume adjustment (each source is
independent, including also navigation
messages and alerts).

3. Access to the "Radio" Menu. Display the list
of stations.

4. Access to the "Music" Menu. Display the tracks.
5. Access to the "SETUP" menu.
Long press: access to the GPS coverage
and the demonstration mode.

6.
Access to the "Phone" Menu. Display the call list.

7. Access to the "MODE" menu.
Selection of the successive display of:
Radio, Map, NAV (if navigation is in
progress), Telephone (if a conversation is in
progress), Trip computer.
Long press: display of a black screen (DARK).

8. Access to the "Navigation" Menu. Display
the last destinations.

9. Access to the "Traffi c" Menu. Display the
current traffi c alerts.

10. ESC: abandon the operation in progress.

11. CD eject.
12. Selection of the previous/next radio station
from the list.
Selection of the previous/next MP3 folder.
Selection of the previous/next page of a list.

13. Selection of the previous/next radio station.
Selection of the previous/next CD or MP3 track.
Selection of the previous/next line of a list.

14. Buttons 1 to 6:
Selection of the stored radio station.
Long press: store the current radio station.

15. SD card reader (navigation SD card only).

16. Dial for selection of the screen display and
according to the context of the menu.
Short press: contextual menu or confi rmation.
Long press press: contextual menu specifi c
to the list displayed.

FIRST STEPS


MyWay CONTROL PANEL

3 - 4. Long press: access to the audio settings:
front/rear fader and left/right balance,
bass/treble, equaliser, loudness, automatic
volume adjustment, initialise the settings.

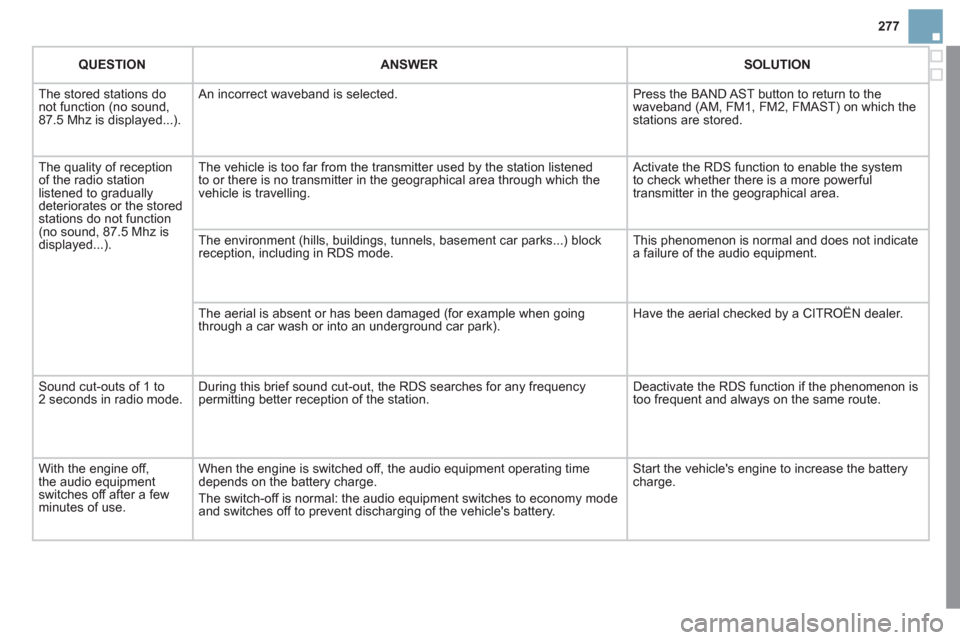

277


QUESTION



ANSWER



SOLUTION


The stored stations do
not function (no sound,
87.5 Mhz is displayed...). An incorrect waveband is selected. Press the BAND AST button to return to the
waveband (AM, FM1, FM2, FMAST) on which the
stations are stored.
The quality of reception
of the radio station
listened to gradually
deteriorates or the stored
stations do not function
(no sound, 87.5 Mhz is
displayed...). The vehicle is too far from the transmitter used by the station listened
to or there is no transmitter in the geographical area through which the
vehicle is travelling. Activate the RDS function to enable the system
to check whether there is a more powerful
transmitter in the geographical area.
The environment (hills, buildings, tunnels, basement car parks...) block
reception, including in RDS mode. This phenomenon is normal and does not indicate
a failure of the audio equipment.
The aerial is absent or has been damaged (for example when going
through a car wash or into an underground car park). Have the aerial checked by a CITROËN dealer.
Sound cut-outs of 1 to
2 seconds in radio mode. During this brief sound cut-out, the RDS searches for any frequency
permitting better reception of the station. Deactivate the RDS function if the phenomenon is
too frequent and always on the same route.
With the engine off,
the audio equipment
switches off after a few
minutes of use. When the engine is switched off, the audio equipment operating time
depends on the battery charge.
The switch-off is normal: the audio equipment switches to economy mode
and switches off to prevent discharging of the vehicle's battery. Start the vehicle's engine to increase the battery
charge.

281
AUDIO SYSTEM


Your Audio system is coded in such a way that it will
only operate in your vehicle. If it is to be installed in
another vehicle, contact your CITROËN dealer for
confi guration of the system.

For safety reasons, the driver must carry out operations
which require prolonged attention while the vehicle is
stationary.
When the engine is switched off and to prevent
discharging of the battery, the audio equipment may
switch off after a few minutes.



AUDIO SYSTEM/BLUETOOTH

01 First steps

02 Steering mounted controls

03 Main menu

04 Audio

05 USB Box

06 Bluetooth functions

07 Configuration

08 Trip computer

09 Screen menu map p.
p.
p.
p.
p.
p.
p.
p.
p. 282
283
284
285
288
291
293
295
296
CONTENTS

Frequently asked questions p. 301

QUESTION



ANSWER



SOLUTION


The stored stations do
not function (no sound,
87.5 Mhz is displayed...). An incorrect waveband is selected. Press the BAND AST button to return to the
waveband (AM, FM1, FM2, FMAST) on which
the stations are stored.
The traffi c announcement
(TA) is displayed. I do
not receive any traffi c
information. The radio station is not part of the regional traffi c information network. Tune to a radio station which broadcasts traffi c
information.
The quality of reception
of the radio station
listened to gradually
deteriorates or the stored
stations do not function
(no sound, 87.5 Mhz is
displayed...). The vehicle is too far from the transmitter used by the station listened to
or there is no transmitter in the geographical area through which
the vehicle is travelling. Activate the RDS function to enable the system
to check whether there is a more powerful
transmitter in the geographical area.
The environment (hills, buildings, tunnels, basement car parks...)
block reception, including in RDS mode. This phenomenon is normal and does not indicate
a failure of the audio equipment.
The aerial is absent or has been damaged (for example when going
through a car wash or into an underground car park). Have the aerial checked by a CITROËN dealer.
Sound cut-outs of 1 to
2 seconds in radio mode. During this brief sound cut-out, the RDS searches for any frequency
permitting better reception of the station. Deactivate the RDS function if the phenomenon is
too frequent and always on the same route.
With the engine off,
the audio equipment
switches off after a few
minutes of use. When the engine is switched off, the audio equipment operating time
depends on the battery charge.
The switch-off is normal: the audio equipment switches to economy mode
and switches off to prevent discharging of the vehicle's battery. Start the vehicle's engine to increase the battery
charge.
The message "the audio
system is overheated"
appears on the display. In order to protect the installation if the surrounding temperature is too
high, the audio equipment switches to an automatic thermal protection
mode leading to a reduction of the volume or stopping of the playing of
the CD. Switch the audio system off for a few minutes to
allow the system to cool.

309Visual search
Technical data - Maintenance


Running out of Diesel 180

Checking levels 183 -185


- oil

- brake fluid

- coolant

- screenwash fluid


- additive (Diesel with par ticle emis sions f ilter)



Changing bulbs 203 -209


- front

- rear

- interior

Petrol engines 230-233
LPG engine 234-235
Diesel engines 236 -237
Dimensions 238-239
Identification markings 240

Bonnet 179 -180
Under-bonnet layout, petrol 181
Under-bonnet layout, Diesel 182
Batter y 217-218
Energy economy mode 219
Checking components 186-187


- battery

- air filter/passenger compartment filter

- oil filter

- par ticle emissions filter (Diesel)

- brake pads/discs


Engine compartment
fuses 210, 213 -216

A
ABS and EBFD systems ............................. 142
Accessories ................................................ 225
Accessories socket, 12 V ............................ 122
Access to rear seats ............................... 79, 80
Adjusting headlamps .................................. 111
Adjusting head restraints .............................. 78
Adjusting the steering wheel ......................... 83
Air conditioning ............................................. 22
Air conditioning
(digital) .................................................. 65, 71
Air conditioning (manual) ........................65, 68
Air filter ........................................................ 186
Air intake ....................................................... 71
Air recirculation ............................................. 71
Air vents ........................................................ 64
Anti-lock braking system
(ABS) ........................................................ 142
Anti-pinch ...................................................... 94
Anti-theft steering lock .................................. 90
Assistance call .................................... 141, 246
Audible warning .......................................... 141
Audio streaming
(Bluetooth) ................................................ 292
Audio system ...................... 282, 283, 296, 298
Automatic gearbox .............................. 162, 187
Automatic illumination
of headlamps .....................................107, 110
Automatic operation
of hazard warning lamps .......................... 141
Automatic rain sensitive
windscreen wipers .............................112, 114
Auxiliary socket ...........................................266
Auxiliary sockets .........................................290Capacity, fuel tank ...................................... 100
CD MP3 ...............................................265, 287
Central locking ........................................ 89, 97
Changing a bulb .......................... 203, 207, 208
Changing a fuse .......................................... 210
Changing a wheel ....................................... 196
Changing a wiper blade ...................... 115, 220
Changing the date ....................................... 270
Changing the remote control battery ............ 92
Changing the time ...................... 270, 293, 294
Checking levels ................................... 183, 185
Checking the engine oil level ........................ 43
Checking tyre pressures (using the kit) ...... 190Checks ................................ 181, 182, 186, 187
Children ........................................132, 134-136
Child seats ......................................... 128, 132
Closing the boot ......................................89, 99
Closing the doors ....................................89, 96
Connectors, audio .............. 122, 266, 288, 290
Control stalk, wipers .............................112-114
Coolant level ......................................... 40, 183
Coolant temperature ..................................... 40
Coolant temperature indicator ...................... 40
Cour tesy lamps ........................................... 209
Cour tesy mirror ........................................... 121
Cruise control .............................................. 171
Cup holder ................................................... 120
Cur tain airbags ................................... 152, 153 Battery ................................................. 186, 217
Battery, remote control ...........................92, 93
Battery recharge ......................................... 217
Bench seat, rear ............................................ 82
Black panel .................................................... 45
Bluetooth (hands-free) ................ 267, 268, 291
Bluetooth (telephone) .......................... 267, 268
Bonnet ......................................................... 179
Boot ............................................................... 99
Boot lamp ............................................ 117, 209
Brake discs .................................................. 187
Brake lamps ................................................ 207
Brake pads .................................................. 187
Brakes ......................................................... 187
Braking assistance system ......................... 142
B
C
Dashboard fusebox ..................................... 210
Date (display) .............................................. 270
Deactivating the passenger airbag ............. 149
Defrosting ................................................ 68, 74
Demisting ................................................ 68, 71
Dials and gauges .................................... 26, 28
Diesel additive level .................................... 185
Diesel engine .............................. 101, 182, 236
Dimensions ................................................. 238
Dipped beam .......................................106, 204
Dipstick .................................................. 43, 183
Direction indicators ............................. 140, 207
Door mirrors .................................................. 84
D
