Page 2 of 324
YOUR HANDBOOK
ON THE INTERNET !
CITROËN lets you view your vehicle's
documentation on line, to see earlier versions
and the latest information, simply and free of
charge.
Connect to http://service.citroen.com
:
1 |
Select your language and register,
click on the link in the "Private customer access" zone to consult the
vehicle documentation; a window opens providing access to all of
the handbooks,
select your vehicle, choose the body type then the date of issue of
the handbook,
fi nally, click on the heading of your choice.
2 |
3 |
4 |
Page 54 of 324
Monochrome screen A
This displays the following information:
- time,
- date,
- ambient temperature (this flashes if there is
a risk of ice),
- status of the doors and boot,
- audio sources (radio, CD...),
- trip computer (refer to the "Instruments and
Controls" section).
Warning messages (e.g.: "Emission control
system faulty") or information messages
(e.g.: "Boot open") may appear temporarily.
These can be cleared by pressing the "ESC"
button.
Displays on the screen
From the control panel of your Audio system,
you can:
)
press the "MENU"
button to gain access to
the main
menu
,
)
press the "
" or "
" buttons to scroll
through the items on the screen,
)
press the "MODE"
button to change
the permanent application (date, audio
source...),
)
press the "
" or "
" buttons to change a
setting value,
)
press the "OK"
button to confirm,
or
)
press the "ESC"
button to abandon the
operation in progress.
Controls
)
Press the "MENU"
button to gain access
to the main
menu
, then press the "
" or
"
" buttons to scroll through the various
menus:
- radio-CD,
- vehicle configuration,
- options,
- display settings,
- languages,
- units.
)
Press the "OK"
button to select the menu
required.
Main menu
Page 56 of 324

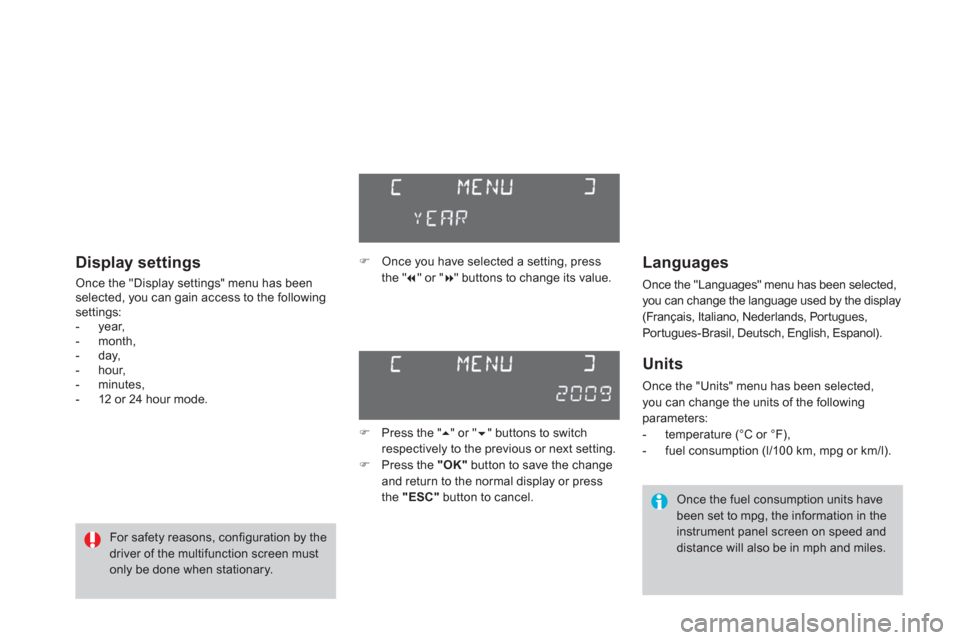

Languages
Once the "Languages" menu has been selected,
you can change the language used by the display
(Français, Italiano, Nederlands, Portugues,
Portugues-Brasil, Deutsch, English, Espanol).
Units
Once the "Units" menu has been selected,
you can change the units of the following
parameters:
- temperature (°C or °F),
- fuel consumption (l/100 km, mpg or km/l).
Once the fuel consumption units have
been set to mpg, the information in the
instrument panel screen on speed and
distance will also be in mph and miles. For safety reasons, configuration by the
driver of the multifunction screen must
only be done when stationary.
Display settings
Once the "Display settings" menu has been
selected, you can gain access to the following
settings:
- year,
- month,
- day,
- hour,
- minutes,
- 12 or 24 hour mode.
)
Once you have selected a setting, press
the "
" or "
" buttons to change its value.
)
Press the "
" or "
" buttons to switch
respectively to the previous or next setting.
)
Press the "OK"
button to save the change
and return to the normal display or press
the "ESC"
button to cancel.
Page 59 of 324
57Multifunction screens
"Personalisation-
Configuration" menu
Once this menu has been selected, you can
gain access to the following functions:
- define the vehicle parameters,
- display configuration,
- choice of language.
Defi ne the vehicle parameters
Once this menu has been selected, you can
activate or deactivate the following equipment:
- wiper linked to reverse gear (refer to the
"Visibility" section),
- guide-me-home lighting and duration (see
"Visibility" section),
- parking sensors (refer to the "Driving"
section). Example: setting of the duration of the guide-
me-home lighting
)
Press the "
" or "
" buttons, then the
"OK"
button to select the menu required.
)
Press the "
" or "
" buttons, then the
"OK"
button to select the "Guide-me-home
headlamps" line.
)
Press the "
" or "
" buttons to set the
value required (15, 30 or 60 seconds), then
press the "OK"
button to confirm.
)
Press the "
" or "
" buttons, then the
"OK"
button to select the "OK"
box
and confirm or press the "ESC"
button
to cancel.
Page 60 of 324
Display confi guration
Once this menu has been selected, you can
gain access to the following settings:
- brightness-video setting,
- date and time setting,
- selection of units.
Once the fuel consumption units have
been changed to mpg, the information
in the screen relating to speed and
distance also changes to mph and
miles respectively. For safety reasons, configuration by the
driver of the multifunction screen must
only be done when stationary.
Choice of language
Once this menu has been selected, you can
change the language used by the display
(Deutsch, English, Espanol, Français, Italiano,
Nederlands, Portugues, Portugues-Brasil,
Türkçe * ).
*
According to country of destination. With Audio system on, once this menu is
selected you can configure your Bluetooth
hands-free system (pairing), view the various
telephone directories (list of calls, ser vices...)
and manage your calls (call, hang up, second
call, secret mode...).
For more information on the "Telephone"
function, refer to the Audio system par t of the
"Audio and telematics" section.
"Telephone" Menu
Page 62 of 324
"SETUP" menu
)
Press the "SETUP"
button to gain access
to the "SETUP"
menu. This allows you to
select from the following functions:
- "System language",
- "Date and time",
- "Display",
- "Vehicle",
- "Units",
- "System".
System language
This menu allows you to select the language
used by the display: Deutsch, English,
Espanol, Français, Italiano, Nederlands, Polski,
Portugues, Türkçe * .
Date and time
This menu allows you to set the date and time,
the format of the date and the format of the time
(refer to the "Audio and Telematics" section or
to the specific user guide given to you with the
other owner's documents).
Display
This menu allows you to set the brightness of
the screen, the screen colour scheme and the
colour of the map (day/night or auto mode).
*
According to country.
Vehicle
This menu allows you to activate or deactivate
cer tain driving and comfor t equipment:
- wiper linked with reverse gear (refer to the
"Visibility" section),
- guide-me-home lighting and duration (refer
to the "Visibility" section),
- parking sensors (refer to the "Driving"
section).
Units
This menu allows you to select the units:
temperature (°C or °F) and fuel consumption
(km/l, l/100 or mpg).
System
This menu allows you to restore the factory
configuration, display the software version and
activate scrolling text.
For safety reasons, configuration of the
multifunction screen by the driver must
only be done when stationary.
Page 248 of 324
EMERGENCY OR ASSISTANCE CALL
CITROËN LOCALISED EMERGENCY CALL
In an emergency, press this button for more than
2 seconds. Flashing of the green LED and a voice
message confi rm that the call has been made to the
CITROËN Emergency team * .
Pressing this button again immediately cancels the request. The green
LED goes off.
A press (at any time) of more than 8 seconds on this button, cancels the
request.
CITROËN LOCALISED ASSISTANCE CALL
When the ignition is switched on, the
green LED comes on for 3 seconds
indicating that the system is operating
correctly.
If the orange LED fl ashes: there is a
system fault.
If the orange LED is on continuously: the
backup battery must be replaced.
In either case, contact a CITROËN.
Pressing this button again immediately cancels the request.
The cancellation is confi rmed by a voice message.
Press this button for more than 2 seconds to request
assistance if the vehicle breaks down.
A voice message confi rms that the call has been made * .
OPERATION OF THE SYSTEM
The green LED remains on (without fl ashing) when communication is
established. It goes off at the end of communication.
This call is dealt with by the CITROËN Emergency team which receives
locating information from the vehicle and can send a detailed alert to the
appropriate emergency services. In countries in which the team is not
operational, or when the locating service has been expressly declined,
the call is dealt with directly by the emergency services (112) without the
vehicle location.
If an impact is detected by the airbag ECU, and independently
of the deployment of any airbags, an emergency call is made
automatically.
*
These services are subject to conditions and availability.
Consult a CITROËN dealer.
If you purchased your vehicle outside the CITROËN dealer network,
we invite you to have a dealer check the confi guration of these services
and, if desired, modifi ed to suit your wishes. In a multi-lingual country,
confi guration is possible in the offi cial national language of your choice.
For technical reasons, particularly to improve the quality of Telematic
services to customers, the manufacturer reserves the right to carry out
updates to the vehicle's on-board telematic system.
If you benefi t from the CITROËN eTouch offer, you also have available
additional services in your MyCITROËN personal space, via the CITROËN
Internet website www.citroen.co.uk.
Page 252 of 324
03 GENERAL OPERATION
For a detailed global view of the menus available, refer to the
"Screen menu map" section.
Press the MODE button several times in succession for access to the following menus:
For cleaning the screen, the use of a soft, non-abrasive cloth
(spectacles cloth) is recommended, with no additional product.
RADIO
/ MUSIC
MEDIA PLAYERS
TELEPHONE
(If a conversation is in progress)
FULL SCREEN MAP
NAVIGATION
(If guidance is in progress)
SETUP:
system language * , date and time * , display,
vehicle settings * , unit and system settings, "Demo
mode".
TRAFFIC:
TMC information and messages.
*
Available according to model.
TRIP COMPUTER
Page 272 of 324
09
4 3 2 1
65
CONFIGURATION
SETTING THE DATE AND TIME
The SETUP function gives access to the following options: System
language, Date & Time, Display (Brightness, Colour, Map colour), Vehicle,
Units, System.
Adjust the settings one by one using
the direction arrows and confi rm by
means of the dial.
Select the "Date format" function and
press the dial to confi rm.
Select the "Set date & time" function
and press the dial to confi rm.
Confi rm the format required using the dial.
Pressing the SETUP button for more than 2 seconds gives
access to:
These settings must be entered again if the battery has been
disconnected.
Press the SETUP button.
Confi rm the format required using
the dial.
Select the "Time format" function and
press the dial to confi rm.
Set date & time
Select the "Date & Time" function
and press the dial to confi rm.
Demo mode
GPS coverage
Description of the unit
Date & Time
Page 276 of 324
Avoid ferries
Recalculate
Settings
Navi volume
POI categories on Map
Set parameters for risk areas
Display on map
Visual alert
Sound alert
3
2
4
3
3
3
4
4
4
Dial number
Dial from address book
"Phone" Menu
Search phone
Call lists
Connect phone
Select ring tone
Phone/Ring tone volume
Phones connected
Enter mailbox number
Settings Disconnect phone
Rename phone
Delete pairing
Delete all pairings
Show details
"SETUP" menu
System language *
English
Español
Deutsch
Italiano
Français
Nederlands
Polski
Portuguese
Date & Time *
Set date & time
Date format
Time format
1
2
2
2
2
3
3
4
4
4
4
4
2
3
3
3
1
2
3
3
3
3
3
3
3
3
3
3
3
2
Avoid motorways
Route dynamics
Traffi c independent
Semi-dynamic
Avoidance criteria
Avoid toll roads Optimized route
3
3
4
4
4
4
4
*
Available according to model.
