parking sensors Citroen DS3 2011 1.G Owner's Manual

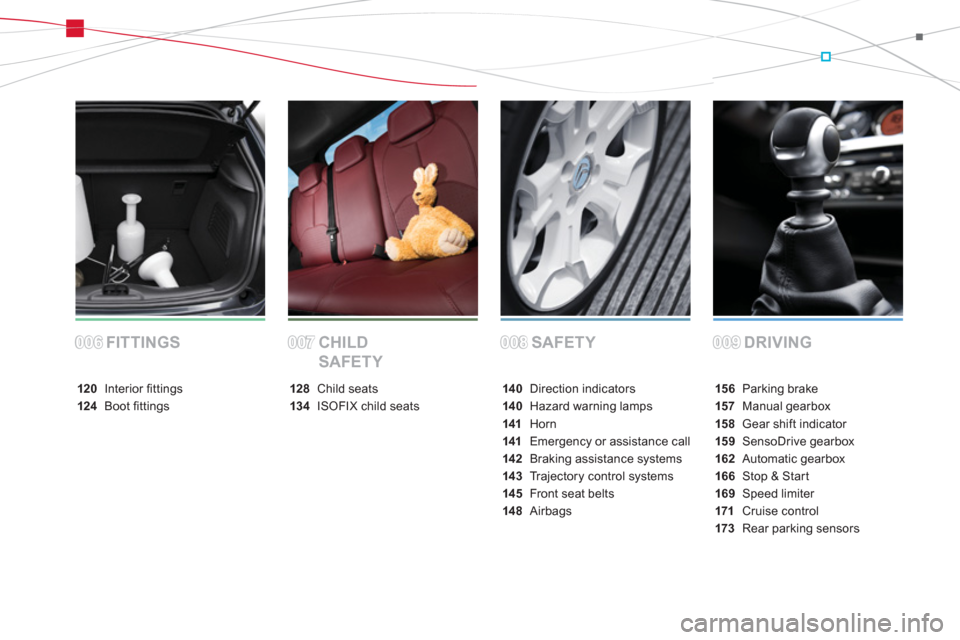

SAFETY DRIVING FITTINGS CHILD
SAFETY
15 6 Parking brake
157 Manual gearbox
15 8 Gear shift indicator
15 9 SensoDrive gearbox
162 Automatic gearbox
166 Stop & Start
169 Speed limiter
171 Cruise control
173 Rear parking sensors 14 0 Direction indicators
14 0 Hazard warning lamps
141 Horn
141 Emergency or assistance call
142 Braking assistance systems
14 3 Trajectory control systems
14 5 Front seat belts
14 8 Airbags 128 Child seats
13 4 ISOFIX child seats 120 Interior fi ttings
124 Boot fi ttings
008008009009006006007007

Exterior


Customising kits

These expressive stickers form par t of a range
of kits, very different one from another, which
allow you to create a unique and attractive
exterior for your vehicle.

Guide-me-home lighting

After switching off the ignition, under low
lighting conditions the headlamps remain on for
a few seconds to help you leave the vehicle.

Rear parking sensors

This system provides a warning when reversing
by detecting obstacles located behind the
vehicle.



19





109




173




Temporary puncture repair kit

This kit is a complete system consisting of a
compressor and a sealant cartridge, to allow
the temporary repair of a tyre.



190





Stop & Start

This system puts the engine
temporarily on standby during
stops in the traffic (red lights, traffic
jams, etc...). The engine restarts
automatically as soon as you want to
move off. The Stop & Star t system
reduces fuel consumption and exhaust
emissions, and offers the comfor t of
complete silence when stationary.



166

53Multifunction screens

Radio-CD

With the Audio system switched on, once the
"Radio-CD" menu has been selected you can
activate or deactivate the functions linked
with use of the radio (RDS, REG), or the CD
(introscan, shuffle, CD repeat).
For more information on the "Radio- CD"
application, refer to the Audio system part of
the "Audio and Telematics" section.


Vehicle confi guration

Once the "Vehicle Configuration" menu has
been selected, you can activate or deactivate
the following equipment:


- wiper linked with reverse gear (refer to the
"Visibility" section),

- guide-me-home lighting (refer to the
"Visibility" section),

- parking sensors (refer to the "Driving"
section).



Options

Once the "Options" menu has been selected,
you can start diagnostics of the status of the
equipment (active, not active, faulty).

57Multifunction screens

"Personalisation-
Configuration" menu
Once this menu has been selected, you can
gain access to the following functions:


- define the vehicle parameters,

- display configuration,

- choice of language.


Defi ne the vehicle parameters

Once this menu has been selected, you can
activate or deactivate the following equipment:


- wiper linked to reverse gear (refer to the
"Visibility" section),

- guide-me-home lighting and duration (see
"Visibility" section),

- parking sensors (refer to the "Driving"
section). Example: setting of the duration of the guide-
me-home lighting


)
Press the "
" or "
" buttons, then the
"OK"
button to select the menu required.

)
Press the "
" or "
" buttons, then the
"OK"
button to select the "Guide-me-home
headlamps" line.

)
Press the "
" or "
" buttons to set the
value required (15, 30 or 60 seconds), then
press the "OK"
button to confirm.
)
Press the "
" or "
" buttons, then the
"OK"
button to select the "OK"
box
and confirm or press the "ESC"
button
to cancel.

"SETUP" menu




)
Press the "SETUP"
button to gain access
to the "SETUP"
menu. This allows you to
select from the following functions:


- "System language",

- "Date and time",

- "Display",

- "Vehicle",

- "Units",

- "System".




System language

This menu allows you to select the language
used by the display: Deutsch, English,
Espanol, Français, Italiano, Nederlands, Polski,
Portugues, Türkçe * .


Date and time

This menu allows you to set the date and time,
the format of the date and the format of the time
(refer to the "Audio and Telematics" section or
to the specific user guide given to you with the
other owner's documents).


Display

This menu allows you to set the brightness of
the screen, the screen colour scheme and the
colour of the map (day/night or auto mode).

*
According to country.


Vehicle

This menu allows you to activate or deactivate
cer tain driving and comfor t equipment:


- wiper linked with reverse gear (refer to the
"Visibility" section),

- guide-me-home lighting and duration (refer
to the "Visibility" section),

- parking sensors (refer to the "Driving"
section).



Units

This menu allows you to select the units:
temperature (°C or °F) and fuel consumption
(km/l, l/100 or mpg).


System

This menu allows you to restore the factory
configuration, display the software version and
activate scrolling text.
For safety reasons, configuration of the
multifunction screen by the driver must
only be done when stationary.

009

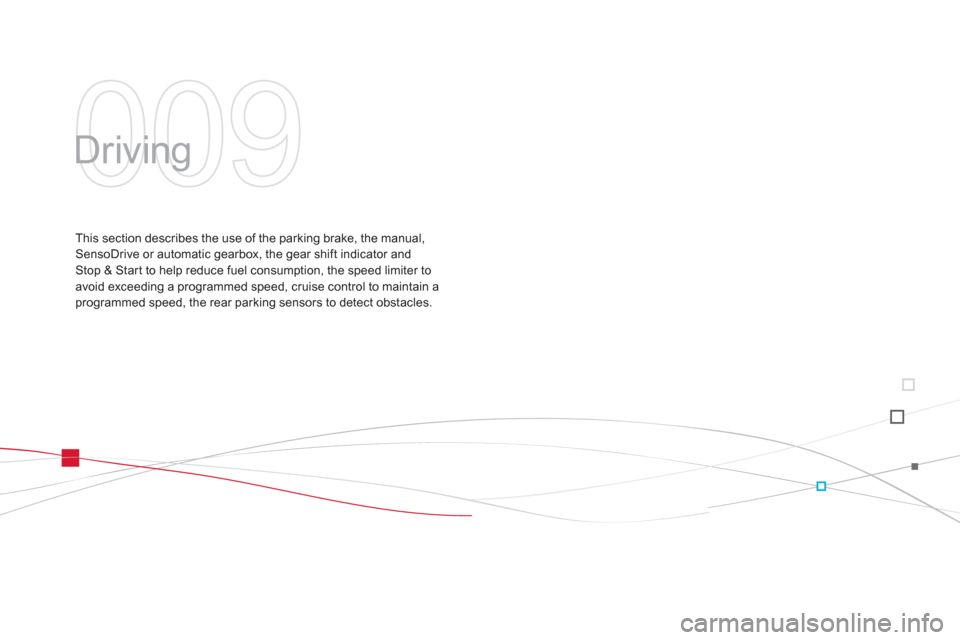

Driving


This section describes the use of the parking brake, the manual,
SensoDrive or automatic gearbox, the gear shift indicator and
Stop & Start to help reduce fuel consumption, the speed limiter to
avoid exceeding a programmed speed, cruise control to maintain a
programmed speed, the rear parking sensors to detect obstacles.

173Driving

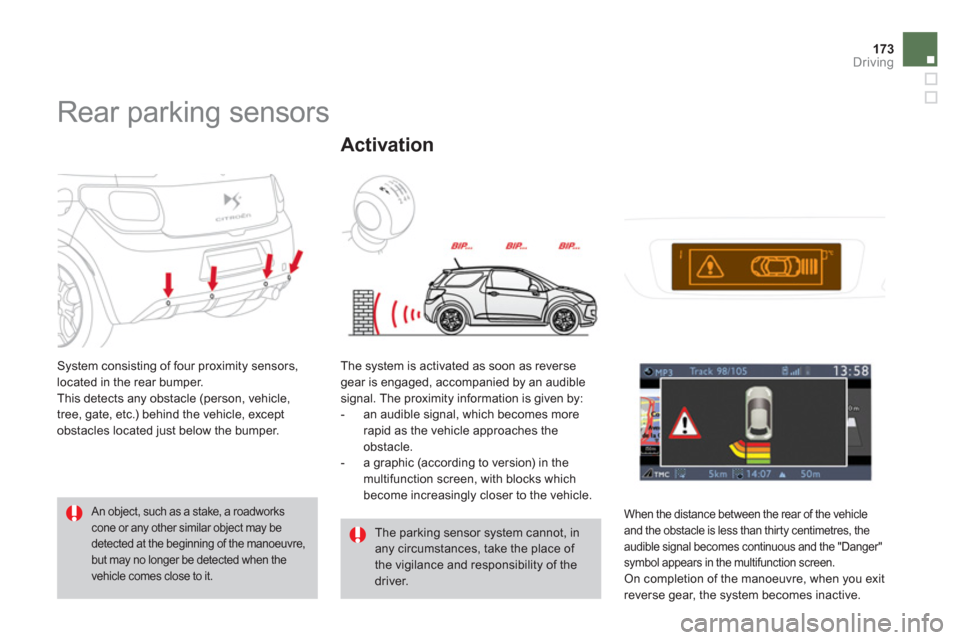

Rear parking sensors

System consisting of four proximity sensors,
located in the rear bumper.
This detects any obstacle (person, vehicle,
tree, gate, etc.) behind the vehicle, except
obstacles located just below the bumper.
An object, such as a stake, a roadworks
cone or any other similar object may be
detected at the beginning of the manoeuvre,
but may no longer be detected when the
vehicle comes close to it.

The parking sensor system cannot, in
any circumstances, take the place of
the vigilance and responsibility of the
driver. The system is activated as soon as reverse
gear is engaged, accompanied by an audible
signal. The proximity information is given by:


- an audible signal, which becomes more
rapid as the vehicle approaches the
obstacle.

- a graphic (according to version) in the
multifunction screen, with blocks which
become increasingly closer to the vehicle.


Activation
When the distance between the rear of the vehicle
and the obstacle is less than thirty centimetres, the
audible signal becomes continuous and the "Danger"
symbol appears in the multifunction screen.
On completion of the manoeuvre, when you exit
reverse gear, the system becomes inactive.

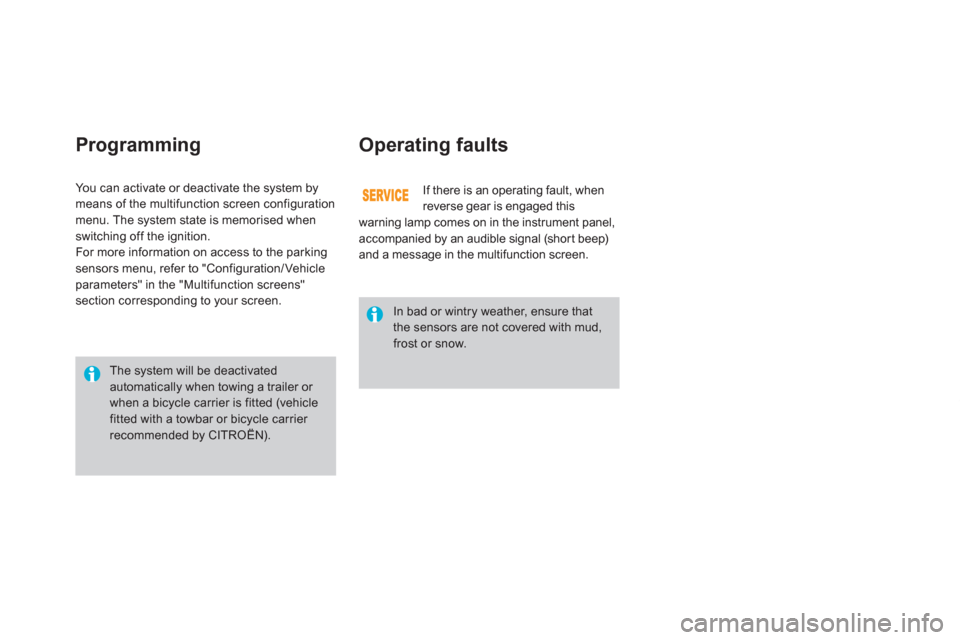

Programming
Operating faults

If there is an operating fault, when
reverse gear is engaged this
warning lamp comes on in the instrument panel,
accompanied by an audible signal (shor t beep)
and a message in the multifunction screen. You can activate or deactivate the system by
means of the multifunction screen configuration
menu. The system state is memorised when
switching off the ignition.
For more information on access to the parking
sensors menu, refer to "Configuration/ Vehicle
parameters" in the "Multifunction screens"
section corresponding to your screen.
The system will be deactivated
automatically when towing a trailer or
when a bicycle carrier is fitted (vehicle
fitted with a towbar or bicycle carrier
recommended by CITROËN). In bad or wintry weather, ensure that
the sensors are not covered with mud,
frost or snow.

Fuse N°



Rating


Functions



F8



20 A

Multifunction screen, audio system, navigation radio, alarm
control unit, alarm siren.


F9



30 A

12 V socket, portable navigation support supply.


F10



15 A

Steering mounted controls.


F11



15 A

Ignition, diagnostic socket, automatic gearbox control unit.


F12



15 A

Rain/sunshine sensor, trailer relay unit.


F13



5 A

Main stop switch, engine relay unit.


F14



15 A

Parking sensors control unit, airbag control unit, instrument
panel, digital air conditioning, USB Box, Hi-Fi amplifier.


F15



30 A

Locking.


F16



-

Not used.


F17



40 A

Rear screen and door mirrors demisting/defrosting.


SH



-

PA RC shunt .

The rear parking sensors will be
deactivated automatically if a genuine
CITROËN towbar is used.

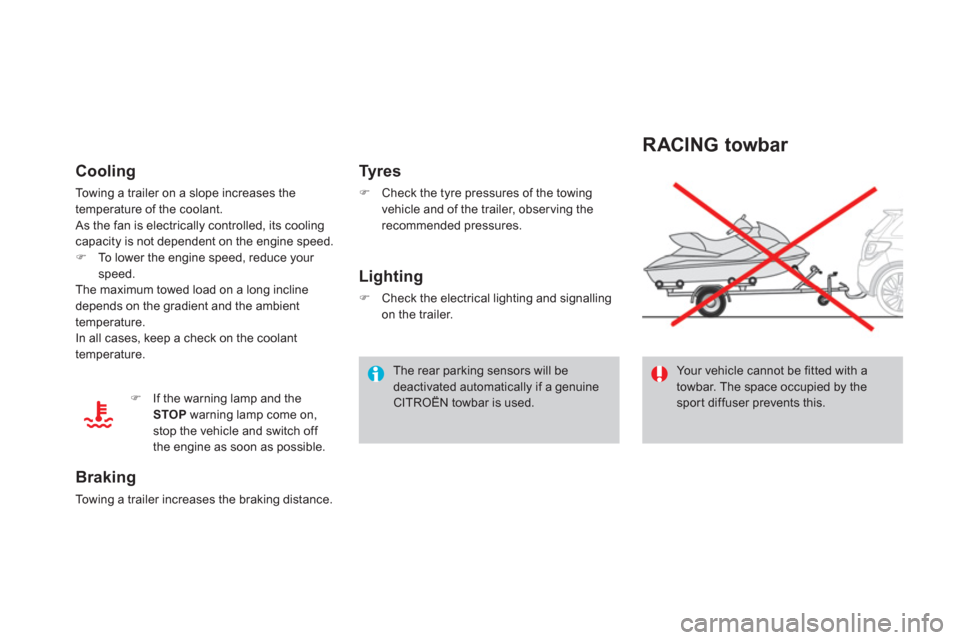

Cooling

Towing a trailer on a slope increases the
temperature of the coolant.
As the fan is electrically controlled, its cooling
capacity is not dependent on the engine speed.


)
To lower the engine speed, reduce your
speed.
The maximum towed load on a long incline
depends on the gradient and the ambient
temperature.
In all cases, keep a check on the coolant
temperature.

Braking

Towing a trailer increases the braking distance.


Ty r e s



)
Check the tyre pressures of the towing
vehicle and of the trailer, obser ving the
recommended pressures.



Lighting



)
Check the electrical lighting and signalling
on the trailer.


)
If the warning lamp and the
STOP
warning lamp come on,
stop the vehicle and switch off
the engine as soon as possible.



RACING towbar

Your vehicle cannot be fitted with a
towbar. The space occupied by the
spor t diffuser prevents this.
