Fittings








Mats Removable carpet protection.
When
fitting the mat for the first time, on the
driver's side use only the fixings provided in the
wallet attached.
The other mats are simply placed on the carpet.

Fitting Removal
To remove the mat on the driver's side: )
move the seat as far back as possible,
)
unclip the fixings,)
remove the mat.

Refitting
To refit the mat on the driver's side: )
position the mat correctly,)
refit the fixings by pressing,)
check that the mat is secured correctly.


To avoid any risk of jamming of the pedals:


- only use mats which are suitedto the fixings already present in the vehicle; these fixings must beused,

- never fit one mat on top of another.
The use of mats not approved byCITROËN may inter fere with access tothe pedals and hinder the operation of the cruise control/speed limiter.

1.Rear parcel shelf(see the following page for details) 2.Retaining strap3.Location for Hi- Fi amplifier
4.Stowing rings5.Storage box (version equipped with a
temporary puncture repair kit)(see the following page for details) or
Tool box (version equipped with a spare
wheel)(refer to section "Practical
Information - § Changing a wheel")











Boot fi ttings

Fittings

To remove the shelf: )unhook the two cords, )raise the shelf slightly, then unclip it on each side.







Rear parcel shelf
)
Raise the boot carpet by pulling the strap
upwards to gain access to the storage box.
This has areas for storing a temporary puncture
repair kit, a box of spare bulbs, a first aid kit,
two warnin
g triangles, ...





Storage box
)
Refit the boot floor carpet by folding itslightly in the middle.

007
Child safety
This section describes all of the possibilities for the installation of a childseat and the precautions to take to ensure optimum safety, the various recommended child seats, the ISOFIX mountings and the approved
ISOFIX child seat.

General points relating to child seats
Although one of CITROËN's main criteria when designing your vehicle, the safety of your childrenalso depends on you.
CITROËN recommends
that childrenshould travel in the rear seats
of your vehicle: -"rearwards-facing"
up to the age of 2, -"forwards-facing"
over the age of 2. For maximum safet
y, please obser ve the
following recommendations:
- in accordance with European regulations,all children under the age of 12 or less
than one and a half metres tall must
trave
l in approved child seats suited to
their weight , on seats fitted with a seat
belt or ISOFIX mountings * ,
- statistically, the safest seats in your
vehicle for carrying children are the rear seats,-a child weighing less than 9 kg must
travel in the "rearwards-facing" position both in the front and in the rear.
*

The rules for carrying children are specific to each country. Refer to the current legislation
in
your country.

Child safety
Child seat in the front


"Rearwards-facing"

When a "rear wards-facing" child seat is
installed on the front passenger seat , it
is essential that the passenger airbag is
deactivated. Otherwise, the child wouldrisk being seriously injured or killed if the airbag were to inflate.
"Forwards-facing"
When a "for wards-facing" child seat is installedon the front passenger seat, adjust the
vehicle's seat to the intermediate longitudinalposition with the seat back upright and leave
the passenger airbag activated.

Intermediate longitudinal position

Passenger airbag OFF

Refer to the advice given on the label present
on both sides of the passenger's sun visor.


To assure the safety of your child, you must deactivate the passenger's front airbag whenyou install a child seat in the rear wards facing position on the front passenger's seat. Other wise, there is a risk that the child could be seriously injured or killed if the airbag weredeployed.

137
Child safety

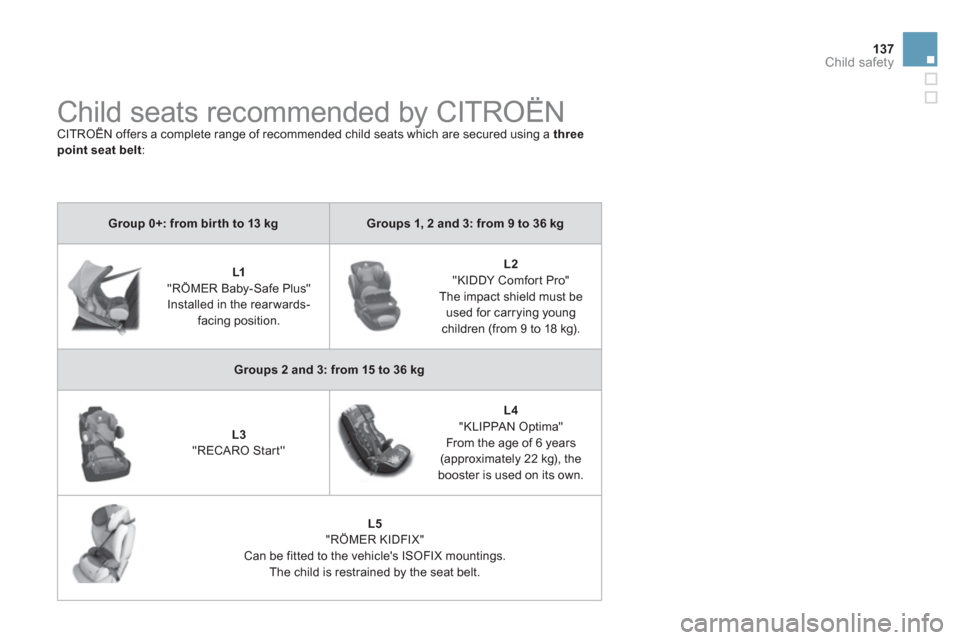

Child seats recommended by CITROËN
CITROËN offers a complete range of recommended child seats which are secured using a ythree point seat belt:
Group 0+: from bir th to 13 kgGroups 1, 2 and 3: from 9 to 36 kg




L1"RÖMER Baby-Safe Plus" Installed in the rearwards-facing position.


L2
"KIDDY Comfort Pro"
The impact shield must be
used for carr
ying young children (from 9 to 18 kg).
Groups 2 and 3: from 15 to 36 kg


L3"RECARO Start''


L4"KLIPPAN Optima"
From the age of 6 years (approximately 22 kg), thebooster is used on its own.



L5
"R
ÖMER KIDFIX" Can be fitted to the vehicle's ISOFIX mountings.
The child is restrained by the seat belt.

Installing child seats attached with the seat belt In accordance with European regulations, this table indicates the options for installing child seats secured using a seat belt and universally approved (a)in accordance with the weight of the child and the seat in the vehicle.
Weight of the child and indicative age
SeatUnder 13 kg(groups 0 (b)
and 0+)
Up to approx. 1 year
From 9 to 18 kg(group 1)1 to 3 years approx.
From 15 to 25 kg(group 2)3 to 6 years approx.
From 22 to 36 kg(group 3)
6 to 10 years approx.
Front passenger seat
(c)



- fixed

- adjustable for heightUU(R)UU(R)UU(R)UU(R)
Outer rear seatsUUUU
Centre rear seat UUUU
(a)
Universal child seat: child seat that can be installed in all vehicles using a seat belt.(b)
Group 0: from bir th to 10 kg. Shells seats and baby carriers cannot be installed in the front passenger seat. (c) Consult the legislation in force in your country before installing your child on this seat.U:Seat suitable for the installation of a child seat secured using a seat belt and universally approved, "rear wards-facing" and/or "for wards-facing".U(R):
as for U, with the vehicle seat adjusted to its highest position and in the fully back position.
