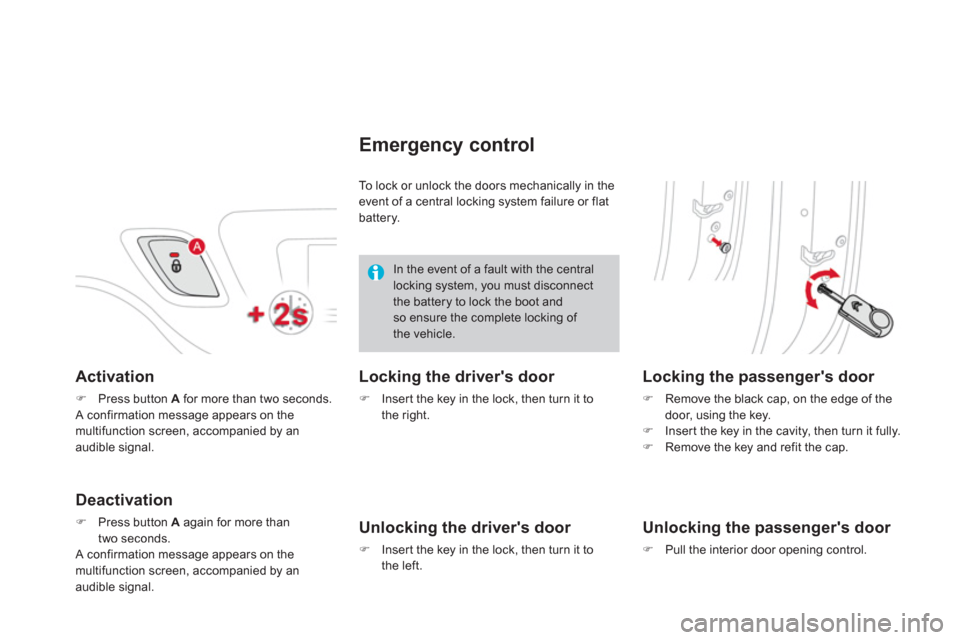

Activation
)Press button Afor more than two seconds.
A confirmation message appears on themultifunction screen, accompanied by an audible signal.
Deactivation
)Press button Aagain for more than
two seconds.
A confirmation message appears on themultifunction screen, accompanied by an
audible signal.
To lock or unlock the doors mechanically in the
event of a central locking system failure or flatbattery.
Emergency control


Locking the driver's door
)
Inser t the key in the lock, then turn it to
the right.



Unlocking the driver's door
)
Inser t the key in the lock, then turn it to
the left.



Locking the passenger's door
)Remove the black cap, on the edge of the
door, using the key. )Inser t the key in the cavity, then turn it fully. )Remove the key and refit the cap.



Unlocking the passenger's door
)Pull the interior door opening control.
In the event of a fault with the central locking system, you must disconnectthe battery to lock the boot and so ensure the complete locking of the vehicle.

101Access











Boot


Opening
)After unlocking the vehicle using theremote control or the key, pull the handleand raise the tailgate.
Closing
)
Lower the tailgate using the interior grab
handle.
If the tail
gate is not closed correctly:
-when the engine is running ,
this warning lamp comes on,
accompanied by a messageon the multifunction screen for a few seconds,
-when the vehicle is moving (speed above6 mph (10 km/h)), this warning lamp comes
on, accompanied by an audible signal and
a message on the multifunction screen for a few seconds.
System for mechanical unlocking of the boot
in the event of a battery or central locking
malfunction.
Tailgate release
Unlocking
)
Fold back the rear benchseat to gainaccess to the lock from inside the boot.)
Insert a small screwdriver into hole Aof thelock to unlock the tailgate.

113Visibility





LED lamps
Daytime external lighting using specific front lamps providing a signature of the vehicle. Comprising
two sets of six light emitting diodes (LEDs), they are located in the ver tical scoops below each
headlamp.

On star ting the vehicle, in daylight the LED
lamps come on automatically, if the lighting
stalk is in position "0"or "AUTO".
If the sidelamps and headlamps are switched
on manually or automatically, the LED lampsswitch off.
For countries where exterior lighting by day is not a legal requirement, you can activate or deactivate the function via the multifunction
screen configuration menu.





Headlamp
adjustment
To avoid causing a nuisance to other road
users, the height of the headlamps should be
adjusted in relation to the load in the vehicle.
0.Driver only or driver + front passenger. -.Intermediate setting 1. 5 people. -. 5 people + load in the boot.2. Driver only + maximum authorised load in
the boot.
This position is sufficient to avoid causing dazzle.

Higher settings may limit the spread of lightfrom the headlamps.

The initial setting is position "0"
.
Programming
In countries where it is a legalrequirement:- this function is activated by default and cannot be deactivated,- in daylight, the sidelamps and number plate lamps also come on, - If the sidelamps or headlampsare switched on manually or automatically, the LED lamps switch off.For versions not fitted with LED lamps, it is the dipped beam headlamps thatcome on automatically on star ting the vehicle.

119Visibility








Interior mood lighting The dimmed passenger compartment lighting improves visibility in the vehicle when the light is poor.


Switching on
At night, the illumination of footwells and thecentral dashboard storage compar tment comes
on automatically when the sidelamps areswitched on.
Switching off
The interior mood lighting switches off automatically when the sidelamps areswitched off.
It can be switched off manually using the instrument panel lighting rheostat button. ) With the lighting on, press several times on
the left hand button of the instrument panel
to progressively reduce the dashboard lighting level. ) Press again to reduce the lighting level
to the minimum and switch off the interior
mood lighting.

This comes on automatically when the boot is opened and switches off automatically when
the boot is closed.




Boot lamp
The lighting time varies according tothe circumstances:


- when the ignition is off, approximately ten minutes,

- in energy economy mode,approximately thirty seconds,

- when the engine is running, no limit.

006
Fittings
The section describes the various interior fittings, the glove box,
the central armrest for storage, the Jack socket or USB por t for connecting a por table player, the mats for protecting the carpet, as well as the various boot fittings.

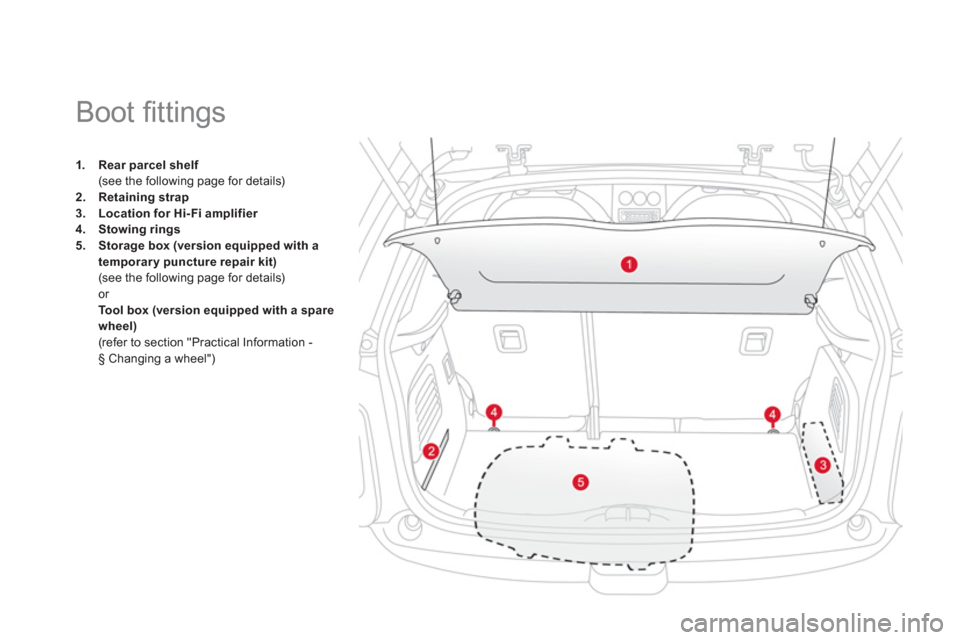

1.Rear parcel shelf(see the following page for details) 2.Retaining strap3.Location for Hi- Fi amplifier
4.Stowing rings5.Storage box (version equipped with a
temporary puncture repair kit)(see the following page for details) or
Tool box (version equipped with a spare
wheel)(refer to section "Practical Information - § Changing a wheel")











Boot fi ttings

Fittings

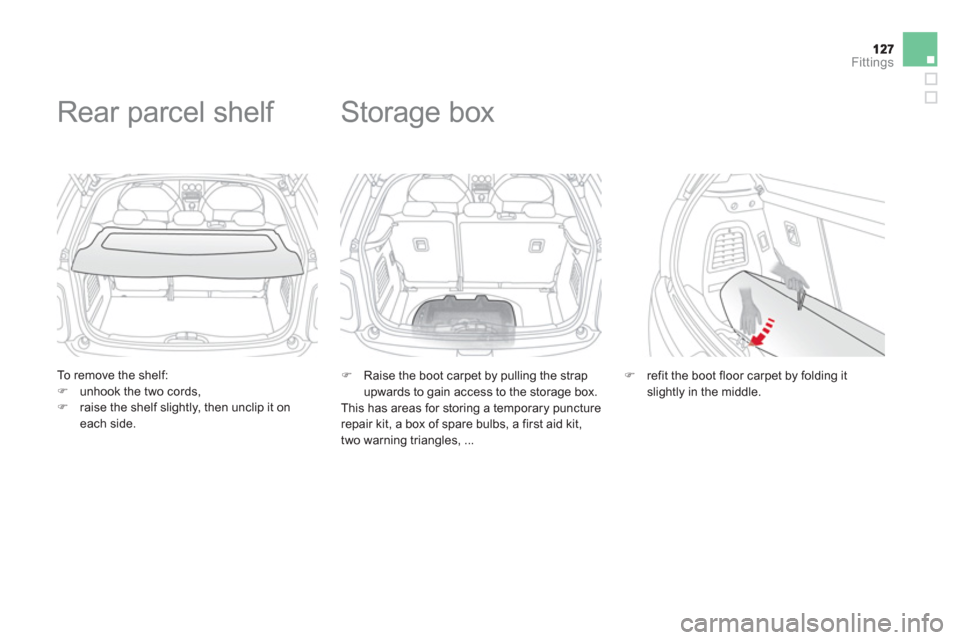

To remove the shelf: )unhook the two cords, )raise the shelf slightly, then unclip it on each side.







Rear parcel shelf
)
Raise the boot carpet by pulling the strap
upwards to gain access to the storage box.
This has areas for storing a temporary puncture
repair kit, a box of spare bulbs, a first aid kit,
two warnin
g triangles, ...





Storage box
)
refit the boot floor carpet by folding itslightly in the middle.

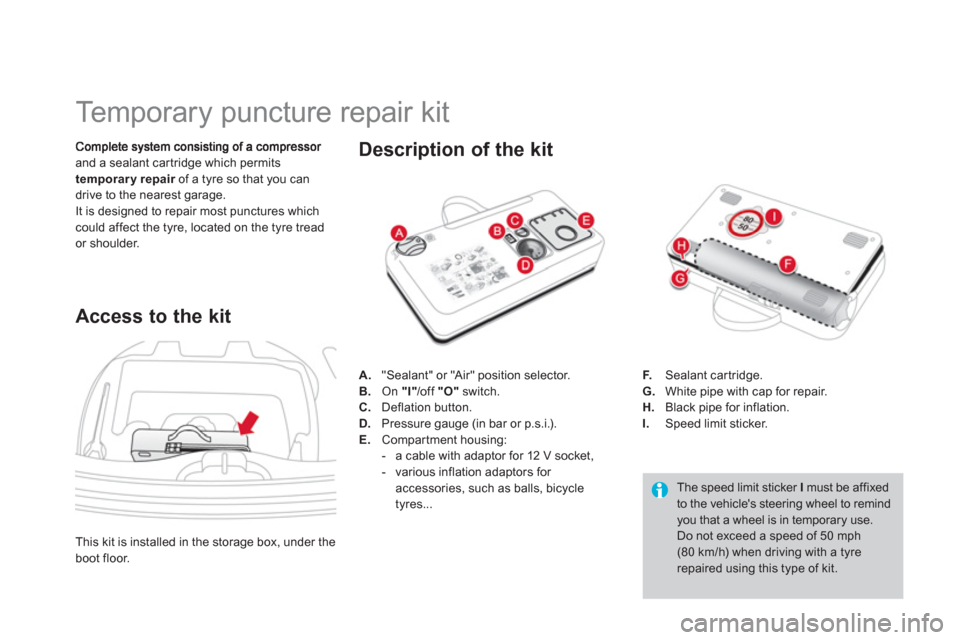

Temporary puncture repair kit
and a sealant car tridge which permits
temporary repair of a tyre so that you can rdrive to the nearest garage.
It is designed to repair most punctures which
could affect the tyre, located on the tyre tread or shoulder.

Access to the kit


The speed limit sticker I
must be affixedto the vehicle's steering wheel to remindyou that a wheel is in temporary use.
Do not exceed a speed of 50 mph (80 km/h) when driving with a tyre repaired using this type of kit.
Description of the kit
A.
"Sealant" or "Air" position selector.
B. On "I"/off "O"
switch. C.
Deflation button. D.Pressure gauge (in bar or p.s.i.).
E.Compartment housing:


- a cable with adaptor for 12 V socket,

- various in
flation adaptors for
accessories, such as balls, bicycle
tyres...F
.Sealant cartridge.G. White pipe with cap for repair.
H. Black pipe for inflation.I.
Speed limit sticker.
This kit is installed in the storage box, under the
boot floor.

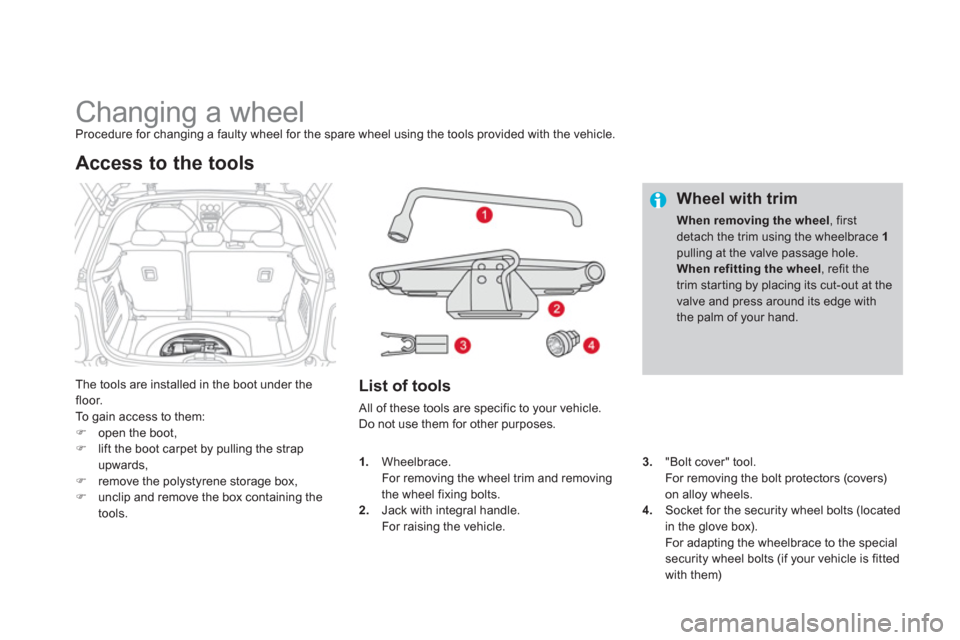

Changing a wheel Procedure for changing a faulty wheel for the spare wheel using the tools provided with the vehicle.
The tools are installed in the boot under the floor.
To gain access to them: )open the boot, )lift the boot carpet by pulling the strap upwards, )remove the polystyrene storage box,)unclip and remove the box containing the
tools.
Access to the tools

List of tools

All of these tools are specific to your vehicle. Do not use them for other purposes.

Wheel with trim
When removing the wheel
, firstdetach the trim using the wheelbrace 1pulling at the valve passage hole. When refitting the wheel
, refit thetrim starting by placing its cut-out at the valve and press around its edge withthe palm of your hand.

3."Bolt cover" tool.
For removing the bolt protectors (covers)
on alloy wheels.4. Socket for the security wheel bolts (located
in the glove box).
For adapting the wheelbrace to the specialsecurity wheel bolts (if your vehicle is fitted
with them)
1
.Wheelbrace.
For removing the wheel trim and removing
the wheel fixing bolts.2. Jack with integral handle.
For raising the vehicle.

201Practical information

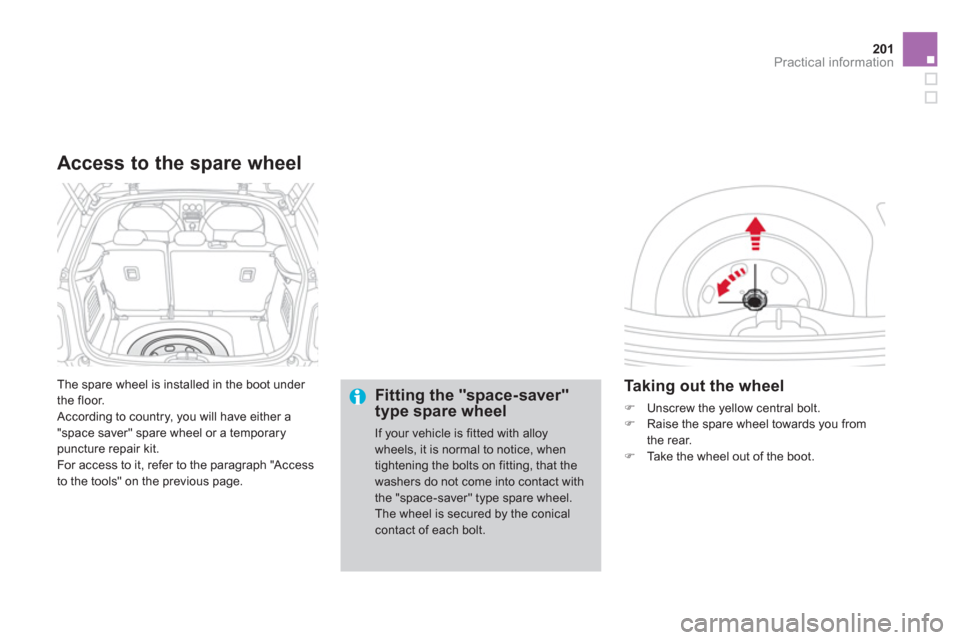

The spare wheel is installed in the boot under
the floor.
According to country, you will have either a
"space saver" spare wheel or a temporarypuncture repair kit.
For access to it, refer to the paragraph "Access
to the tools" on the previous page.
Access to the spare wheel
Fitting the "space-saver"type spare wheel
If your vehicle is fitted with alloywheels, it is normal to notice, whentightening the bolts on fitting, that the washers do not come into contact with the "space-saver" type spare wheel. The wheel is secured by the conical contact of each bolt.


Ta k i ng out the wheel
)
Unscrew the yellow central bolt. )
Raise the spare wheel towards you from
the rear. ) Take the wheel out of the boot.
