Page 7 of 332
CHECKS PRACTICAL
INFORMATIONTECHNICAL DATA AUDIO and
TELEMATICS
183 Bonnet
184 Running out of fuel (Diesel)
185 Petrol engines
186Diesel engines
187 Checking levels
190Checks
194 Temporary puncture repair kit
200 Changing a wheel
207 Changing a bulb
214Changing a fuse
221Battery
223Energy economy mode
224Changing a wiper blade
225 Towing the vehicle
227To w i ng a trailer
229Advice on care andmaintenance
230Accessories
234 Petrol engines
236Petrol weights
238LPG engines
239LPG weights
240Diesel engines
241Diesel weights
242 Dimensions
244Identifi cation markings
249Emergency or assistance
251MyWay
283 Audio system
012012013013010010011011
Page 12 of 332
Interior
Interior mood lighting
This subdued passenger compartment lightingimproves visibility inside the vehicle in low lighting conditions. It comprises several
lamps, located in the footwells and in the lower
dashboard storage compar tment.
Gear shift indicator
Associated with the manual gearbox, this system suggests when to change up to obtain
optimum fuel consumption.
Scented air freshener
The scented air freshener diffuses theselected fragrance throughout the passenger compartment from its location in the ventilation
system.
Digital air conditioning
After setting the desired level of comfor t, the system then automatically controls this level
according to the ambient conditions.
119
160
77
73
283
Audio and communication
systems
These systems benefit from the latest
technology: MP3 compatible Audio system,
Bluetooth system and USB Box, MyWay with
16/9 colour screen, auxiliary inputs, Hi-Fi audio system.MyWay
251
Audio system
Page 14 of 332

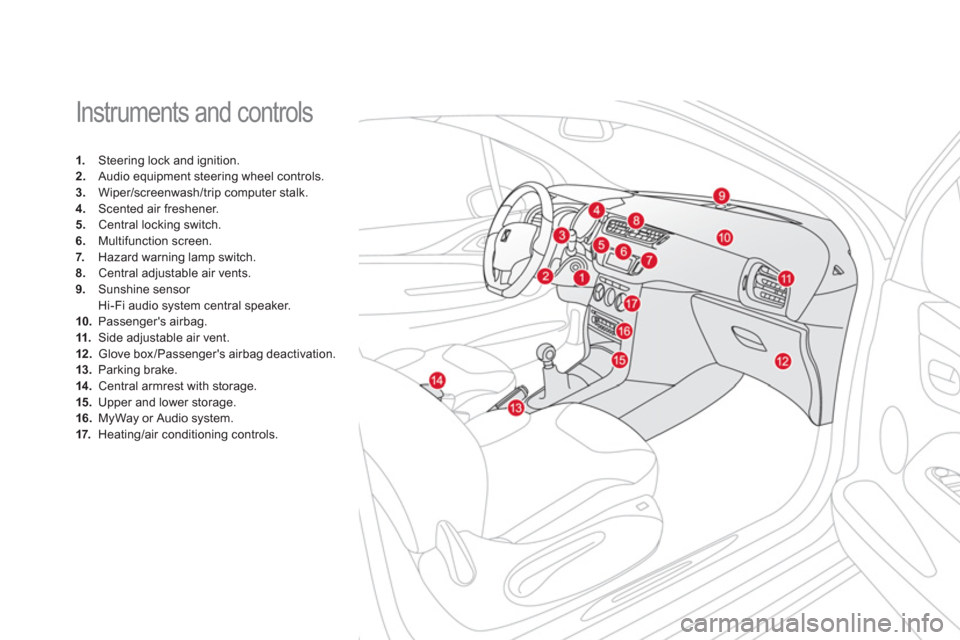

Instruments and controls
1.
Steering lock and ignition. 2.
Audio equipment steering wheel controls.3.
Wiper/screenwash/trip computer stalk.4.
Scented air freshener.5.
Central locking switch.
6.Multifunction screen.
7. Hazard warning lamp switch.8.Central adjustable air vents.9.
Sunshine sensor
Hi-Fi audio system central speaker. 10.Passenger's airbag. 11.
Side adjustable air vent. 12.Glove box/Passenger's airbag deactivation. 13.Parking brake.14.Central armrest with storage.15.
Upper and lower storage.16.
MyWay or Audio system. 17.Heating/air conditioning controls.
Page 56 of 332
Monochrome screen A
This displays the following information:
- time,
- date,
- ambient temperature
(this flashes if there isa risk of ice),
- status of the doors and boot,
- audio sources (radio, CD...),
- trip computer (refer to the "Instruments andControls" section).
Warning messages (e.g.: "Emission control
system faulty") or information messages(e.g.: "Boot open") may appear temporarily.
These can be cleared by pressing the "ESC"button.
Displays on the screen
From the control panel of your Audio system, you can: )
press the "MENU"
button to gain access to
the main menu,
)
press the " " or " " buttons to scroll
through the items on the screen, ) press the "MODE"button to change
the permanent application (date, audio source...), ) press the "
" or "
" buttons to change
a setting value, ) press the "OK"button to confirm,or )
press the "ESC"button to abandon
the operation in progress.
Controls
)Press the "MENU"
button to gain access
to the main menu
, then press the " " or " " buttons to scroll through the variousmenus:
- radio-CD,
- vehicle configuration,
- options,
- displa
y settings,
- languages,
-
units. )Press the "OK"button to select the menurequired.
Main menu
Page 57 of 332
55
Multifunction screens
Radio-CD
With the Audio system switched on, once the
"Radio-CD" menu has been selected you canactivate or deactivate the functions linked
with use of the radio (RDS, REG), or the CD(introscan, shuffle, CD repeat).
For more information on the "Radio- CD"
application, refer to the Audio s
ystem part of
the "Audio and Telematics" section.
Vehicle confi guration
Once the "Vehicle Configuration" menu has been selected, you can activate or deactivate
the following equipment:
- wiper linked with reverse gear (refer to the "Visibility" section),
- guide-me-home lighting (refer to the"Visibility" section),
- parking sensors (refer to the "Driving"section).
Options
Once the "Options" menu has been selected,you can star t diagnostics of the status of the equipment (active, not active, faulty).
Page 59 of 332
57
Multifunction screens
Monochrome screen C
This displays the following information:
- time,
- date,
- ambient temperature
(this flashes if there isa risk of ice),
- status of doors and boot,
- audio sources (radio, CD, USB por t, jacksocket etc.),
- trip computer (refer to the "Instruments andcontrols" section).
Warning messages
(E.g. "Emissions controlsystem faulty") or information messages(E.g.: Automatic headlamps active") may
appear temporarily. These can be cleared by pressing the "ESC"
button.
Displays on the screen
From your Audio system control panel, you can: )
press the "MENU"
button to gain access to
the main menu, )
press the "
" or " " buttons to scroll
through the items on the screen, ) press the "MODE"
button to change the
permanent application (trip computer, audiosource...), ) press the " " or " " buttons to change asetting value, )
press the "OK"button to confirm,or )
press the "ESC"button to abandon theoperation in progress.
Controls
)
Press the "MENU"
button to gain access to
the main menu:- audio functions,
- the trip computer,
- personalisation-configuration,
- telephone (hands-free kit). )
Press the "
" or "
" buttons to select themenu required, then confirm by pressing
the "OK"
button.
Main menu
Page 60 of 332
With the Audio system switched on, once this menu has been selected you can activate
or deactivate the functions linked with use
of the radio (RDS, REG, RadioText), the CD (introscan, shuffle, CD repeat) or the MP3 player (USB por t/jack socket).
For more information on the "Audio functions"application, refer to the Audio system part of
the "Audio and Telematics" section.
"Au d i o f u n c t i o n s"
menu"Tri
p computer" menu
Once this menu has been selected, you canconsult information concerning the status of the
vehicle
(warnings log, status of functions, etc.)
Alert log
This summarises the active warning messages,
displaying them in succession on the
m
ultifunction screen.
Status of functions
This summarises the status (active or inactive)of the vehicle's functions.
Enter distance to destination
This allows you to enter an approximate
distance until your final destination.
)Press the "MENU"
button to gain access to
the general menu.
)Press the arrows, then the "OK"
button to select the "Trip computer"
menu.
)In the "Trip computer"
menu, select one
of the following applications:
Page 62 of 332
Display confi guration
Once this menu has been selected, you can gain access to the following settings:
- brightness-video setting,
- date and time setting,
- selection of units.
Once the fuel consumption units havebeen changed to mpg, the information in the screen relating to speed and distance also changes to mph andmiles respectively.
For safety reasons, configuration by thedriver of the multifunction screen must only be done when stationary.
Choice of language
Once this menu has been selected, you canchange the language used by the display(Deutsch, English, Espanol, Français, Italiano,Nederlands, Portugues, Portugues-Brasil,Türkçe * ).
*
Accordin
g to country of destination. With Audio s
ystem on, once this menu is selected you can configure your Bluetooth
hands-free system (pairing), view the various
telephone directories (list of calls, ser vices...)and manage your calls (call, hang up, secondcall, secret mode...).
For more information on the "Telephone"
function, refer to the Audio s
ystem par t of the
"Audio and telematics" section.
"Telephone" Menu
Page 63 of 332
61Multifunction screens
16/9 colour screen (MyWay)
It displays the following information
automatically and directly:
- time,
- date,
- altitude,
- ambient temperature
(the value displayedflashes if there is a risk of ice),
- check of the doors,
- warning and vehicle function status messages, displayed temporarily,
- audio functions,
- trip computer information (see the
"Monitoring" section),
- satellite navigation system information.
Displays on the screen
MyWay To select one of the applications,at the control panel: )
press the dedicated "RADIO"
, "MUSIC","NAV"
, "TRAFFIC", "SETUP"or "PHONE"
button for access to thecorresponding menu, )
turn the dial to change the selection, )
press the dial to confirm the selection, or )
press the "ESC"button to abandon the
current operation and return to the previous
display.
Controls
For more information on these applications,
refer to the "Audio and Telematics" section or
to the specific user guide given to you with the other owner's documents.
